Resistant to Oltraviolet Rays UV Resistant Easy Clean Graphic Overlay
Product DescriptionMaterial:PET(polyester), PC(polycarbonate), PMMA(Acrylic),PVC/SiliconeColor:Any color upon Pantone color codeDimension/Shape:OEM serviceAdhesive:3M467, 3M468, 3M9448A etc. upon application and performance environmentSurface Texture:Glossy or mattCircuit:Silk screen printed conduct......
Send Inquiry
Product Description
Product Description
| Material: | PET(polyester), PC(polycarbonate), PMMA(Acrylic),PVC/Silicone |
| Color: | Any color upon Pantone color code |
| Dimension/Shape: | OEM service |
| Adhesive: | 3M467, 3M468, 3M9448A etc. upon application and performance environment |
| Surface Texture: | Glossy or matt |
| Circuit: | Silk screen printed conductive silver paste, carbon ink |
| Button: | Non-tactile(flat touch), Tactile( embossed polydome, metal dome) |
| Connector: | Female or male |
| Pin Picth: | 2.54, 1.27, 1.0mm |
| Life Time: | ≥1 million times |
| Application: | medical instruments, industrial machinery, health & fitness equipment, diagnostic detection, measurement instruments, household appliance, automotive product, laboratory, military, agricultural equipment and aerospace etc. |
| Features & Benefits | >Completely sealed surface - not easy to be invaded by dust, easily cleaned and sterilized >Low Profile - no crevices that can trap contaminants >A cost-effective alternative - less costly than rubber keypad assemblies and capacitive touch keypads >Thin profile - saves valuable space in your product design >Easy to interface with existing controllers - no special electronics required, as with touch screens >Versatile graphic interface - overlays can be screen or digitally printed with stunning, photo-quality graphic effects >Protection by design - Antibacterial, easier to protect from UV radiation than rubber keypads >Water-resistant designs - meets NEMA 4 and IP 67 specifications |
| Operating Voltage: | ≤50V(DC) |
| Operating Current: | ≤100mA |
| Contact Resistant: | 0.5~10Ω |
| Insulation Resistant: | ≥100MΩ(100V/DC) |
| Operating Temperature: | -20 ºC ~+70 ºC |
| Storage Temperature: | -40 ~+85 ºC |
| Storage Humidity: | ≤95%RH |

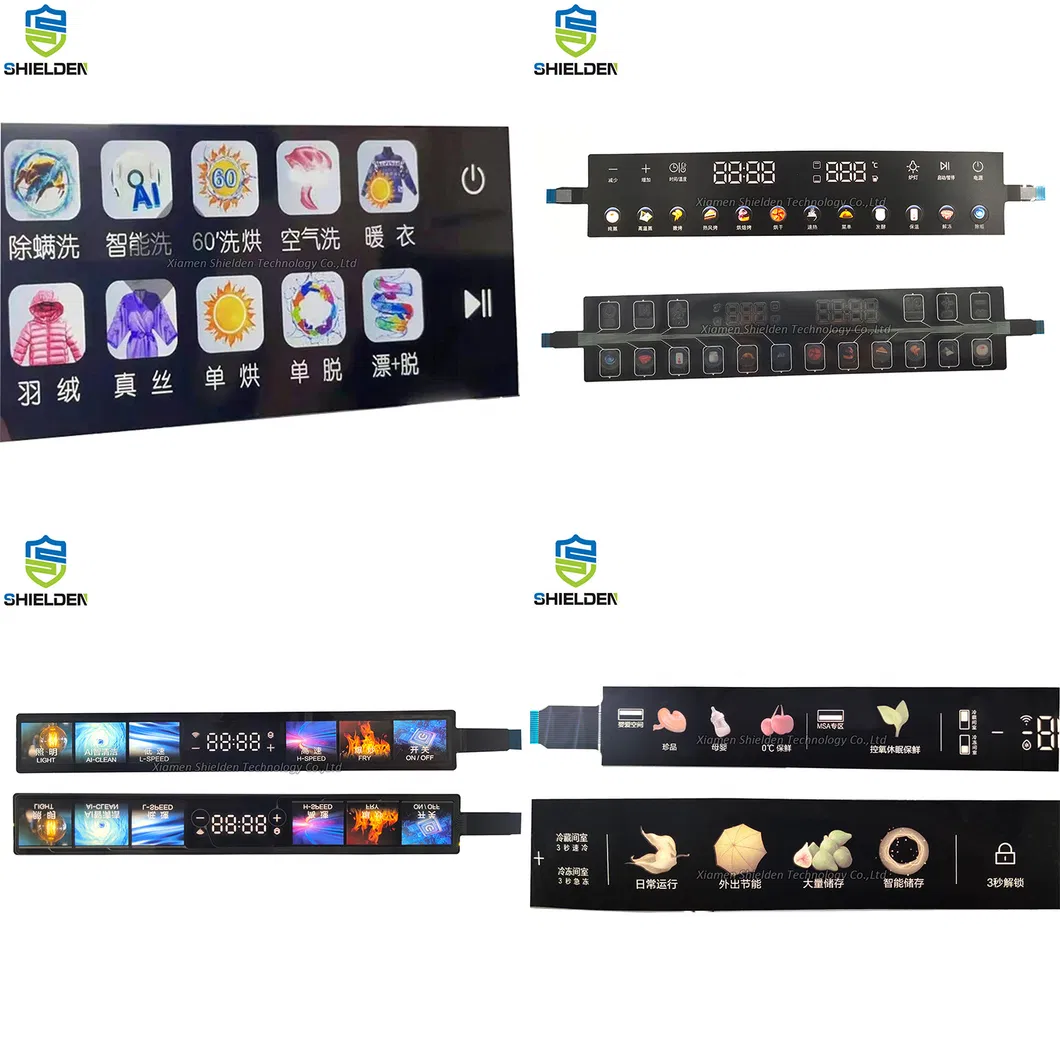

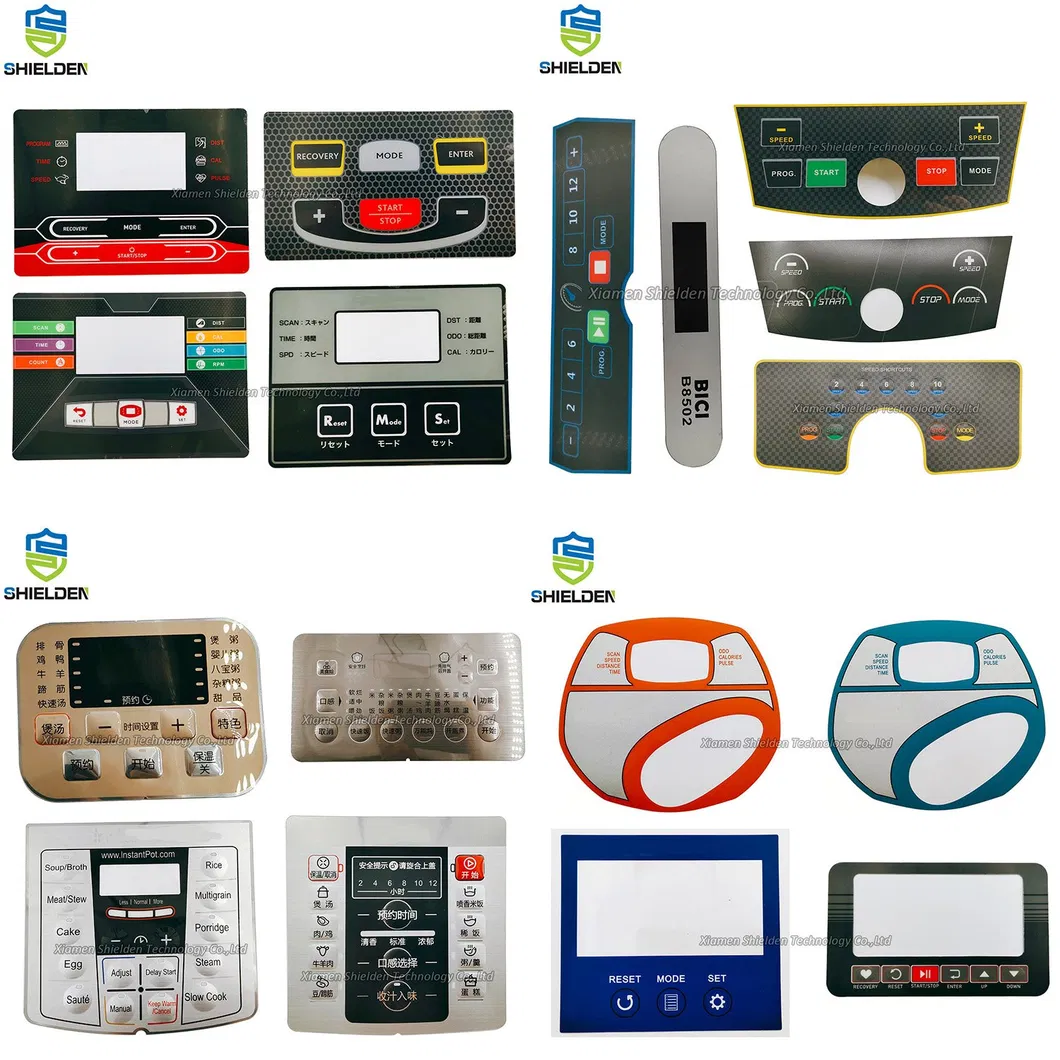

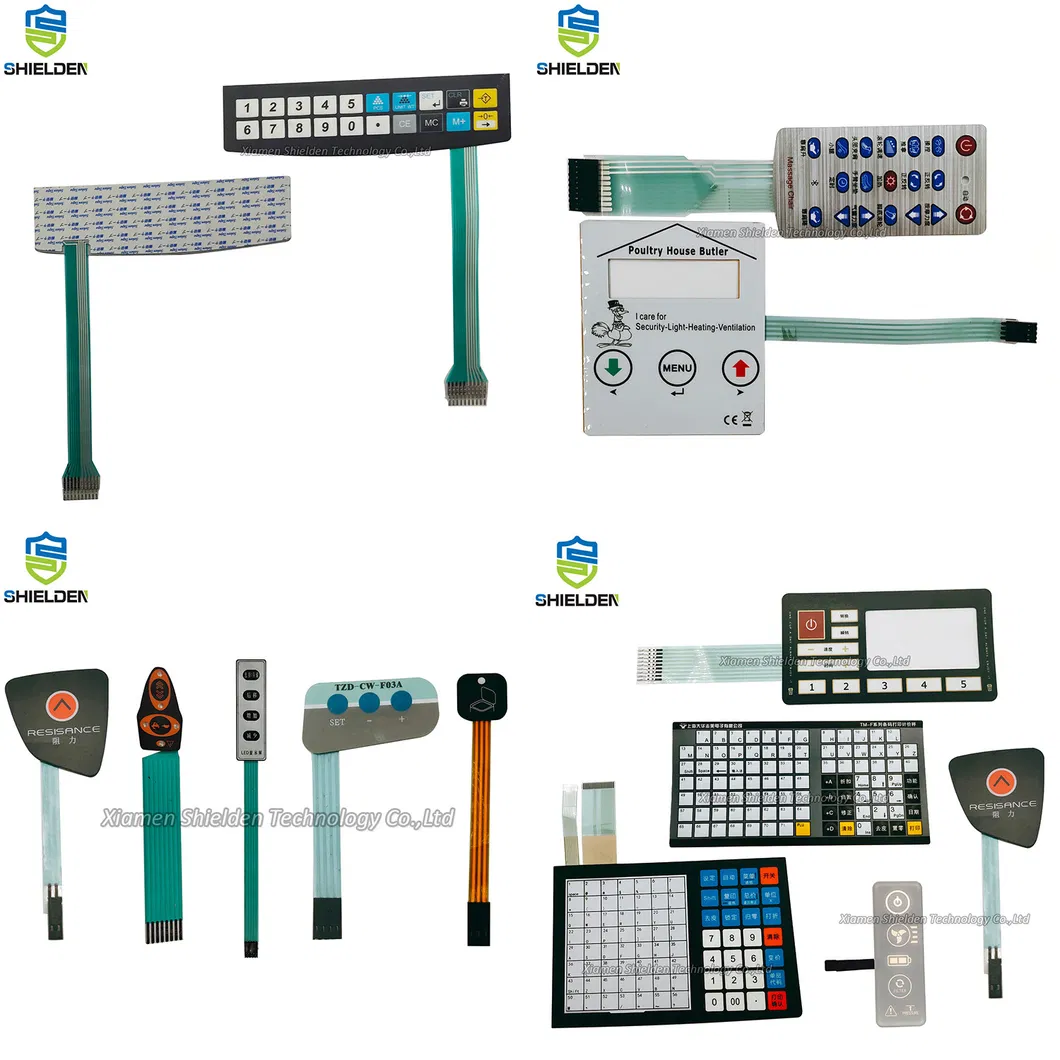

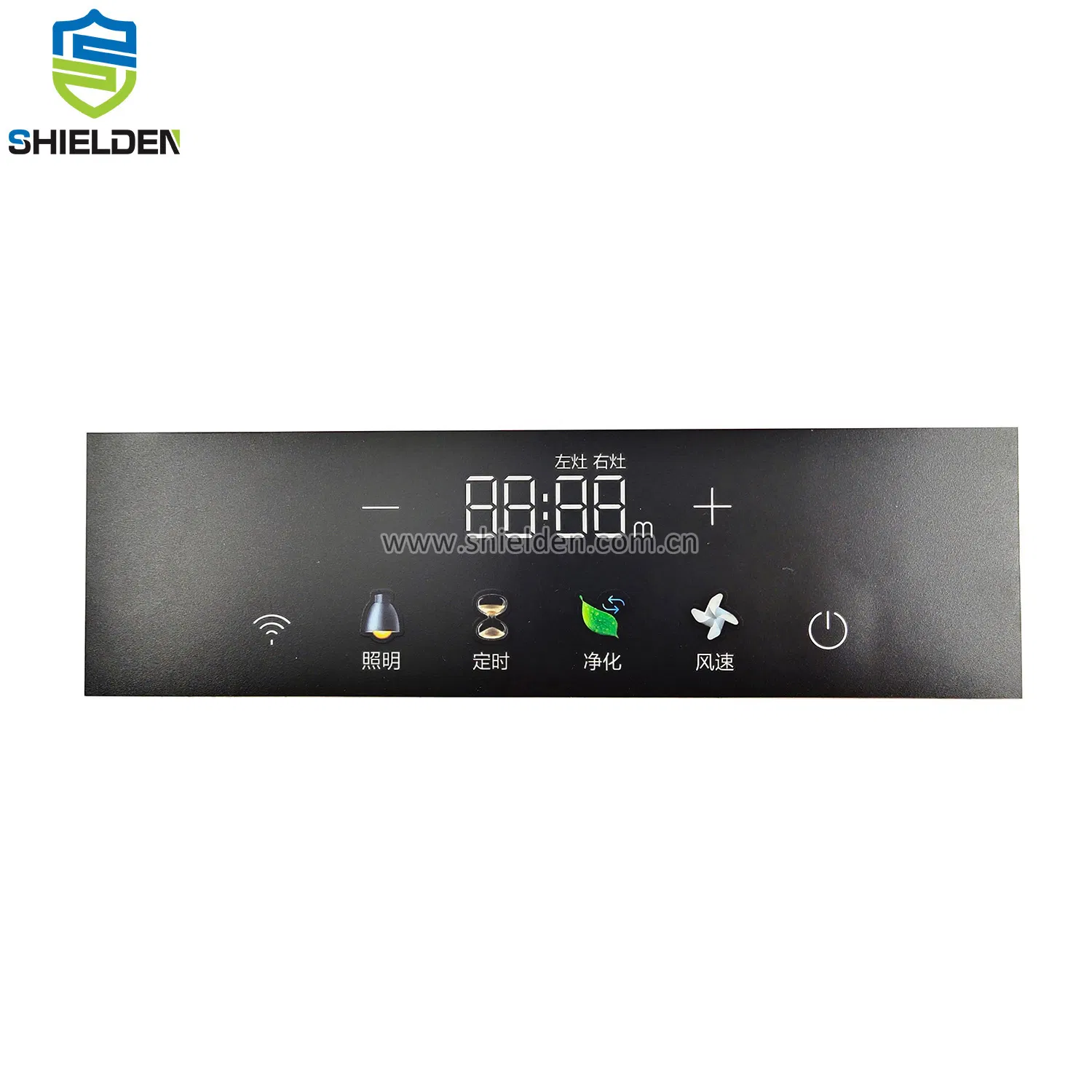

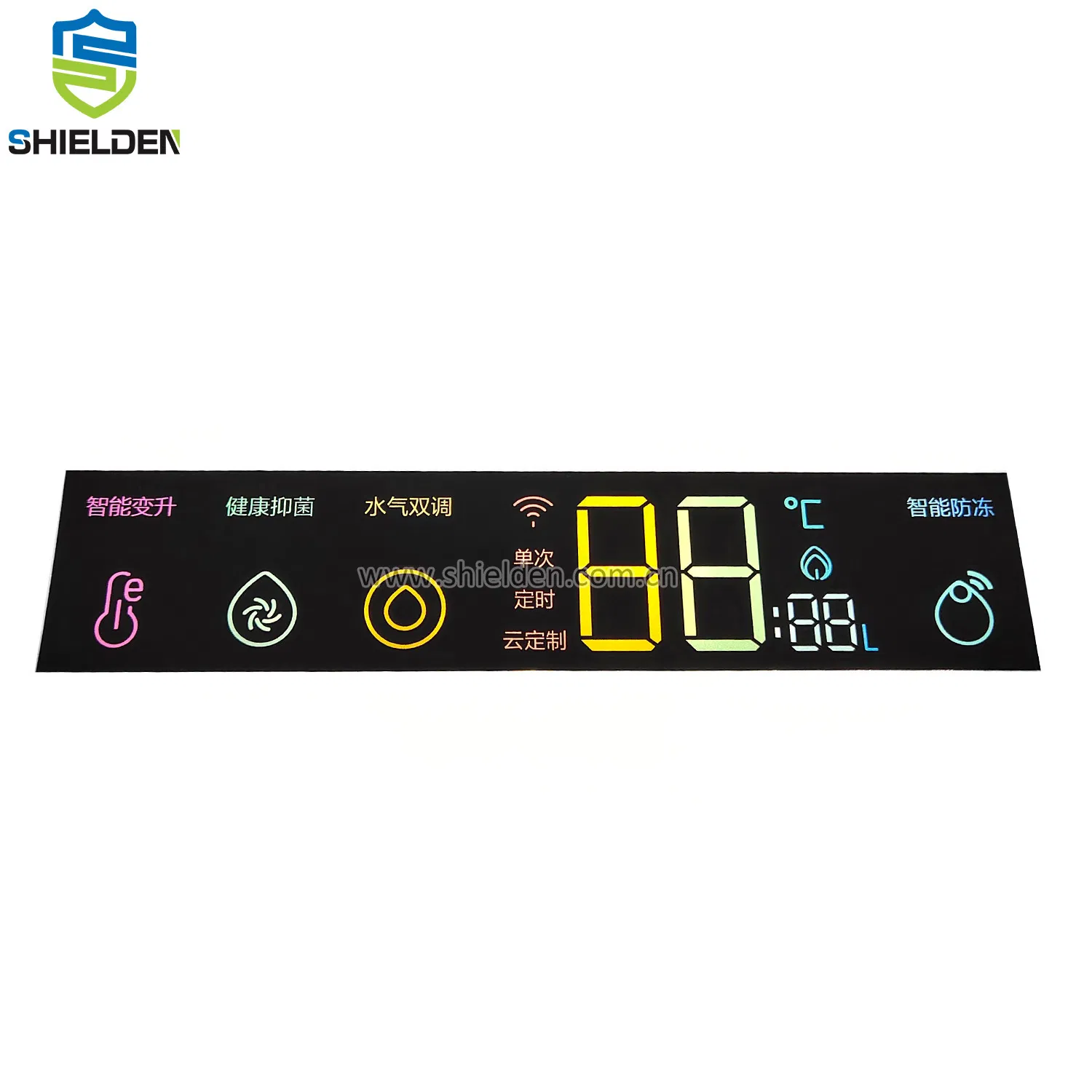

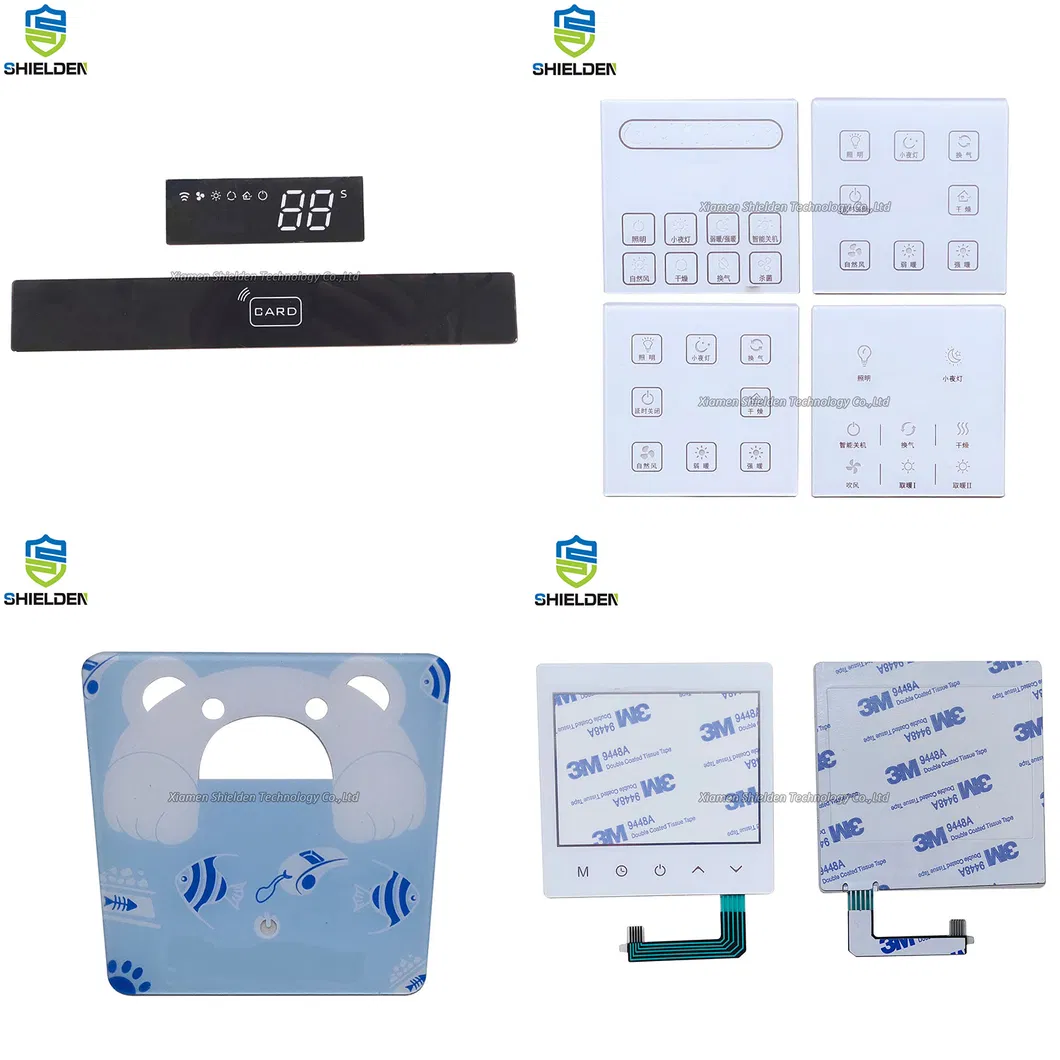

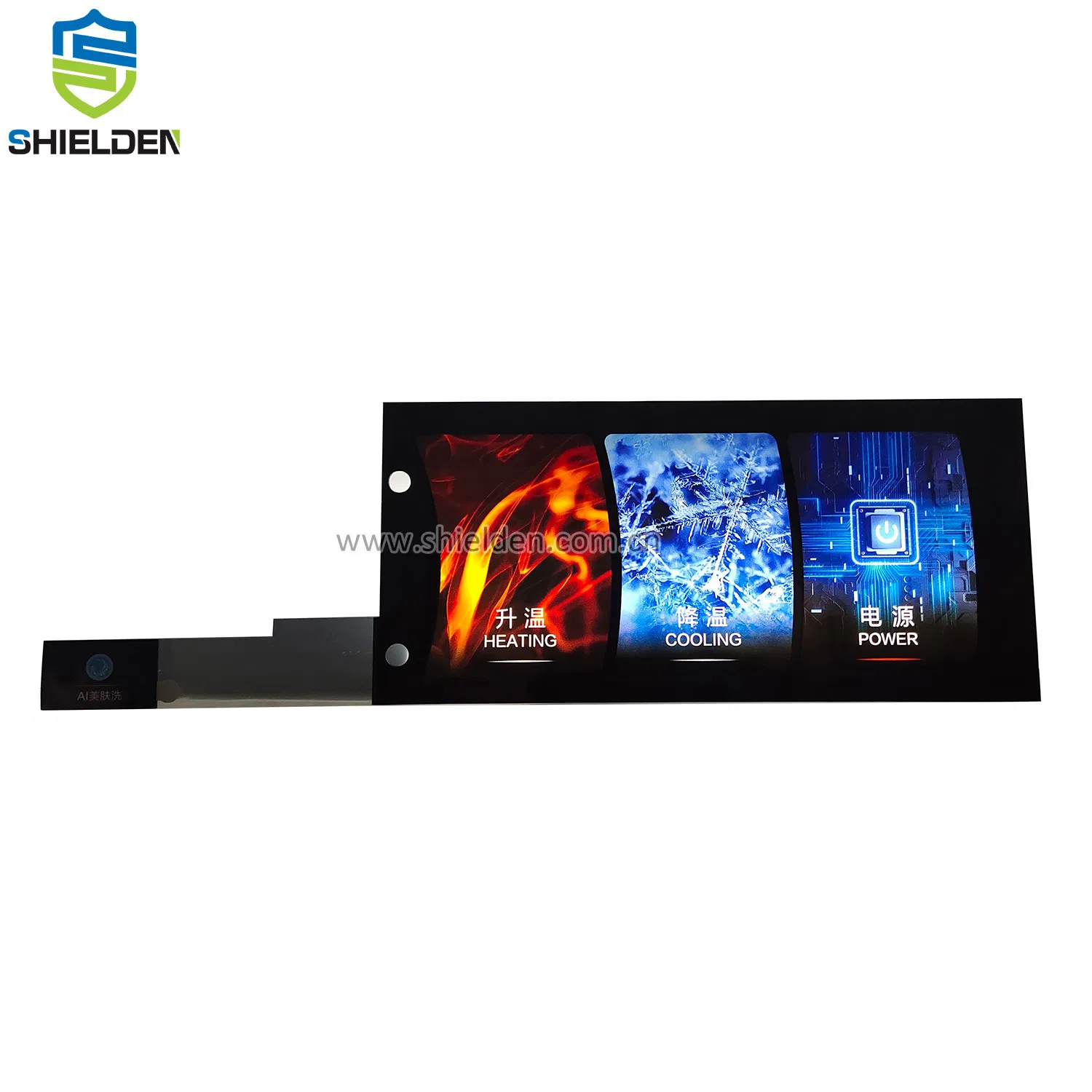

Product Photos

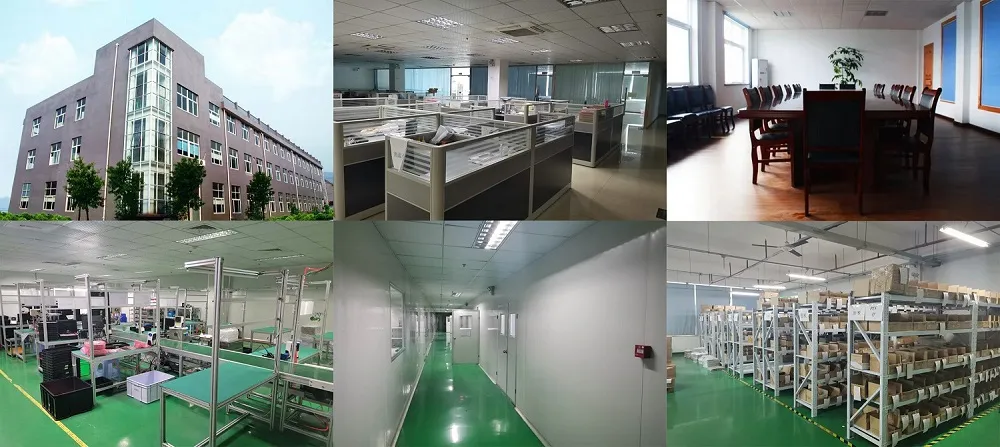

Workshop

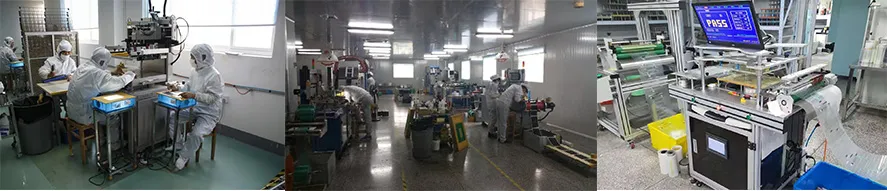

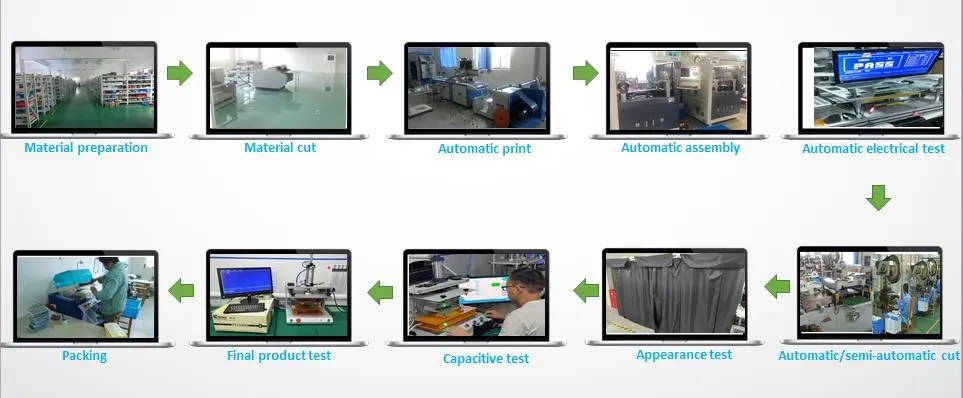

Production Process

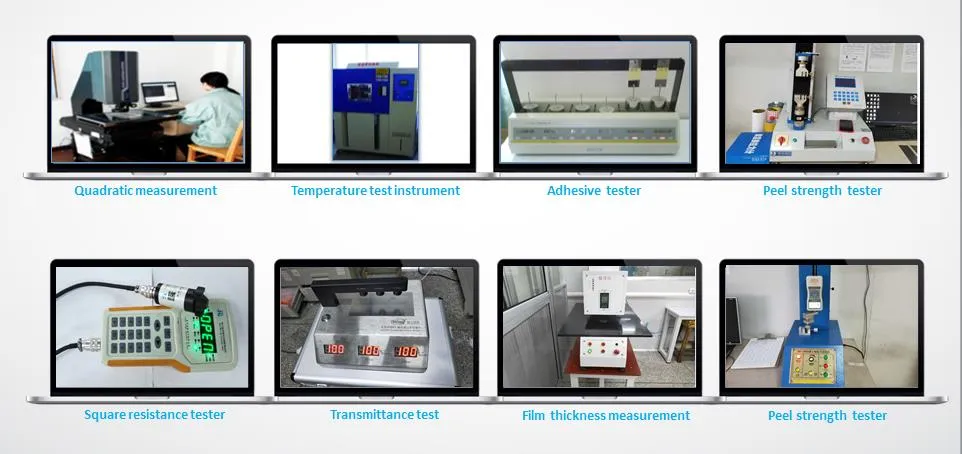

Test Facilities
Certificates & Honor
About Us
Xiamen Shielden Technology Co.,Ltd is a professional manufacturer specialized in designing and manufacturing membrane switch keypad, capacitive touch membrane switch, flexible circuit and graphic overlay etc., which is located in South East of China, the beautiful Xiamen City well known as "garden of the sea". We have engineers with more than 20 years of engineering experience know how to help our customers save money and improve their product's performance by recommending proper materials, smart design and processing improvements, with our rich experience, well management production procedure and strict quality control, we can offer you optimal tailor made membrane switch for your equipment upon your application and performance environment. We are flexible and customer-focused, we aim to help our clients get the best membrane switches for their projects.
Packaging & Shipping
FAQ
Q1. What is your production capacity?
Around 500Kpcs/month
Q2. What is the lead time for samples?
3~7 working days upon the drawing confirmed.
Q3. What is the leading time for mass production?
7~15 working days upon payment received and drawing confirmed.
Q4. What do I need to provide for making samples?
Design drawing, application environment, pantone color number, circuit drawing (if you do not have, our engineers can help to provide drawing solution for your reference)
Q5. Any set up fee will be charge for making samples?
Yes, set up fee will be reasonably charged for each new design, the amount depends on the size and complexity of product.
Q6. What is the life cycle of your products?
1,000,000+ times.
Q7. What is the minimum order quantity?
Normally 300pcs/batch, smaller quantity is available from initial statge or special cases as support.
Q8. How do you ship your products?
For small quantity recommend shipping express like DHL, TNT, FedEx, for large quantity by air or by sea are all available. We have closely cooperated forwarder agent for a better shipping rate.
Q9. Is your product certified?
Yes, our materials are compliant to ROHS, REACH etc. as per requirement.
Q10. How is your product packaged for shipment?
Polybag then in export standard carton box with EPE foam padding to safely protect products from damage caused by bumping transportation.
*************************************************************
Around 500Kpcs/month
Q2. What is the lead time for samples?
3~7 working days upon the drawing confirmed.
Q3. What is the leading time for mass production?
7~15 working days upon payment received and drawing confirmed.
Q4. What do I need to provide for making samples?
Design drawing, application environment, pantone color number, circuit drawing (if you do not have, our engineers can help to provide drawing solution for your reference)
Q5. Any set up fee will be charge for making samples?
Yes, set up fee will be reasonably charged for each new design, the amount depends on the size and complexity of product.
Q6. What is the life cycle of your products?
1,000,000+ times.
Q7. What is the minimum order quantity?
Normally 300pcs/batch, smaller quantity is available from initial statge or special cases as support.
Q8. How do you ship your products?
For small quantity recommend shipping express like DHL, TNT, FedEx, for large quantity by air or by sea are all available. We have closely cooperated forwarder agent for a better shipping rate.
Q9. Is your product certified?
Yes, our materials are compliant to ROHS, REACH etc. as per requirement.
Q10. How is your product packaged for shipment?
Polybag then in export standard carton box with EPE foam padding to safely protect products from damage caused by bumping transportation.
*************************************************************
Xiamen Shielden Technology Co., Ltd
Add No.2, 4th floor, Building 3, No. 687 Ji'an Road, Tong'an District, Xiamen 361100, Fujian, China
