Flat and Corrugated Metal Diaphragms for Pressure Switch
Flat and Corrugated metal diaphragms for pressure switchPrecision corrugated metal tantalum diaphragm seals membrane Corrugated diaphragm is a thin shell elastomer diaphragm elastic sensitive element for circular membrane. When the two sides of the diaphragm (or power) by the pressure of different r......
Send Inquiry
Product Description
Flat and Corrugated metal diaphragms for pressure switch
Precision corrugated metal tantalum diaphragm seals membrane Corrugated diaphragm is a thin shell elastomer diaphragm elastic sensitive element for circular membrane. When the two sides of the diaphragm (or power) by the pressure of different role, the diaphragm move to low pressure side of the strain, the center temperature and pressure difference into a certain relationship between the displacement..., because of its many parameters, and restraining each other, so that its design is very complex. In most of the displacement type instrument, corrugated diaphragm produce size and thickness of the diaphragm is at least the same order of magnitude of the elastic displacement.
Hot sale size metal diaphragm | |
Material | Size |
SS316L Titanium HC276 Tantalum | φ12.2.*0.02mm |
φ12.4.*0.02mm | |
φ12.4.*0.03mm | |
φ12.4.*0.05mm | |
φ18.4*0.02mm | |
φ18.4.*0.03mm | |
φ18.4*0.05mm | |
φ40.*0.05mm | |
φ55.*0.05mm | |
φ65*0.05mm | |
φ70*0.1mm | |
φ90*0.1mm | |
The surface of material can be plated or given the EP treatment.
Typical uses
Metal diaphragms are used basically as an external force detector element (converting external force into displacement or force) or an isolating layer (pressure conductor or partition to maintain a vacuum.)
These metal diaphragms are used singly or plurally after junction (welding, soldering, or adhesion) or packing sealing.

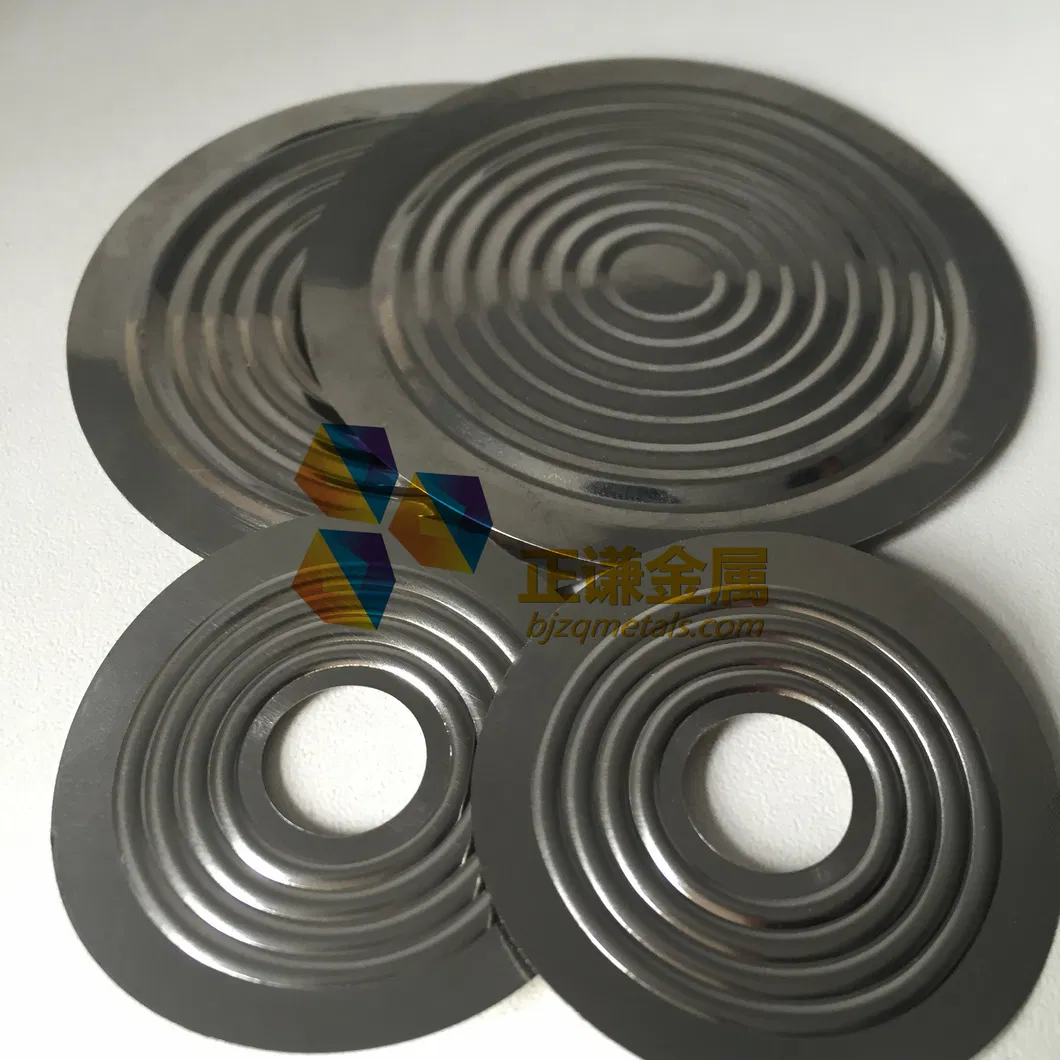

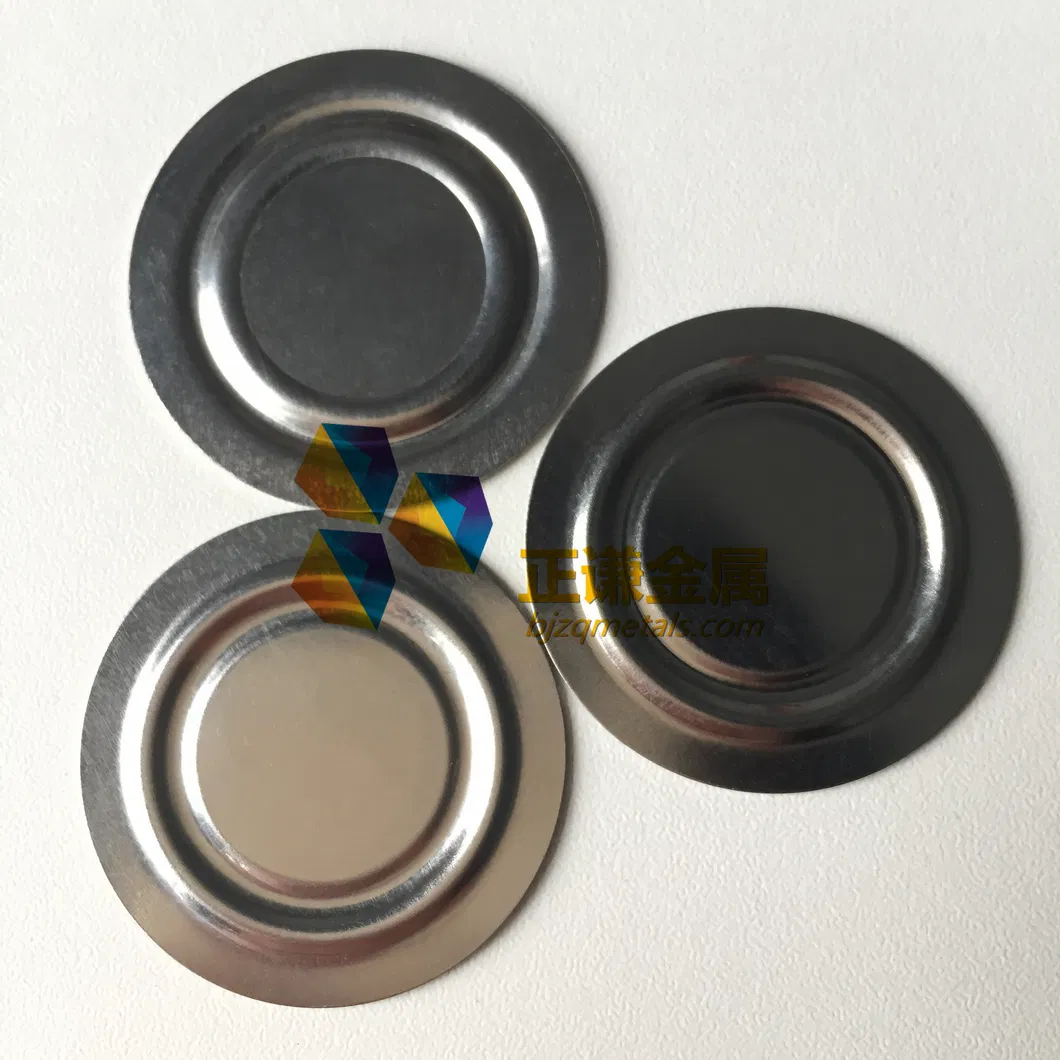

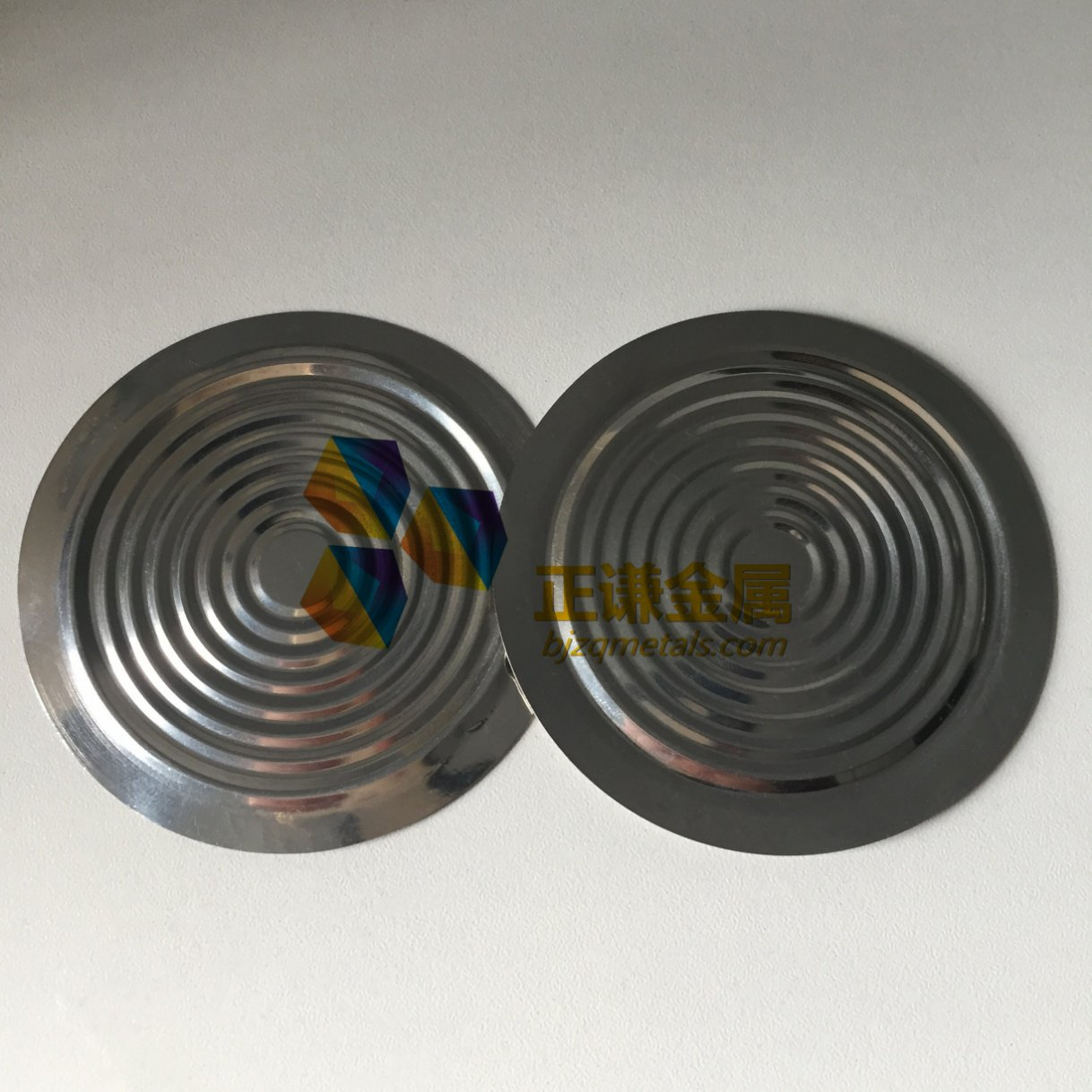

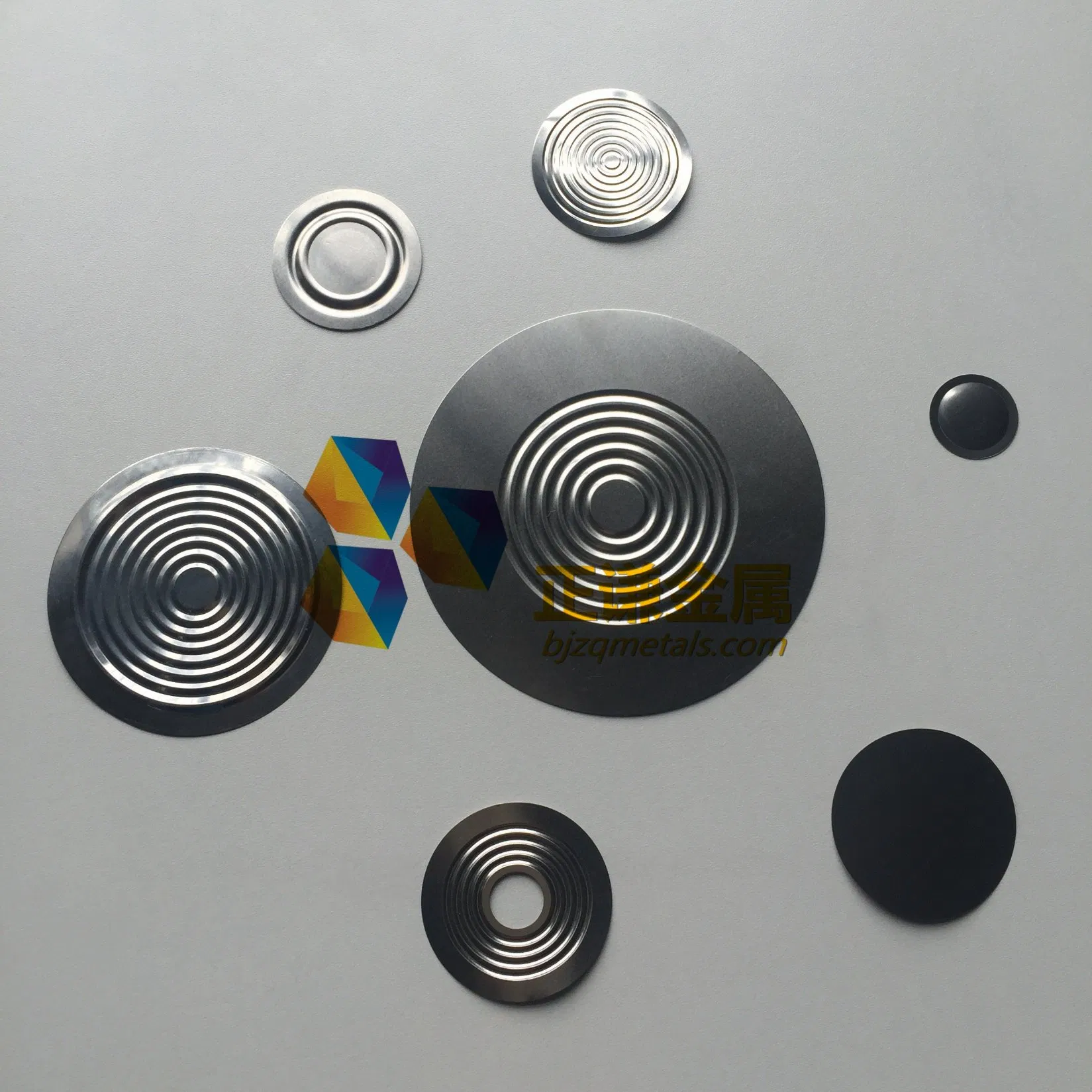

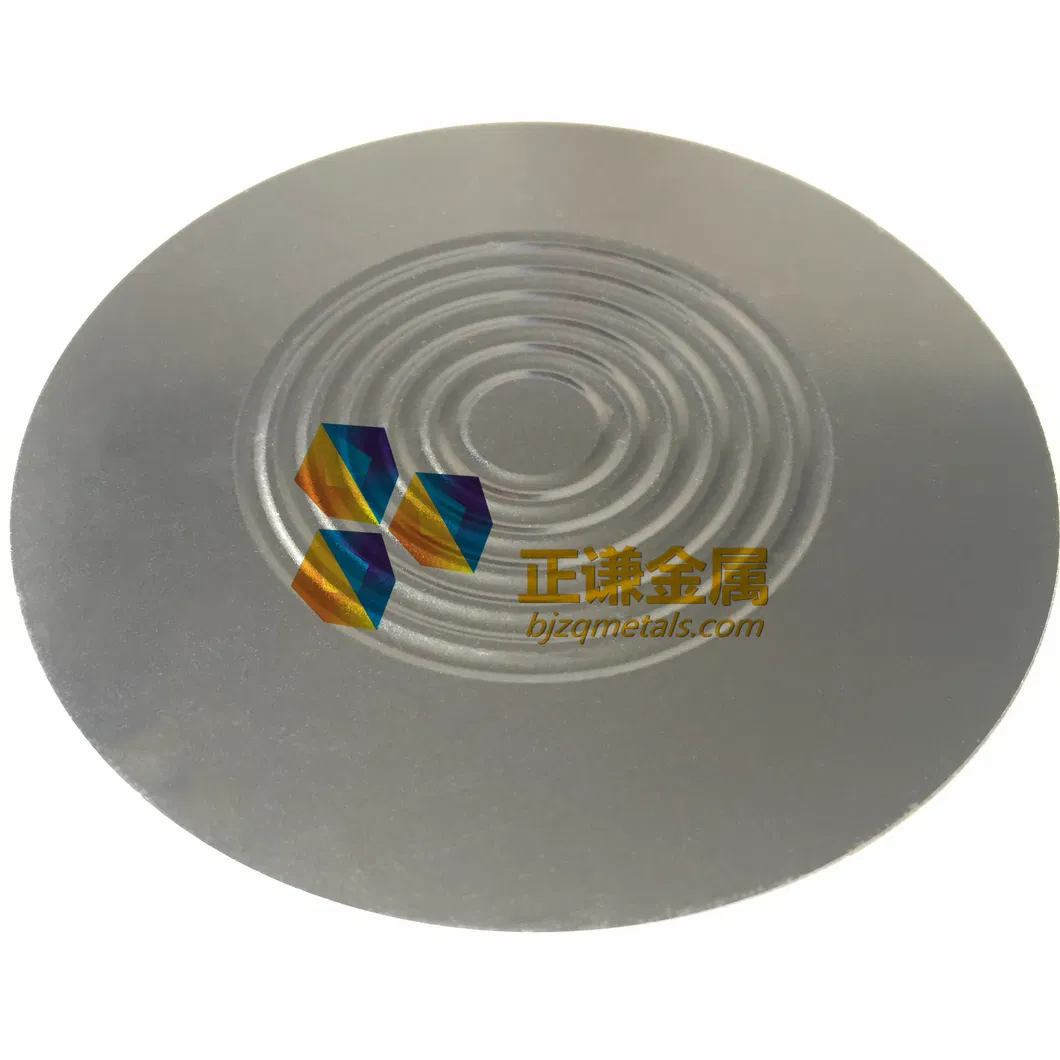

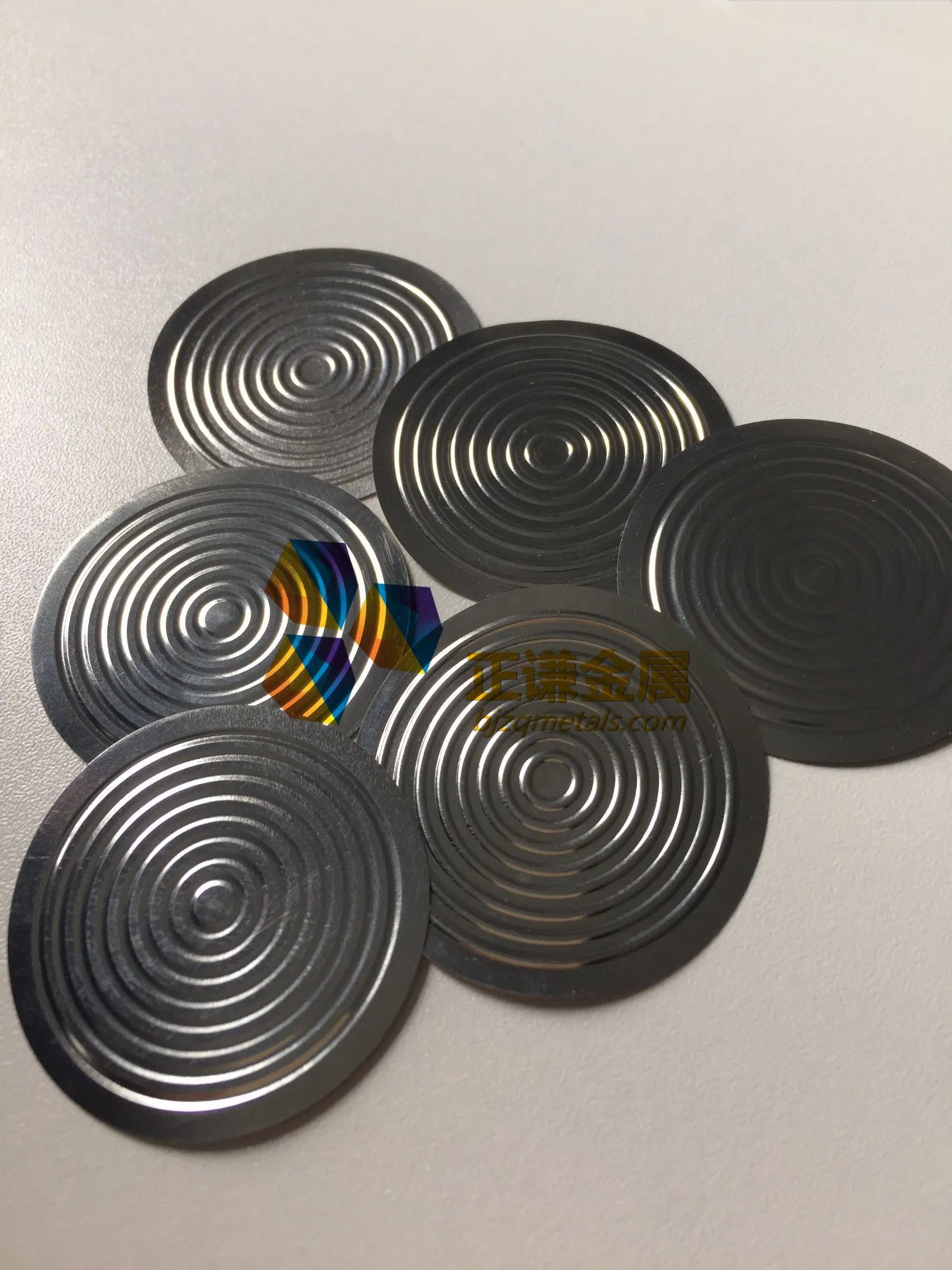

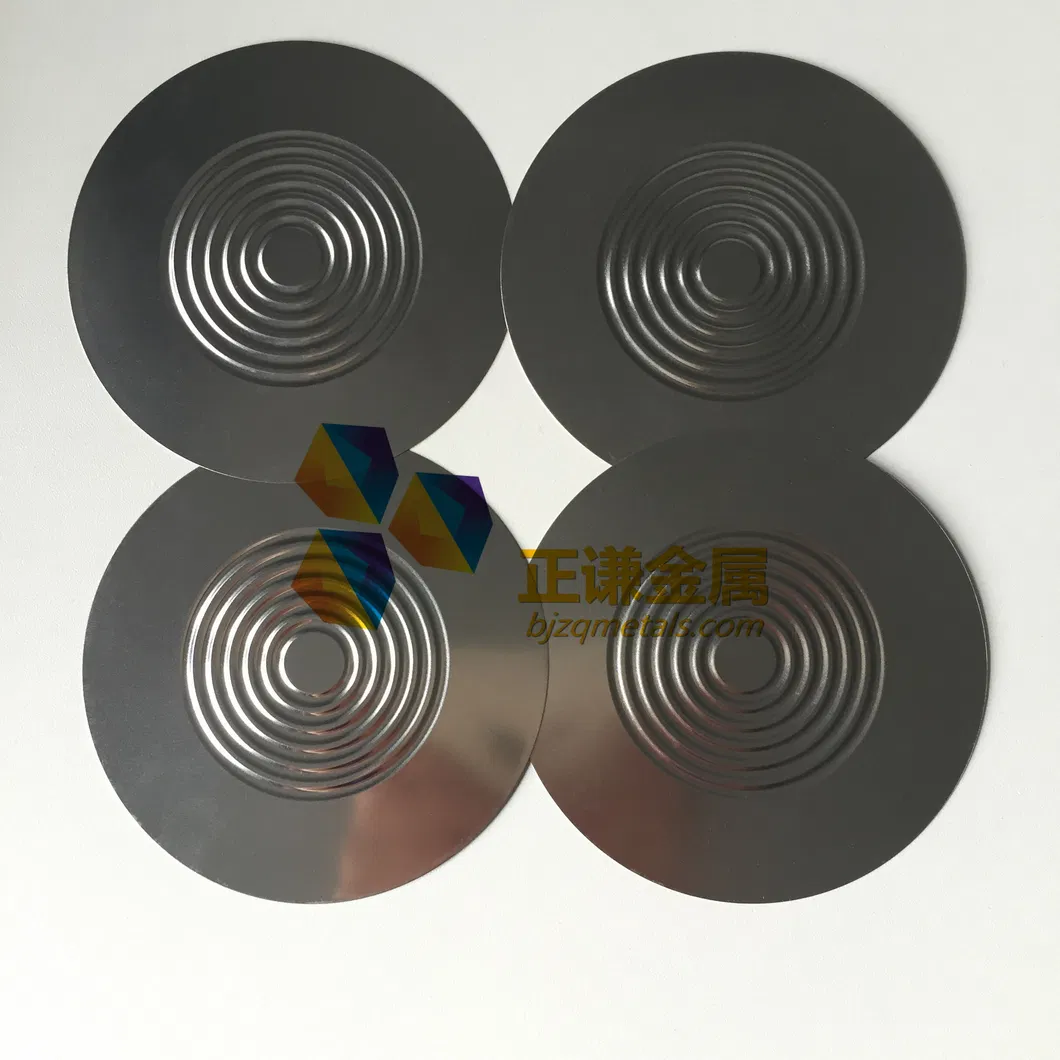

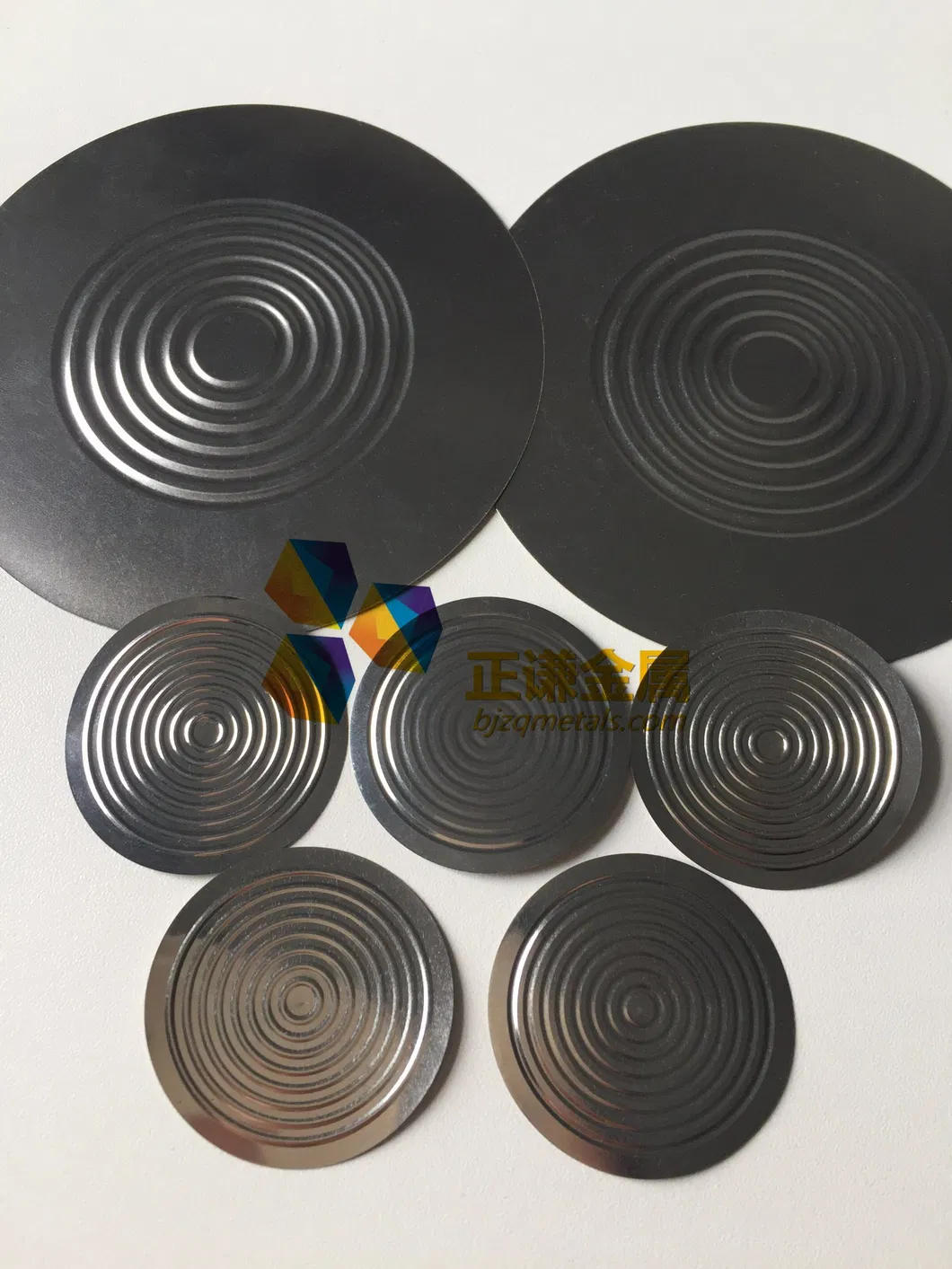

Product show

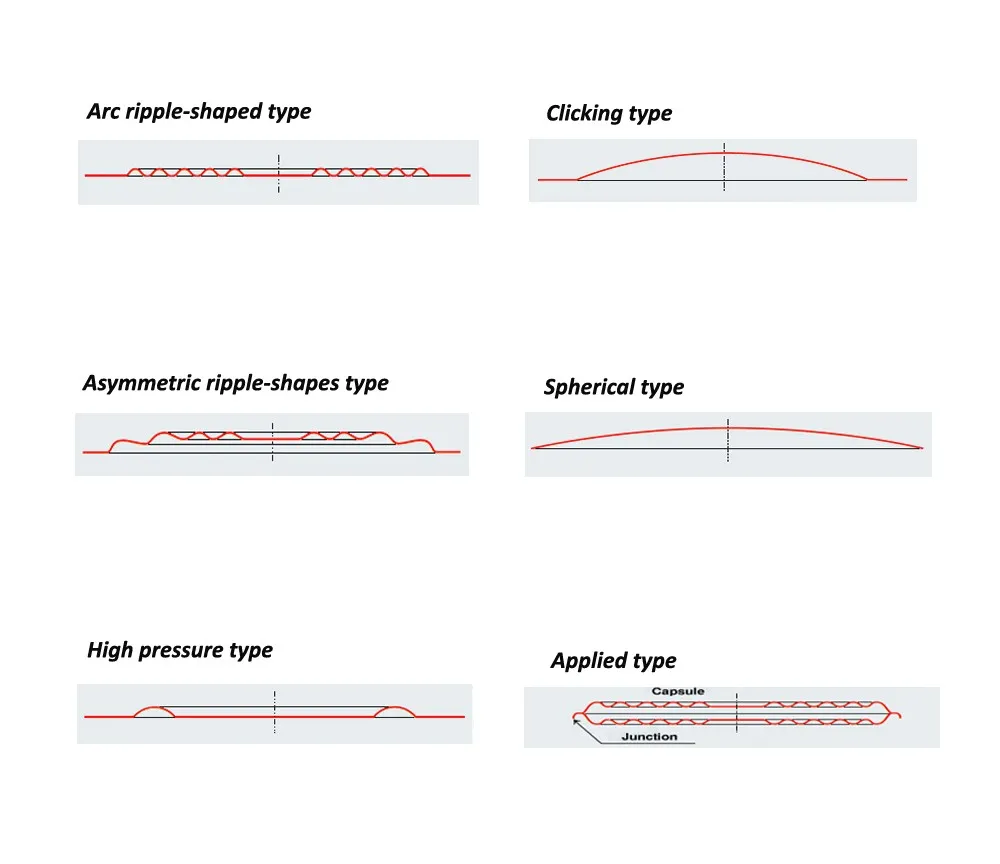

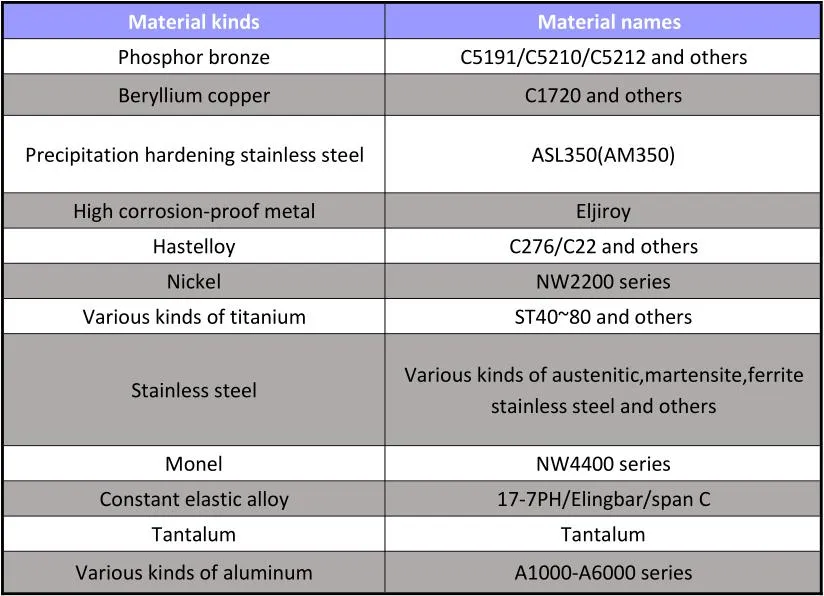

The shapes we can offer as follows:
Company Info
Baoji Zhengqian Nonferrous Metals Co. Ltd is located in the nonferrous metal processing base-Baoji City, Shaanxi Province, China. Our company is a comprehensive enterprise, and we have integrated the processing production and developing sales of the refractory metal and non-ferrous metal materials.Advanced production technology and modern production equipment have been applied to professionally manufacture tungsten, molybdenum, tantalum, titanium, nickel and their alloyed materials and exquisite-manufactured parts , such as sheet, bar, pipe, foil, wire, target and crucible in various specifications. Our productions are widely used in many fields, for instance, aircraft industry, petrochemical industry, metallurgy, rare earth, coating, instrumentation, LED, electronic equipment, solar PV and medical equipment.
We have been insisted on "quality first, reputation first and faith first" for our business philosophy. And we have been providing better and better productions and service for our customers with all our hearts to get win-win cooperation and seek bilateral development.
Contact information:
BAOJI ZHENGQIAN NONFERROUS METALS CO.,LTD
NO. 10 , Gaoxin Road , Gaoxin Zone , Baoji , Shaanxi , China
