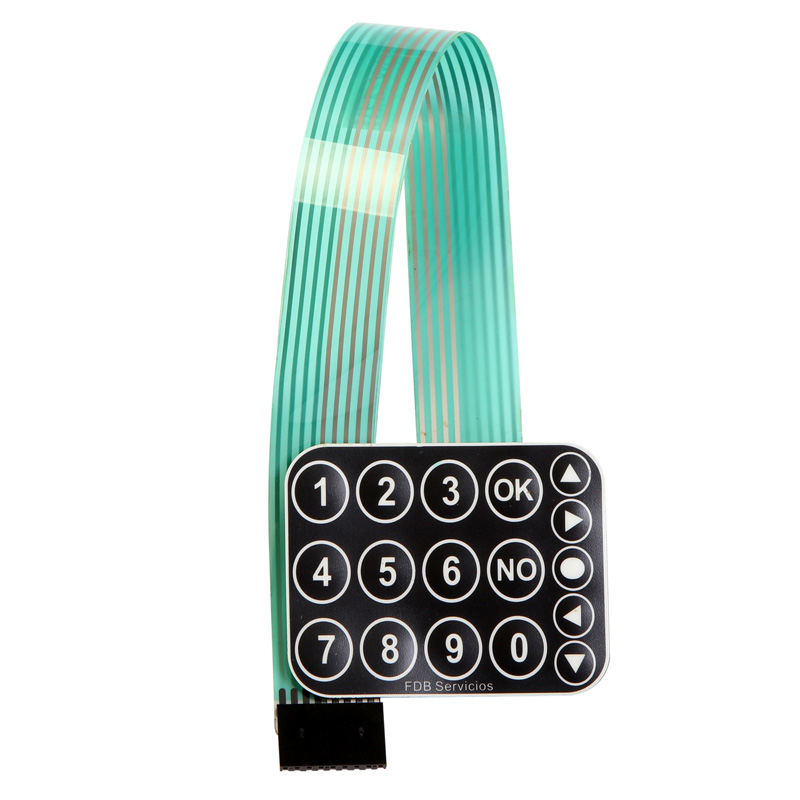

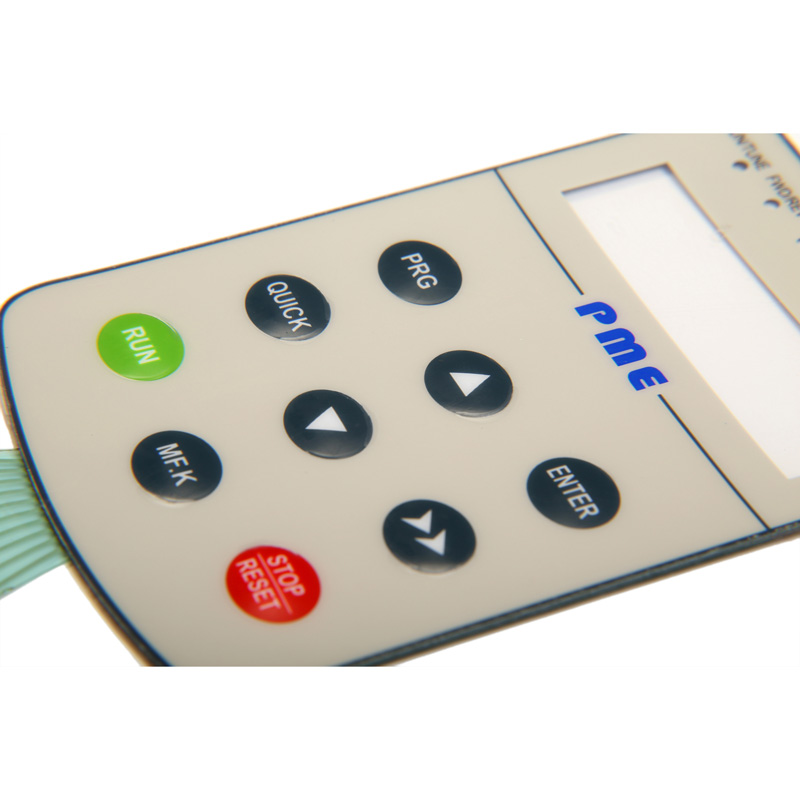

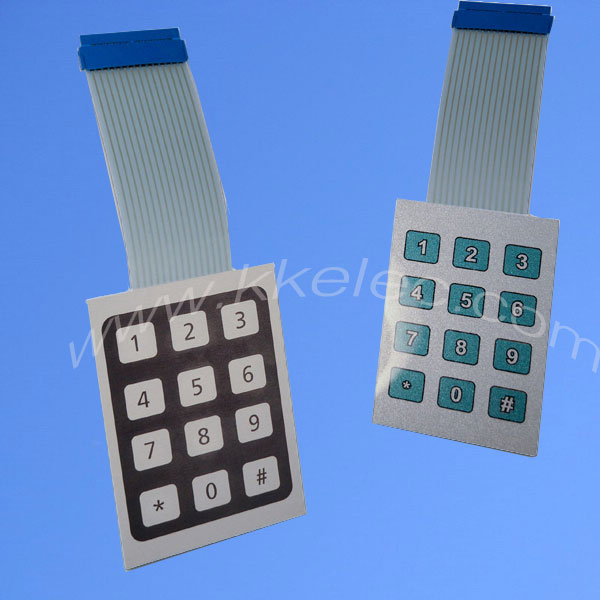

3m467/ 468 Adhesive Keyboard Membrane Switch Panels

Membrane Keyboard Switch:
Material: Matte PC (smooth), gloss PC + matte oil, gloss PC, PET, and PVC
Thickness: 0.8---1.2mm
LED windows: Transparent, translucent, matte, gloss
Embossed keys: No embossed keys and domes, domes without embossed keys, embossed keys without domes, embossed keys and domes
Adhesive: 3M9448, 3M9080, 3M467, 3M468, and no adhesive
Matching color: Pantone color matching system
Tail, pin and circuit layout: Subject to customers detailed requests

Specialize in manufactuing membrane switch:
Overlay+circuit+LED+metal dome or poly dome array+connector+double side tape
EL backlight+Rubber keys
Aluminum plate+Rubber keys
Metal domes
Flat without Tactile Effect
Embossing with Tactile Effect
Embossing with Metal Dome
Membrane Switch with FPC

Performance indicators:
Electronic characteristics
1. Circuit rating: 35V (DC), 100mA, 1W
2. Contact resistance: 10Ω --500Ω (According the trace length and materials to comfirm)
3. Insulation resistance: > 100MΩ 250V DC
4. Contact bounce: ≤ 5ms Dielectric withstand: 250VRms (50-60Hz 1min)
5. Life expectancy: Flat type ≥ 500 million times, tactile type: ≥ 100 million times
6. Mechanical Properties Actuation force: Flat type 57-284G (2-10 Oz), tactile type 170-397g (6-14 Oz) Switch stroke: Flat type 0.1-0.5mm, tactile type 0.6-1.5mm
7. Operating Temperature: -40 C - +80 C, Storage temperature: -40 C - +85 C Humidity: 40 C, 90% -95%, 240 hours
Advantage:

1. Accurate and strick color matching according to customer's requirement, both Panton and Ral color matching system, using advanced light box and computer color mataching, we can also do half-tone printing

2. Good material control to make sure all the material are high quality, all the material we used are Rohns compliant

3. Our engineer will work with customers and reommend specail constrution design to meet customer's desires, such water proof, dust proof and anti corrasion and so on

4. Strick quality inspection, 100 % funtional tesiting, and we can also do specified testing, such as humility testing, life expectancy testing, actuation force testing.

5. We are qualified Dara switch. 5. Except membrane switch and touch screen, we can also do different types of assembly, such as membrane switch and touch screen with FPC, PCB, silicone rubber, metal backer, plastic bezel and so on.

6. We can accept small quantity order and offer competitve price.

Technical Parameters

1. Electrical
Maximum Circuit Rating: 35V(DC), 100mA, 1W
Contact Resistance: 10Ω ~ 500Ω (Varies from the trace length and material)
Insulation Resistance: 100MΩ 100V
Dielectric: 250 Vrms (50~60Hz 1min)
Contact Bounce: < 5ms
Life: Flat: ≥ 5million times
Tactile: ≥ 1 million times
Duraswitch: ≥ 10million times

2. Mechanical
Actuation Force: Flat: 57~284G(2~10oz)
Tactile: 170~397g(6~14oz)
Switch Height: Flat: 0.1~0.5mm
Tactile: 0.6~1.5mm
3. Environment
Operation Temperature: -40~+80 Degree Centigrade
Storage Temperature: -40~+80 Degree Centigrade
Humidity: 90%~95%, 240 hours
Vibration: 20G, max (10~200Hz, Mil-SLD-202, M204. Condition B)
