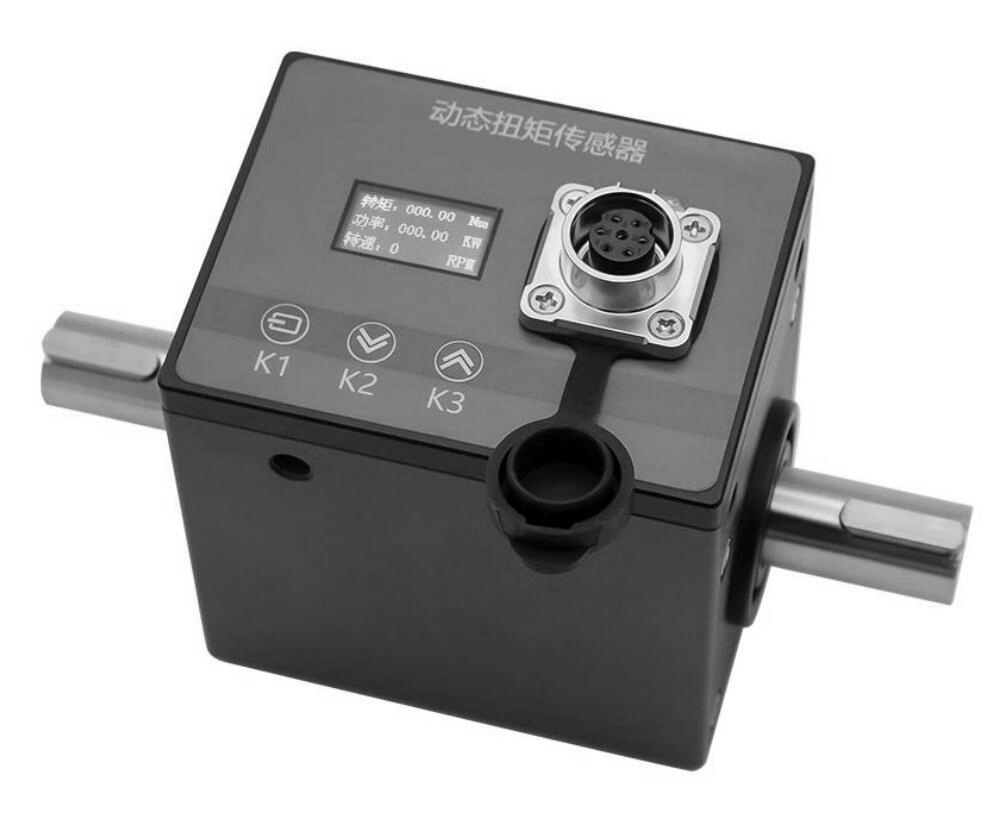

Non-Contact Shaft to Shaft Dynamic Rotary Torque Sensor with LCD Display 30nm 50nm 100nm (BTQ-408RTS2)

Non-contact Shaft to Shaft Rotary Torque Sensor with Build-in Display to Show Torque, Speed and Power (BTQ-408RTS2)

1. Type: BTQ-408RTS2
2. Capacity: 0.1,0.2, 0.5,1,2,3,5 Nm, 10,20,30,50,100,200,300 Nm, 500, 600, 800Nm, 1000, 2000, 5000Nm, 10000, 20000Nm
3. Introduction

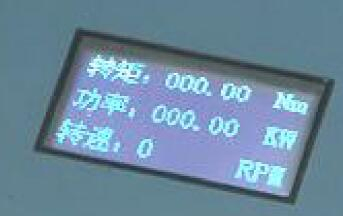

Branson uses one of the most advanced technologies in the sensor industry: Non-contact technology and advanced production technology to provide you with a variety of optional advanced torque sensors. Brans' small range (miniature) dynamic torque sensor BTQ-408RTS2 products can provide a measurement capacity range of 0.1 Nm-10,000 Nm, and a speed measurement range of up to 10,000RPM, so that it can support a wide range of applications. And this series build-in a display which can show the torque, speed and power.

5. Product Highlights
Non-contact signal transfer
Angle speed feedback included
Compact size
Can operate up to 6000 RPM(could do it as OEM)
Utilizes Strain Gauge Technology
Wide capacity output range

6. Application areas
Areas of application are, for example, force measurement during production processes, force control in handling machines, force measurement during assembly processes, three-dimensional load measurement, measurement of friction forces.

Welcome to Brans and glad to cooperate with you together. If you have any new products need to OEM or customized, please contact with Brans in time.
