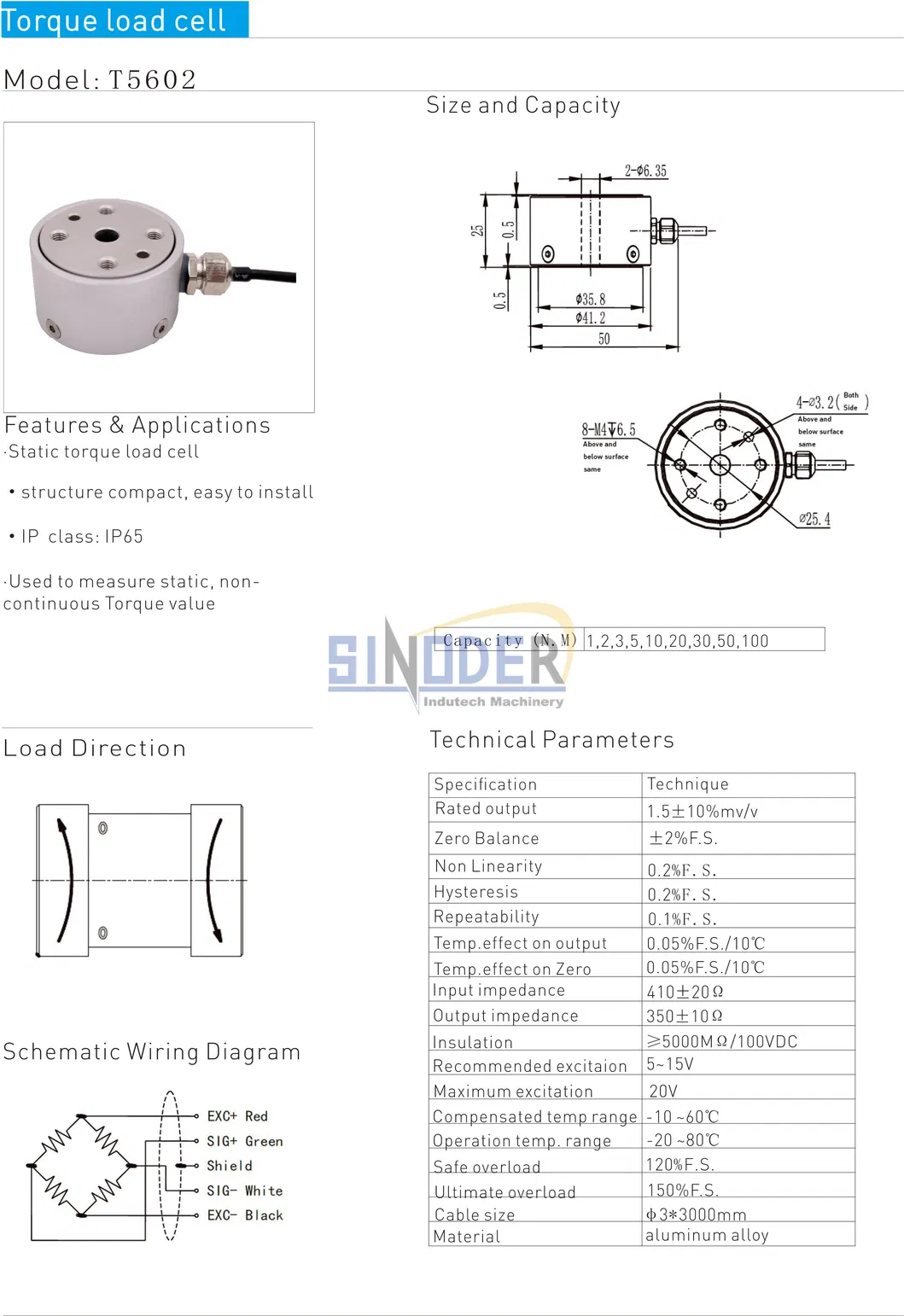

1nm to 100nm Static Torque Load Cell
1nm to 100nm static torque load cell ·Static torque load cell ·structure compact, easy to install·IP class: IP65·Used to measure static, non-continuous Torque value technical parametersSpecificationsTechniqueCapacity1,2,3,5,10,20,30,50,100N.MRated output1.......
Send Inquiry
Product Description
1nm to 100nm static torque load cell
·Static torque load cell
·structure compact, easy to install
·IP class: IP65
·Used to measure static, non-continuous Torque value
Professional customized load cell solution provider
1. MOQ?
Different load cell ,different MOQ. Samples available
2. How long will client get reply from us?
Usually within 12 hours. Please call the sales directly under emergency
3. Price?
Quality first, price reasonable
4. Visit factory?
Visit factory is welcome
6. Lead time?
Load cell sensor in stock, shipped within 1-2 working days.
Load cell sensor not in stock, usually 10-20 work days.
7. Payment terms?
T/T, Western Union, L/C, Escrow, paypal or Cash
8. Delivery?
DHL, Fedex, TNT ,EMS, UPS or by Sea etc.
9. Load cell sensor warranty?
12 months.
10. after-sale service?
After-sale service is available since the load cell sensors are received. The after-sales service will be done through e-mail, skype, trade manager, telephone, wechat or QQ.
·Static torque load cell
·structure compact, easy to install
·IP class: IP65
·Used to measure static, non-continuous Torque value
| technical parameters | |
| Specifications | Technique |
| Capacity | 1,2,3,5,10,20,30,50,100N.M |
| Rated output | 1.5±10%mV/V |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.2%F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.1%F.S. |
| Temp.effect on output | 0.05%F.S./10ºC |
| Temp.effect on zero | 0.05%F.S./10ºC |
| Input impedance | 410±20Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~60ºC |
| Operation temp range | -20~80ºC |
| Safe overload | 120%F.S. |
| Ultimate overload | 150%F.S. |
| Cable size | φ3*3000mm |
| Material | aluminum alloy |
Professional customized load cell solution provider
1. MOQ?
Different load cell ,different MOQ. Samples available
2. How long will client get reply from us?
Usually within 12 hours. Please call the sales directly under emergency
3. Price?
Quality first, price reasonable
4. Visit factory?
Visit factory is welcome
6. Lead time?
Load cell sensor in stock, shipped within 1-2 working days.
Load cell sensor not in stock, usually 10-20 work days.
7. Payment terms?
T/T, Western Union, L/C, Escrow, paypal or Cash
8. Delivery?
DHL, Fedex, TNT ,EMS, UPS or by Sea etc.
9. Load cell sensor warranty?
12 months.
10. after-sale service?
After-sale service is available since the load cell sensors are received. The after-sales service will be done through e-mail, skype, trade manager, telephone, wechat or QQ.
