0.1nm to 500nm Dynamic Load Cell
0.1nm to 500nm dynamic load cell ·Strain gauge as Sensitive element,use integrated circuit in load cell ·High Accuracy, stable and reliable· no Collector ring and other wear parts,could run for a long time, output Reversible torque signal·two ends connecte......
Send Inquiry
Product Description

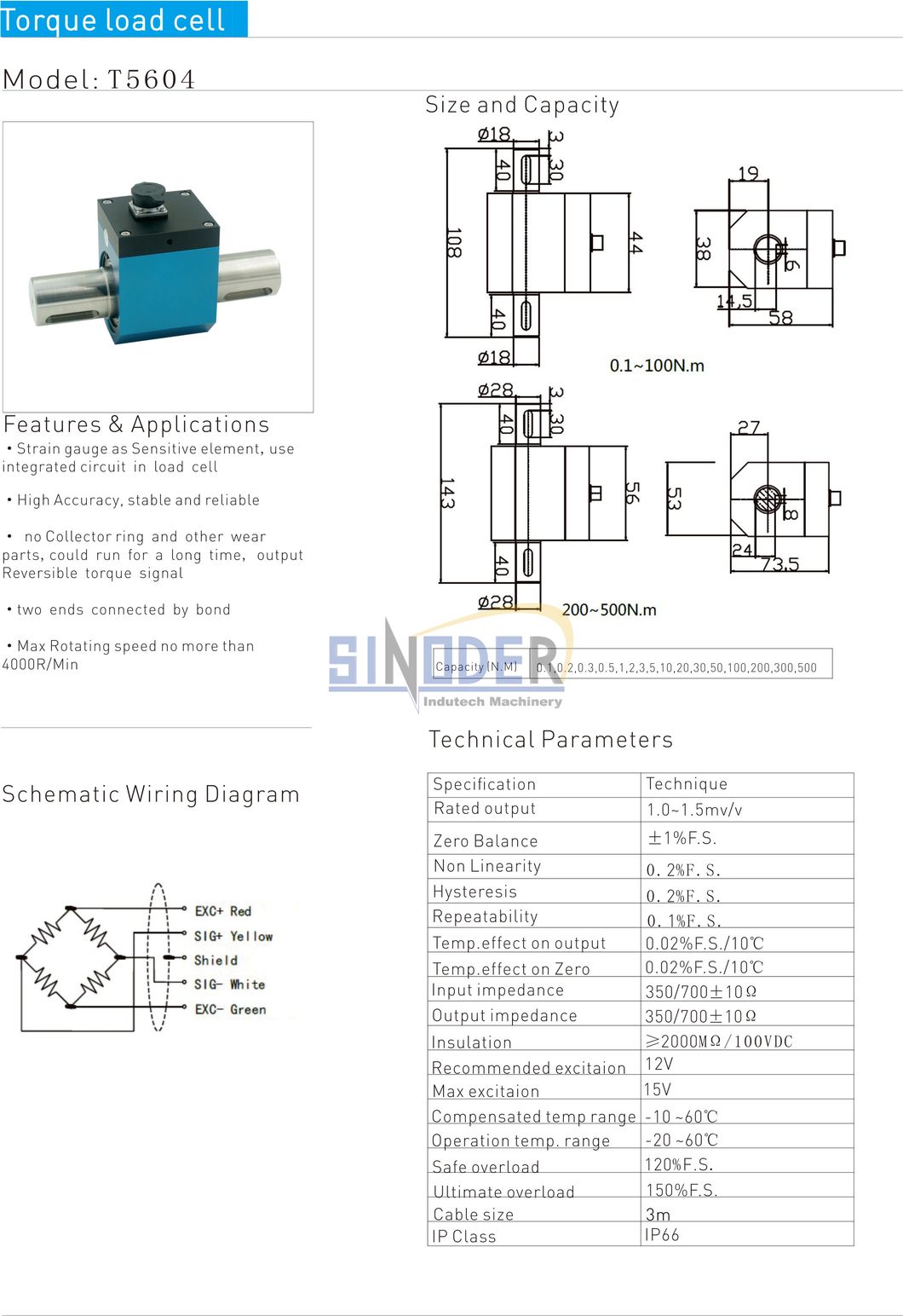

0.1nm to 500nm dynamic load cell
·Strain gauge as Sensitive element,use
integrated circuit in load cell
·High Accuracy, stable and reliable
· no Collector ring and other wear parts,could run for a long time, output Reversible torque signal
·two ends connected by bond
·Max Rotating speed no more than 4000R/Min
Professional customized load cell solution provider
1. MOQ?
Different load cell ,different MOQ. Samples available
2. How long will client get reply from us?
Usually within 12 hours. Please call the sales directly under emergency
3. Price?
Quality first, price reasonable
4. Visit factory?
Visit factory is welcome
6. Lead time?
Load cell sensor in stock, shipped within 1-2 working days.
Load cell sensor not in stock, usually 10-20 work days.
7. Payment terms?
T/T, Western Union, L/C, Escrow, paypal or Cash
8. Delivery?
DHL, Fedex, TNT ,EMS, UPS or by Sea etc.
9. Load cell sensor warranty?
12 months.
10. after-sale service?
After-sale service is available since the load cell sensors are received. The after-sales service will be done through e-mail, skype, trade manager, telephone, wechat or QQ.
·Strain gauge as Sensitive element,use
integrated circuit in load cell
·High Accuracy, stable and reliable
· no Collector ring and other wear parts,could run for a long time, output Reversible torque signal
·two ends connected by bond
·Max Rotating speed no more than 4000R/Min
| technical parameters | |
| Specifications | Technique |
| Capacity | 0.1,0.2,0.3,0.5,1,2,3,5,10,20,30,50,100,200,300,500N.M |
| Rated output | 1.0~1.5mv/v |
| Zero balance | ±1%F.S. |
| Non-linearity | 0.2%F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.1%F.S. |
| Temp.effect on output | 0.02%F.S./10ºC |
| Temp.effect on zero | 0.02%F.S./10ºC |
| Input impedance | 350/700±10Ω |
| Output impedance | 350/700±10Ω |
| Insulation | ≥2000MΩ/100VDC |
| Recommended excitation | 12V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60ºC |
| Operation temp range | -20~60ºC |
| Safe overload | 120%F.S. |
| Ultimate overload | 150%F.S. |
| Cable size | 3000mm |
| IP Class | IP66 |
Professional customized load cell solution provider
1. MOQ?
Different load cell ,different MOQ. Samples available
2. How long will client get reply from us?
Usually within 12 hours. Please call the sales directly under emergency
3. Price?
Quality first, price reasonable
4. Visit factory?
Visit factory is welcome
6. Lead time?
Load cell sensor in stock, shipped within 1-2 working days.
Load cell sensor not in stock, usually 10-20 work days.
7. Payment terms?
T/T, Western Union, L/C, Escrow, paypal or Cash
8. Delivery?
DHL, Fedex, TNT ,EMS, UPS or by Sea etc.
9. Load cell sensor warranty?
12 months.
10. after-sale service?
After-sale service is available since the load cell sensors are received. The after-sales service will be done through e-mail, skype, trade manager, telephone, wechat or QQ.
