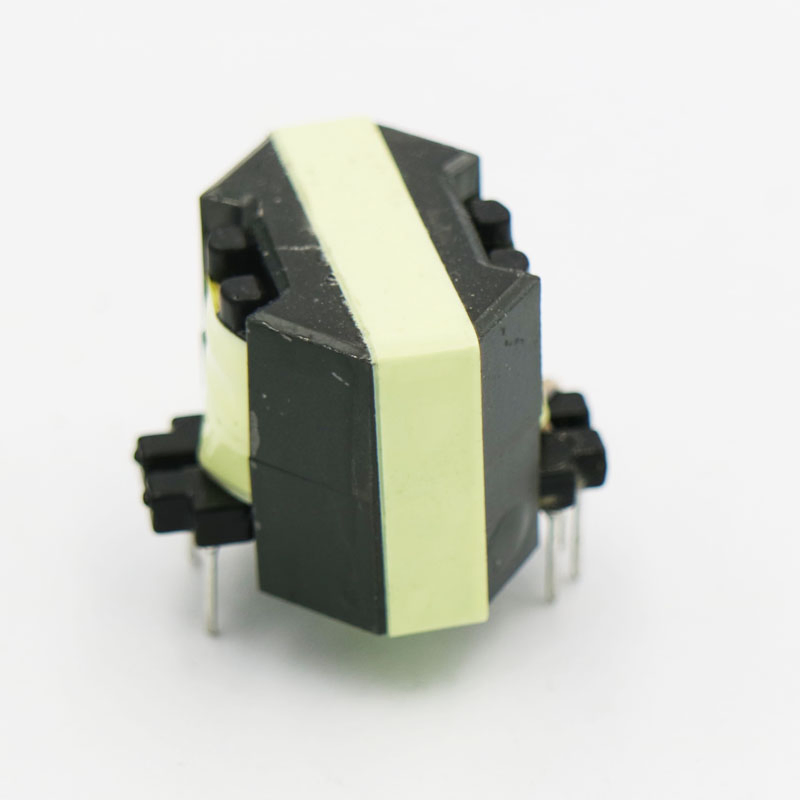

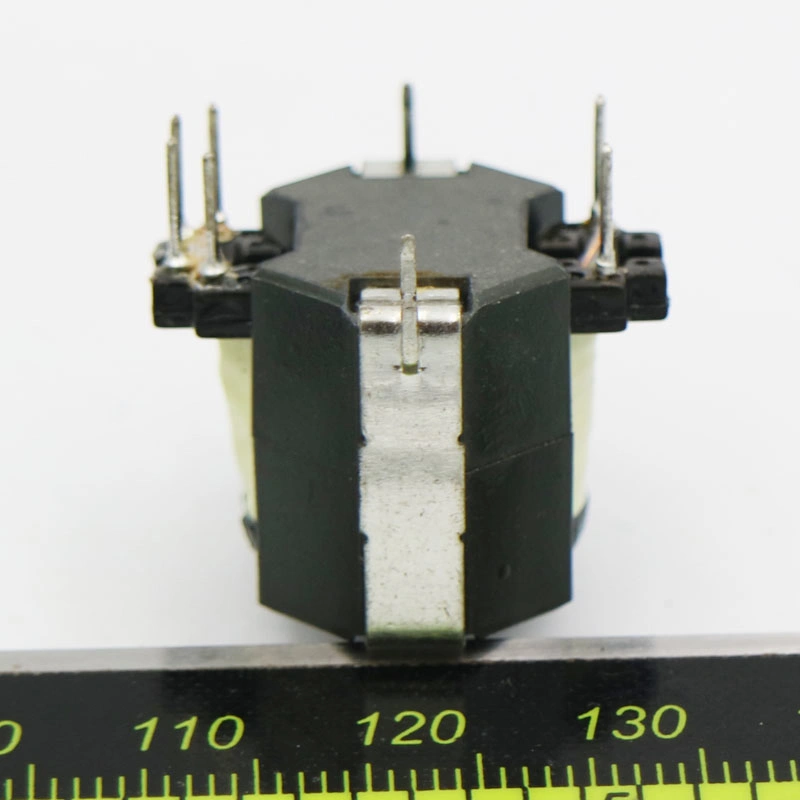

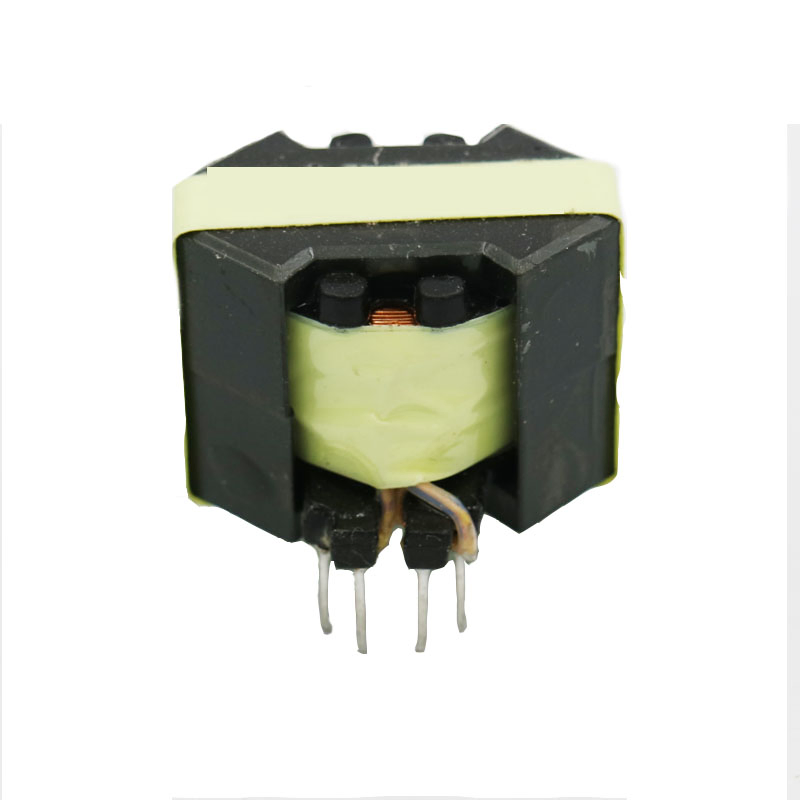

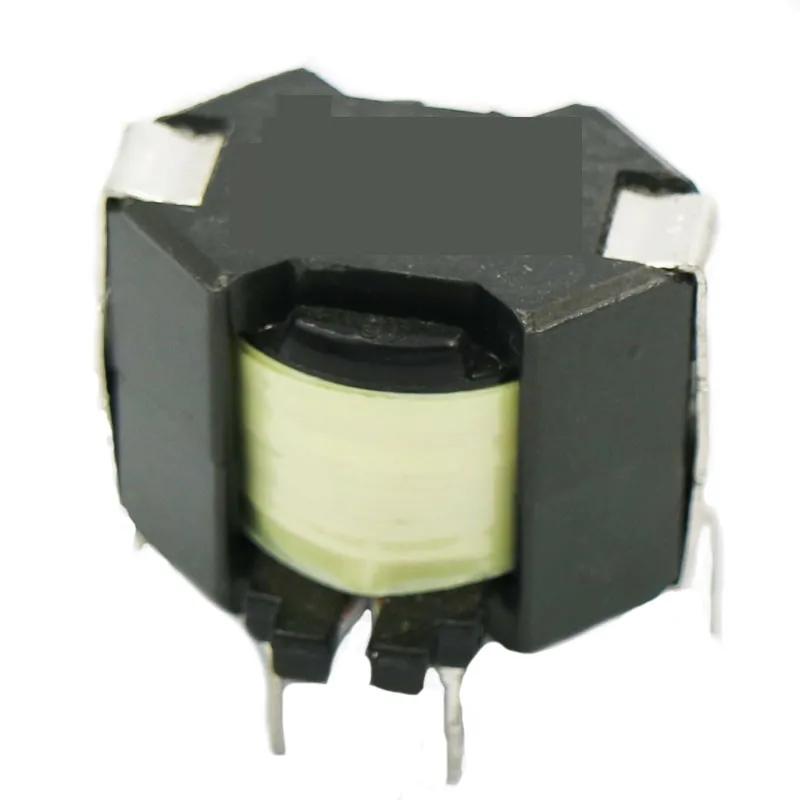

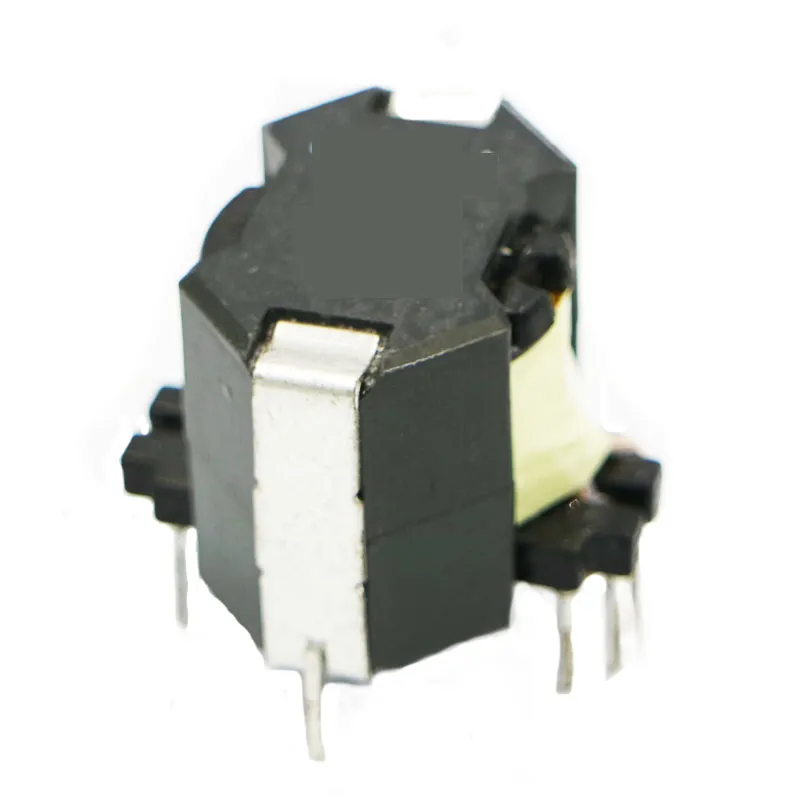

RM Series RM8 Ferrite Core Flyback High Frequency Power Transformer for Adapter with RoHS Factory Price Custom
Shenzhen professional transformer Factory Prices 10Khz -1000Khz RM5/RM6/RM7/RM8/RM10/RM14 type ignition electronic transformers adjustable voltage transformer,compact power transformer1. Their input voltage can be different to meet requirements of various regions: AC380V-240V-230V-220V-120V-110V-10......
Send Inquiry
Product Description
Shenzhen professional transformer Factory Prices 10Khz -1000Khz RM5/RM6/RM7/RM8/RM10/RM14 type ignition electronic transformers adjustable voltage transformer,compact power transformer
1. Their input voltage can be different to meet requirements of various regions: AC380V-240V-230V-220V-120V-110V-100V.
2. Special designs are also available to meet customers' requirements.
Power Capacity Chart:
Power range (W)Core type using N67* grade material
<5RM4; P11/7; EF12.6; U10
5-10E(F)16; RM5; P14/8
10-20RM6; E(F)20; P18; U15; EFD15
20-50RM8; P22; RM10 ETD29; E25; EFD20
50-100ETD29; ETD34; RM12; P30; EFD25
100-200ETD34; ETD39; ETD44; P36; E30; E42; EFD30
200-500ETD44; ETD49; E55
>500ETD54; ETD59; E65
PQ20. PQ32. PQ35 etc.1. Their input voltage can be different to meet requirements of various regions: AC380V-240V-230V-220V-120V-110V-100V.
The power capacity of each core type varies due to differences in topology, operating frequency and temperature, flux density, and material grade.
* Siemens material grade
Other Related High Frequency Transformer Parameters:
Our products
| NO. | Product Name | Type | Detailed Size | ||||||||||
| 1 | High frequency transformers | EE | EE8.3, EE10, EE13, EE16, EE19, EE20, EE25, EE28, EE30, EE33, EE40, EE42, EE49, EE50, EE55, EE60, EE65, EE70, EE75, EE80, EE85 | ||||||||||
| EC/ER | ER/EC20, ER/EC25, ER/EC28, ER/EC28, ER/EC29, ER/EC35, ER/EC40, ER/EC42, ER/EC49 | ||||||||||||
| ETD | ETD29, ETD35, ETD40, ETD49 | ||||||||||||
| EF | EF16, EF20, EF25 | ||||||||||||
| EFD | EFD15, EFD20/21, EFD25/26, EFD30 | ||||||||||||
| EDR | EDR2009, EDR2037, EDR2809, EDR2828, EDR3012, EDR3909, EDR4008 | ||||||||||||
| EP | EP7, EP10, EP13 | ||||||||||||
| EPC | EPC11.5, EPC13, EPC19, EPC25 | ||||||||||||
| EQ | EQ2512, EQ2610, EQ3209, EQ4013, | ||||||||||||
| POT | POT3016, POT3930 | ||||||||||||
| PQ | PQ2016, PQ2020, PQ2625, PQ2620, PQ3225, PQ3520, PQ3525, PQ3535, PQ4040, PQ49 | ||||||||||||
| RM | RM6, RM8, RM10, RM12, RM14 | ||||||||||||
| 2 | Common mode chokes(Line filters) | UU | UU9.8, UU10.5, UU16 | ||||||||||
| ET | ET20, ET24, ET28, ET35 | ||||||||||||
| SQ | SQ1212, SQ1515, SQ2418 | ||||||||||||
| FT | FT20-22, FT20-21, FT20-15, FT20-13, FT20-10 | ||||||||||||
| Toroidal | 6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 5X15X12, 25X15X13, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16 (Ferrite core); 16X10X6, 20X12.5X8, 25X16X10, 30X20X10, 30X20X15, 40X25X15, 50X40X20, 63X50X25, 80X63X25, 100X80X25, 130X100X25(Nanocrystalline core) | ||||||||||||
| 3 | Inductors(Choke coils) | Peaking/Drum | 4*6, 5*7, 6*8, 8*10, 9*12, 10*12, 10*16, 14*15, 16*18, 18*20 | ||||||||||
| Toroidal | 6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X5X4,10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 25X15X12, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16 | ||||||||||||
| Rod | 3X12, 3X15, 4X15, 4X20, 5X15, 5X20, 5X25, 5X30, 6X15, 6X20, 6X25, 6X30, 6X32, 6X35, 8X20, 8X30 | ||||||||||||
| 4 | SMD power inductors | Unshielded | MT, MTQ, MTF, MTG | ||||||||||
| Shielded | MTH, MTHII, MTP, MTB, MTE, MTL, MTF | ||||||||||||
| 5 | Low frequency transformers | EI | EI14, EI16,EI19, EI24,EI28, EI30, EI35, EI38.5, EI41,EI48, EI57, EI60, EI66, EI74, EI76, EI86, EI96, EI105, EI114 | ||||||||||
| Toroidal | OD:40mm---130mm;ID:20mm---100mmm;H:10mm---50mm. | ||||||||||||
| 6 | Planar transformer | EI | Ei22 | ||||||||||
| 7 | CT | UF | UF15,Zero sequence current transformer, precision current transformer | ||||||||||
| 8 | Coil | T | 185*60,23.8 | ||||||||||

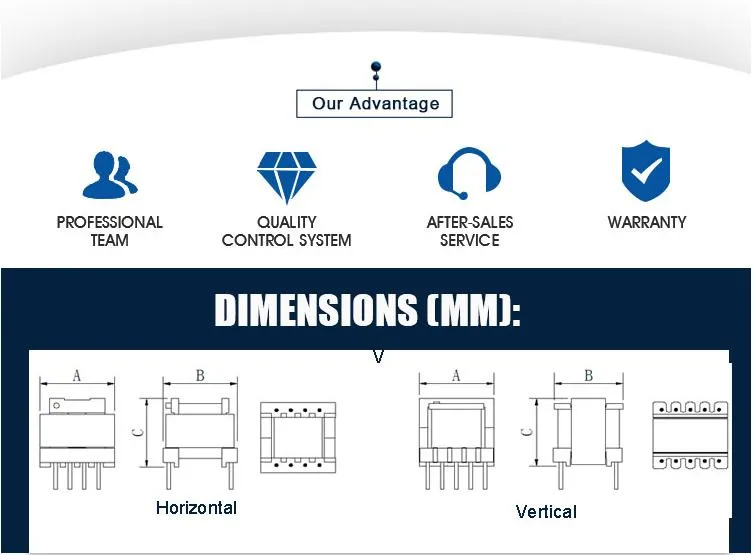

EE type Transformer Parameters
| EE type transformer | |||||||
| Part No. | Terminal Pins | Dimension mm | Type | Electrical parameter | |||
| A | B | C | Inductance | Output power(W) | |||
| EE-8.3 | 6 | 8.0 | 8.0 | 8.3 | V | 100.0uH | 0.2-3.0 |
| EE-10 | 8 | 11.5 | 10.2 | 10.2 | V | 80.0uH | 0.5-5.0 |
| EE-13 | 10 | 12.0 | 12.5 | 13.0 | V | 120.0uH | 0.5-8.0 |
| EE-16-1 | 6 | 14.8 | 13.3 | 16.0 | V | 90.0uH | 1.0-10.0 |
| EEL-16 | 10 | 28.5 | 16.0 | 21.9 | V | 600.0uH | 2.0-15.0 |
| EE-19-1 | 8 | 17.6 | 16.0 | 19.0 | V | 800.0uH | 3.0-30.0 |
| EEL19 | 10 | 31.5 | 16.0 | 21.1 | V | 1200.0uH | 3.0-30.0 |
| EE-25-1 | 6 | 20.0 | 18.2 | 25.2 | V | 2000.0uH | 3.0-45.0 |
| EEL25 | 8 | 35.3 | 17.5 | 25.2 | V | 2800.0uH | 3.0-45.0 |
| EE-30 | 10 | 21.0 | 29.2 | 30.0 | H | 900.0uH | 3.0-50.0 |
| EE-40 | 14 | 27.6 | 30.5 | 40.0 | H | 1500.0uH | 3.0-55.0 |
| EE-42/15-1 | 12 | 33.8 | 44.0 | 42.0 | H | 2000.0uH | 3.0-80.0 |
| EE-42/20-1 | 12 | 45.0 | 39.8 | 42.0 | V | 1900.0uH | 3.0-90.0 |
| EE-55 | 20 | 50.0 | 50.0 | 55.0 | H | 3000.0uH | 3.0-150.0 |
| EE-65 | 16 | 55.2 | 51.8 | 65.0 | H | 4500.0uH | 3.0-300.0 |
Input Voltage: AC 100---240V;50/60Hz to be customized
Output Power: 5VA -1000VA to be customized
Products Advantages:
1. Low loss
2. High Reliability
3. High Efficiency
4. Stable output
5. It can be customized according to the requirements of customers and provide total design solutions to customer
Application:
1. Photovoltaic
2. Household Appliance
3. Energy
4. Communications
5. High-power supply
6. Automotive electrics
Features:
- Applied in a wide range
- High operation frequency
- Wide range of working voltage
- Large power
- Low temperature rising
- Compact, light and easy surface mounting
- Customized designs and specifications are accepted
- Various types of transformers are available
- Switching power transformer
High Frequency Transformer with Low Leakage Inductance and High-efficiency
- High power and compact design
- Utilizing high flux density ferrite cores with low loss and low temperature rise
- Applicable frequency range: 20 to 80kHz
- Operating frequency: higher than 200kHz
- High magnetic flux and low-loss magnetic materials
- With low leakage inductance and high-efficiency
- Highest reliability of high-voltage
- Designed according to customer's requirements to meet EI, ER, EE, and EEL model series
- Advanced production technique and reliable full-automatic testing facilities
- Customized specifications are welcome
- Applications: PCB circuits, computer, TV, monitor, scanner, duplicator, mobile adapters, printer and other equipments, and instruments and so on.

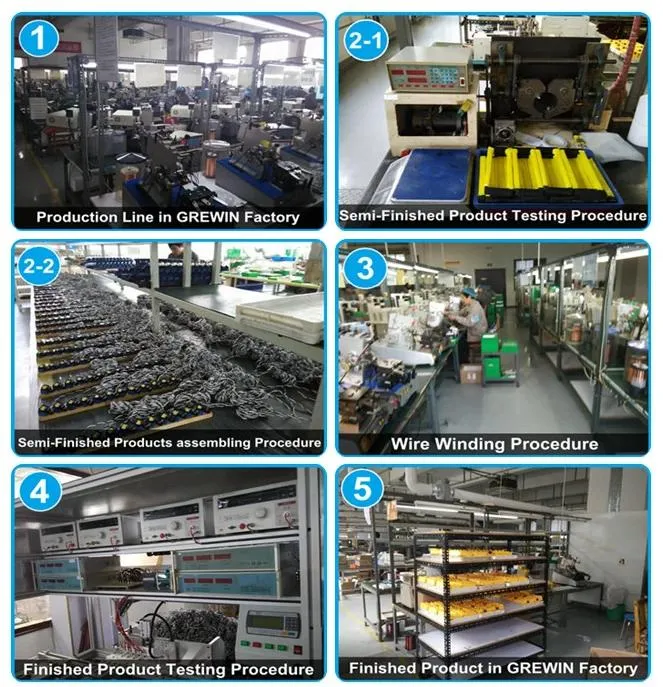

The following picture showed you about all finished toroidal transformer production line and package with export standard carton and strong pallets:
Equipment Exhibition

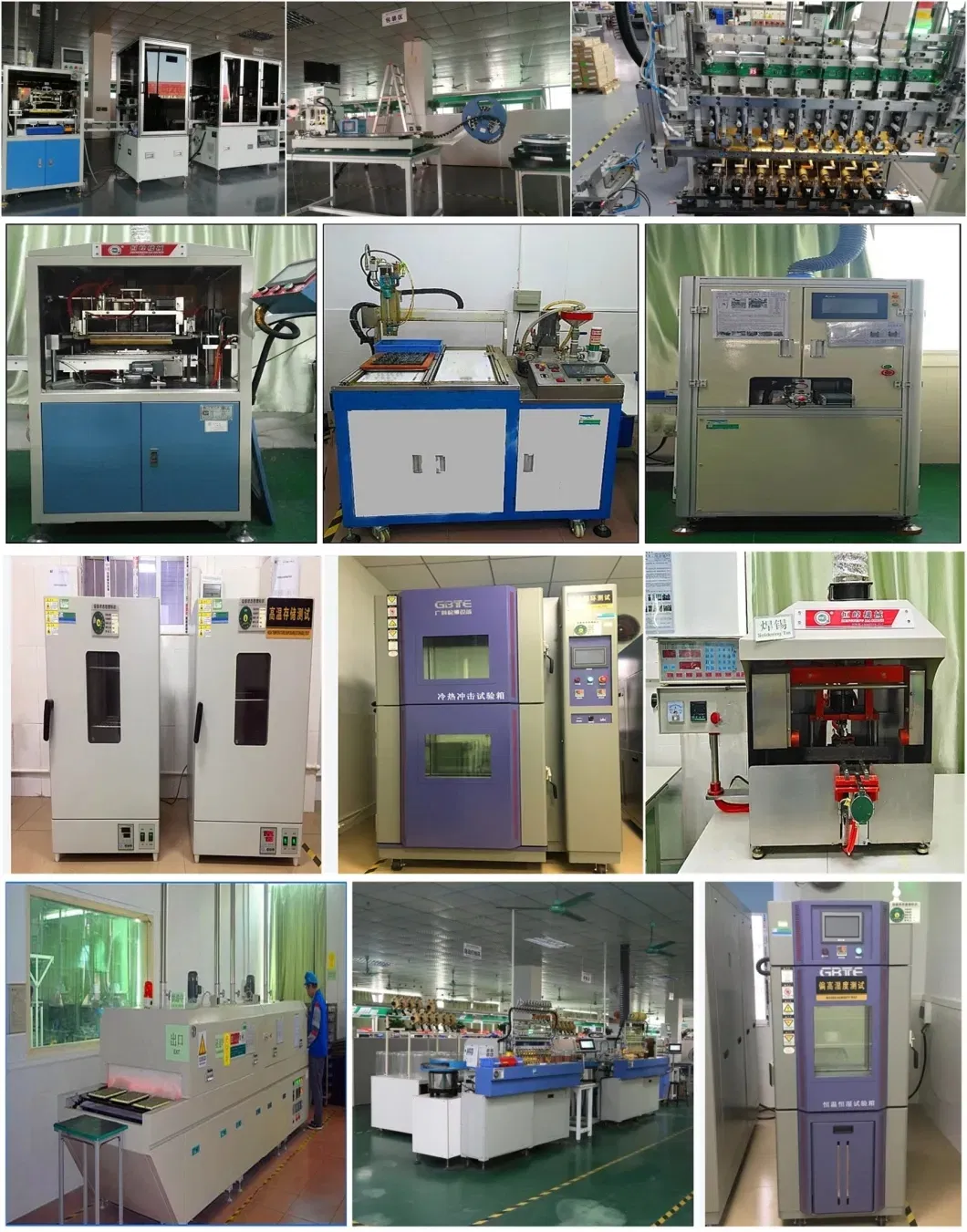

Our main equipments contained: 256 sets of automatic winding machines; 2 sets of automatic infrared drying tunnel furnace; the lab for car magnetic products; 1set of salt spray test machine,1 set of high-temperature storage test machine, 1 set of high humidity test machine and a set of old and heat shock test machine; 6 sets of automatic vacuum dipping machines; 3, fully automatic soldering machines, 600 set accessory Machines.
