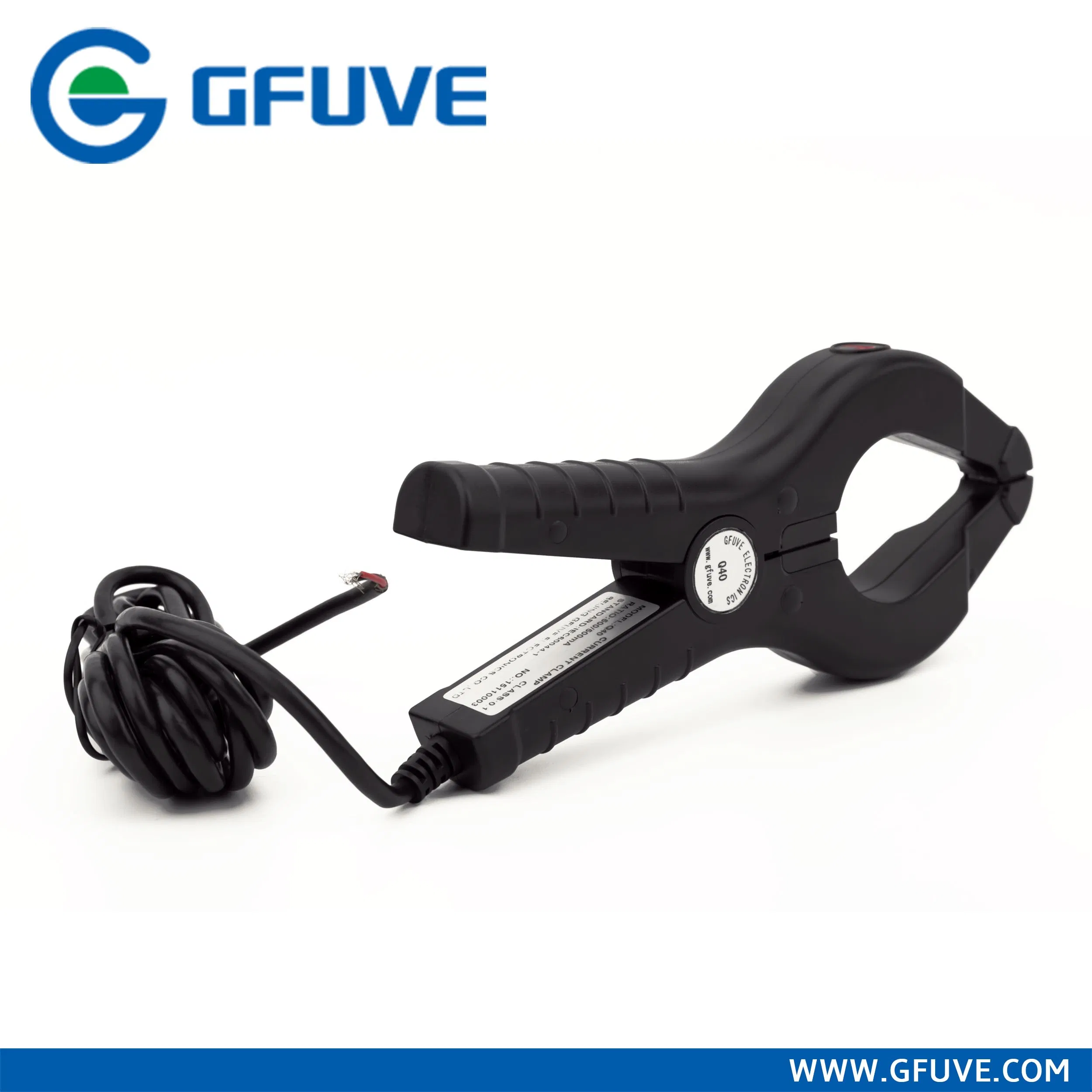

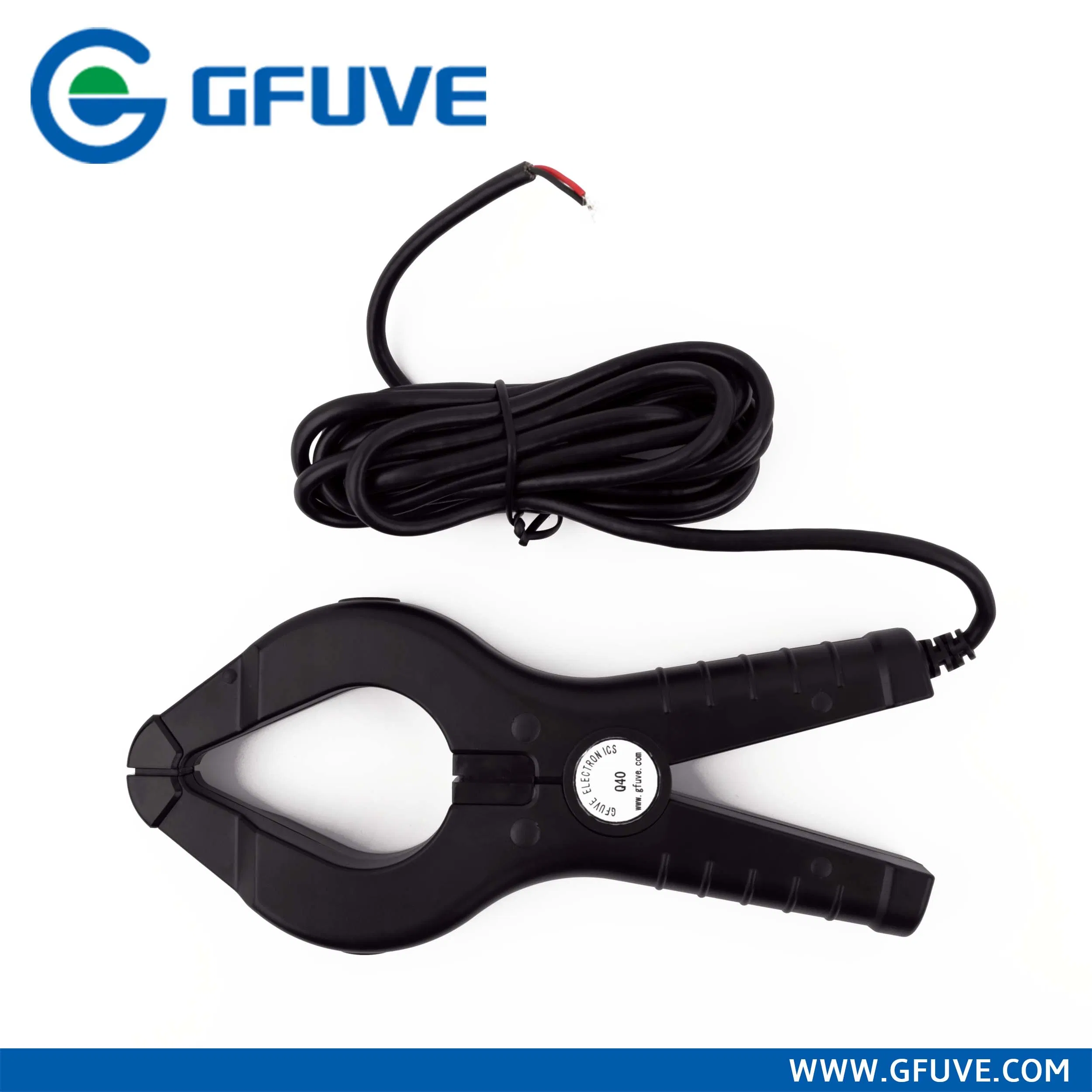

Q40 500A Universal AC on Current Clamp Adaptor CT Sensor
Product DescriptionThe Q40 Series AC Current Probes are high performance models, and use a custom nickel core to improve accuracy and phase shift on the low end of the measurement range. TheQ40 500A UNIVERSAL AC ON CURRENT CLAMP ADAPTOR CT SENSOR is an excellent probe to be us......
Send Inquiry
Product Description
Product Description
The Q40 Series AC Current Probes are high performance models, and use a custom nickel core to improve accuracy and phase shift on the low end of the measurement range. TheQ40 500A UNIVERSAL AC ON CURRENT CLAMP ADAPTOR CT SENSOR is an excellent probe to be used in power and low level current measurement applications.detection.
Applications:
Features
1. Measurement range of 1mA to 600A AC
2. Large jaw opening designed
3. Improved ergonomic design and easy operation
4. High content nickel metal core
5. Conforms to EN 61010, 600V CAT III
6. Low phase shift for power measurement
7. Designed for DMMs, recorders, loggers, oscilloscopes, power and
harmonic meters
8. UL, CE mark
Parameters
company introduction:
Beijing GFUVE Electronics Co., Ltd. was established in 2005. It combined science, industry and trade
together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850
test suite software, meter test equipment, reference standard meter, phantom load power source,
electrical measurement instrument, relay test set, transformer test, and power analyzer, intelligent digital
meter, transducer and current transformer models etc.
GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in
China. It is professional in energy meter test system, energy meter portable tester and related accessory.
The product of high voltage ammeter recorder develops very quickly in the market. Our company has
achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to
overseas including South America, Middle East, Southeast Asia and Africa.
We have been contributing ourselves to developing the durable and stable products for the usage of the
power system. Contact us now for further business relationship. We are here to provide you the best
service.
The Q40 Series AC Current Probes are high performance models, and use a custom nickel core to improve accuracy and phase shift on the low end of the measurement range. TheQ40 500A UNIVERSAL AC ON CURRENT CLAMP ADAPTOR CT SENSOR is an excellent probe to be used in power and low level current measurement applications.detection.
Applications:
Features
1. Measurement range of 1mA to 600A AC
2. Large jaw opening designed
3. Improved ergonomic design and easy operation
4. High content nickel metal core
5. Conforms to EN 61010, 600V CAT III
6. Low phase shift for power measurement
7. Designed for DMMs, recorders, loggers, oscilloscopes, power and
harmonic meters
8. UL, CE mark
Parameters
| Electrical parameters | ||||
|---|---|---|---|---|
| Ratio | 1000: 1 or 2000:1 (customized) | |||
| Accuracy class | 0.1%, 0.2%, 0.5% | |||
| Primary current | 0 - 500A AC | |||
| Secondary current | 0 - 1A AC or 0-5V AC (customized) | |||
| Max. Cont. Input current | 600A | |||
| Over voltage category | CAT III 600V | |||
| Output signal (AC current) | 250mA,500mA,1A,5A AC at nominal input current | |||
| Output signal (AC voltage) | 250mV, 500mV, 1V, 5V AC at nominal input current | |||
| Frequency range | 40Hz-2000Hz | |||
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute | |||
| Temperature range | -20°C to +55°C | |||
| Output | 2.5 meter cable with D01 connector | |||
| Max. voltage not insulated conductors | 600 V | |||
| Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 | |||
| Installation | Clamp type | |||
| Output mode | Lead output (2.5m) | |||
| Mechanical parameters | ||||
| Dimensions (L x W x H)(mm) | 82 x 290 x 25.3 | |||
| Weight (g) | 500 | |||
| Holding wire diameter (mm) | φ40 | |||
| Max. jaw opening (mm) | 40 | |||
| Color | Black | |||
| Material | PC+ABS+Polycarbonate, UL94 V0 | |||
Beijing GFUVE Electronics Co., Ltd. was established in 2005. It combined science, industry and trade
together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850
test suite software, meter test equipment, reference standard meter, phantom load power source,
electrical measurement instrument, relay test set, transformer test, and power analyzer, intelligent digital
meter, transducer and current transformer models etc.
GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in
China. It is professional in energy meter test system, energy meter portable tester and related accessory.
The product of high voltage ammeter recorder develops very quickly in the market. Our company has
achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to
overseas including South America, Middle East, Southeast Asia and Africa.
We have been contributing ourselves to developing the durable and stable products for the usage of the
power system. Contact us now for further business relationship. We are here to provide you the best
service.
