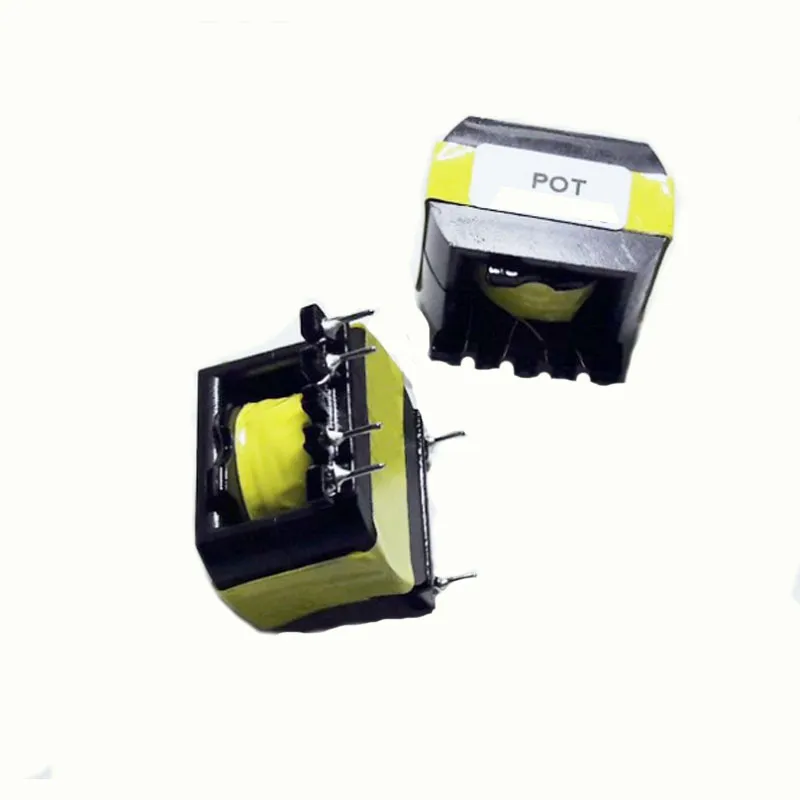

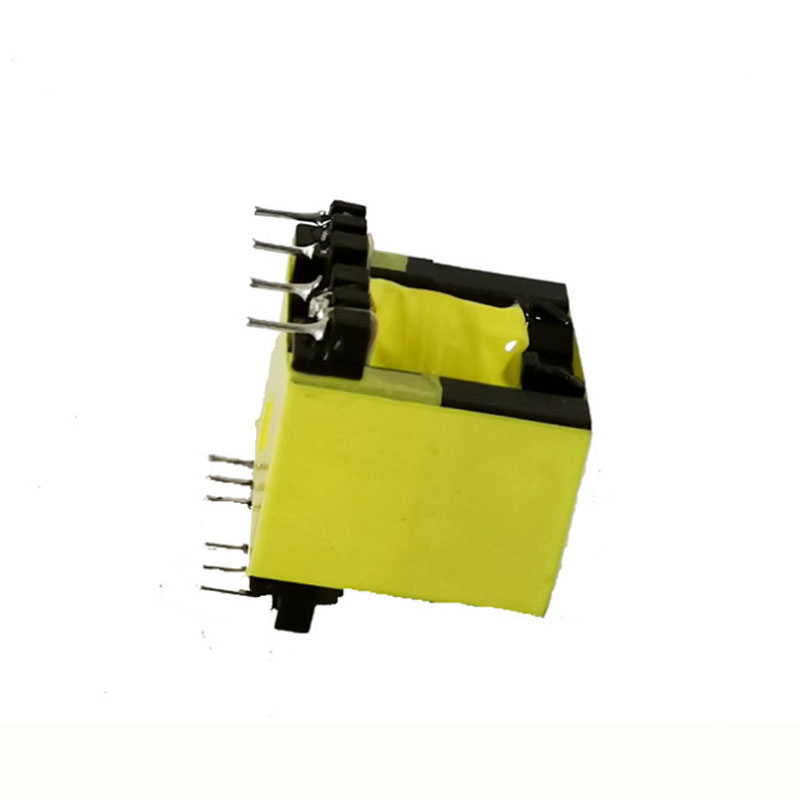

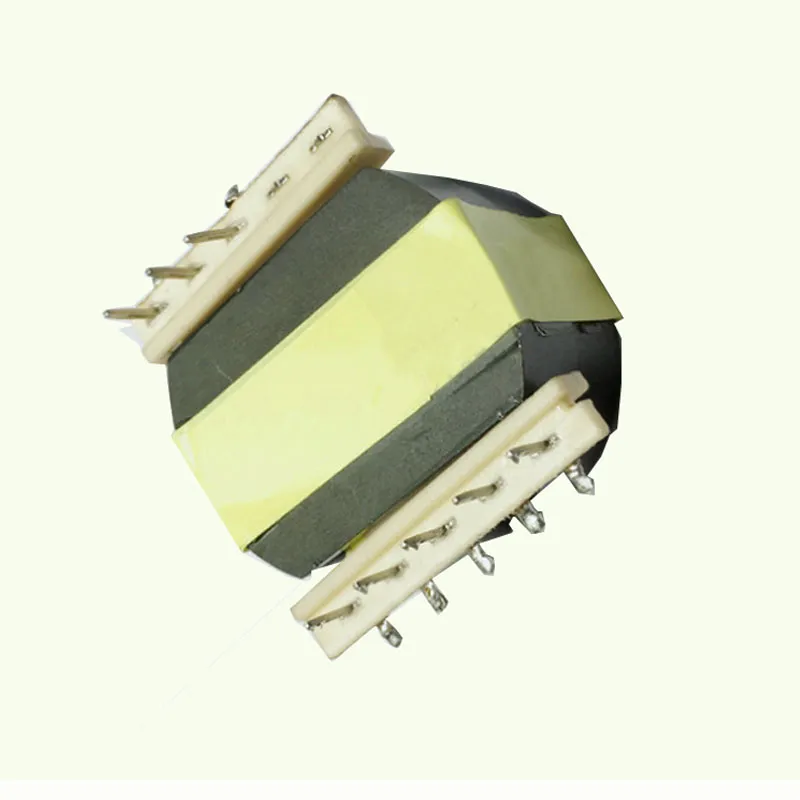

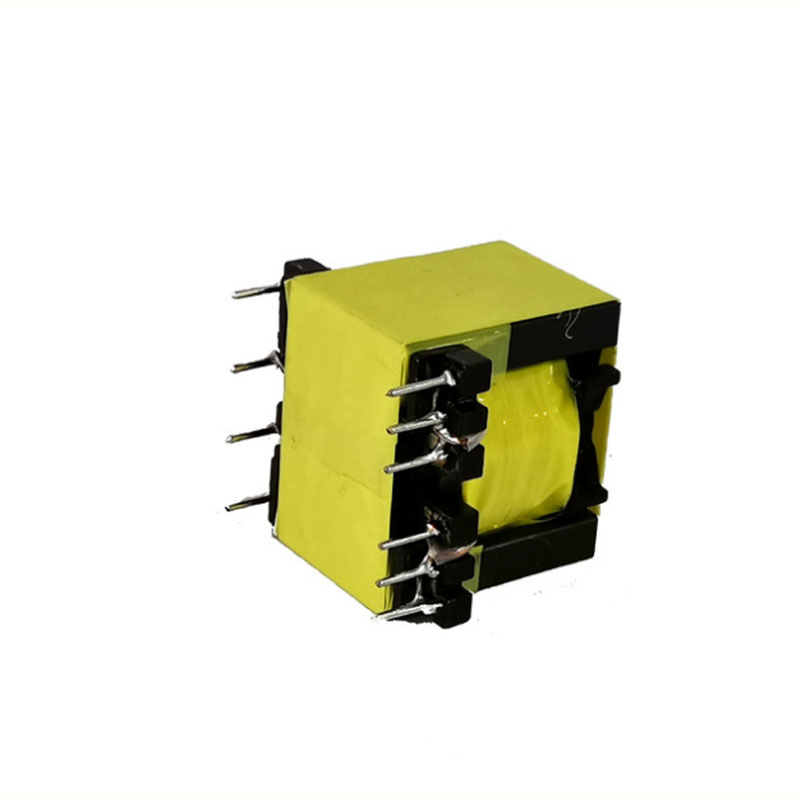

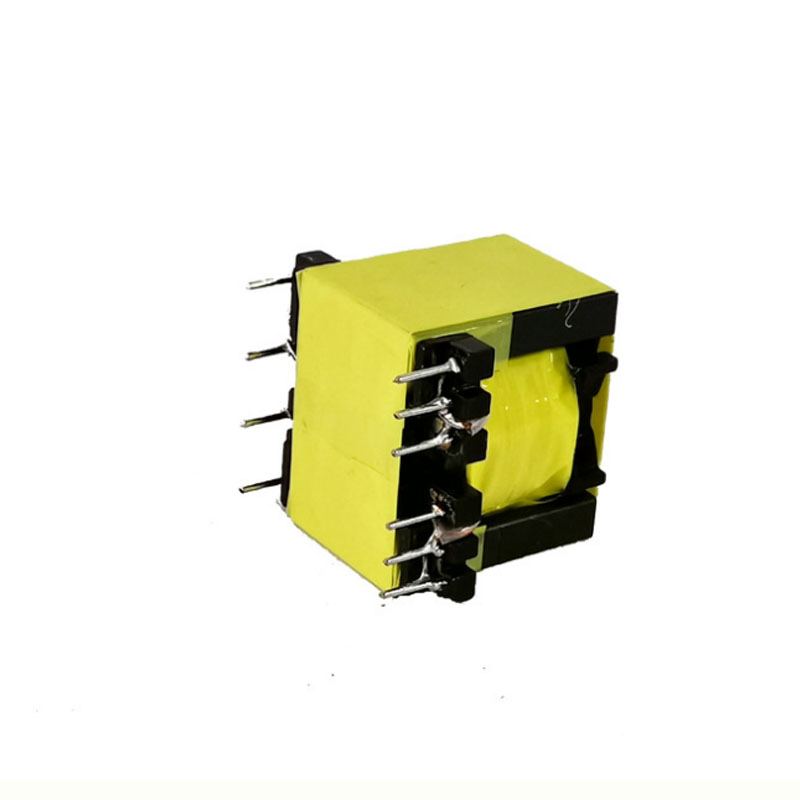

Pot 4202 Transformer UL Approved Pot Series Flyback Switching Audio High Frequency Voltage Step Down Power Transformer for EV Charging
Shenzhen professional transformer Factory Direct Customizedpot 4202 transformer UL Approved Pot Series Flyback Switching Audio High Frequency Voltage Step Down Power Transformer for EV Charging free sample 1. Their input voltage can be different to meet requirements of various regions: AC380V-240V-2......
Send Inquiry
Product Description
Shenzhen professional transformer Factory Direct Customizedpot 4202 transformer UL Approved Pot Series Flyback Switching Audio High Frequency Voltage Step Down Power Transformer for EV Charging free sample
1. Their input voltage can be different to meet requirements of various regions: AC380V-240V-230V-220V-120V-110V-100V.
2. Special designs are also available to meet customers' requirements.
Power Capacity Chart:
Power range (W)Core type using N67* grade material
<5RM4; P11/7; EF12.6; U10
5-10E(F)16; RM5; P14/8
10-20RM6; E(F)20; P18; U15; EFD15
20-50RM8; P22; RM10 ETD29; E25; EFD20
50-100ETD29; ETD34; RM12; P30; EFD25
100-200ETD34; ETD39; ETD44; P36; E30; E42; EFD30
200-500ETD44; ETD49; E55
>500ETD54; ETD59; E65
PQ20. PQ32. PQ35 etc.1. Their input voltage can be different to meet requirements of various regions: AC380V-240V-230V-220V-120V-110V-100V.
2. Special designs are also available to meet customers' requirements.
Power Capacity Chart:
Power range (W)Core type using N67* grade material
<5RM4; P11/7; EF12.6; U10
5-10E(F)16; RM5; P14/8
10-20RM6; E(F)20; P18; U15; EFD15
20-50RM8; P22; RM10 ETD29; E25; EFD20
50-100ETD29; ETD34; RM12; P30; EFD25
100-200ETD34; ETD39; ETD44; P36; E30; E42; EFD30
200-500ETD44; ETD49; E55
>500ETD54; ETD59; E65
PQ20. PQ32. PQ35 etc.
The power capacity of each core type varies due to differences in topology, operating frequency and temperature, flux density, and material grade.
* Siemens material grade
ETD type Transformer Parameters
Model | Output power : W |
ETD29 | 30-90 |
ETD34 | 30-90 |
ETD39 | 20-500 |
ETD44 | 20-800 |
ETD49 | 20-800 |
ETD59 | 400-2000 |
The power capacity of each core type varies due to differences in topology, operating frequency and temperature, flux density, and material grade.
* Siemens material grade

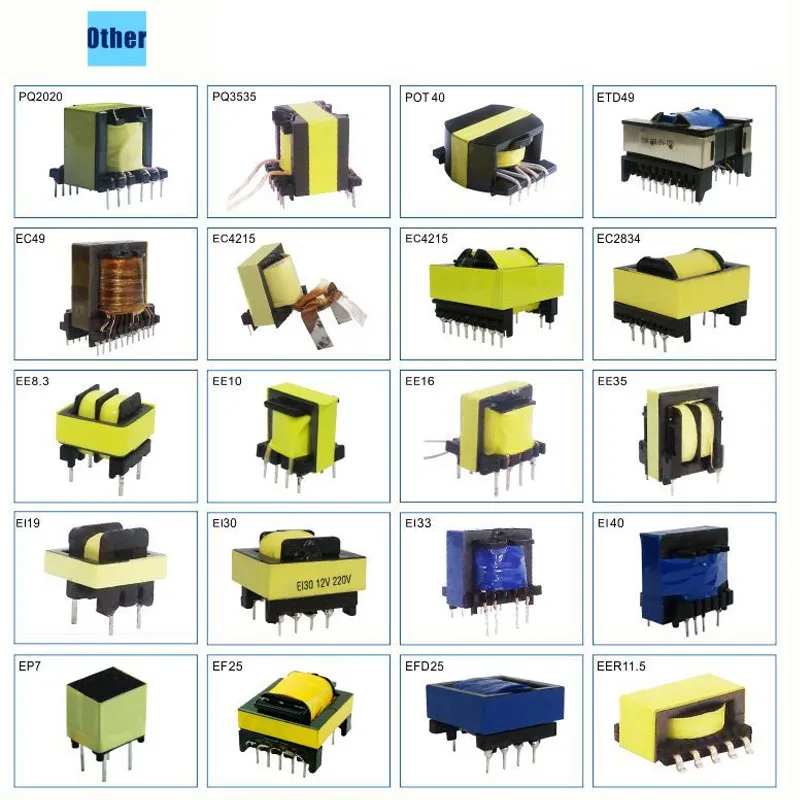

Other Related High Frequency Transformer Parameters:Our products
| NO. | Product Name | Type | Detailed Size | ||||||||||
| 1 | High frequency transformers | EE | EE8.3, EE10, EE13, EE16, EE19, EE20, EE25, EE28, EE30, EE33, EE40, EE42, EE49, EE50, EE55, EE60, EE65, EE70, EE75, EE80, EE85 | ||||||||||
| EC/ER | ER/EC20, ER/EC25, ER/EC28, ER/EC28, ER/EC29, ER/EC35, ER/EC40, ER/EC42, ER/EC49 | ||||||||||||
| ETD | ETD29, ETD35, ETD40, ETD49 | ||||||||||||
| EF | EF16, EF20, EF25 | ||||||||||||
| EFD | EFD15, EFD20/21, EFD25/26, EFD30 | ||||||||||||
| EDR | EDR2009, EDR2037, EDR2809, EDR2828, EDR3012, EDR3909, EDR4008 | ||||||||||||
| EP | EP7, EP10, EP13 | ||||||||||||
| EPC | EPC11.5, EPC13, EPC19, EPC25 | ||||||||||||
| EQ | EQ2512, EQ2610, EQ3209, EQ4013, | ||||||||||||
| POT | POT3016, POT3930 | ||||||||||||
| PQ | PQ2016, PQ2020, PQ2625, PQ2620, PQ3225, PQ3520, PQ3525, PQ3535, PQ4040, PQ49 | ||||||||||||
| RM | RM6, RM8, RM10, RM12, RM14 | ||||||||||||
| 2 | Common mode chokes(Line filters) | UU | UU9.8, UU10.5, UU16 | ||||||||||
| ET | ET20, ET24, ET28, ET35 | ||||||||||||
| SQ | SQ1212, SQ1515, SQ2418 | ||||||||||||
| FT | FT20-22, FT20-21, FT20-15, FT20-13, FT20-10 | ||||||||||||
| Toroidal | 6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 5X15X12, 25X15X13, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16 (Ferrite core); 16X10X6, 20X12.5X8, 25X16X10, 30X20X10, 30X20X15, 40X25X15, 50X40X20, 63X50X25, 80X63X25, 100X80X25, 130X100X25(Nanocrystalline core) | ||||||||||||
| 3 | Inductors(Choke coils) | Peaking/Drum | 4*6, 5*7, 6*8, 8*10, 9*12, 10*12, 10*16, 14*15, 16*18, 18*20 | ||||||||||
| Toroidal | 6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X5X4,10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 25X15X12, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16 | ||||||||||||
| Rod | 3X12, 3X15, 4X15, 4X20, 5X15, 5X20, 5X25, 5X30, 6X15, 6X20, 6X25, 6X30, 6X32, 6X35, 8X20, 8X30 | ||||||||||||
| 4 | SMD power inductors | Unshielded | MT, MTQ, MTF, MTG | ||||||||||
| Shielded | MTH, MTHII, MTP, MTB, MTE, MTL, MTF | ||||||||||||
| 5 | Low frequency transformers | EI | EI14, EI16,EI19, EI24,EI28, EI30, EI35, EI38.5, EI41,EI48, EI57, EI60, EI66, EI74, EI76, EI86, EI96, EI105, EI114 | ||||||||||
| Toroidal | OD:40mm---130mm;ID:20mm---100mmm;H:10mm---50mm. | ||||||||||||
| 6 | Planar transformer | EI | Ei22 | ||||||||||
| 7 | CT | UF | UF15,Zero sequence current transformer, precision current transformer | ||||||||||
| 8 | Coil | T | 185*60,23.8 | ||||||||||
1. Their input voltage can be different to meet requirements of various regions: AC380V-240V-230V-220V-120V-110V-100V.
2. Special designs are also available to meet customers' requirements.
Power Capacity Chart:
Power range (W)Core type using N67* grade material
<5RM4; P11/7; EF12.6; U10
5-10E(F)16; RM5; P14/8
10-20RM6; E(F)20; P18; U15; EFD15
20-50RM8; P22; RM10 ETD29; E25; EFD20
50-100ETD29; ETD34; RM12; P30; EFD25
100-200ETD34; ETD39; ETD44; P36; E30; E42; EFD30
200-500ETD44; ETD49; E55
>500ETD54; ETD59; E65
PQ20. PQ32. PQ35 etc.
The power capacity of each core type varies due to differences in topology, operating frequency and temperature, flux density, and material grade.
* Siemens material grade

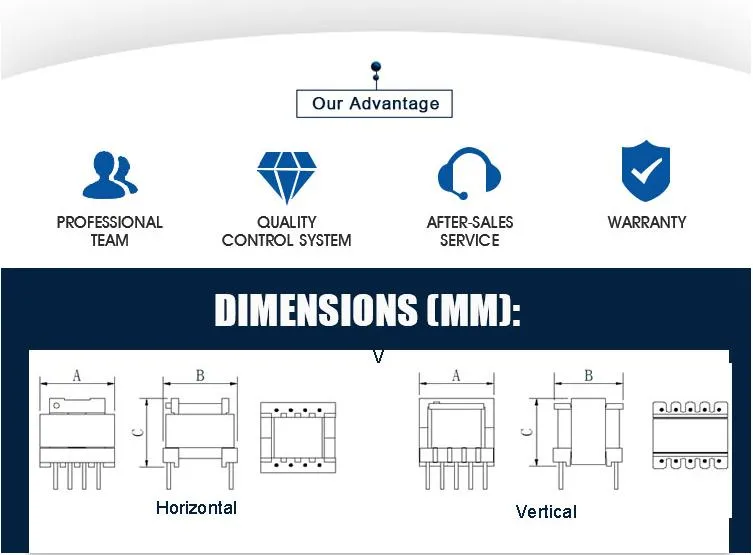

EE type Transformer Parameters
| EE type transformer | |||||||
| Part No. | Terminal Pins | Dimension mm | Type | Electrical parameter | |||
| A | B | C | Inductance | Output power(W) | |||
| EE-8.3 | 6 | 8.0 | 8.0 | 8.3 | V | 100.0uH | 0.2-3.0 |
| EE-10 | 8 | 11.5 | 10.2 | 10.2 | V | 80.0uH | 0.5-5.0 |
| EE-13 | 10 | 12.0 | 12.5 | 13.0 | V | 120.0uH | 0.5-8.0 |
| EE-16-1 | 6 | 14.8 | 13.3 | 16.0 | V | 90.0uH | 1.0-10.0 |
| EEL-16 | 10 | 28.5 | 16.0 | 21.9 | V | 600.0uH | 2.0-15.0 |
| EE-19-1 | 8 | 17.6 | 16.0 | 19.0 | V | 800.0uH | 3.0-30.0 |
| EEL19 | 10 | 31.5 | 16.0 | 21.1 | V | 1200.0uH | 3.0-30.0 |
| EE-25-1 | 6 | 20.0 | 18.2 | 25.2 | V | 2000.0uH | 3.0-45.0 |
| EEL25 | 8 | 35.3 | 17.5 | 25.2 | V | 2800.0uH | 3.0-45.0 |
| EE-30 | 10 | 21.0 | 29.2 | 30.0 | H | 900.0uH | 3.0-50.0 |
| EE-40 | 14 | 27.6 | 30.5 | 40.0 | H | 1500.0uH | 3.0-55.0 |
| EE-42/15-1 | 12 | 33.8 | 44.0 | 42.0 | H | 2000.0uH | 3.0-80.0 |
| EE-42/20-1 | 12 | 45.0 | 39.8 | 42.0 | V | 1900.0uH | 3.0-90.0 |
| EE-55 | 20 | 50.0 | 50.0 | 55.0 | H | 3000.0uH | 3.0-150.0 |
| EE-65 | 16 | 55.2 | 51.8 | 65.0 | H | 4500.0uH | 3.0-300.0 |
Input Voltage: AC 100---240V;50/60Hz to be customized
Output Power: 5VA -1000VA to be customized
Products Advantages:
1. Low loss
2. High Reliability
3. High Efficiency
4. Stable output
5. It can be customized according to the requirements of customers and provide total design solutions to customer
Application:
1. Photovoltaic
2. Household Appliance
3. Energy
4. Communications
5. High-power supply
6. Automotive electrics
Features:
- Applied in a wide range
- High operation frequency
- Wide range of working voltage
- Large power
- Low temperature rising
- Compact, light and easy surface mounting
- Customized designs and specifications are accepted
- Various types of transformers are available
- Switching power transformer
High Frequency Transformer with Low Leakage Inductance and High-efficiency
- High power and compact design
- Utilizing high flux density ferrite cores with low loss and low temperature rise
- Applicable frequency range: 20 to 80kHz
- Operating frequency: higher than 200kHz
- High magnetic flux and low-loss magnetic materials
- With low leakage inductance and high-efficiency
- Highest reliability of high-voltage
- Designed according to customer's requirements to meet EI, ER, EE, and EEL model series
- Advanced production technique and reliable full-automatic testing facilities
- Customized specifications are welcome
- Applications: PCB circuits, computer, TV, monitor, scanner, duplicator, mobile adapters, printer and other equipments, and instruments and so on.
The following picture showed you about all finished toroidal transformer production line and package with export standard carton and strong pallets:

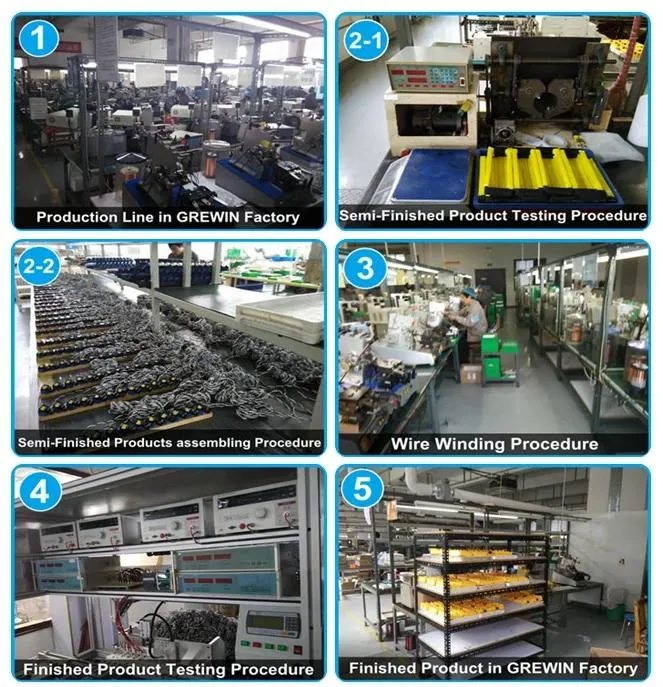

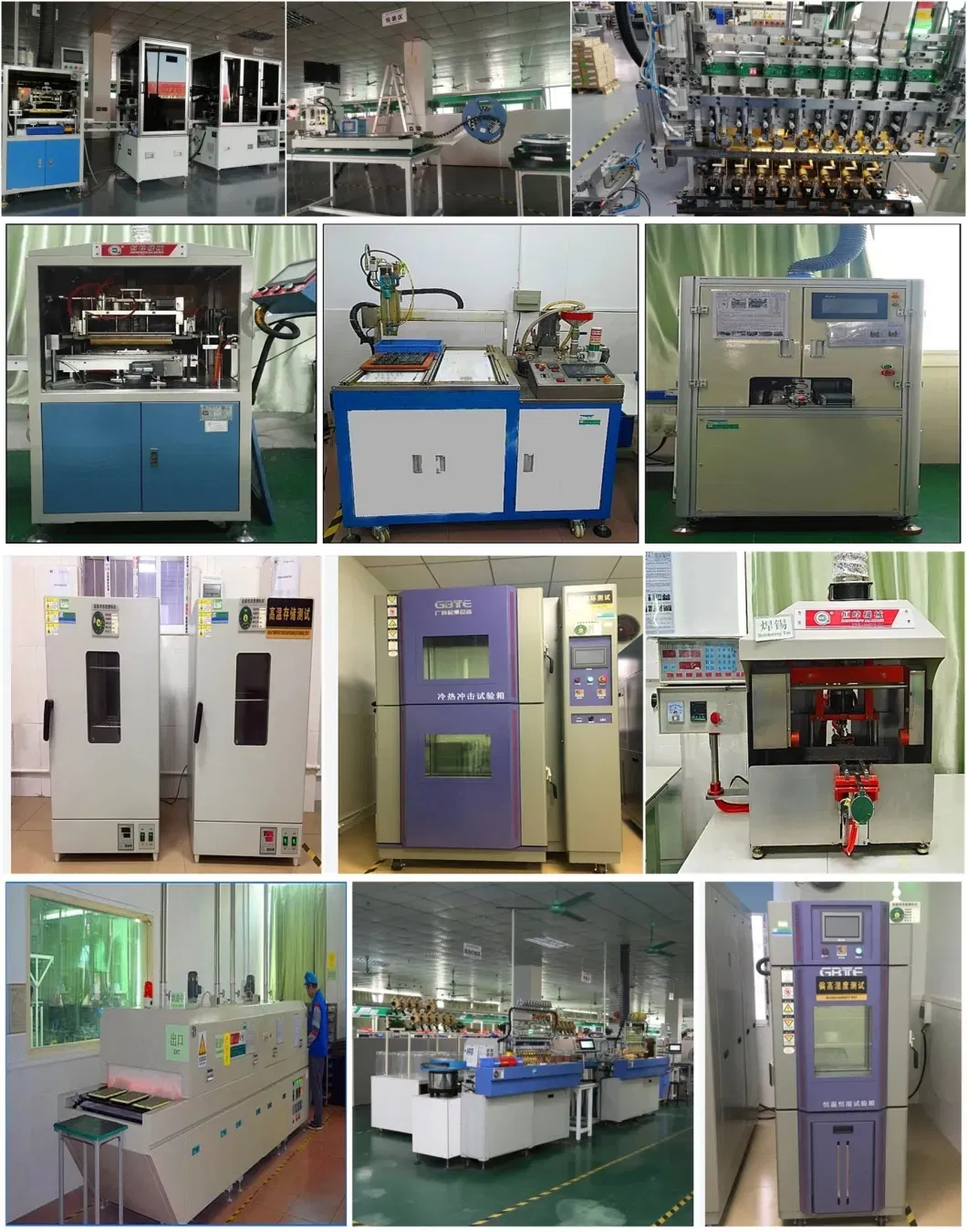

Equipment Exhibition
Our main equipments contained: 256 sets of automatic winding machines; 2 sets of automatic infrared drying tunnel furnace; the lab for car magnetic products; 1set of salt spray test machine,1 set of high-temperature storage test machine, 1 set of high humidity test machine and a set of old and heat shock test machine; 6 sets of automatic vacuum dipping machines; 3, fully automatic soldering machines, 600 set accessory Machines.
About our factoryShenzhen Yiyi Technology CO., LTD is a professional transformer & inductor manufacturer, Our factory has abundant strength which integrates design, production, selling of transformer, inductor etc. Quality is the soul of the product and the life of a company, In order to provide high quality and energy-saving green products, we strictly carry out the international Quality Management System: ISO 9001, ISO 14001, What's more, we had acquired IATF16949, CQC, UL certification.
We Had 2 production bases in China, one named Yongzhou Meikai Electronics Co., Ltd located in Fujian Longyan. The other is Dongguan Zhici Electronics co.,ltd, located in Xiamen. The factory is about 24800 square meters, The total production capacity up to 8 million pieces per month: High-Frequency Transformer: 3 million pieces, Low Frequency Transformer 1 million pieces.
The company of Shenzhen is focused on research&development, What is the most important, we established an independent laboratory for car magnetic: salt spray test, high humidity test, high-temperature test, cold and hit shock test, Etc which can meet all the test requirements.
The base of Fujian can offer our customers first-rate mass production with a lower cost at high rate products.
Our products are widely used in many fields, such as household appliances, new energy, industrial supplies, and electric tools. It can be customized by customers and we can provide total design solutions to our customers if needed. We enjoyed a high reputation and keep reliable cooperation with global valued customers such as Panasonic, Funai, Cosel, Honeywell, Jabil, Otis, FPHC, Future, GE, TCL, FPA, ABB, CKP,EATON.
We insist on pursuing superior quality and scientific management, not only the independent laboratory for car magnetic. But also We try our best to insist on technological innovation, improvement and introducing automatic equipment. we can keep supplying high quality, lower cost, competitive products for our customers continuously.
Our products can be customized according to the requirements of customers, what's more, we can provide total design solutions to our customer if needed
5. Company Advantages
1. We are a professional Magnetic component manufacturer with over 16 years of experience in designing and producing and Exporting.
2. Big production capacity: The factory acreage is about 24800 square meters, total production capacity reached 8 million pieces of transformer series per month.
3. Strictly QC inspecting rules: all products must be 100% inspected before delivery.
4. OEM/ODM services are available.
5. We have an independent order system, with the overall tracking function from raw materials purchasing to finished goods outgoing.
6. We have got ISO9001:2015 quality management system; ISO14001:2015 environment management system; health and safety management systems-Requirement, IATF16949, UL certification.
7. Independent laboratory for car magnetic. It meets all the car component test.
8. We have 2 factories which can meet a variety of demands.
FAQ
Question 1: What is your payment term?
Answer: T/T 30% in advance and balance 70% before shipment or L/C at sight.
Question 2: What is your delivery term?
Answer: EXW, FOB, CFR, CIF
Question 3: What about Lead time?
Answer: normally, it takes about 7 to 30 days after receiving your advance payment.
Question 4: Can you produce according to our samples?
Answer: Yes, we can produce according to your samples or technical drawing, we will make the molds and fixtures.
Question 5: What is your sample's policy?
Answer: We provide the sample according to your requirements, and you get to pay the sample's fee and courier freight, we will return the sample fee to you once you confirm the normal order.
Question 6: Do you test all your goods before delivery?
Answer: Yes, we have 100% test before delivery.
Question 7: How do you make our business longterm and good relationship?
Answer: Firstly, we provide good quality products with competitive price, to ensure our customer's benefit;
Secondly, we respect our customers as our friends, grow up together.
Kindly Reminder:
1. About the SAMPLES. Please provide specific specifications or sample material, we will evaluate your products, design and produce samples.
2. About PRICE. Transformers are custom products, due to the different materials and design, even if the same model, the price is not the same. The price also depends on the complexity of the parameters and the amount of orders.
3. About SHIPPING. Samples in 3-5 days; mass production in 7-15 days.
4. Packaging, logistics, according to the specific requirements of the purchase and sale contracts.
Warm tips: the freight shown on the website is for reference only, and the specific freight will be calculated according to the actual delivery amount..
