Product Description

TYPE N is a kind of low to medium power connectors with screw coupling. Characteristic impedance has two types: 50ohm and 75ohm. The characteristic of connector is high reliability, great vibration performance, excellent mechanical and electrical performance etc. They are used in connection with RF coaxial cable in radio instrument, communication equipment, microwave test and ground launch system at vibration and inclement weather circumstance. By using semi-rigid or semi-flex cable, this type will gain smaller VSWR, and the frequency can by up to 11GHZ.

N connector female bulkhead for RG402 cable
Model No.	N-KYB3-C
Interface	IEC 60169-16
Electrical
Characteristic Impedance	50ohm
Frequency Range	DC-18GHz
VSWR	≤1.15@DC-6GHz; ≤1.35@DC-18GHz
Working Vlotage	1000V RMS,50Hz,at sea level
Intermodulation 3rd	≤ -150dBc@2×20W
Dielectric Withstanding Voltage	≥2500V RMS,50Hz,at sea level
Dielectric Resistance	≥5000MΩ
Contact Resistance	Center Contact ≤1mΩ	Outer Contact ≤0.25 mΩ
Mating	-
Mechanical
Durability	Mating cycles ≥500
Material and Plating
Parts Name	Material	Plating
Body	Brass	Tri-alloy
Insulator	PTFE	-
Center Conductor	Phosphor Bronze	Ag
Sleeve	Brass	Ag
Gasket	Silicone rubber
Fastening Nut	Brass	Tri-alloy
Washer	Brass	Tri-alloy
Environmental
Temperature Range	-40 ºC-85 ºC
Weatherproof Rate	IP67
RoHs Compliant	Yes

Picture show:

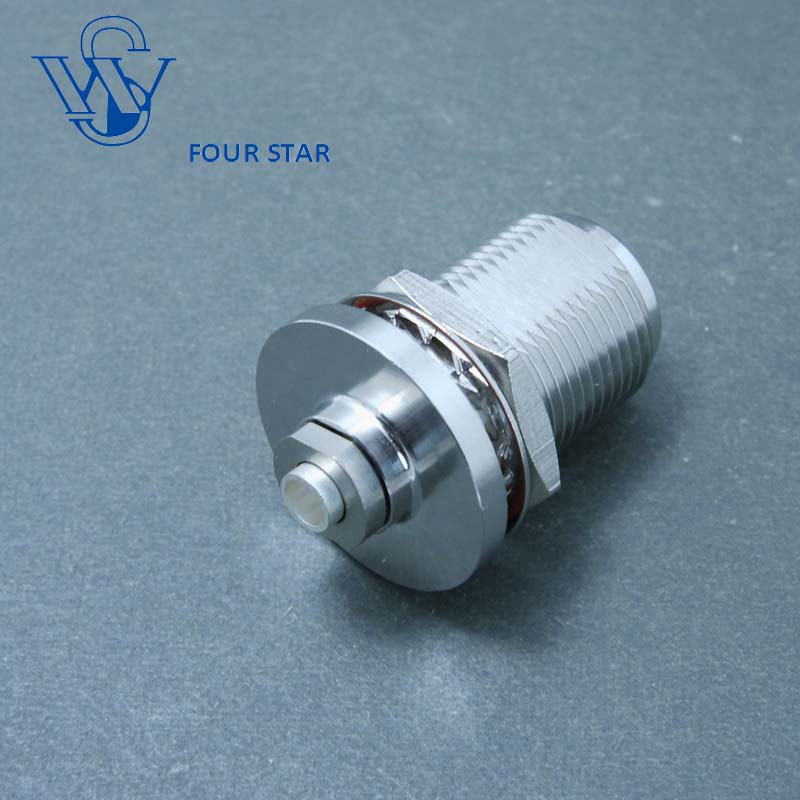

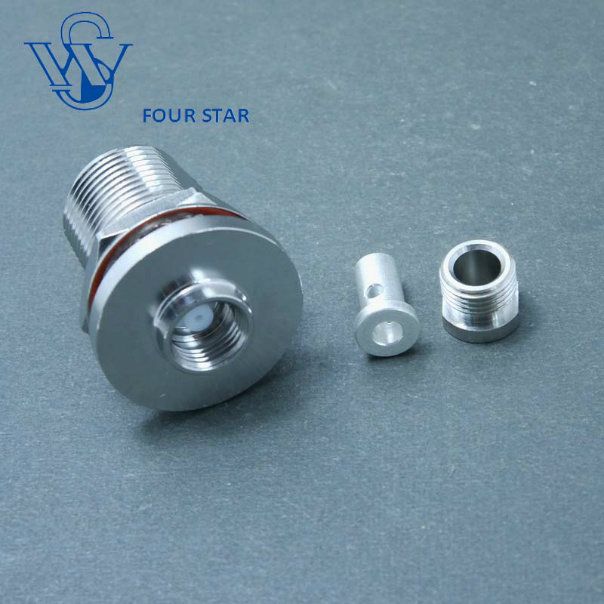

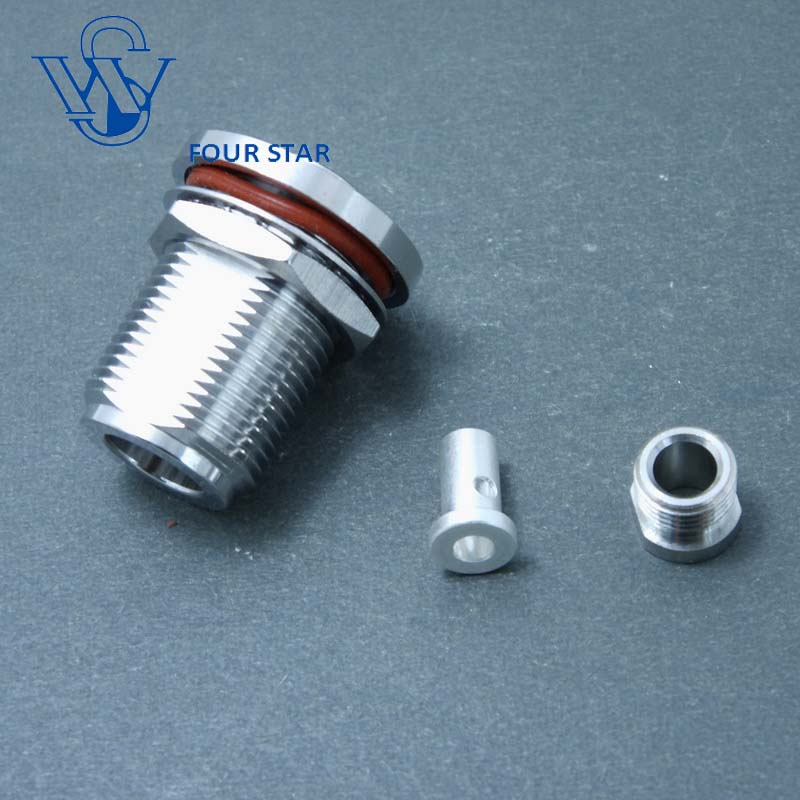

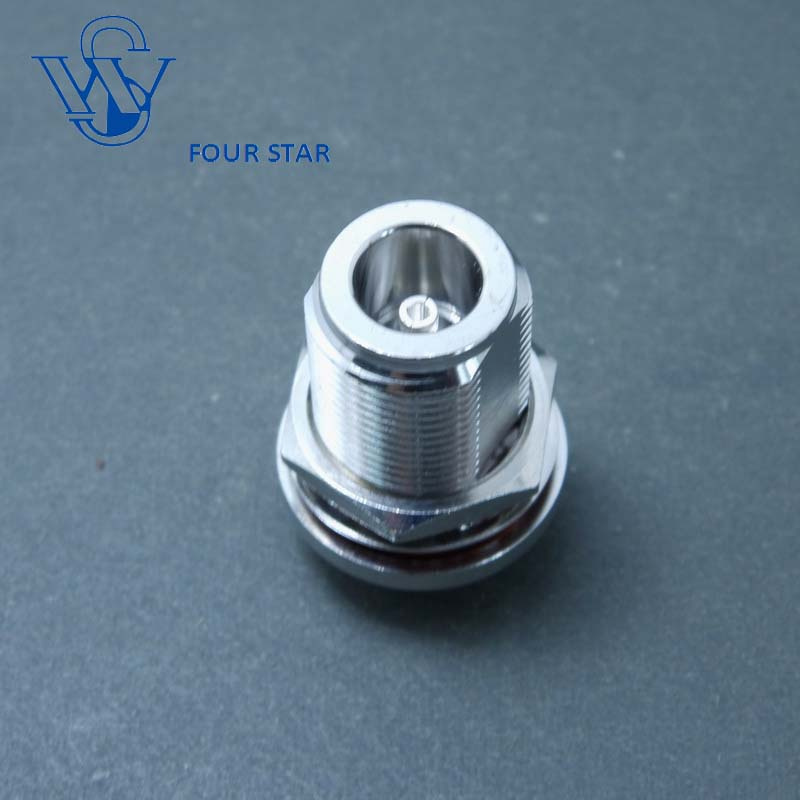

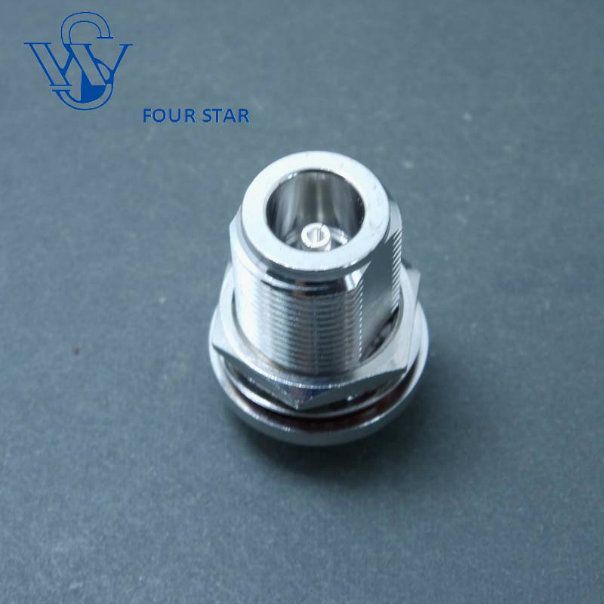

RF Coaxial Female Jack Bulkhead High Frequency N Connector for Rg402 Cable
