N Connector N Type Male Connector for Rg214 Clamp Type
N Connector N Type Male Connector For RG214 Clamp TypeProduct photo for n connector MaleDescriptions1.N type connector developed by the USA Army/Navy ran directly parallel to the escalation of U.S. Involvement in WWII.2.It was finally released in 1942, shortly after the U.S. officially entered the w......
Send Inquiry
Product Description
N Connector N Type Male Connector For RG214 Clamp Type

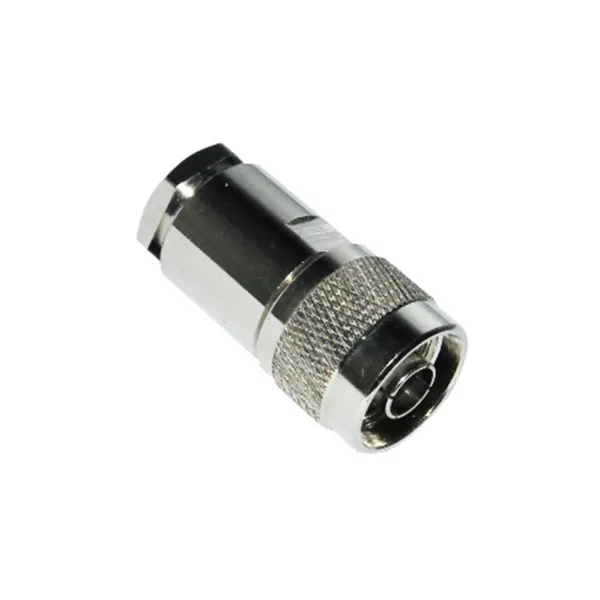

Product photo for n connector Male
Descriptions
1.N type connector developed by the USA Army/Navy ran directly parallel to the escalation of U.S. Involvement in WWII.
2.It was finally released in 1942, shortly after the U.S. officially entered the war, and since that time it has been a staple in RF and Microwave applications all over the world.
Features
(1)With DC to 11GHz Frequency and 50 ohm impedance;
(2)Threaded coupling mechanism used for vibration application;
(3)Medium size used in military, industry or consumption electronic area, etc.
Main Specs
| Major Technical Characteristics | |
| Product name | N Connector N Type Male Connector For RG214 Clamp Type |
| Temperature Range | -55 degree to +155 dregree(PE Cable-40~+85 degree) |
| Vibration | 100m/S2 (10 to 500 Hz) |
| Impedance | 50 ohm |
| Frequency Range | DC-11GHZ |
| Working Voltage | 1000V r.m.s at sea level |
| Withstanding Voltage | 2500V r.m.s at sea level |
| Center Contact Resistance | ≤1Mohm |
| Outer Contact Resistance | ≤1Mohm |
| Insulation Resistance | ≥5000Mohm |
| Center conductor Retention Force | ≤0.56N |
| Insertion Loss | ≤0.24dB/6GHz |
| Voltage Standing Wave Ratio : | |
| Straight | ≤1.15/6GHz |
| Right Angle | ≤1.25/6GHz |
| Coupling Nut Retention force | 450N |
| Durability (Mating) | ≤500(cycles) |
| Materials | |
| Shell/Body | Brass..................NEXCOTE |
| Insulator | Teflon..................Natural |
| Gasket | Silicone.................Red |
| Retainer Ring | SUS 304..................Natural |
| Contact Pin | Brass......................Gold |
| Ferrule | Copper......................NEXCOT |
| Suitable Cable | |
| RG8, RG58, RG213, RG316, LMR200, LMR300, LMR400 ( More Option, please contact US) | |

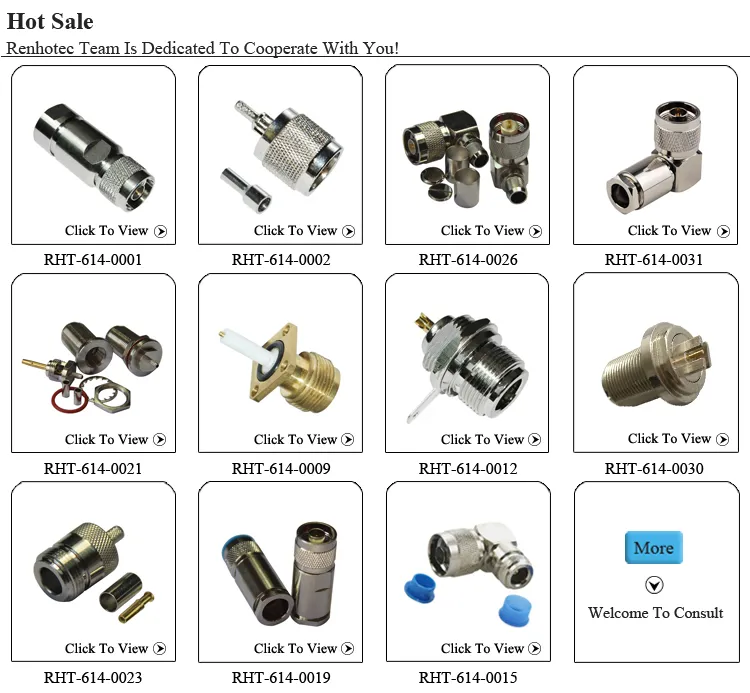

More N type connector options
