Product Description

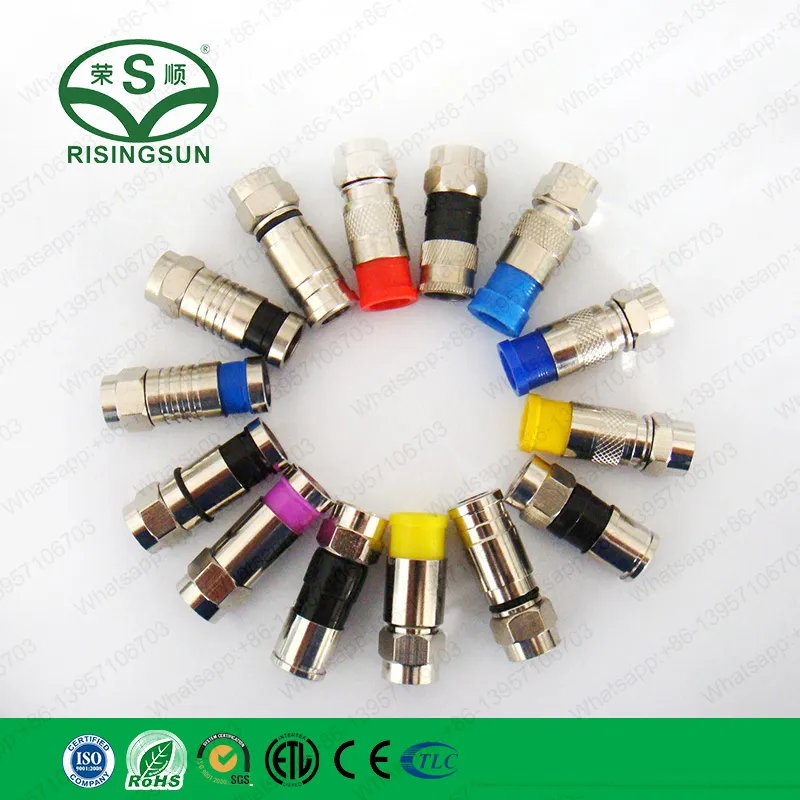

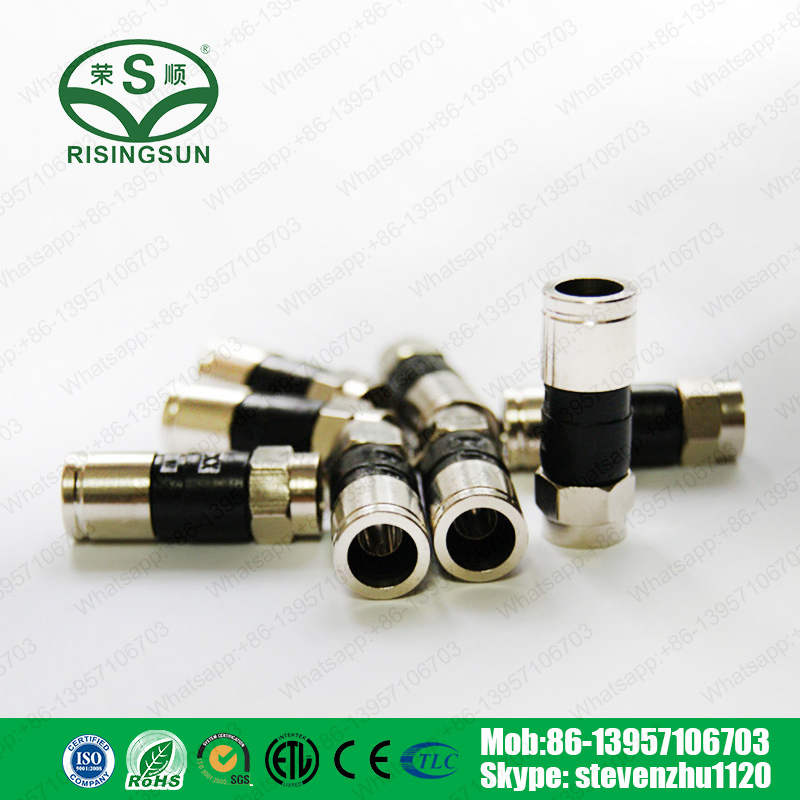

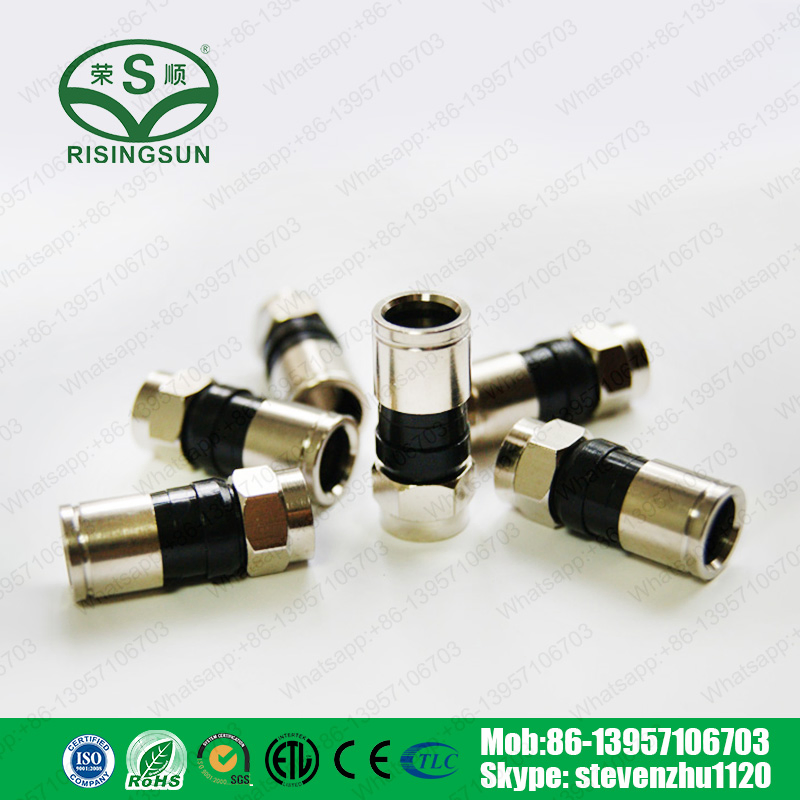

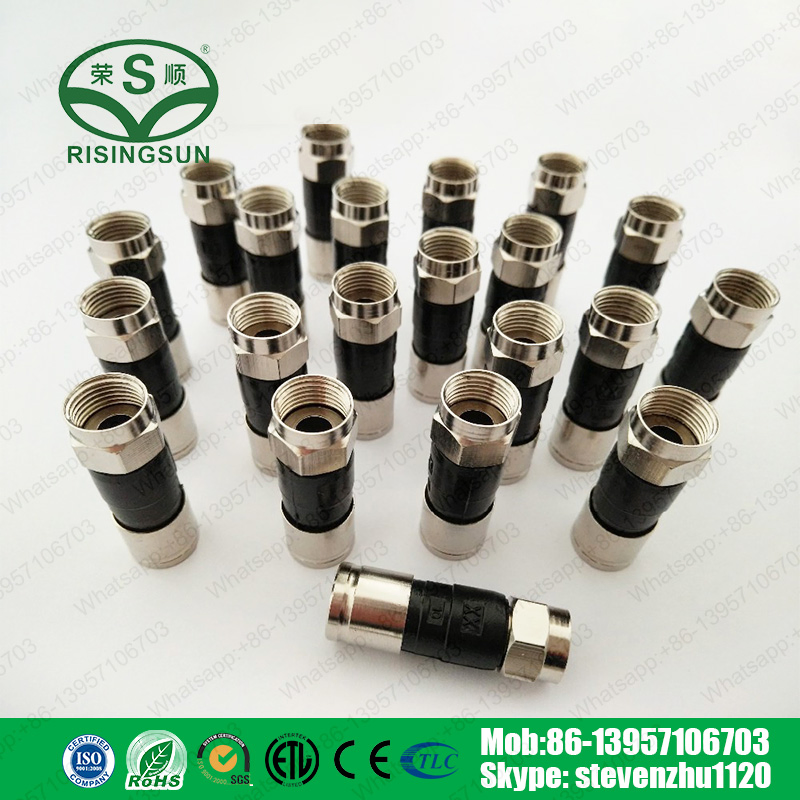

CATV Coaxial Cable Ppc Ex6XL RG6 Compression F Connector

RISINGSUN high quality 75 ohms F type coaxial cable compression connectors, crimp connectors, excellent weather-proof capacity, brass materials, low insertion loss, high return loss, hig RFI shielding, wide hexagon nut, 360 degree radial. Also many color o-ring changeable.

Characteristic impedance	75Ω	Temperature range	-65~+165°C
Frequency range	0 MHz to 3 GHz	Working Voltage	≤170V
Center conductor retention force	≥0.2 N	Vibration	100m/s2 (10~500Hz)
Conductor resistance	Center Conductor	≤ 10 mΩ
Conductor resistance	Outer Conductor	≤ 5 mΩ
Durability	Mating cycles	≥500
Durability	Withstanding voltage	≤500V rms
Voltage Standing Wave Ratio	Straight	≤1.20
Voltage Standing Wave Ratio	Right angle	≤1.30
Material And Plating3	Parts Name	Material	Plating
	Body	Brass	Nickel plated
	Pin contact	Brass	Gold or silver plated
	Resilient contact	Tin bronze	Gold or silver plated
	Insulators	PTFE	-
	Gaskets	Silicon rubber	-
	Crimp ferrules	Copper alloy	Nickel or gold plated
Applicable standard	IEC 60169-24

Other related coaxial cable connectors Series
Twist-on series,
Crimp type series,
Conicial type series,
Compression Type series,
F adaptor series,
Aluminum Trunk cable connectors...

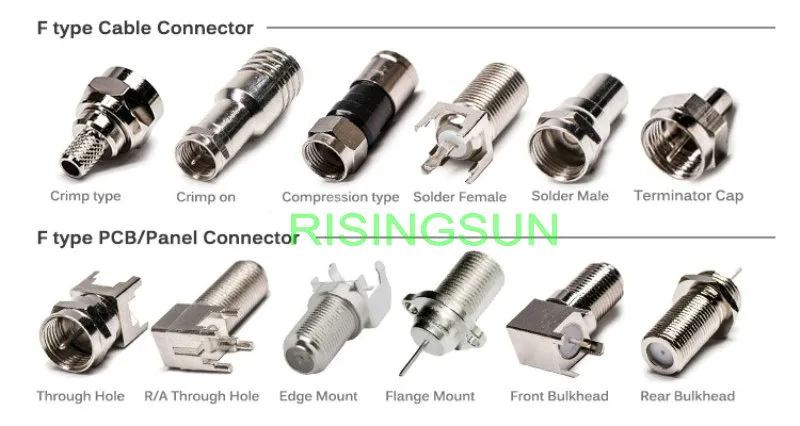

F series Connectors	Type
	Twist - on
	Crimp type
	Compression Type
	Fast type, no need tool
	F splice connectors
	75 ohm terminators
	Trunk Connectors

Our Service:
   1) Quick Response --All inquiries will be replied within 24 hours.
2) Professional Quotation --All prices will be quote according to customers' detailed
   specifications & requirements.
   3) OEM & ODM Service
   4) Can print your own brand on the jacket printing with foot or meter marking.
   5) Make customized designs for stickers, drums, outer cartons, etc.
   6) Stable Quality --All materials and products passed restrict QC procedures,comply with
   international standards.
7) Fast Delivery --LCL orders,15days after confirmation; FCL orders, 20 days after
Confirmation in usual.

Good After-sales Service
--We chose the fastest vessel to POD for delivery our goods to clients,
--All Documents will be issued according to clients' instructions, to save troubles from local customs.
--Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.
