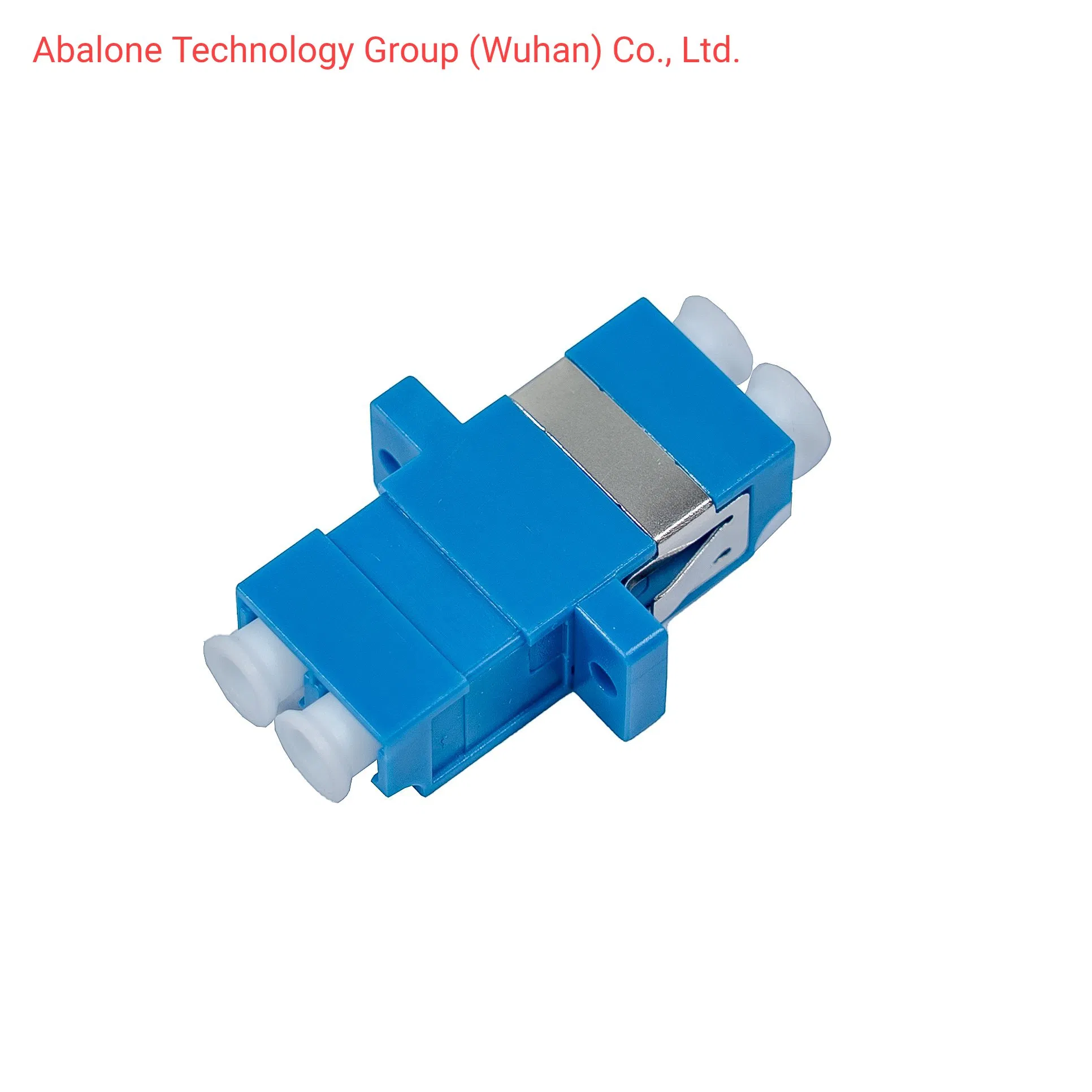

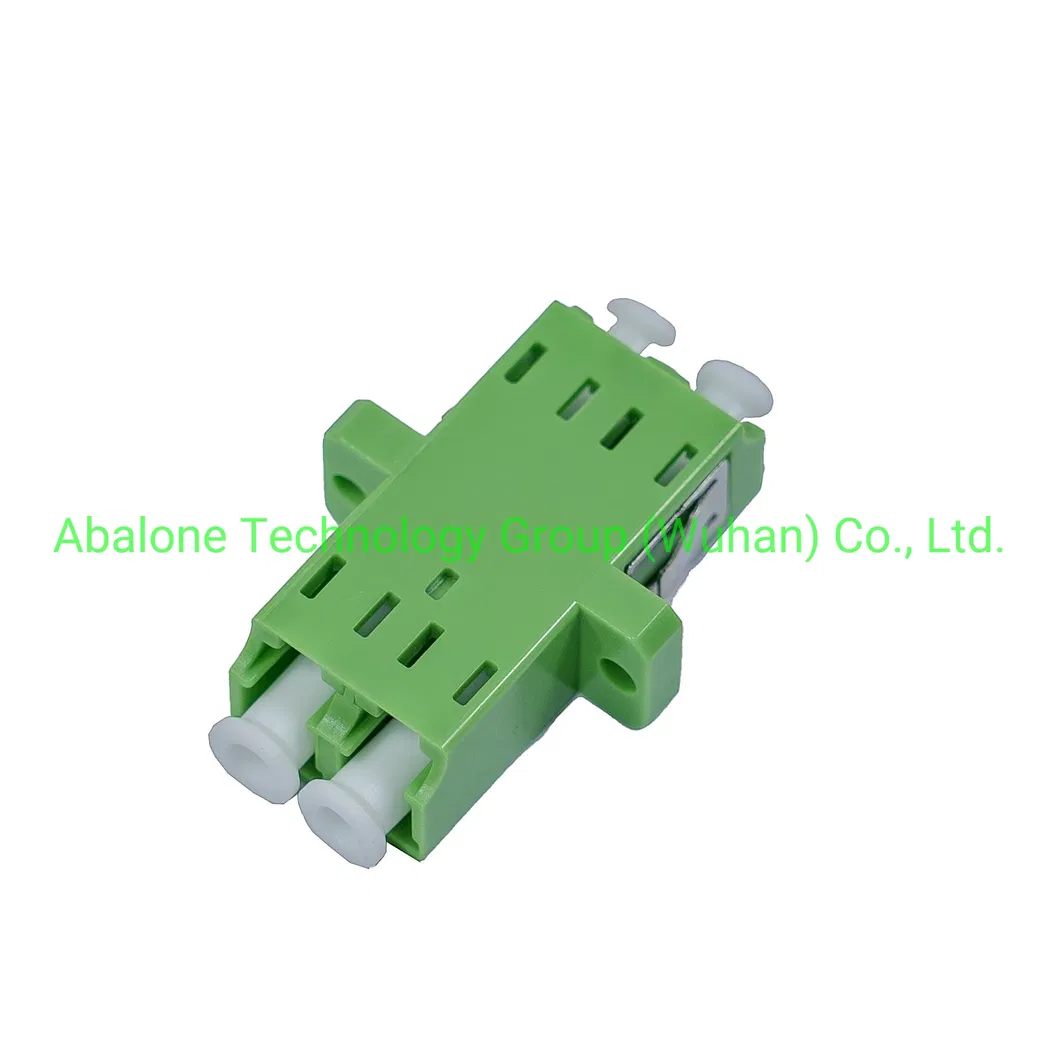

Single Mode LC/APC Duplex Plastic Fiber Optic Adapter Without Flange Jumper/Cable/Pigtails Adaptors

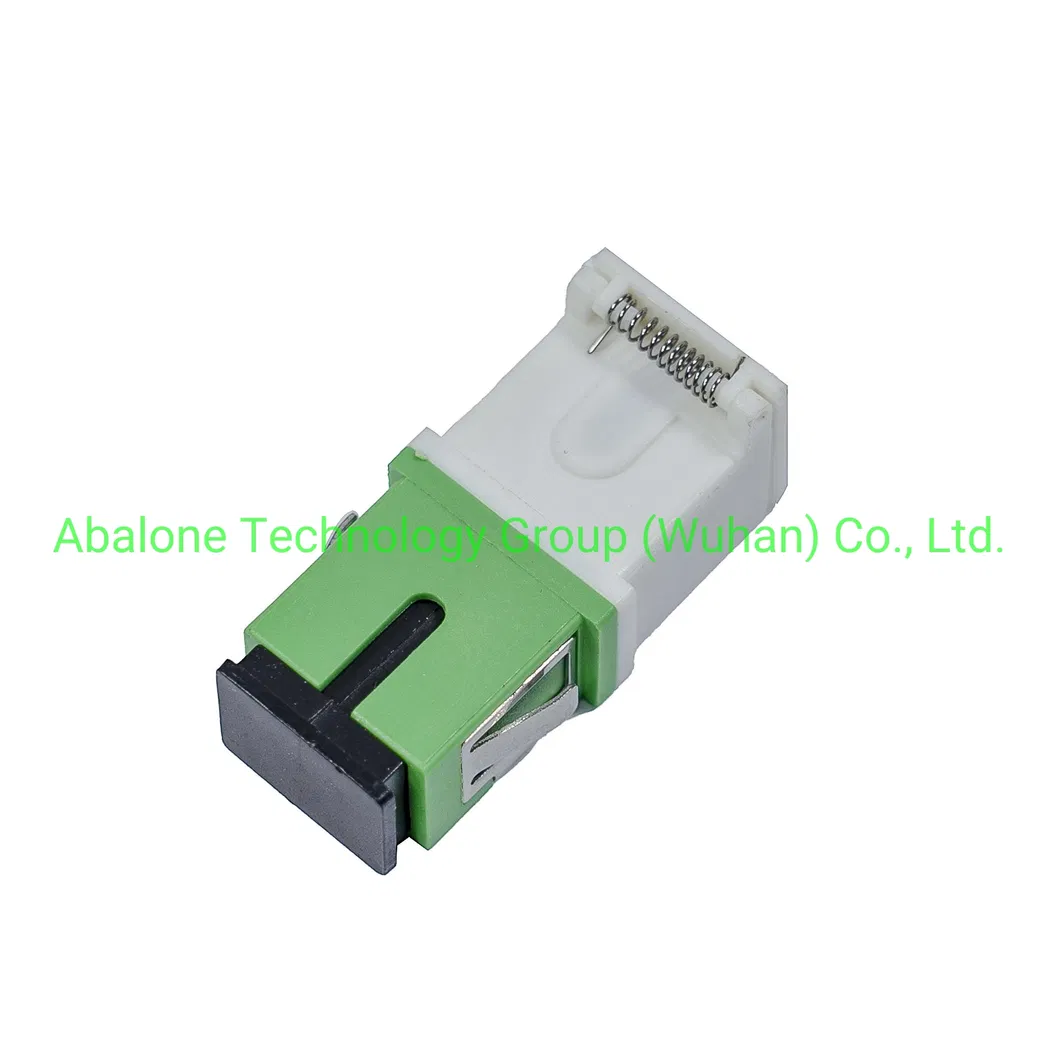

Product Description:Fiber adapter, sometimes also called fiber coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines. Spring-loaded shutters prevent potential eye hazards and dirt / debris contamination when not in use......
Send Inquiry
Product Description
Fiber adapter, sometimes also called fiber coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines. Spring-loaded shutters prevent potential eye hazards and dirt / debris contamination when not in use.
Fiber Adapters are comprised of a polymer outer body and inner assembly fitted with a precision alignment mechanism. SC Optical Adapters are precision made and manufactured to demanding specifications. The combination of a ceramic/phosphor bronze alignment sleeves and precision molded polymer housing provides consistent long-term mechanical and optical performance.
Application
1. Telecom network
2. Ethernet network
3. Optical communication equipment
4. Local Area Networks(LANs)
5. Data processing networks
Features
1. Made of high quality Zirconia ceramic sleeves
2. 100% tested on optical performance (Insertion Loss & Return Loss)
3. End-face geometry requirement complies to Telcordia GR-326-CORE
4. For end-to-end fiber cable connectivity
5. Available in singlemode and multimode, including APC and various colours
6. Female to female & male to female adapters available
7. Hybrid, Shuttered and Metal adapters available
8. Coloured for easy indentification
| LIET | Unit | SC&LC&FC&ST&MTRJ&MPO | |||
| SM | MM | ||||
| Inserion Loss | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Interchangeability | dB | ≤0.2 | |||
| Vibration | dB | ≤0.2 | |||
| Repeatability | times | >1000 | |||
| Operating temperature | ºC | -45~75 | |||
| Operating temperature | ºC | -45~85 | |||

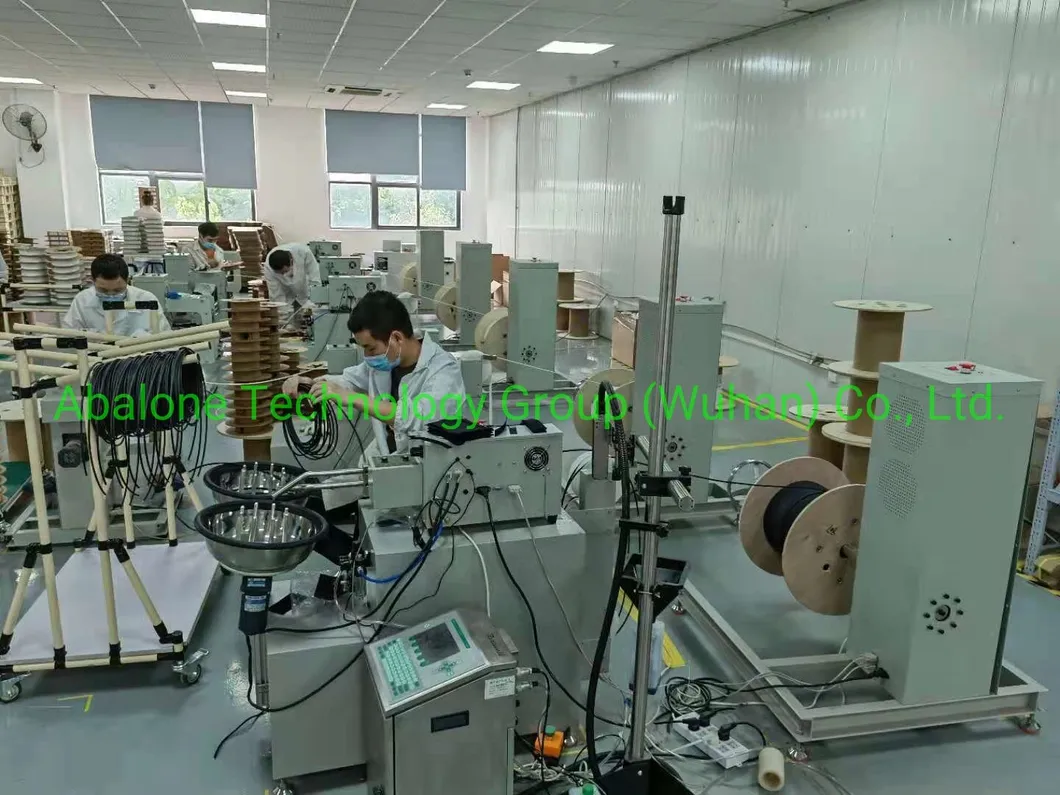

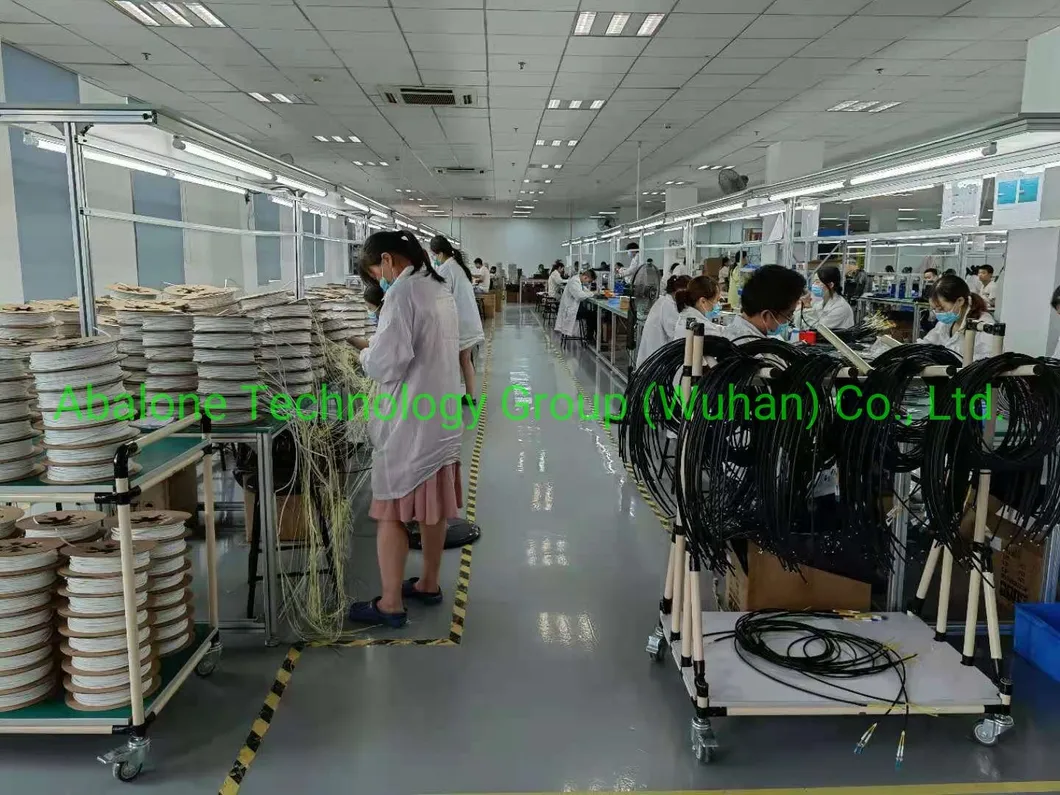

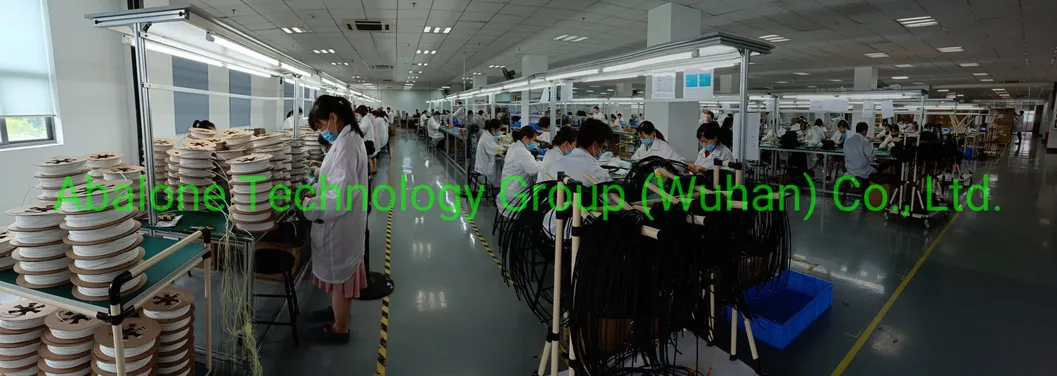

Our Factory
