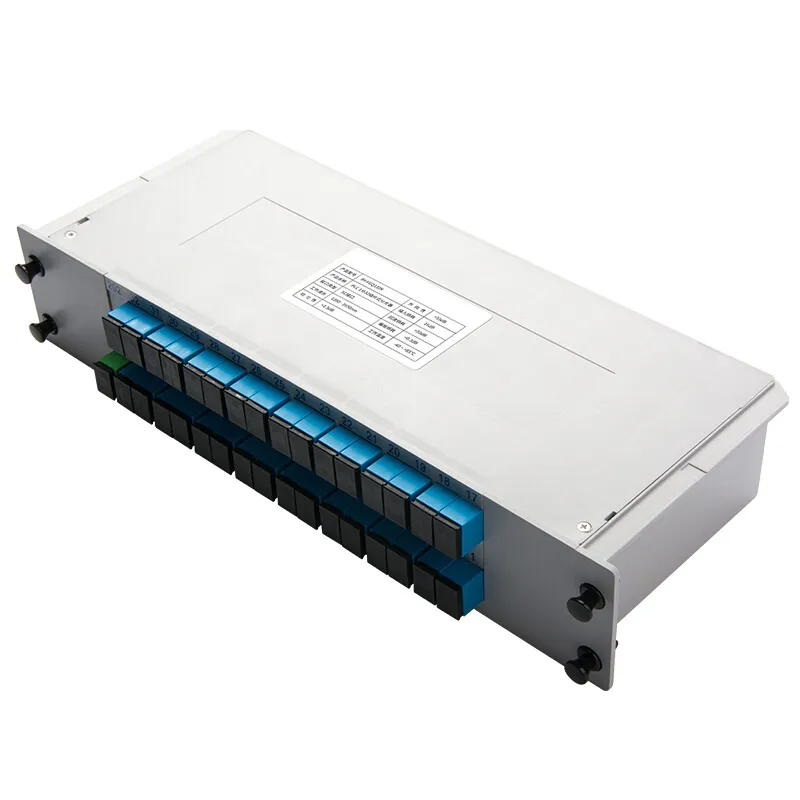

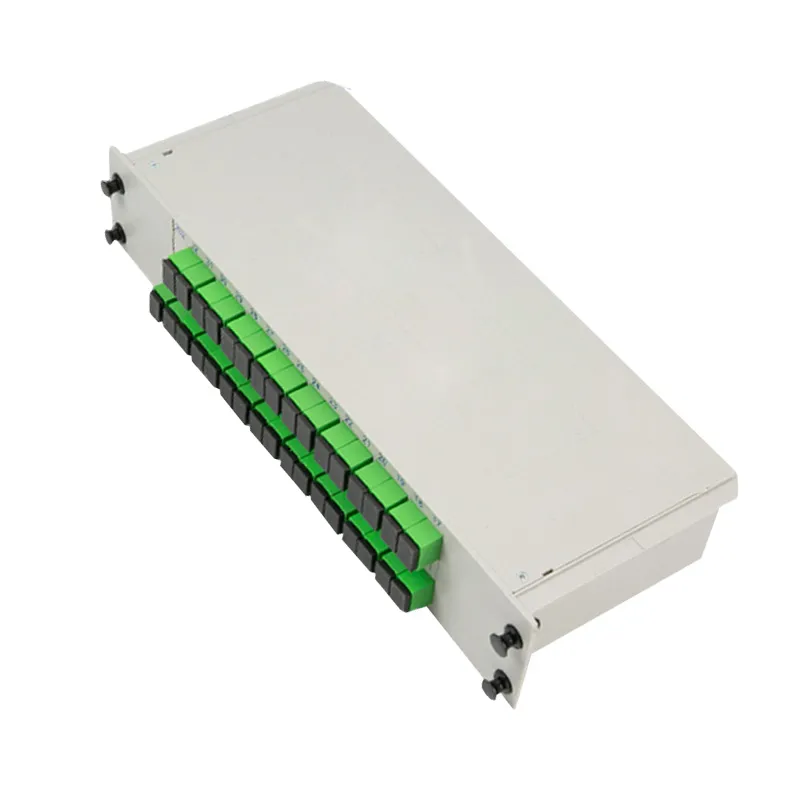

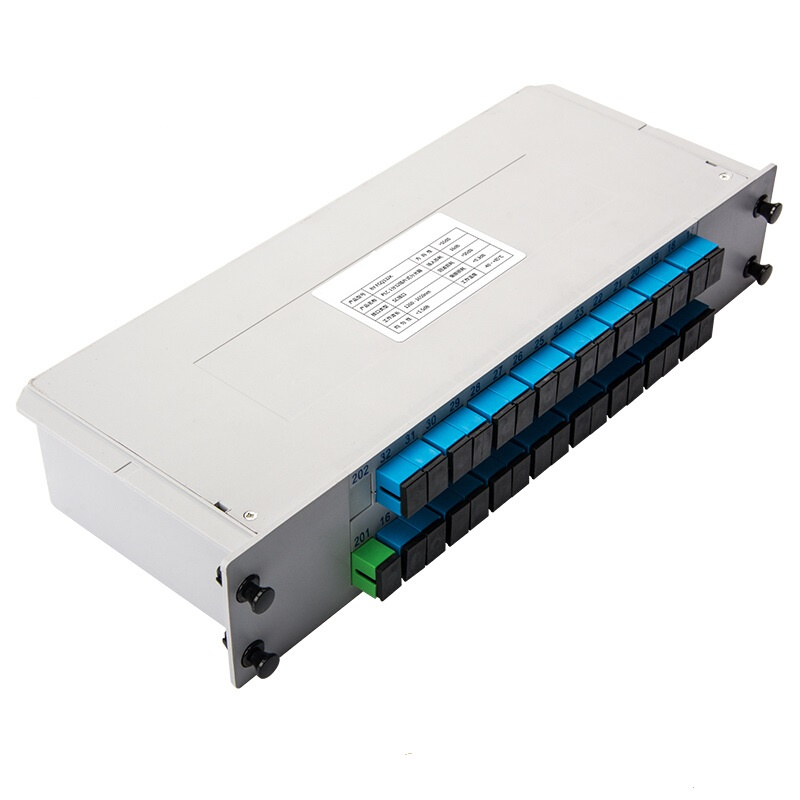

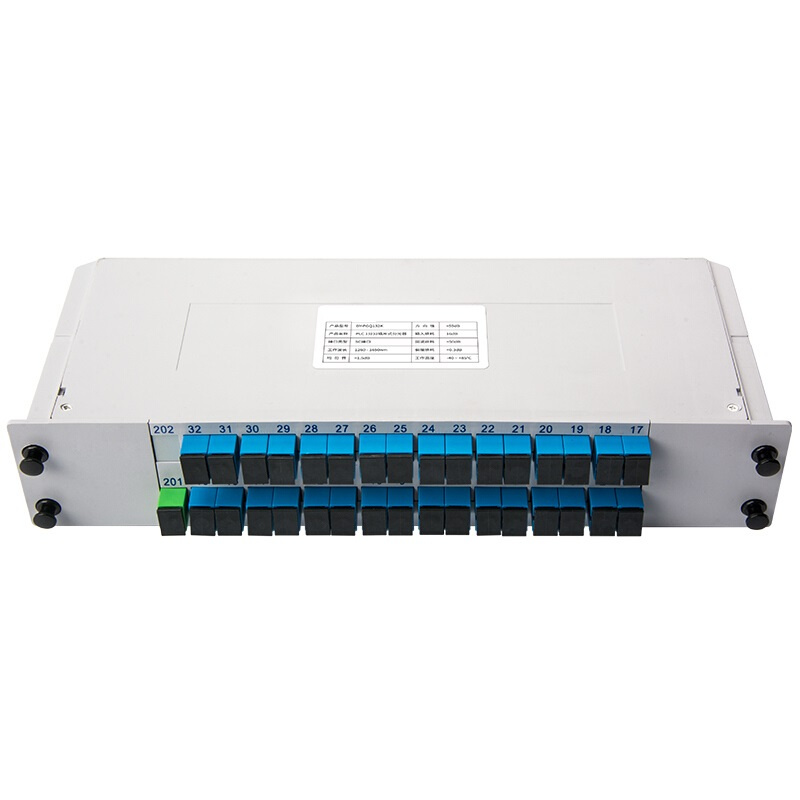

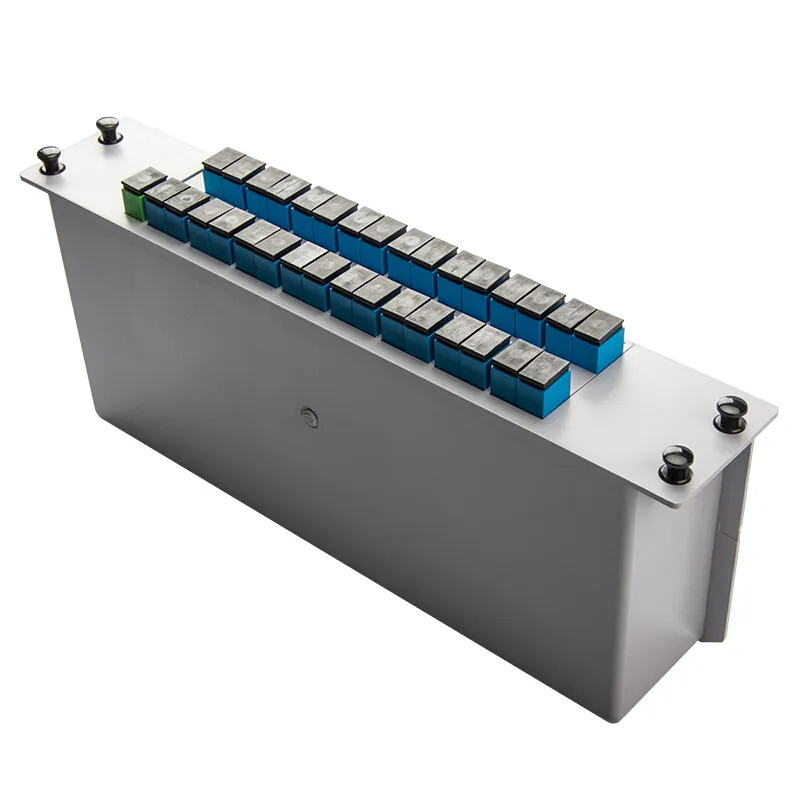

China 1 32 Splitter Cassette Box Inserting Type Sc APC Upc FTTH 32 Way Fiber Optic Splitter

Product Description

ftth fibre 1x32 single mode optic plc splitter with sc upc connector cassette splitter

Fiber Optic Splitter has one uplink optical interface and a number of downlink optical interface. optical signals coming from uplink optical interface are transmitted to all of downlink optical interface, optical signals coming from downlink optical interface are transmitted to the one uplink optical interface .Just when optical signals transmitting from uplink optical interface to downlink optical interface, optical signal strength/optical power will decline, when optical signals transmitting from downlink optical interface to uplink optical interface, the same is true.Using splitter, we can also copy one optical data for monitoring after optical fiber transmission.

Low Insertion loss
Low PDL\
High Return Loss
Uniform Power Splitting
Compact Design
Wide Operating Wavelength
\Wide Operating Temperature
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209

Parameter		Value
Product Type		1×2/2x2	1×4/2x4	1×8/2x8	1×16/2x16	1×32/2x32	1×64/2x64	1×128/2x128
Wavelength(nm)		1260~1650
I.L(dB)	Typ.	3.6/4.2	7.1/7.2	10.4/10.6	13.6/13.8	17.2/17.5	20.1/20.5	25.0/25.2
	Max.	4.3/4.5	7.4/7.6	10.7/11.0	14.0/14.8	18.0/18.0	21.5/21.5	25.8/25.8
Uniformity(Max.)(dB)		0.5/0.8	0.8/1.0	1.0/1.2	1.4/1.5	1.6/1.8	2.0/2.5	2.6/3.0
PDL(Max.)(dB)		0.2/0.2	0.3/0.3	0.3/0.3	0.3/0.3	0.3/03	0.5/0.5	0.8/1.0
TDL(Max.)(dB)		0.5
R.L(dB)		≥55(APC)/≥55(UPC)
Directivity(dB)		≥55
Operating & Storage Temperature		-40~+85
Note: All the data above does not include connectors. UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB.
