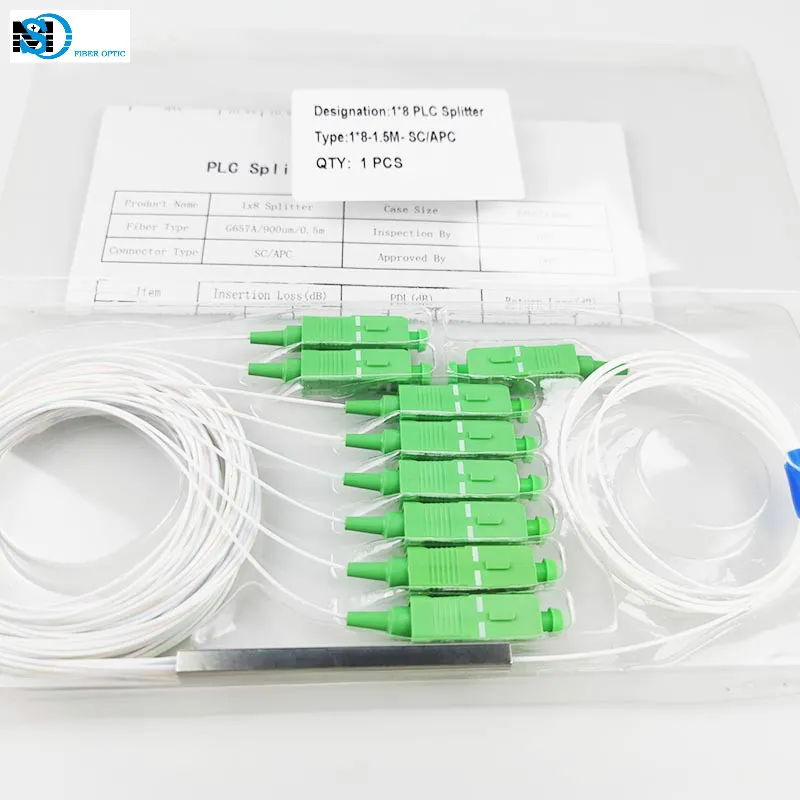

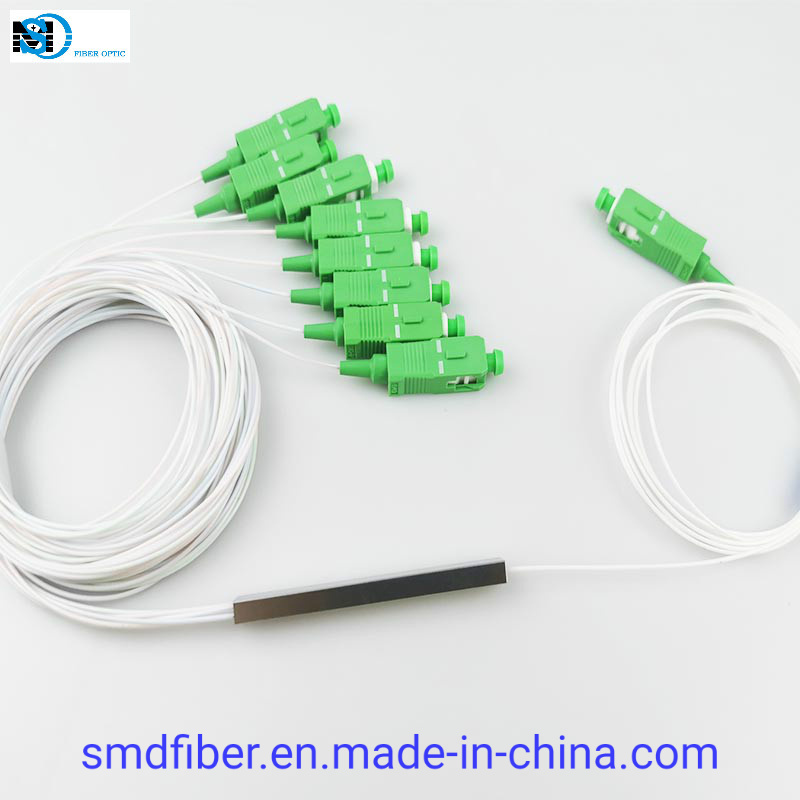

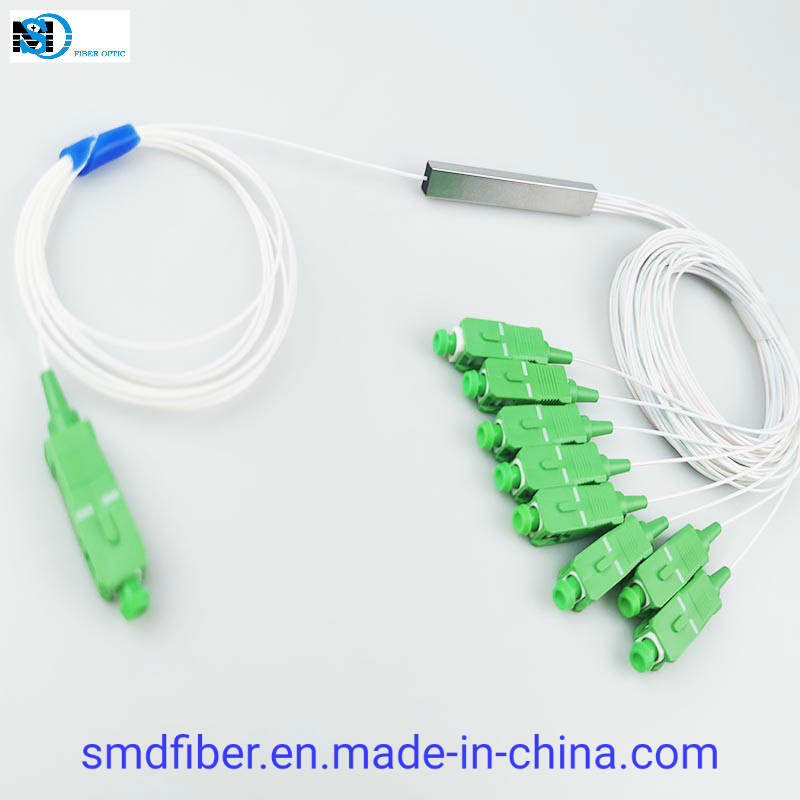

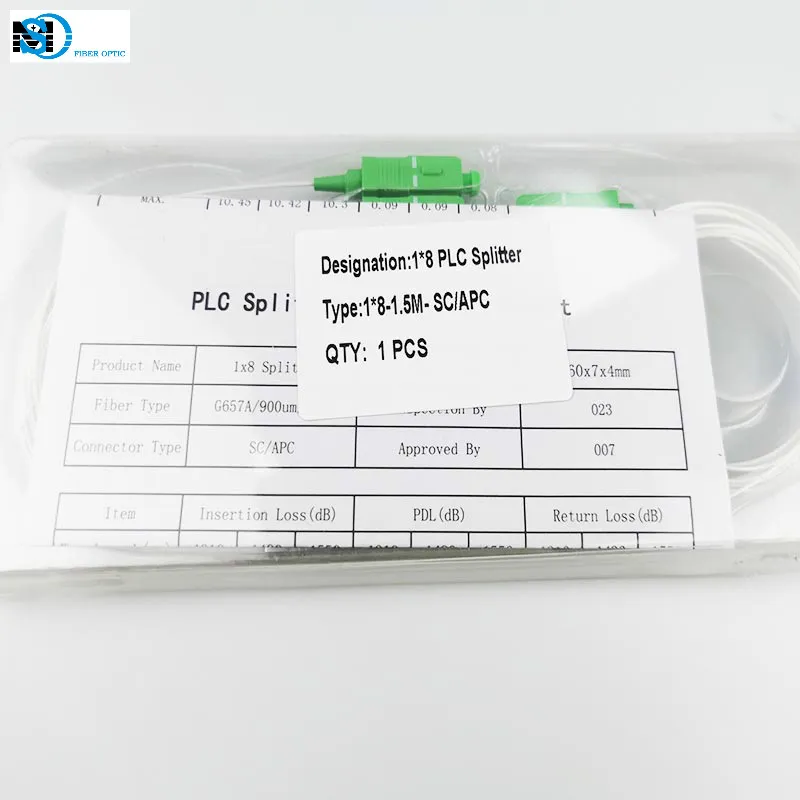

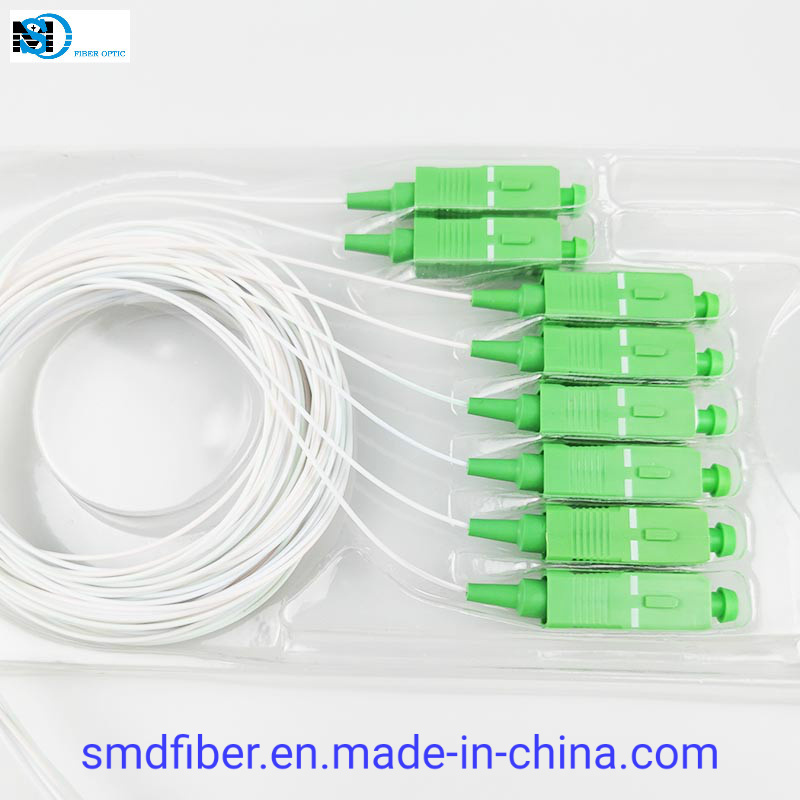

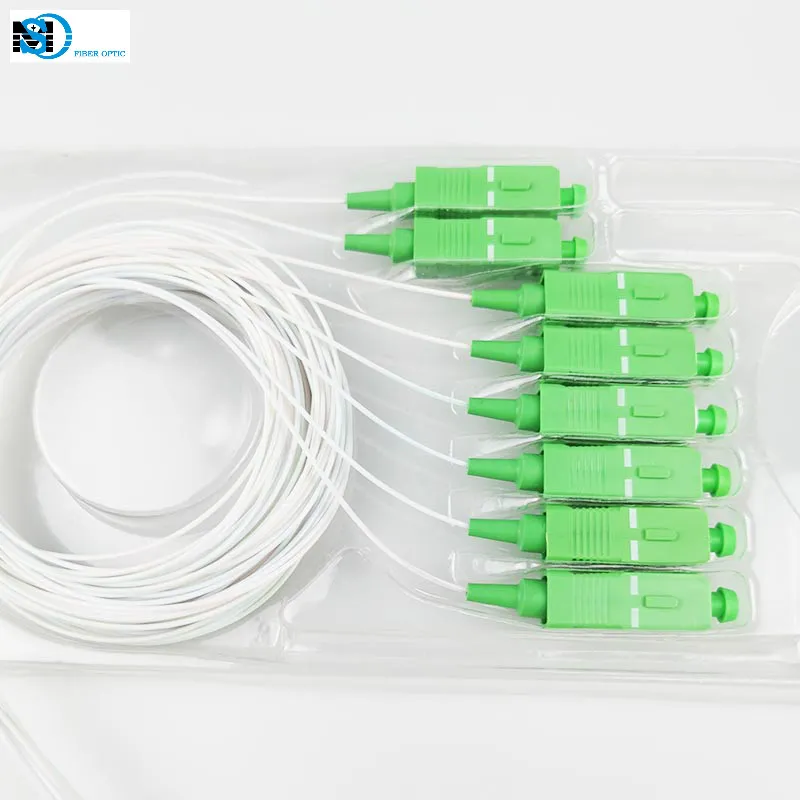

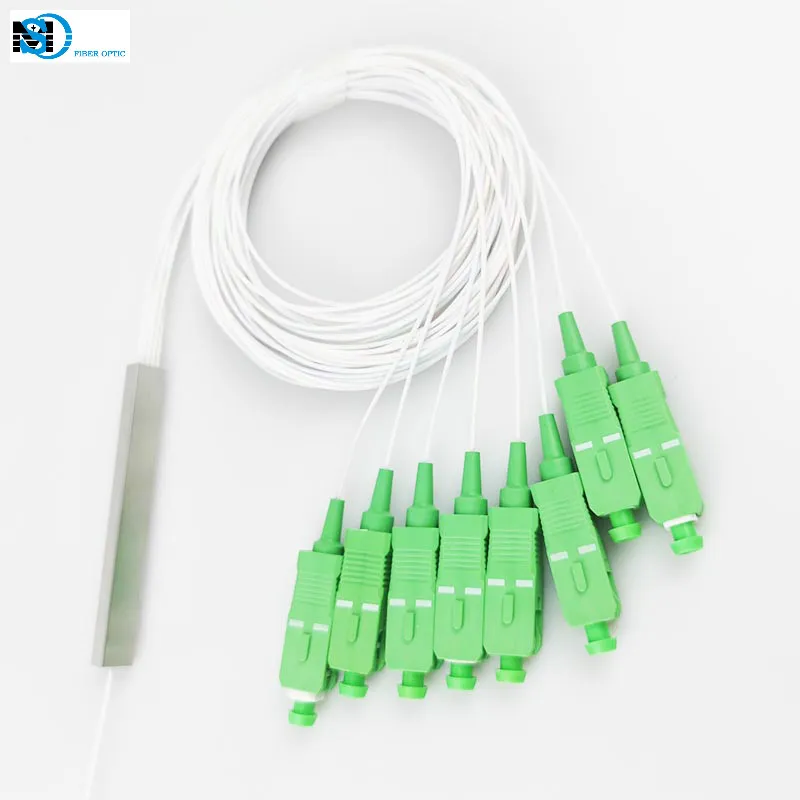

1*8 Steel Tube Mini Type G652D 0.9mm Fiber Optic PLC Splitter 1.5m
1*8 Steel Tube Mini Type G652D 0.9mm Fiber Optic PLC splitter 1.5MProduct Description Fiber Optic Splitter has one uplink optical interface and a number of downlink optical interface. optical signals coming from uplink optical interface are transmitted to all of downlink optical interface, optical ......
Send Inquiry
Product Description
Product Description
Fiber Optic Splitter has one uplink optical interface and a number of downlink optical interface. optical signals coming from uplink optical interface are transmitted to all of downlink optical interface, optical signals coming from downlink optical interface are transmitted to the one uplink optical interface .Just when optical signals transmitting from uplink optical interface to downlink optical interface, optical signal strength/optical power will decline, when optical signals transmitting from downlink optical interface to uplink optical interface, the same is true.Using splitter, we can also copy one optical data for monitoring after optical fiber transmission.
Product Features
- Good uniformity and low insertion loss
- Low Polarization Dependent Loss
- Excellent Environmental Stability
- Excellent Mechanical
- Stability Telcordia GR-1221 and GR-1209
Application
- Fiber to The Home (FTTH)
- Passive optical networks (PON)
- Local Area Networks (LAN)
- Cable Television (CATV)
- Test Equipment
Specification
Parameter | Specification | ||||||||
Operating Wavelength (nm) | 1260 ~ 1650 | ||||||||
Type | 1x4 | 1x8 | 1x16 | 2x4 | 2x8 | 2x16 | 1x32 | 2x32 | 1x64 |
Insertion Loss (dB) Max. * | <7.3 | <10.5 | <13.5 | <7.6 | <11.2 | <14.5 | <16.2 | <18.2 | <20.5 |
Uniformity (dB) Max.* | <0.8 | <1.0 | <1.5 | <1.0 | <1.5 | <2.0 | <2.0 | <2.5 | <2.5 |
PDL(dB)Max.* | <0.2 | <0.2 | <0.3 | <0.3 | <0.3 | <0.4 | <0.3 | <0.4 | <0.3 |
Directivity (dB) Min * | 55 | ||||||||
Return Loss (dB) Min * | 55(50) | ||||||||
Operating Temperature (°C) | -5~ +75 | ||||||||
Storage Temperature (°C) | -40 ~ +85 | ||||||||
Fiber length | 1m or custom length | ||||||||
Fiber Type | Corning SMF-28e fiber | ||||||||
Connector Type | Custom specified | ||||||||
Power Handling (mW) | 300 | ||||||||
