Manufacturer Optical Fiber Sc Upc Hybrid Adapter, Sc Upc Single Mode Fiber Coupler, Fiber Optic Adaptor
Manufacturer Optical Fiber Sc Upc Hybrid Adapter, Sc Upc Single Mode Fiber Coupler, Fiber Optic AdaptorProduct DescriptionFiber optic adapter terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores......
Send Inquiry
Product Description

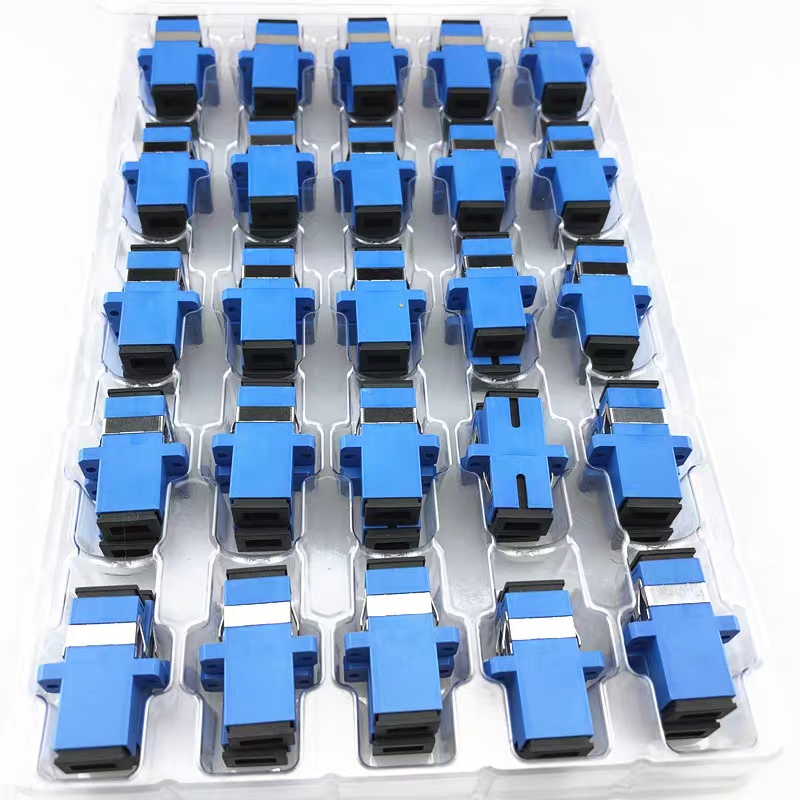

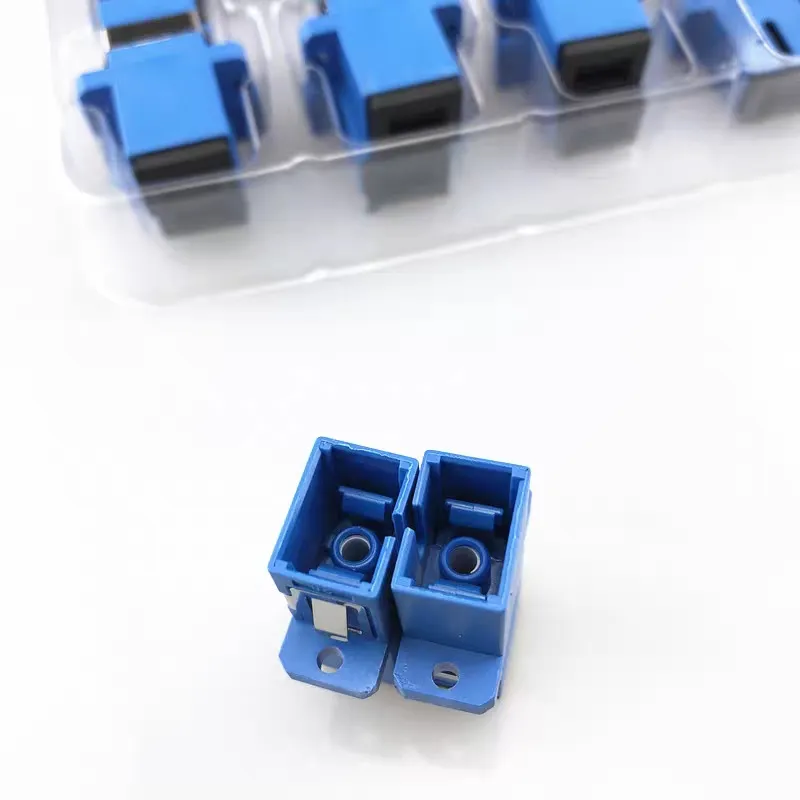

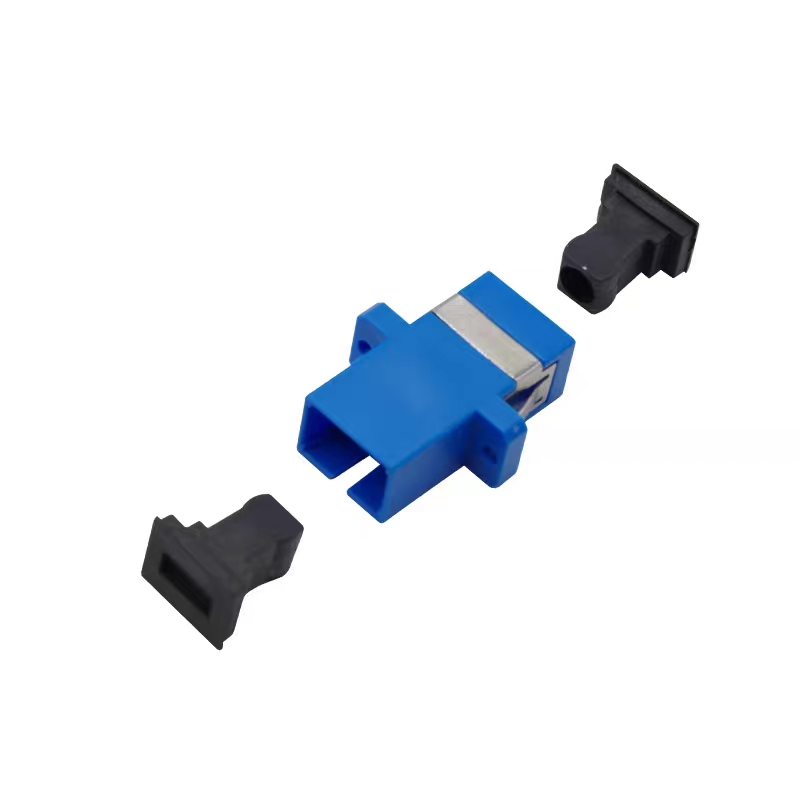

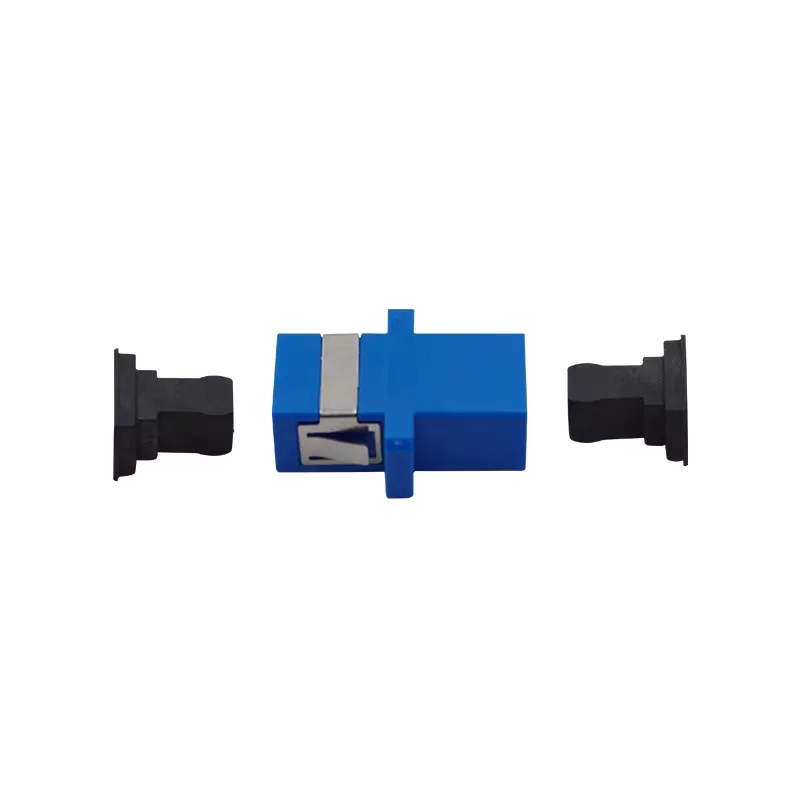

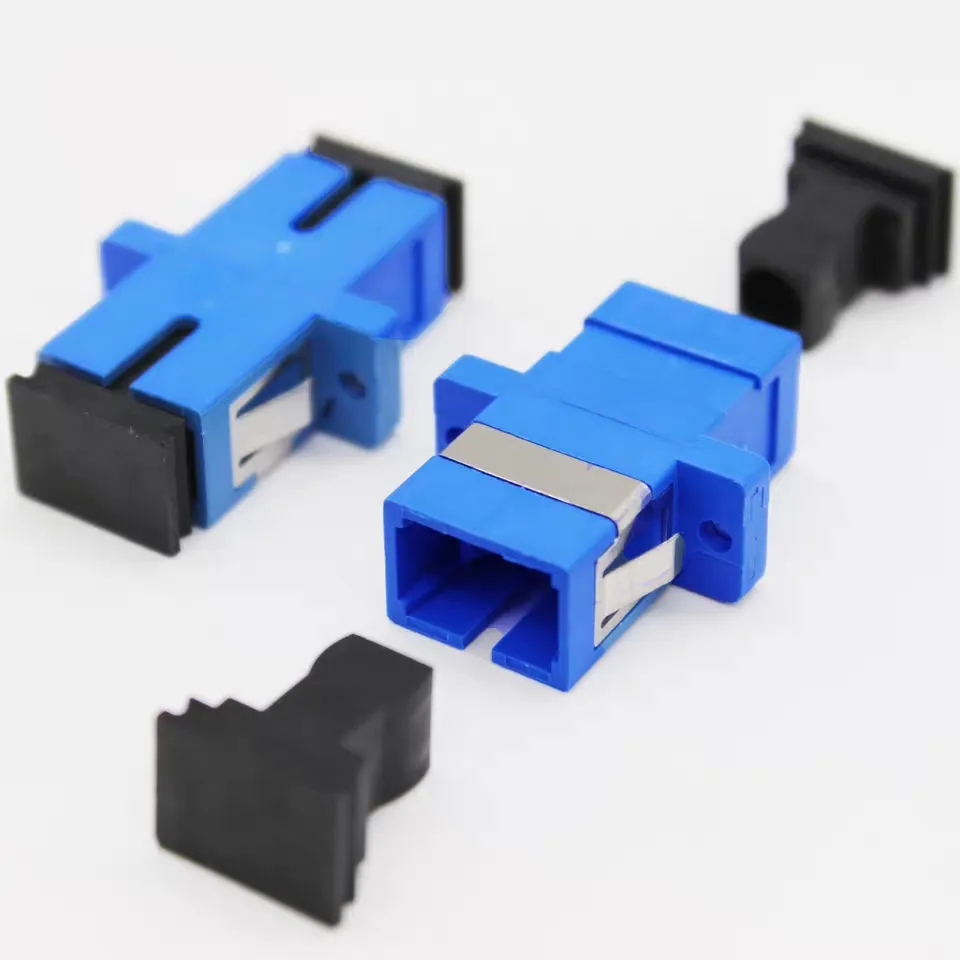

Manufacturer Optical Fiber Sc Upc Hybrid Adapter, Sc Upc Single Mode Fiber Coupler, Fiber Optic Adaptor
Fiber optic adapter terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers.
1.CATV
2.Active device termination
3.Telecommunication networks
4.Metro
5.Local Area Networks (LANs)
6.Data processing networks
7.Test equipment
8.Premise installation
9.Wide Area Networks(WANs)
1.Low insertion loss
2.High return loss (low amounts of reflection at the interface)
3.Ease of installation
4.Low cost
5.Reliability
6.Low environmental sensitivity
7.Ease of use
| Parameter | Unit | LC, SC, FC, ST | ||
| SM | MM | |||
| UPC | APC | UPC | ||
| Insertion Loss (Typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥50 | ≥60 | ≥30 |
| Exchangeability | dB | ≤0.2 | ||
| Repeatability | dB | ≤0.2 | ||
| Durability | Time | >1000 | ||
| Operating Temperature | °C | -40~75 | ||
| Storage Temperature | °C | -45~85 | ||
Q1: Can i have a sample order for this product?
A1: Yes welcome send sample order for test.
Q2: Can i get any discount if i order large quantities?
A2: Yes, of course. We will provide a special price for big orders.
Q3: Can i print my own logo on your products?
A3: Yes, of course. Once customers reach our MOQ, we provide logo print free of charge.
Q4: What is your terms of packing?
A4: Generally, we pack our goods in neutral white boxes and brown cartons.
Q5: What is your terms of payment?
A5 : T/T 30% as deposit, and 70% before delivery.We"ll show you the photos of the products and packages before you pay the balance.
Q6: How do you ship the goods and how long does it take to arrive?
A6: We usually ship by DHL, UPS, Fedex and TNT. It ususlly takes 3-5 working days, Airline and sea shipping also optional.
Q7: What if there is quality problem when we get the goods?
A7: If there are defective ones in the batch of products, we will offer spare ones for.
