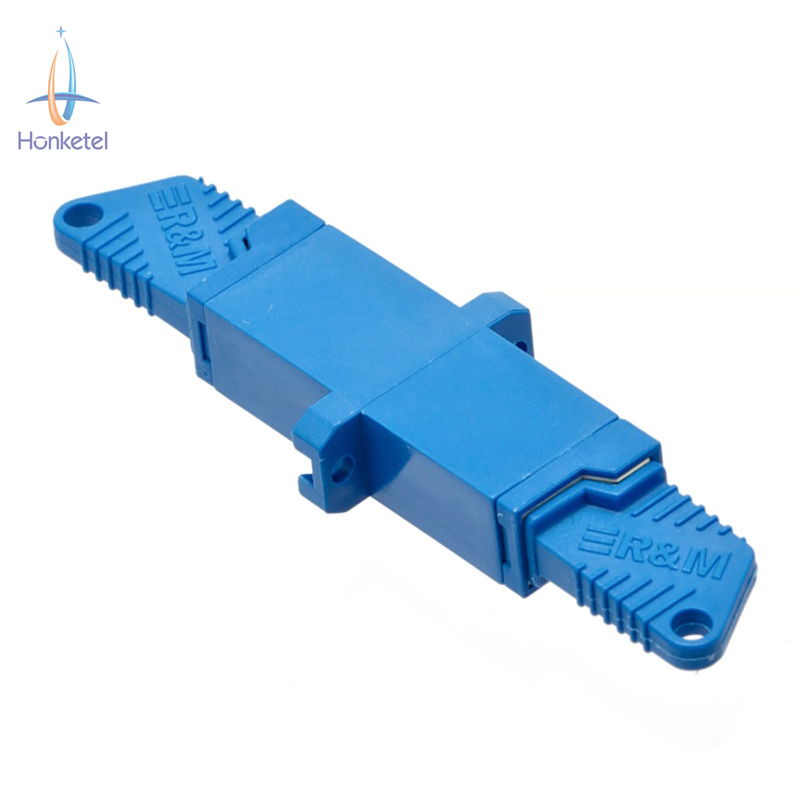

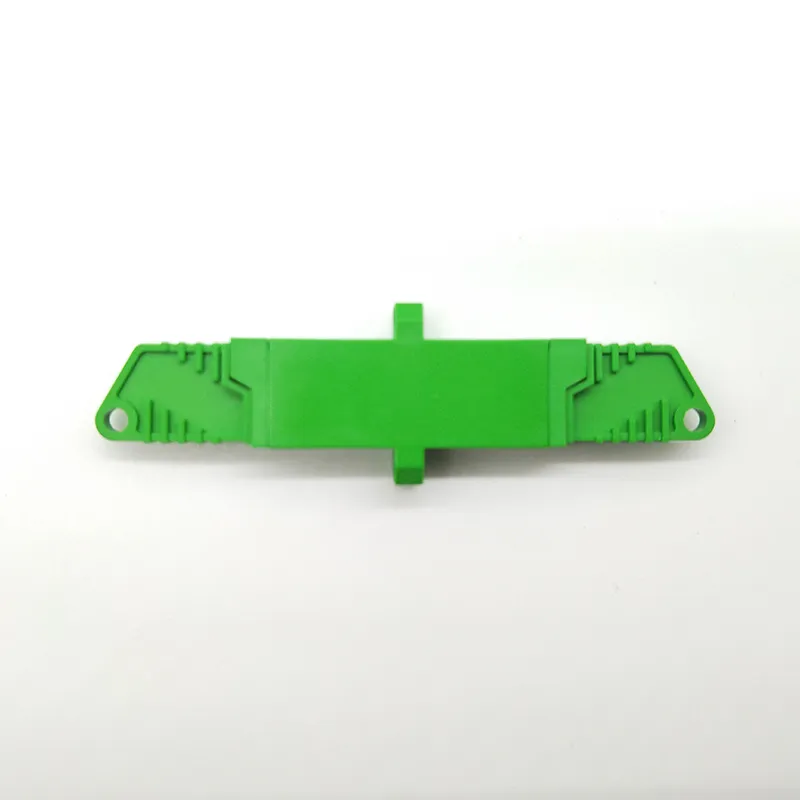

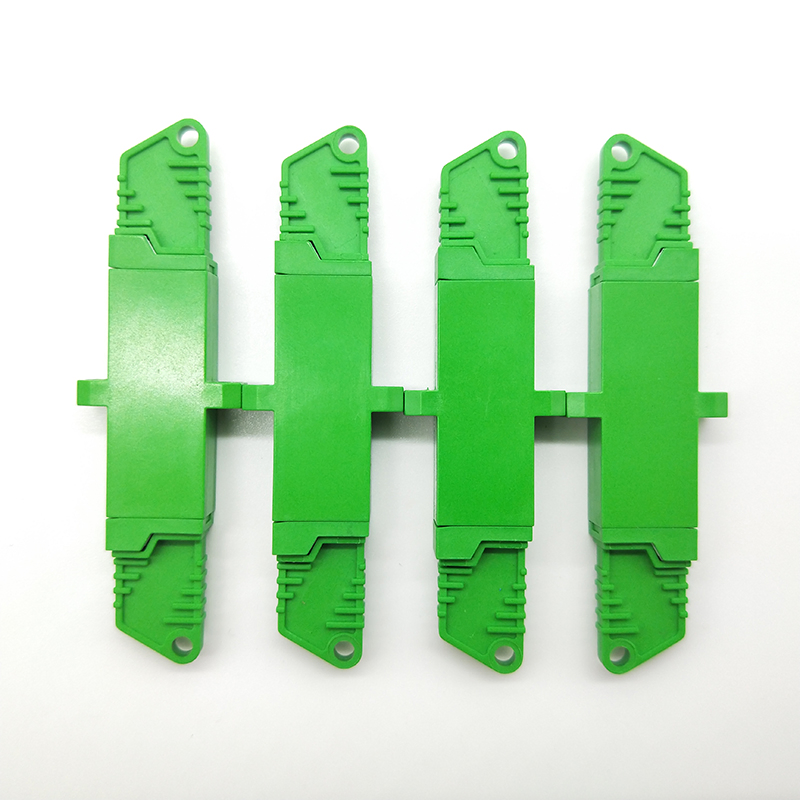

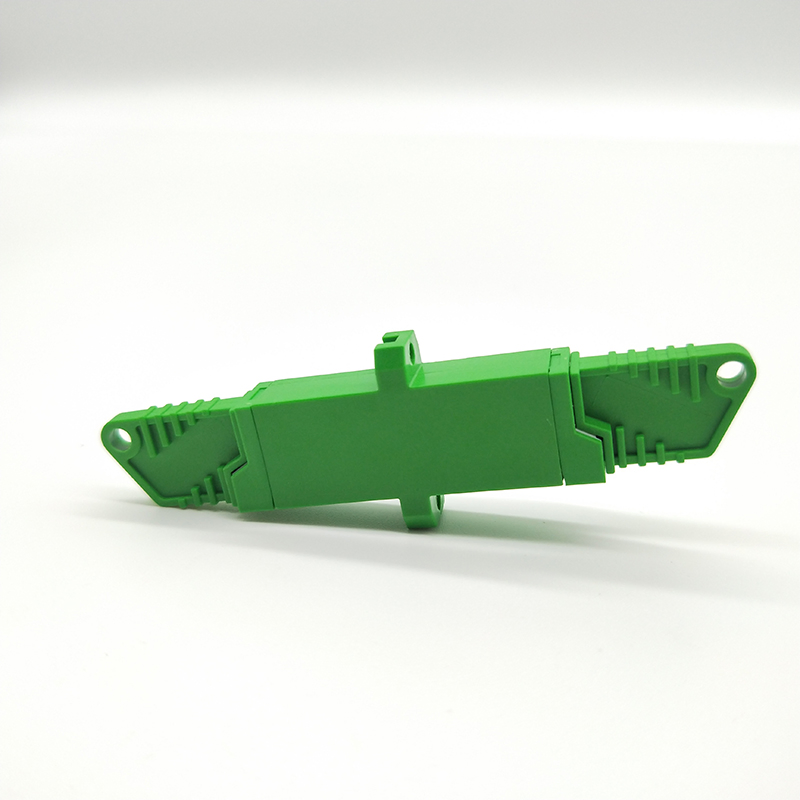

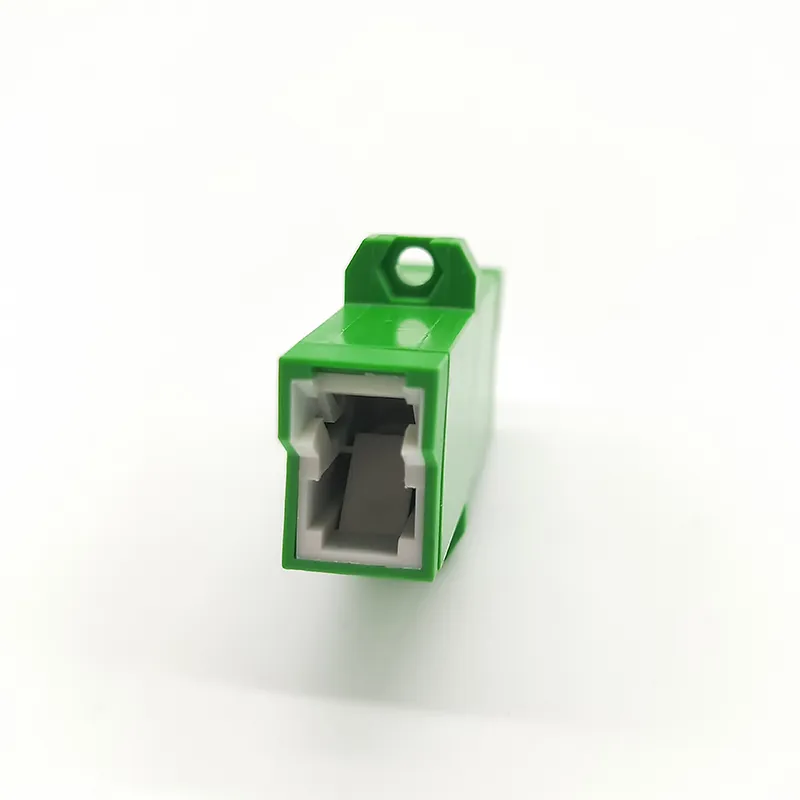

Fiber Optic Adapter Flat Connector E2000 APC to E2000 APC 9 / 125μ M Sx with Ceramic Sleeve
Fiber Optic Adapter Flat Connector E2000 APC To E2000 APC 9 / 125μm SX With Ceramic SleeveDescription The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector, mechanica connector) is a revolutionary field installation optical fiber co......
Send Inquiry
Product Description
Description
The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector, mechanica connector) is a revolutionary field installation optical fiber connector that requires no epoxy and no polishing.
The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this on-site assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.
Linkage structure design, and equipment, connector connection, reserved micro-bend to remain unchanged;
Double V groove structure design, high stability and reliability of fiber connection;
Core structure: adopt the normally closed flexible locking structure, excellent optical performance;
Applied to 2.0mm × 3.0mm & 2.0mm × 1.6mm drop cable;
Easy to operate, fast to assemble, high success rate, long time of using, easy maintenance.
Widely used in FTTH network
Used to open the FTTH fiber terminal end.
In the box, cabinet, such as wiring into the box.
Off the back of the accidents such as fiber, maintenance.
LAN, wan, data and video transmission.
The construction of the fiber end user access and maintenance.
Optical fiber access of mobile base station.
Related Products

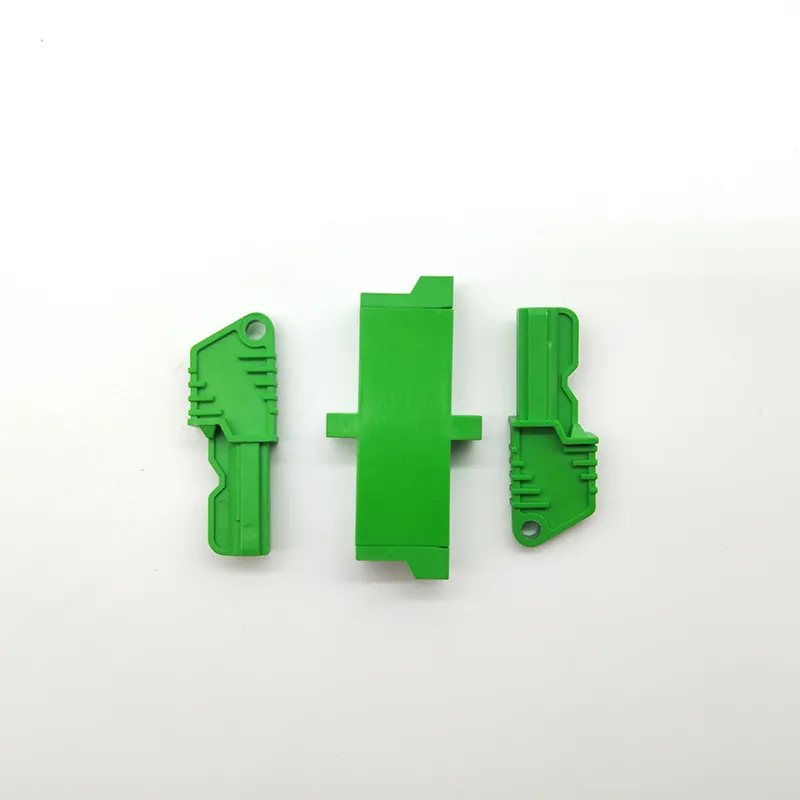

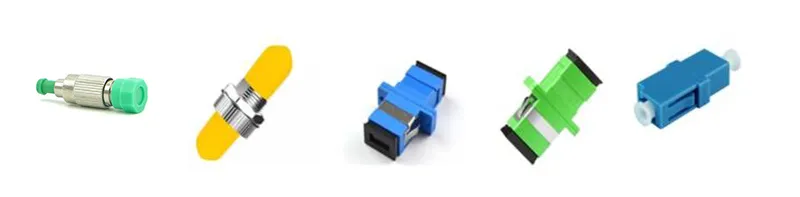

Connector Parts
Technical Specification
Type | Parameters |
Insertion loss | ≤ 0.3dB (1310nm & 1550nm) |
Return loss | ≤ -45dB |
Bare fiber strength | >5N |
Clad strength | >10N |
Tension | >50N |
Mechanical durability (500times) | IL ≤ 0.2dB & RL ≤ 5dB |
Operating Temperature | 5 ºC to +70 ºC |
Certifications

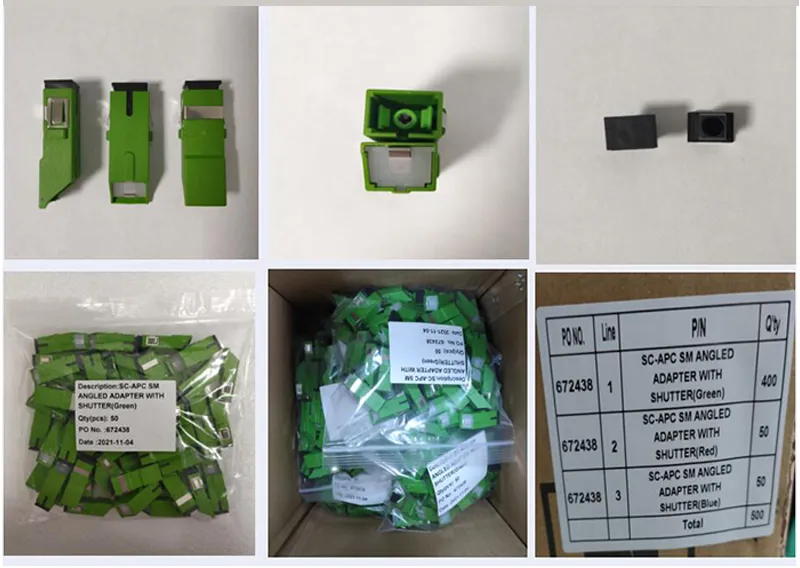

Packaging & Shipping
FAQ
