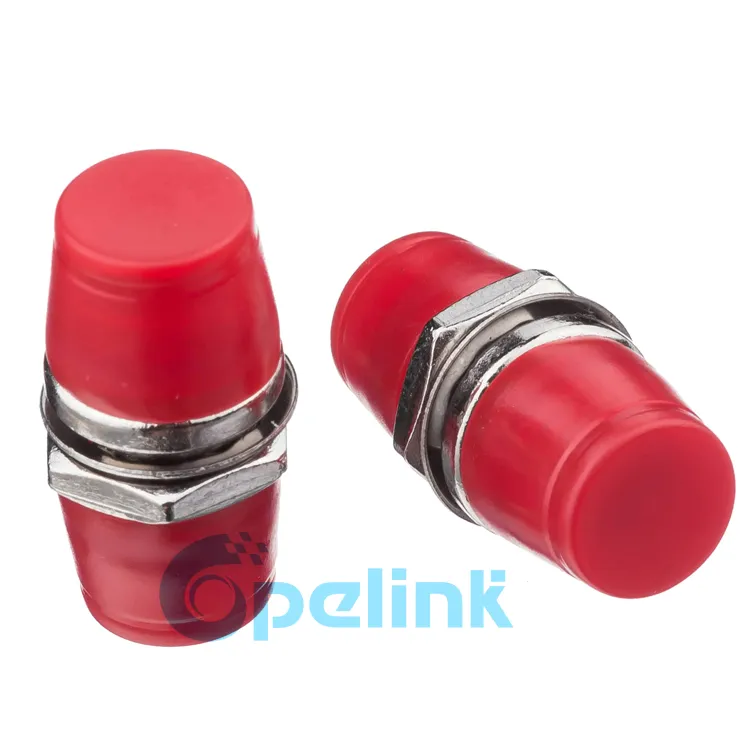

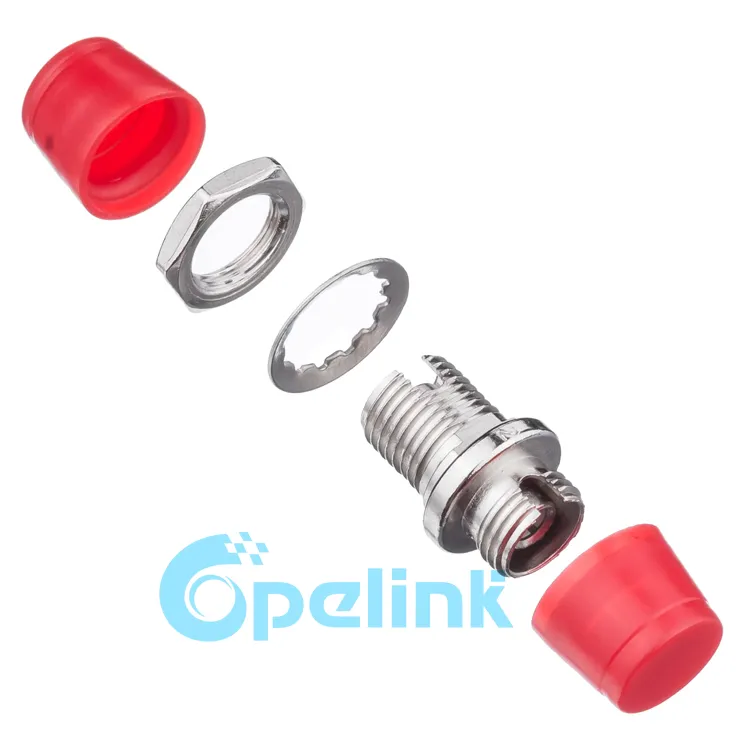

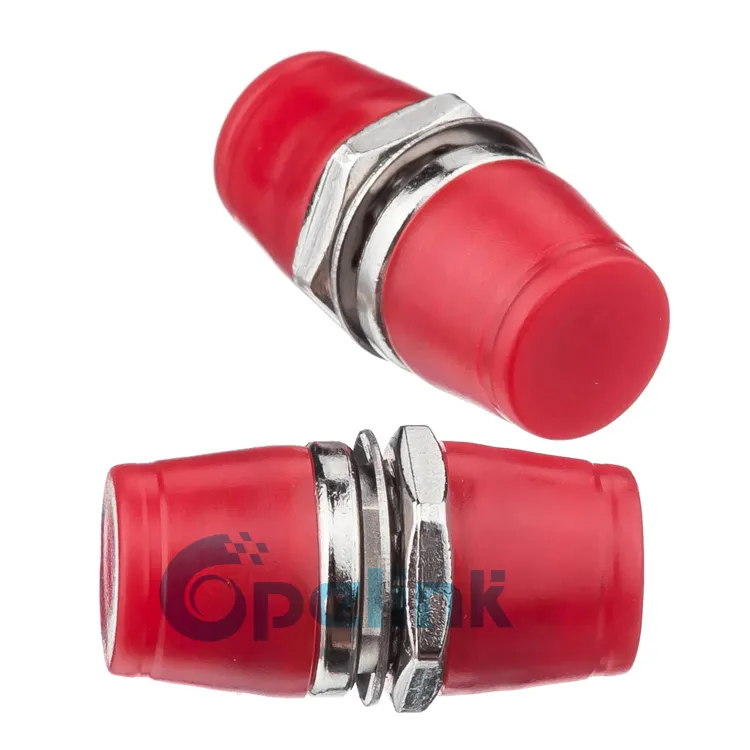

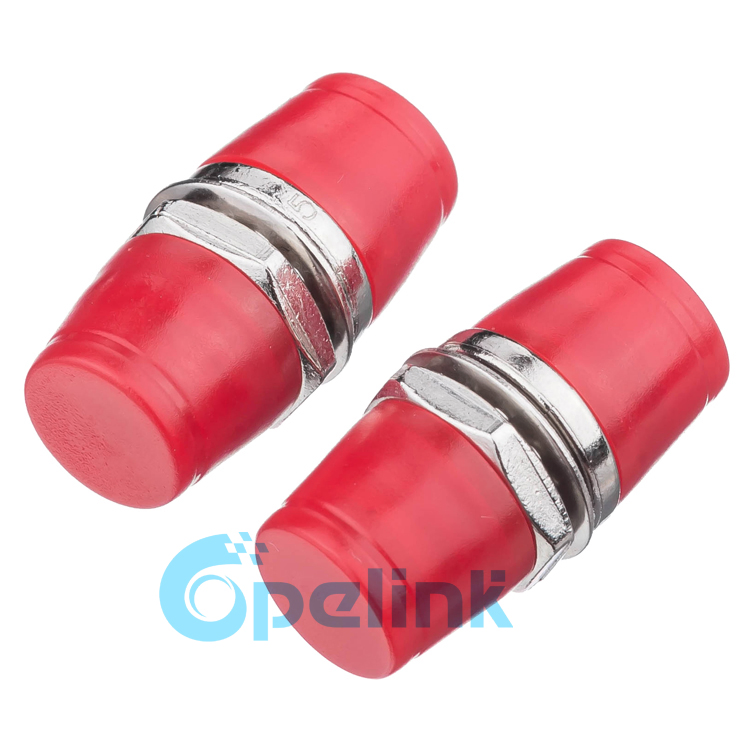

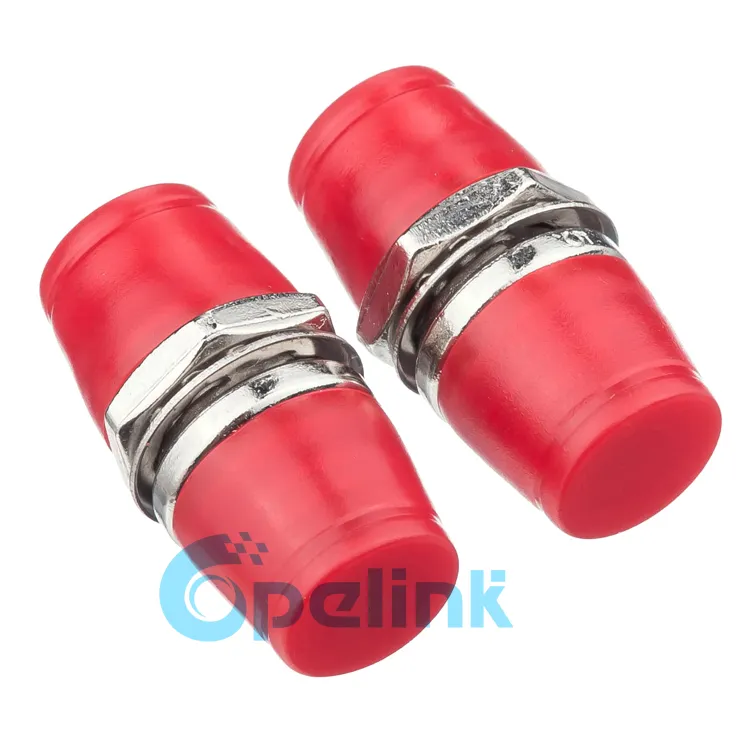

FC Fiber Optical Adapter , 14D/8d/11d Round Shape.

Product Description

FC Fiber Optic Adapter

Description:
Fiber optic adaptor is also called fiber optic coupler. It is used to provide a cable to cable fiber connection. People sometimes also name them to be mating sleeves and mixture adaptors. Mating sleeves means this fiber optic adapter is used to connect the same type fiber optic connectors, while mixture adapters are the fiber optic cable adaptor types used to connect different kinds of fiber optic connectors. We provide a complete line of adapters for fiber optic connection, like ST, SC, FC, LC, MTRJ, MPO, MU, E2000,style fiber optic adapters for both multimode and single-mode fiber applications.

FC Fiber Optical Adapter, 14D/8d/11d Round Shape.

FC Fiber Optical Adapter, 14D/8d/11d Round Shape.

Features:
Complies With IEC 61754-4;
Flammability: UL94 V-0 Grade;
RoHS directive compliance
Sleeve material:
Zirconia Split Sleeve for SM adapter
Phosphorous bronze Split Sleeve for MM adapter;

Application:
Fiber Optic Transmission Network
Cable TV network
Optical Fiber Lan
Optical fiber testing instrument
ODF,rack-mounted and wall-mounted optical fiber wiring unit

Specifications:

Parameters	Singlemode			Multimode
Parameters	PC	UPC	APC	PC
Insertion Loss(dB)	≤0.3	≤0.2	≤0.3	≤0.2
Return Loss(dB)	≥45	≥50	≥60	≥30
Interchange ability(dB)	≤0.2
Repeatability(dB)	≤0.2
Durability	>1000matings
Operating Temp.(ºC)	-40~75
Storage Temp. (ºC)	-40~75

Order Information:

Type	Type	Fiber type	Material	Flange	type	Sleeve	Application
SC LC FC ST	SX=Simplex DX=Duplex QU=Quad	S=Single Mode M=Multi-mode	P=Plastic PBT M=Metal	L=Flanged S=Flangeless F=Flangeless with shutter	B=Blue G=Green E=Beige A=Aqua M=Metal Ni- Plated	Z=Zirconia Split M=Metal Split	P=PC A=APC
