ZGG.3K.307.CLL Egg 3K 7pins High Quality Panel Mount Receptacle IP68 Waterproof Socket Metal Circular Push Pull Connector
Product Name: 3K ZGG fixed socketPush pull self-locking connector K-series ZGG standard universal socket, with plate type, fixed panel, can be pulled out and inserted quickly, contact and wire are welded, with blind insertion design, the guide pin on the plug is inserted with the corresponding socke......
Send Inquiry
Product Description
Product Name: 3K ZGG fixed socket
Push pull self-locking connector K-series ZGG standard universal socket, with plate type, fixed panel, can be pulled out and inserted quickly, contact and wire are welded, with blind insertion design, the guide pin on the plug is inserted with the corresponding socket to ensure the alignment during blind insertion; after the head seat is inserted, the waterproof grade reaches IP68, and the product meets the ROHS environmental protection requirements of EU.
Product parameters:
Applicable contacts: 2,3,4,5,6,7,8,10,12,16,19,26,30 pins.
Surface treatment: pearl chromium, nickel, oxidation resistance.
Model: 3K series ZGG socket.
Positioning device: multi key anti misinsertion (G is standard positioning pin, used for connector alignment).
Waterproof IP grade: > IP67.
Salt spray corrosion test: > 48H.
Reliability: the use of high-quality parts ensures the service life of ZHJM connector.
Robustness: suitable for use in high vibration and strong impact environment.
Aesthetics: the high-tech design of ZHJM connector is very attractive, and the novel appearance can meet various customer requirements.
Anti electromagnetic interference: 360°shielding of metal shell of ZHJM connector provides all-round EMC protection.

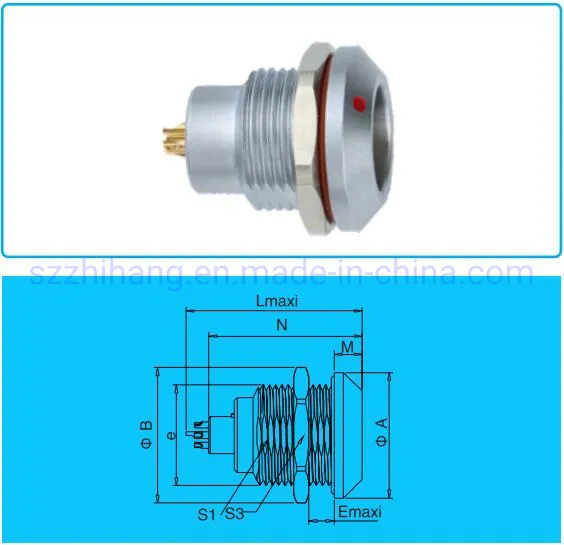

| Shell size and contact No.: | ||||||||||
| Reference | Dimensions(mm) | |||||||||
| Model | Series | A | B | e | E | L | M | N | S1 | S3 |
| ZHJM-ZGG | 0K | 18.0 | 19.2 | M14x1.0 | 6.0 | 21.7 | 4.0 | 20.1 | 12.5 | 17.0 |
| ZHJM-ZGG | 1K | 20.0 | 21.5 | M16x1.0 | 9.0 | 27.0 | 4.5 | 25.1 | 14.5 | 19.0 |
| ZHJM-ZGG | 2K | 25.0 | 27.0 | M20x1.0 | 9.0 | 30.7 | 5.0 | 28.6 | 18.5 | 24.0 |
| ZHJM-ZGG | 3K | 31.0 | 34.0 | M24x1.0 | 11.0 | 36.2 | 6.0 | 33.6 | 22.5 | 30.0 |
| Shell size & Contact no. we do have: | |||||||||||||||||
| Series | Shell size | Contacts no. With Solder & PCB type | |||||||||||||||
| K | 0K | 2 | 3 | 4 | 5 | 6 | 7 | 9 | 12 | ||||||||
| 1K | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | ||||||
| 2K | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 18 | 19 | 26 | 32 | ||
| 3K | 2 | 3 | 4 | 5 | 7 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 21 | 24 | 26 | 30 | |
| Specification | |
| Connecting mode | Push-pull self-locking |
| Protection level | IP67 |
| Cable specification | 0.3-5mm2 /22-10AWG |
| Diameter range | Φ8mm ~Φ11mm |
| Contact diameter×Qty | Φ0.7~Φ3.0 |
| Current rating(A) | 3.5A~35A |
| Operating voltage(AC.V.rms) | 800V~2100V |
| Durability | ≥5000 mating&unmating cycles |
| Temperature rating | |
| Method of connecting cable | Soldering |
| Material | |
| Shell | Brass(Chrome-plated) |
| insulated parts | PPS |
| Contact pin | Copper alloy(gold-plated) |
| Main characteristics | |
| - Vibration resistance,impact resistance,stretching resistance | |
| Application industries | |
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |
