Circular IP68 Connector Waterproof Aviation Plug Socket Terminal Block
Circular IP68 Connector Waterproof Aviation Plug Socket terminal blockIt applies to any electrical connector processing multipin interconnects with cylindrical contact housing and circular contact interpface geometries. Applies in millitary, aerospace and other high-reliability applications.1. O.D o......
Send Inquiry
Product Description
Circular IP68 Connector Waterproof Aviation Plug Socket terminal block
It applies to any electrical connector processing multipin interconnects with cylindrical contact housing and circular contact interpface geometries.
Applies in millitary, aerospace and other high-reliability applications.

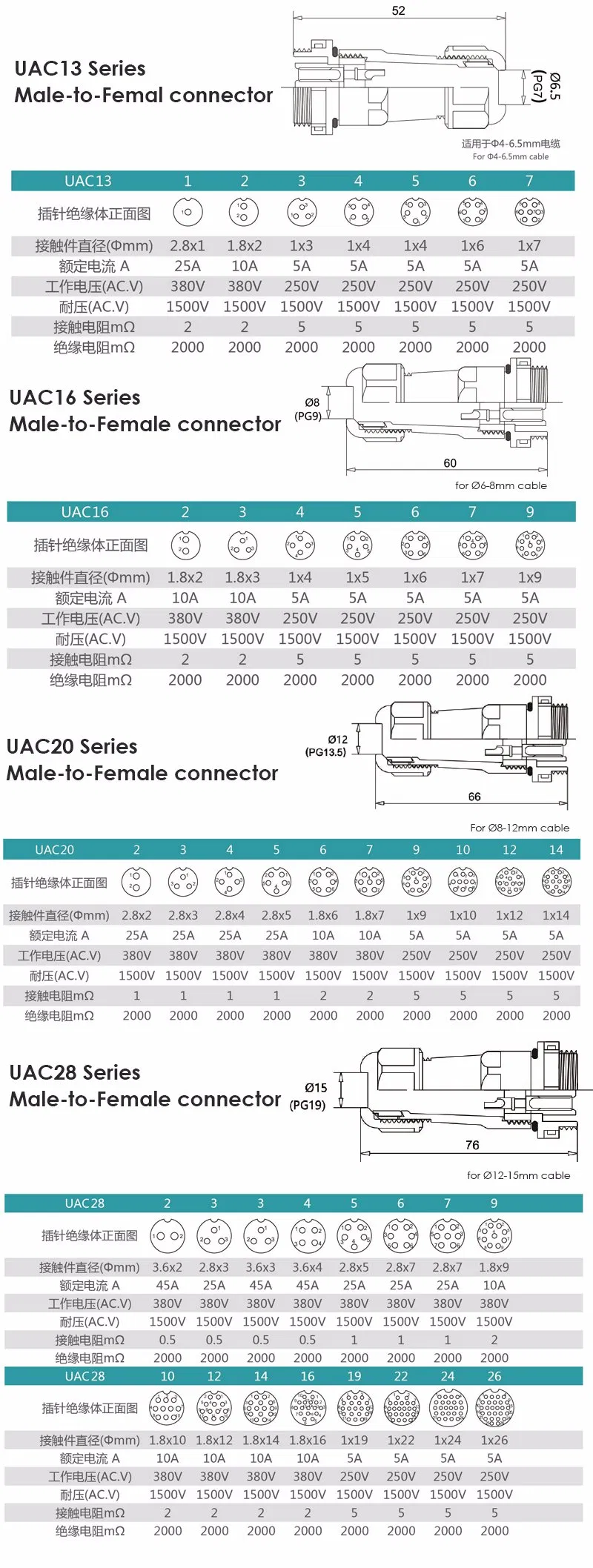

1. O.D of cable: Φ13, Φ16, Φ20, Φ28mm
2. Multiple Pin: 1P to 25P
Please select suitable socket accroding to:
1. O.D of cable in mm
2. Number of Pole/Pin
It applies to any electrical connector processing multipin interconnects with cylindrical contact housing and circular contact interpface geometries.
Applies in millitary, aerospace and other high-reliability applications.
1. O.D of cable: Φ13, Φ16, Φ20, Φ28mm
2. Multiple Pin: 1P to 25P

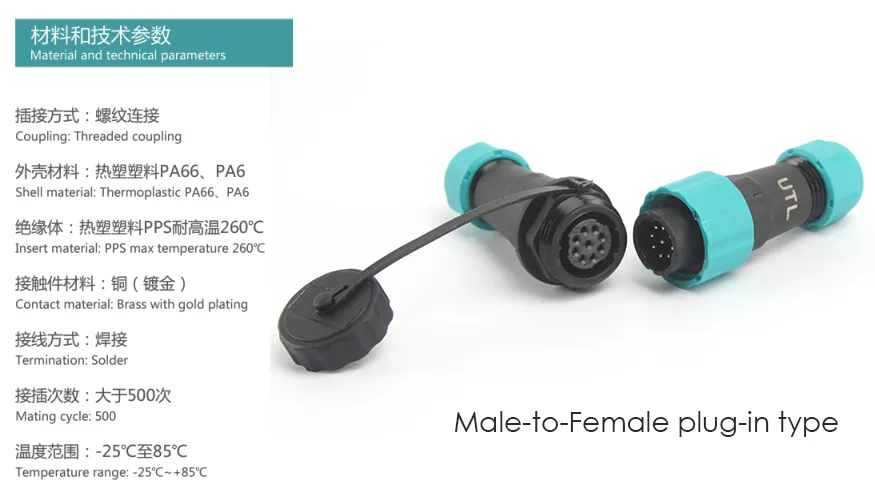

| Coupling Method | Threaded coupling |
| Shell material | Thermoplastic PA66 Nylon(fire resistance) |
| Contactor material | Brass plated with Gold |
| Insulator material | PPS for max 260ºC |

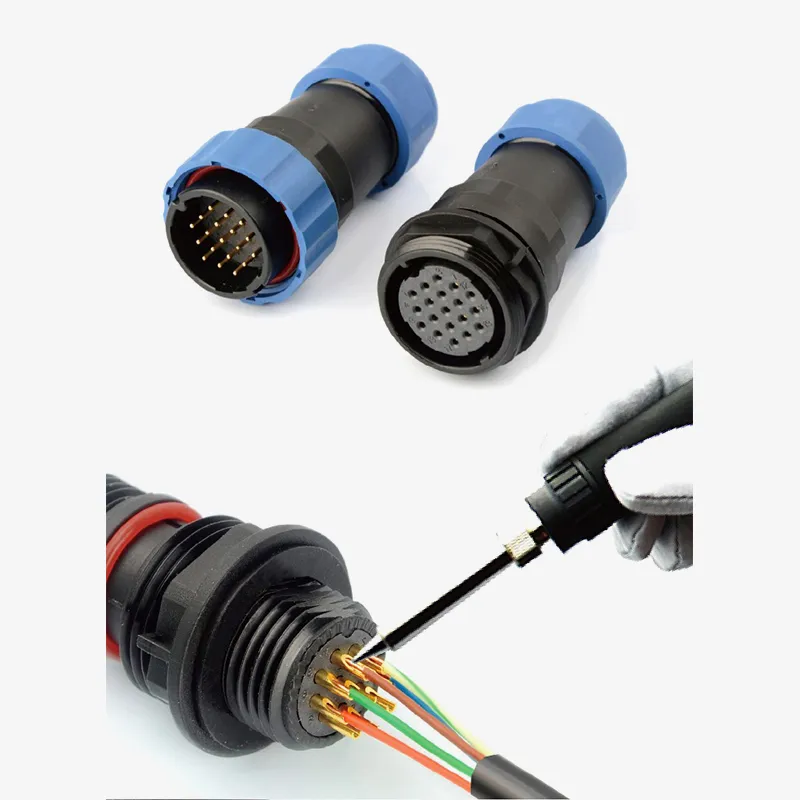

| Mode of connection | Soldering |
| Cable O.D | from Φ6.5~15mm |
| IP level | Max.IP68 underwater |
| Mating cycle | ≥500 times |
| Temperature range | -25ºC to +85ºC |
| Withstand Voltage | 1500V |
| Contact Resistance | 0.5~2mΩ |
| Insulation Resistance | 2000mΩ |
Please select suitable socket accroding to:
1. O.D of cable in mm
2. Number of Pole/Pin
