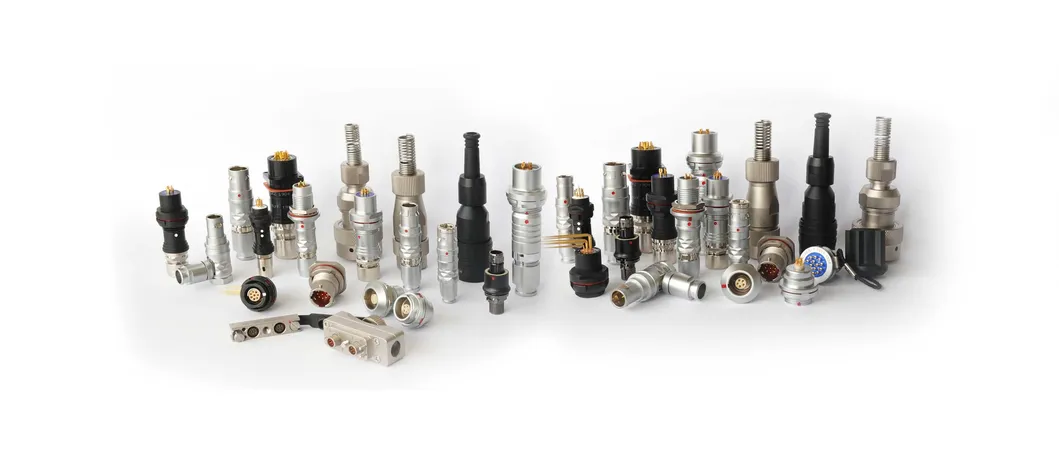

Qm F Series Mhn Protruding Front Nut Fixed Socket Push Pull Connector
Product DescriptionMHN protruding front nut fixed socketSocket, connector, semi-circle positioning, waterproofMHN protruding socket, suitable for installation environment with small installation space in the chassis, fixed with nuts outsideDetailed PhotosFeaturesMain features of F series connectorSa......
Send Inquiry
Product Description

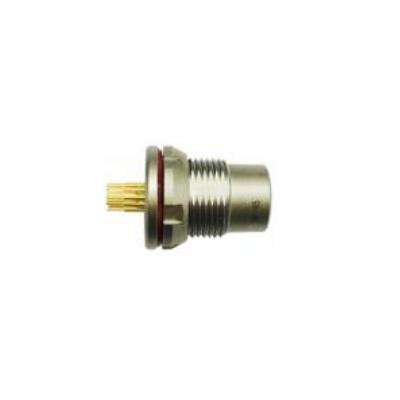

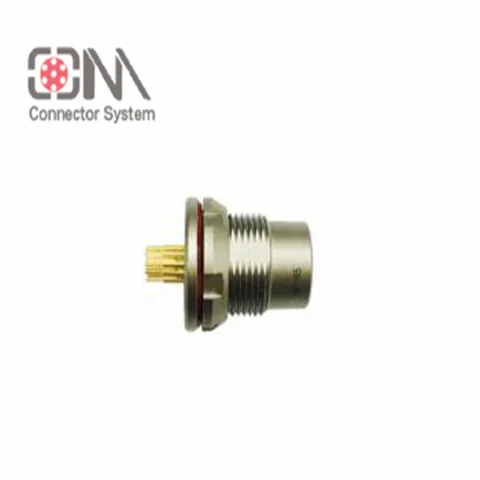

MHN protruding front nut fixed socket
Socket, connector, semi-circle positioning, waterproof
MHN protruding socket, suitable for installation environment with small installation space in the chassis, fixed with nuts outside

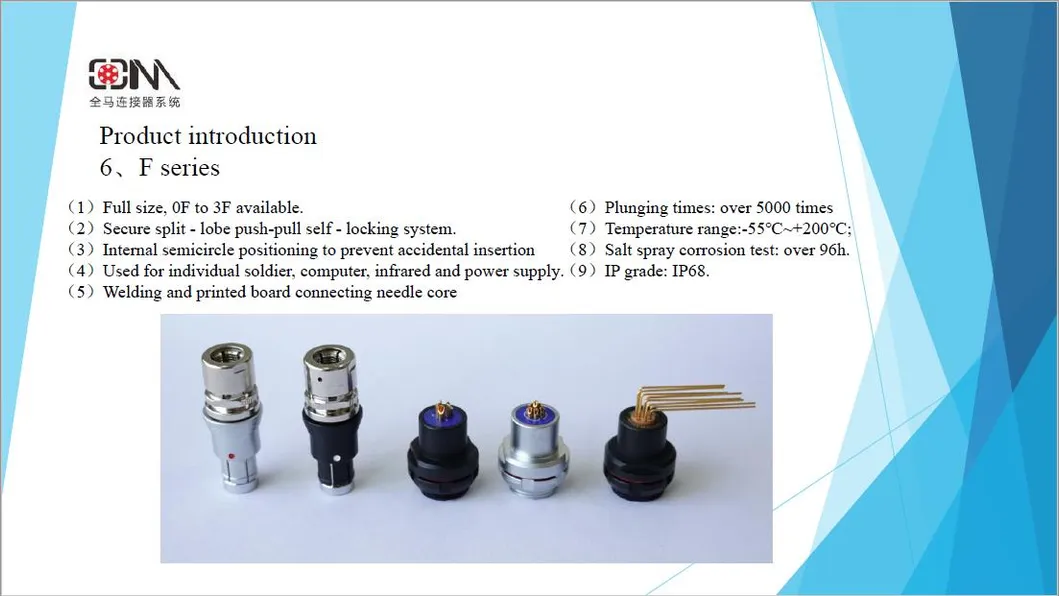

Main features of F series connector
Safe split push-pull self-latching system
Multi-core type: 1-40 cores
Straight type, 90°angle type
Positioning piece system, single positioning piece, double positioning piece, used for connector alignment to prevent mis-insertion
High density installation, saving space
360° shielding provides all-round EMC protection
Technical characteristics of F series connectors:
| Specification | |
| Mechanical life | 5000 times |
| Vibration | 10Hz~2000Hz, acceleration 147m/s2, transient ≤1μs |
| Impact | acceleration 490m/s2, ≤1μs |
| Working temperature | -55ºC~+125ºC |
| Salt spray corrosion test | >96h |
| Protection level | IP68 |
| Connecting mode | Push pull self-locking |

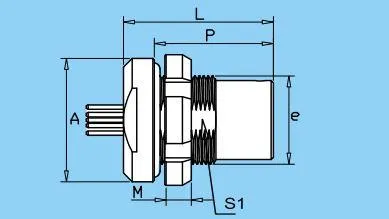

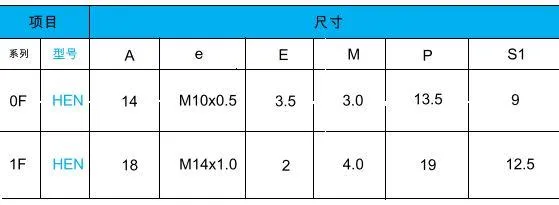

Technical parameters of MHN protruding front nut fixed socket
Catagory: Waterproof F series
Model:MHN Socket
Series :0F,1F
QM connector is a Chinese manufacture of waterproof push pull connector. We aim to provide high quality connectors for our customers. Push pull connector is a small and convenient spare parts for your equipment. It can be used in medical device such as endoscopy, can be used in military use helmet and garments, base station for telecommunication, automatic machine such as dispensing machine, etc. Our waterproof self-locking connector have different series will fit your requirement in different equipment. We also provide custom made service if reach the MOQ. QM always keeps in faith that we should do our best to help our customers. Your satisfiction is our motivation!

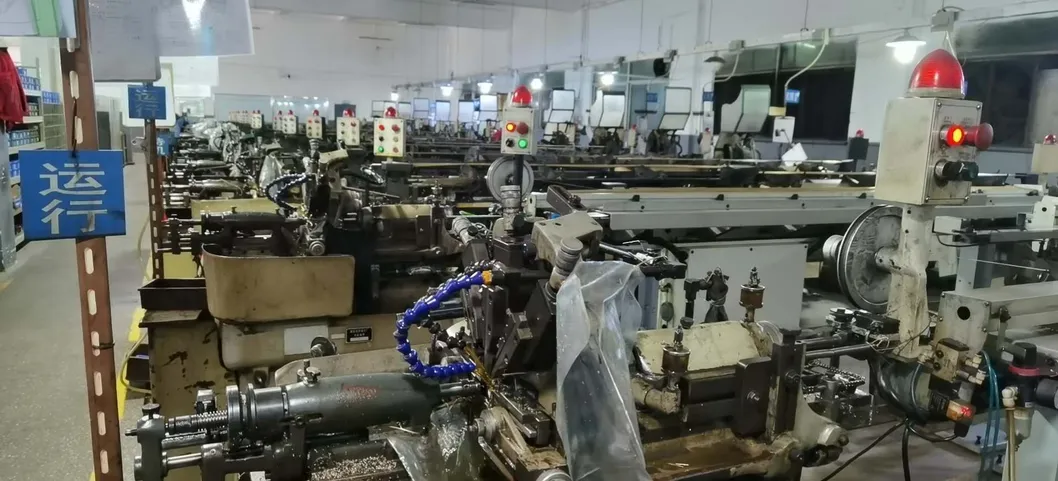

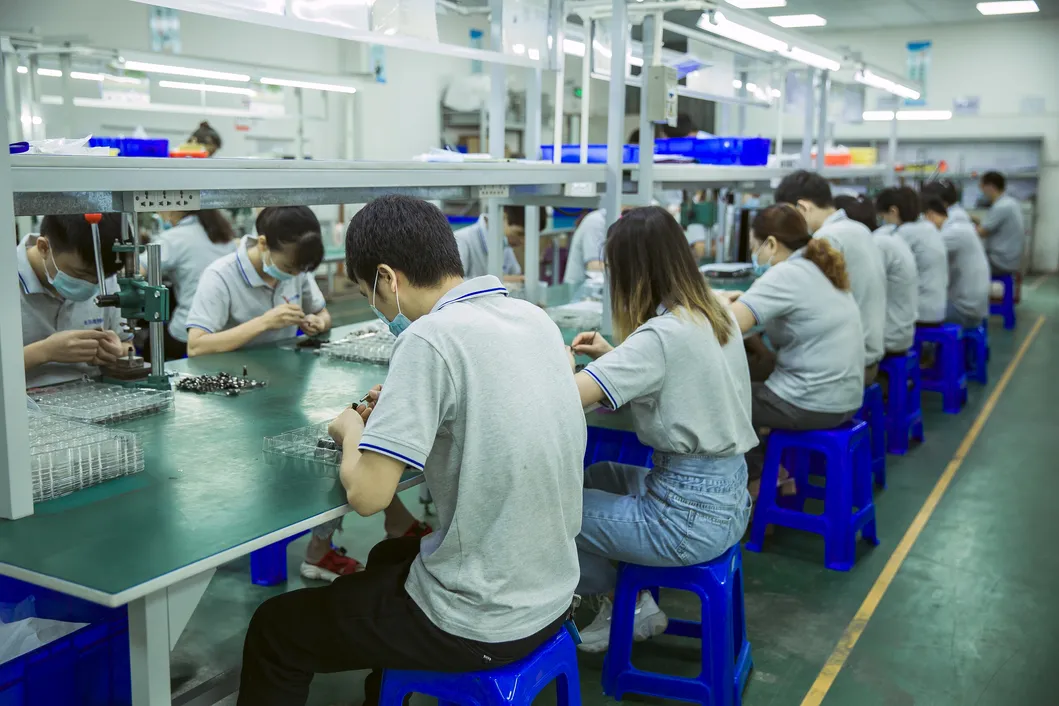

Our factory is located in Shenzhen. The pictures of our factory shows below. We have qualified staff that make sure our customer's order will be delivered in time. Also research and invent new product is always important for a manufacturer. We have a reliable reserach and development team that will make sure our product fit our customer's needs.
Q1. Are you a manufacturer or trading company?
department is in Shanghai and our factory is in Shenzhen
Q2. What's the lead time after place order?
QUANMA: Normally we will deliver your order 7-12 working days after place order.
Q3. Is you connector compatible with other brand connector?
Q4. How many field can be used this kind of connector?
audio-video,military,navigation,security,aviation,industrial control,automo-tive and power etc.
Q5: How's our order spacked and delivered ?

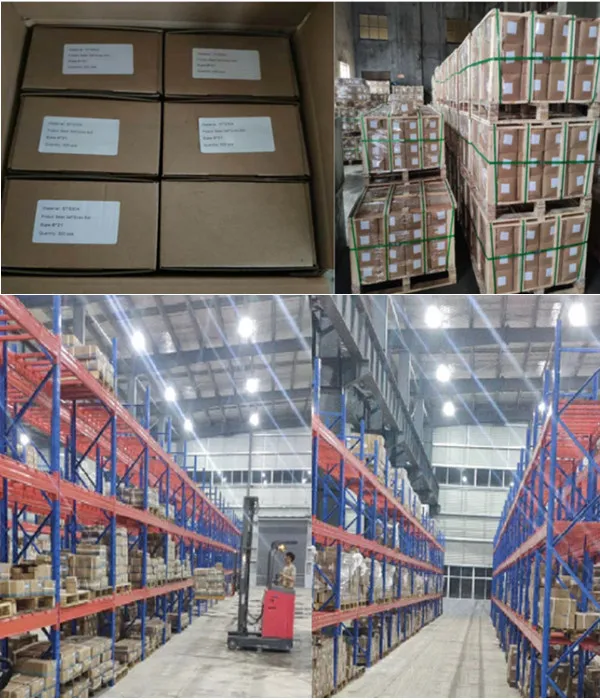

Our connector will pack and ship to you safely. We will pack it as you required. Check our package and warehouse below!
