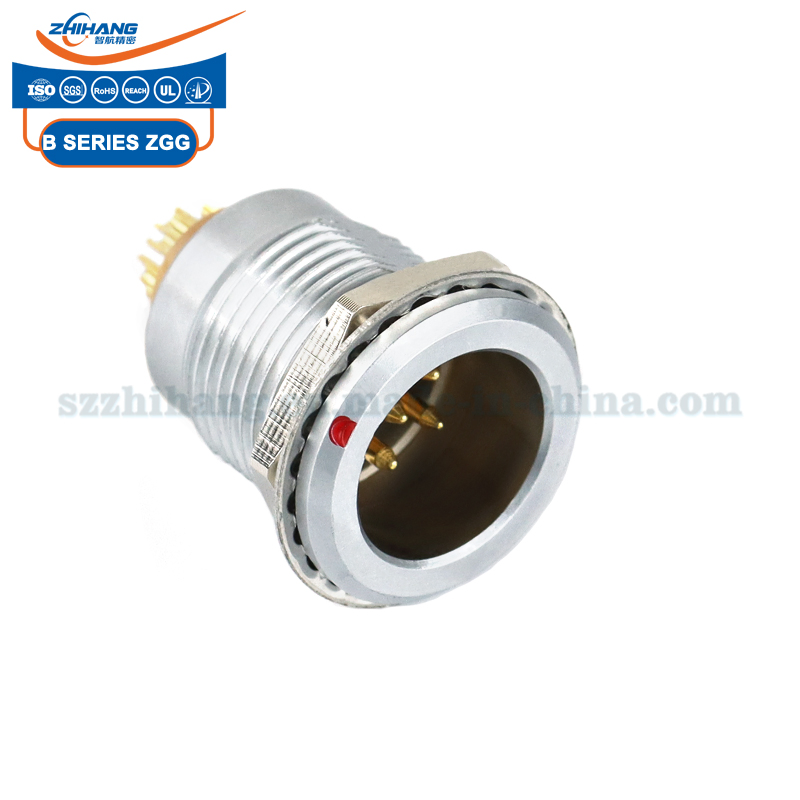

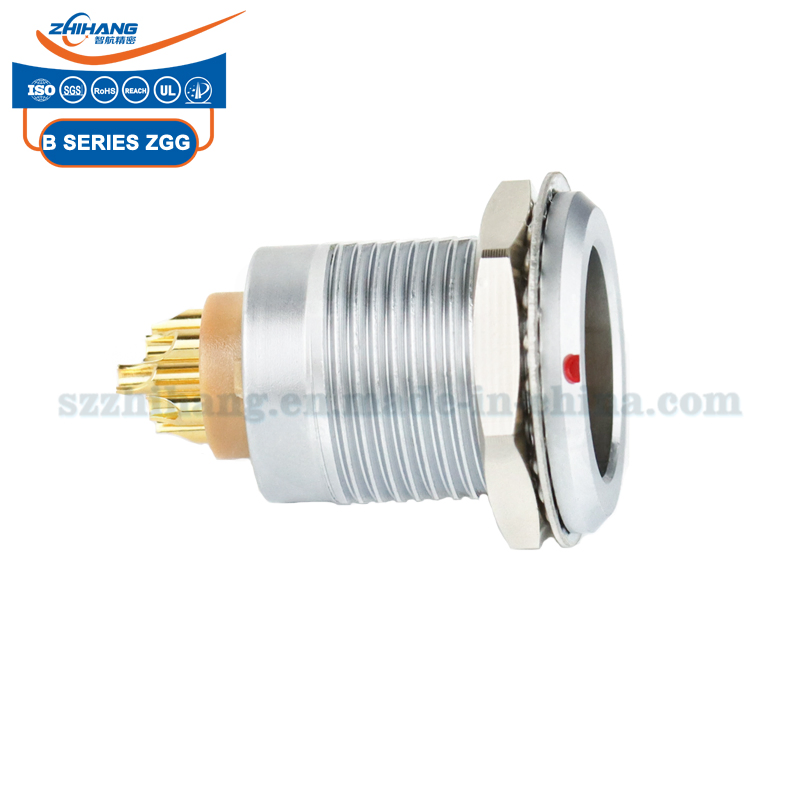

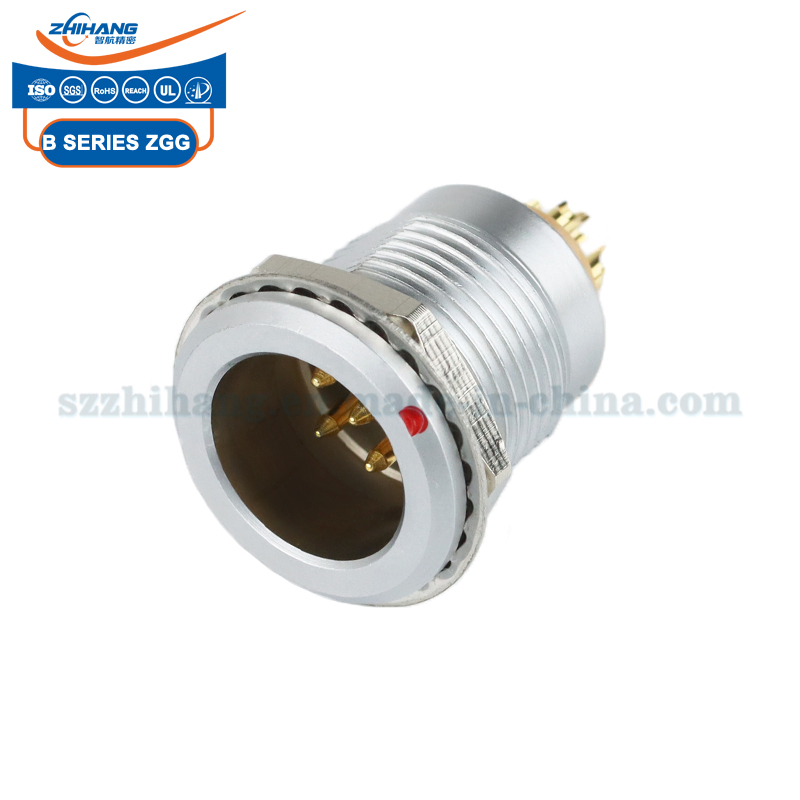

Product Name:2B series ZGG fixed socket (male)
B series ZGG fixed socket (solder,male), straight push-pull lock structure, fast pull, high-density, small volume, blind plug, especially suitable for high-density installation, the shell adopts copper chrome plating, needle core copper gold plating, vacuum sealing, anti-seismic, stable and reliable signal transmission.
Product parameters:
Applicable contacts: 2,3,4,5,6,7,8,10,12,14,16,18,19,26,32 pins.
Surface treatment: pearl chromium, nickel, oxidation resistance.
Model: 2B series ZGG fixed socket (solder,male).
Positioning device: multi key anti misinsertion (G is standard positioning pin, used for connector alignment).
Waterproof IP grade: IP50
Salt spray corrosion test: > 48H.
Reliability: the use of high-quality parts ensures the service life of ZHJM connector.
Robustness: suitable for use in high vibration and strong impact environment.
Aesthetics: the high-tech design of ZHJM connector is very attractive, and the novel appearance can meet various customer requirements.
Anti electromagnetic interference: 360°shielding of metal shell of ZHJM connector provides all-round EMC protection.

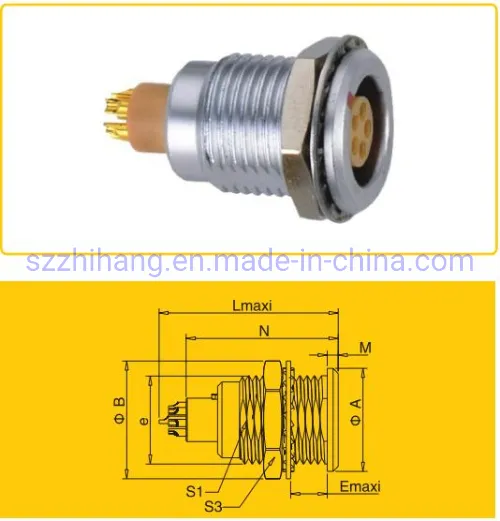

| Shell size and contact No.: | ||||||||||
| Reference | Dimensions(mm) | |||||||||
| Model | Series | A | B | e | E | L | M | N | S1 | S3 |
| ZHJM-ZGG | 00B | 8.0 | 10.2 | M7x0.5 | 6.0 | 15.5 | 1.0 | 13.7 | 6.3 | 9.0 |
| ZHJM-ZGG | 0B | 10.0 | 12.4 | M9x0.6 | 7.0 | 20.7 | 1.2 | 19.1 | 8.2 | 11.0 |
| ZHJM-ZGG | 1B | 14.0 | 15.8 | M12x1.0 | 7.5 | 23.0 | 1.5 | 21.1 | 10.5 | 14.0 |
| ZHJM-ZGG | 2B | 18.0 | 19.2 | M15x1.0 | 8.5 | 26.7 | 1.8 | 24.6 | 13.5 | 17.0 |
| ZHJM-ZGG | 3B | 22.0 | 25.0 | M18x1.0 | 11.5 | 30.7 | 2.0 | 28.1 | 16.5 | 22.0 |
| ZHJM-ZGG | 4B | 28.0 | 34.0 | M25x1.0 | 12.0 | 35.7 | 2.5 | 34.1 | 23.5 | 30.0 |
| Specification | |
| Connecting mode | Push-pull self-locking |
| Protection level | IP50 |
| Cable specification | 0.08-2mm2 /28-14AWG |
| Diameter range | Φ6mm ~Φ10mm |
| Contact diameter×Qty | Φ0.5~Φ2.0 |
| Current rating(A) | 1.5A~30A |
| Operating voltage(AC.V.rms) | 800V~2100V |
| Durability | ≥5000 mating&unmating cycles |
| Temperature rating | |
| Method of connecting cable | Soldering type |
| Material | |
| Shell | Brass(Chrome-plated) |
| insulated parts | PPS |
| Contact pin | Copper alloy(gold-plated) |
| Main characteristics | |
| - Vibration resistance,impact resistance,stretching resistance | |
| Application industries | |
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |
