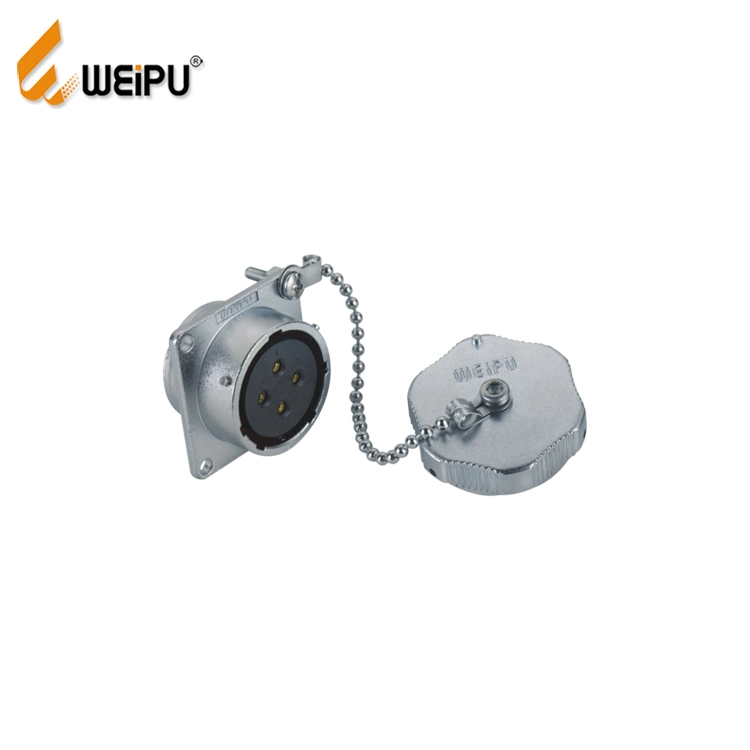

Weipu Wy28 -Z 4 Pin Circular Cable Electrical Wire Crimp Motorcycle Diagnosis Connector

Product Description

Weipu Wy28-Z 4 Pin Circular Cable Electrical Wire Crimp Motorcycle Diagnosis Connector

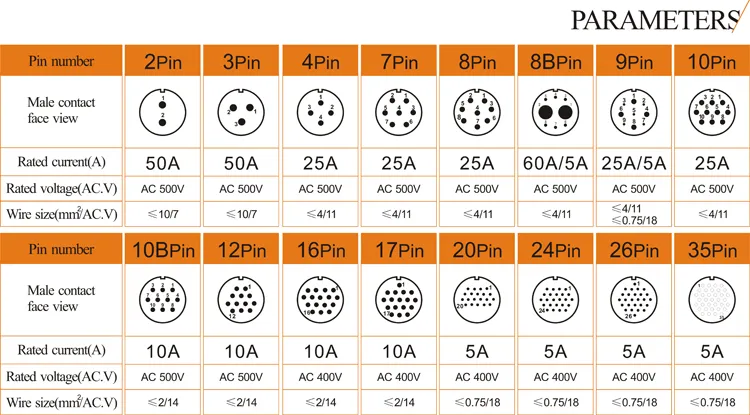

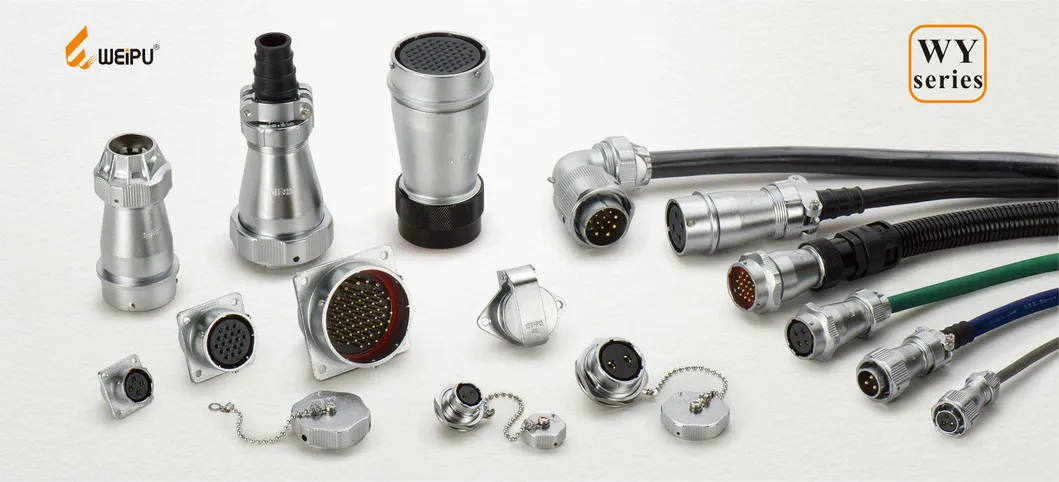

WY28 Series with multi-core(2-35 core) design to fit with different industrial needs within below key features:
△The shell is made of anodized aluminium, compressive, anti-explosive and anti-deformation properties.

△Gold-plated contacts, high-strength corrosion resistance and electrical conductivity,can electively cope with changes in
temperature rise that caused by current;

△Threaded coupling is easy to operate and easy to install;

△Current rating: 5A/10A/25A/50A/60A

△The product is IP67 rated in the connected condition.

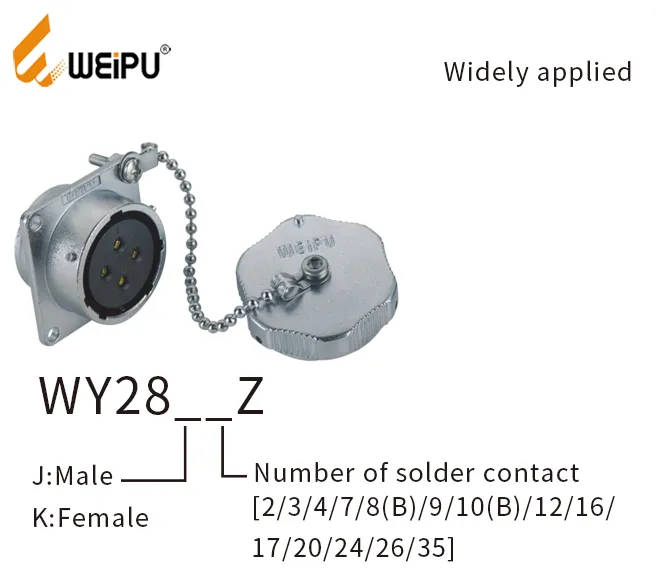

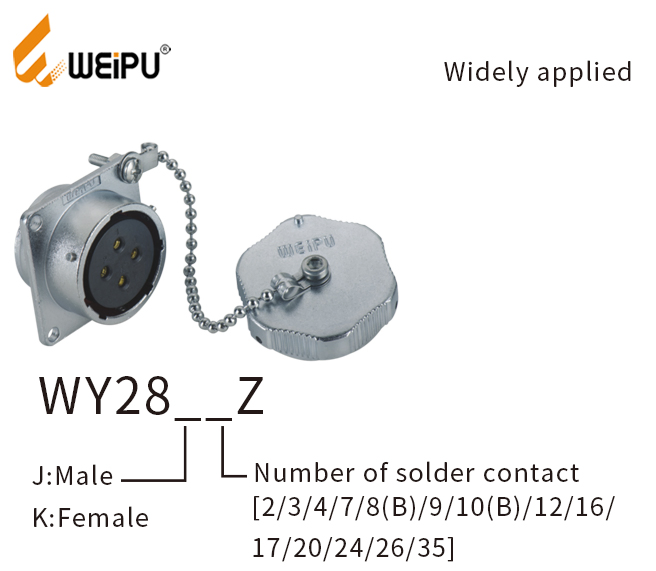

Model No.	WY28-Z

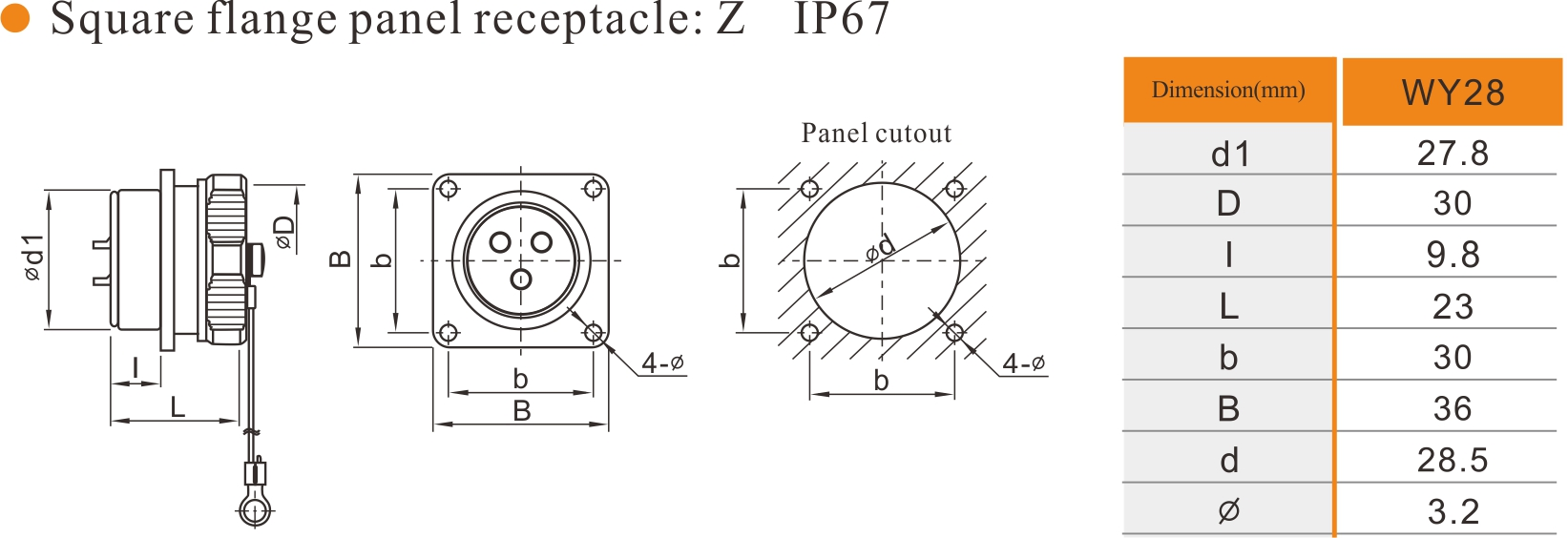

Product name	WY28 Square flange panel receptacle IP67
Coupling	Threaded
Shell material	Zinc alloy with chrome plating
Insert material	PPS, max temperature 260ºC
Contact material	Brass with gold plating
Termination	Solder
Mating cycle	500
Temperature range	-40ºC~+85ºC
Insulation resistance	2000MΩ

Weipu Wy28-Z 4 Pin Circular Cable Electrical Wire Crimp Motorcycle Diagnosis Connector

Weipu Wy28-Z 4 Pin Circular Cable Electrical Wire Crimp Motorcycle Diagnosis Connector

Application scenarios

The machine with good efficiency is base on the effectively stable running. The connectors produced by WEIPU can work effectively and stably even under extreme conditions. The products of WEIPU refer to rail transit, new energy vehicles, industrial automation, energy, photovoltaics, stage lighting, exhibitions, 3C products, medical, agriculture and other fields.

Weipu Wy28-Z 4 Pin Circular Cable Electrical Wire Crimp Motorcycle Diagnosis Connector

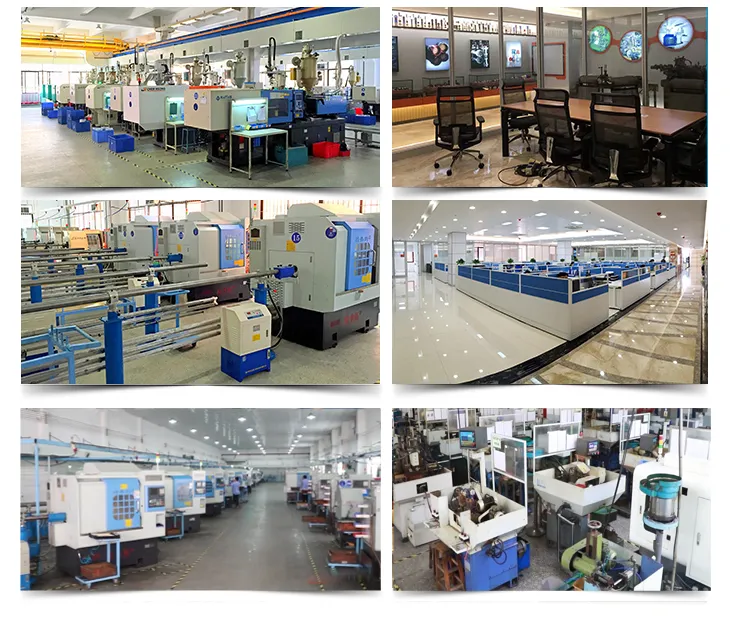

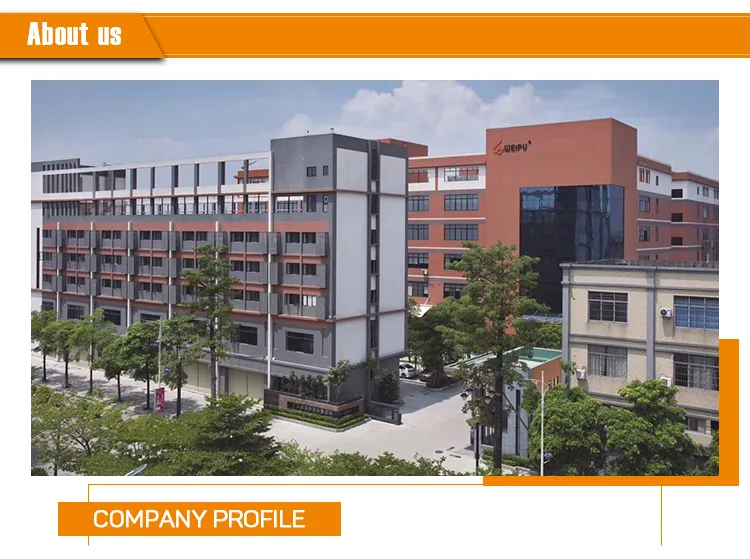

Guangzhou Weipu Mechanical And Electrical Co., Ltd.
WEPU was established in 1996 specializes in producing the industrial connector devices to ensure safe and reliable power supply solution. We are the member of"Naional Electrical Appliances Standardization Technical Committees and one of the members to draft the national standard for industrial connectors GB/T11918-2014.
Weipu has strong R& D capacity, can develop various connectors according to customers' special request. As a leader with 24 years of experience in the connector industry, we consistently pursue high quality and develop new products to meet the needs of our customers from different industries.
Weipu Wy28-Z 4 Pin Circular Cable Electrical Wire Crimp Motorcycle Diagnosis Connector

Weipu Wy28-Z 4 Pin Circular Cable Electrical Wire Crimp Motorcycle Diagnosis Connector

Q1. Are you a manufacturer or trading company?

Weipu:We are a professional manufacturer of waterproof connectors with our own factory and Marketing Department.

Q2. What is the lead time?

Weipu:Normally speaking, it asks for 5-20 days for mass production except during observed holidays.

Q3.What certification do you have?

Weipu:he electrical connector have got CE Rohs2.0 certification for our products.

Q4: Where is the Distribution of product's industrial base?

Weipu:Zhongshan, Guangdong, China

Q5.Where can be used this kind of connector?

Weipu:Weipu Industrial connector now widely used in the fields of measurement,medical,audio-video,navigation,security,aviation,industrial control,automo-tive and power etc.

Q6.Can we as your agent ?

Weipu:If your quantity is workable , we can sign agent contract between us .
