Waterproof Solar Mc 4 Connector for PV Energy System

Product Description

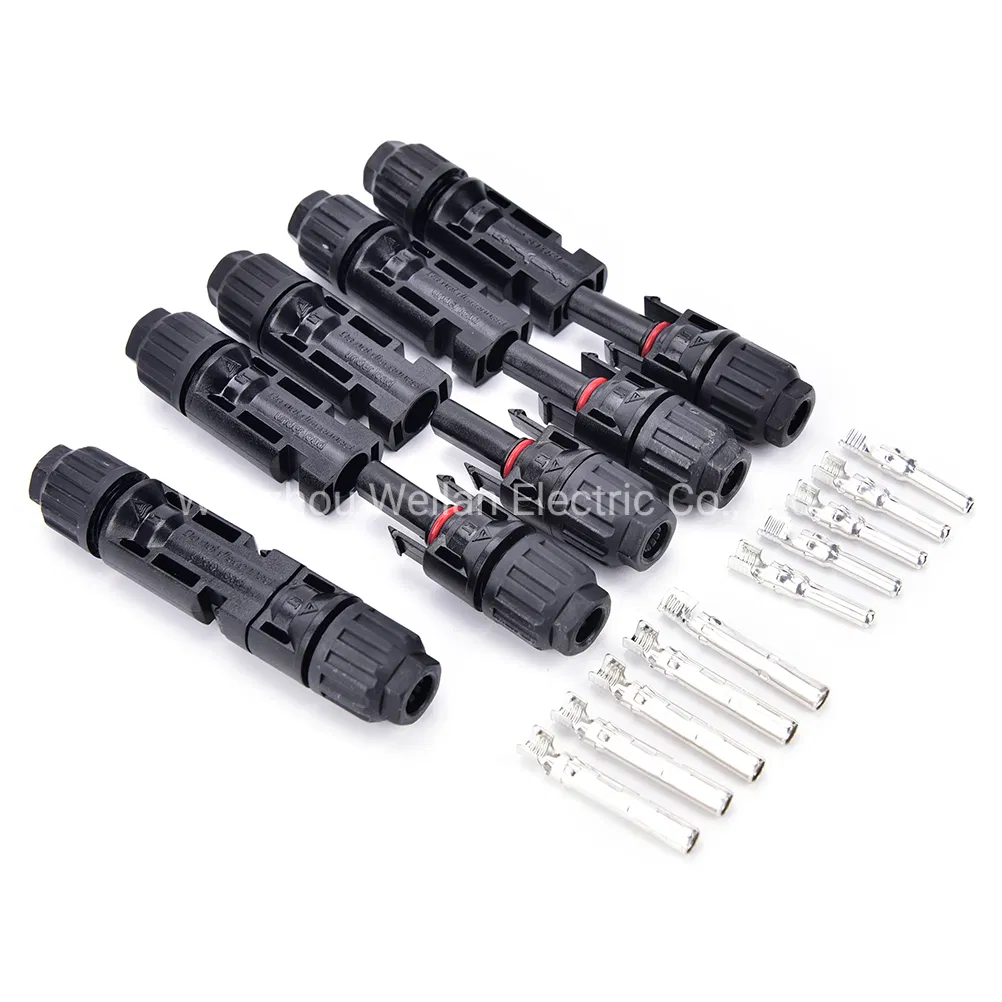

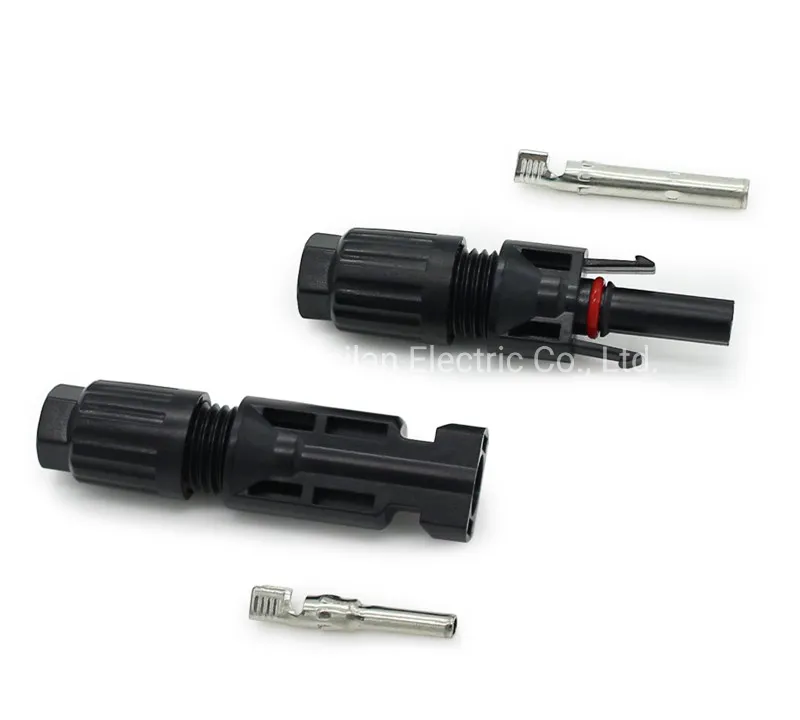

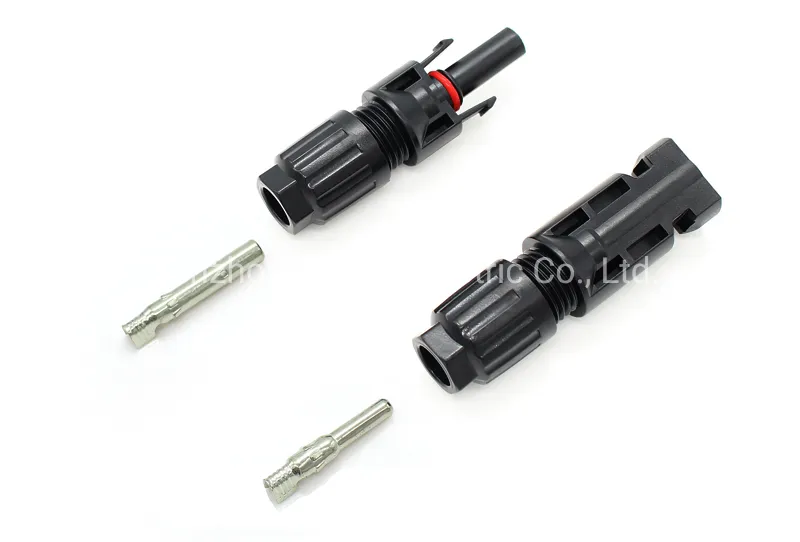

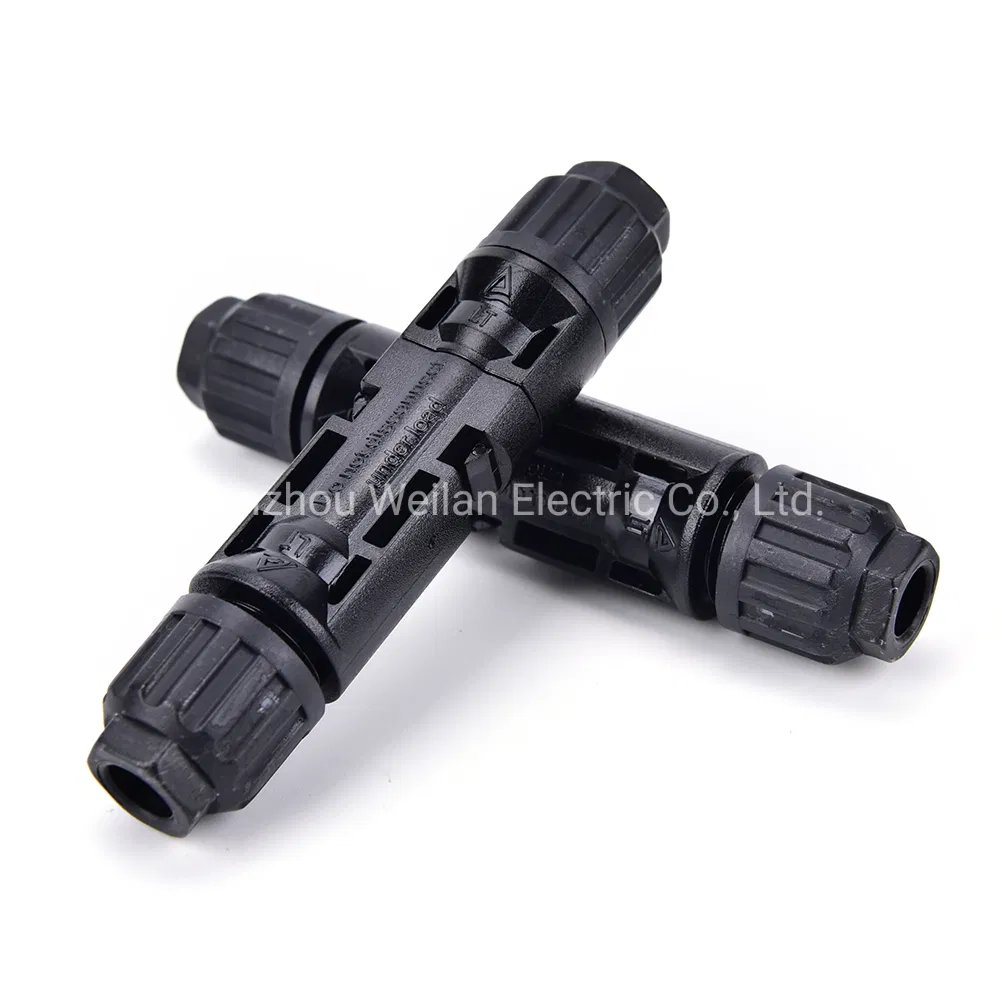

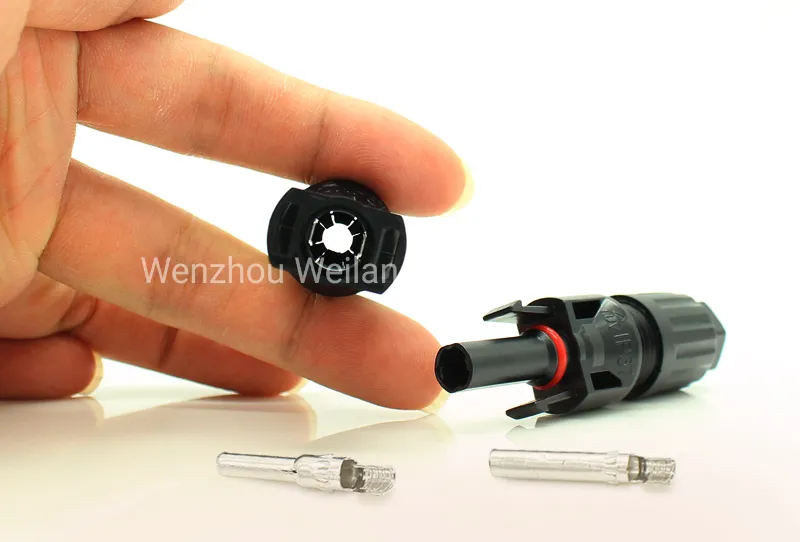

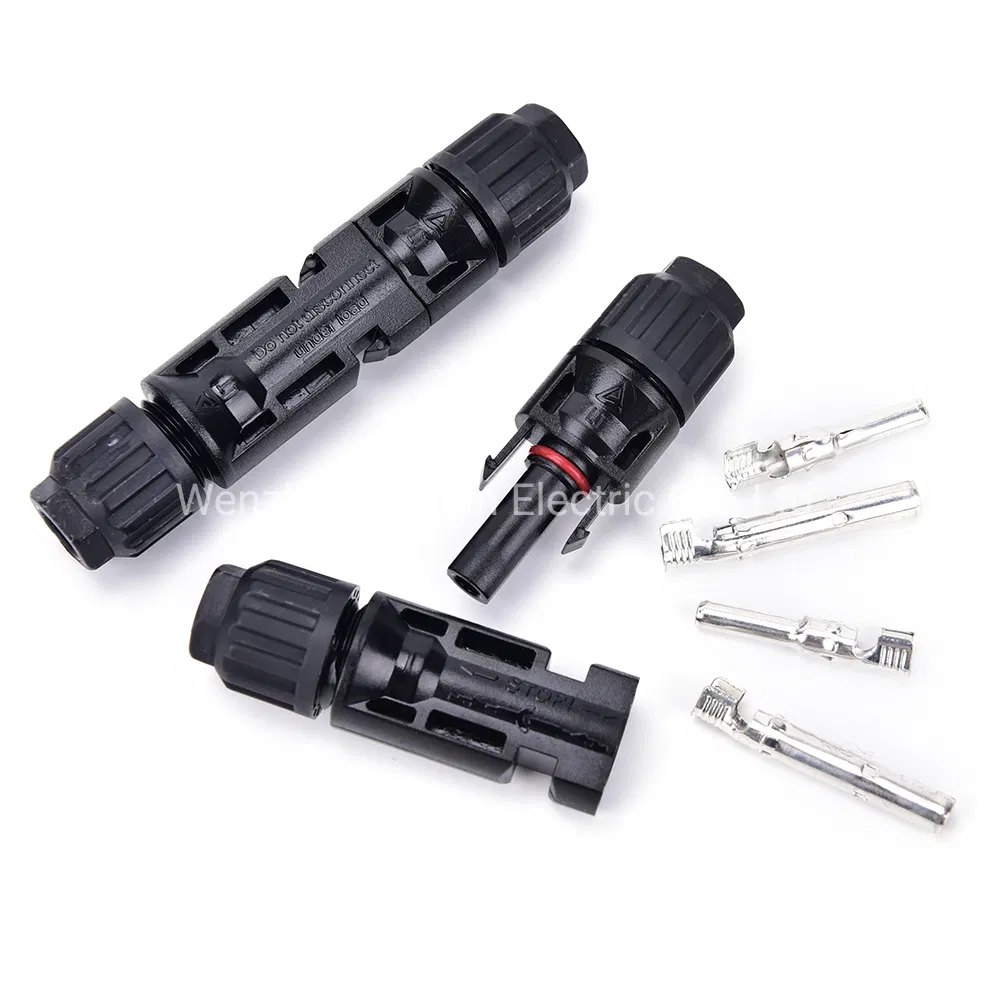

Waterproof Solar MC 4 Connector for PV Energy System

This connector is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions. For permanent installations. Raygleam MC4Compatible Cable Connectors are made with highest quality materials. They are both heavier and sturdier than many other brands,ensuring long term reliability and performance. These connectors are designed to complete a solar panel (PV) array, typically in parallel applications. These connectors are also waterproof and resist dust build up.

Technical parameters

Product Name	MC4 Connector
Rated Current	30A(2.5~6mm2)
Rated Voltage	1000V DC
Test Voltage	6000V(50HZ, 1min)
Overvoltage category/Pollution degree	CAT III/2
Contact resistence of plug connectors	1 mΩ
Conatct material	Copper, Ag plated
Insulation material	PPO
Degree of protection	IP20/IP67
Flame class	UL94-V0
Safety class	II
Suitable cable	2.5-6mm2
Insertion force/Withdrawal force	≤50N/ ≥50N
Connecting system	Crimp connection
Temperature range	-40ºC~+125ºC
