    Raymo B Series Fgg Egg Push Pull Male Cable Plug High Speed Camera Circular Connector
    • Raymo B Series Fgg Egg Push Pull Male Cable Plug High Speed Camera Circular ConnectorRaymo B Series Fgg Egg Push Pull Male Cable Plug High Speed Camera Circular Connector
    • Raymo B Series Fgg Egg Push Pull Male Cable Plug High Speed Camera Circular ConnectorRaymo B Series Fgg Egg Push Pull Male Cable Plug High Speed Camera Circular Connector
    • Raymo B Series Fgg Egg Push Pull Male Cable Plug High Speed Camera Circular ConnectorRaymo B Series Fgg Egg Push Pull Male Cable Plug High Speed Camera Circular Connector
    • Raymo B Series Fgg Egg Push Pull Male Cable Plug High Speed Camera Circular ConnectorRaymo B Series Fgg Egg Push Pull Male Cable Plug High Speed Camera Circular Connector

    Raymo B Series Fgg Egg Push Pull Male Cable Plug High Speed Camera Circular Connector

    Raymo B series FGG EGG push pull male cable plug high speed camera circular connectorThe RM-B series of metal push pull self-locking connector can directly complete with many well-known brands due to solid construction and attention to detail throughout the design and manufacturing process. These c......

    Send Inquiry

    Product Description

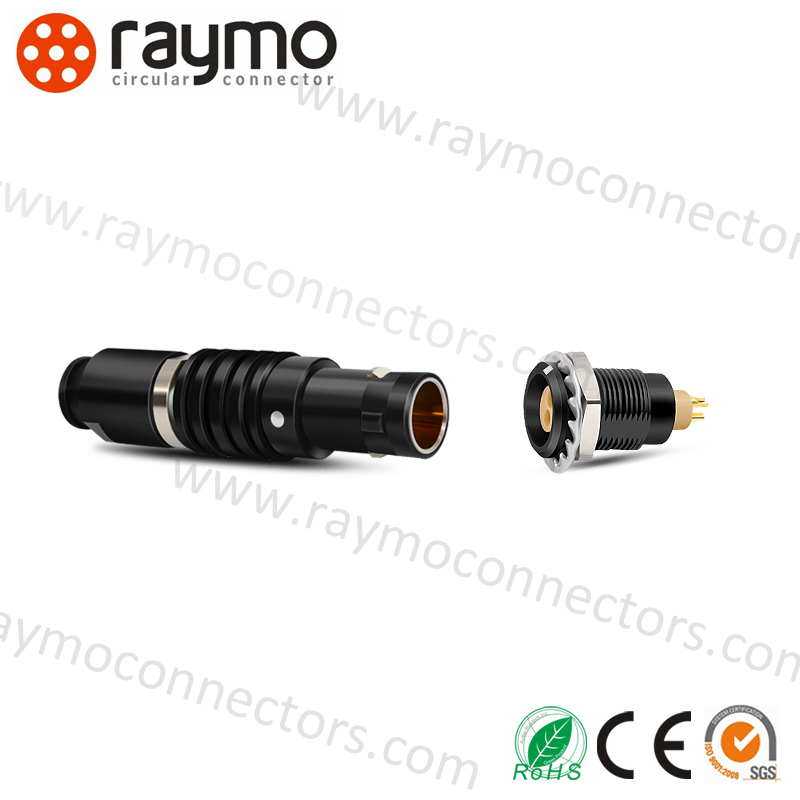

    Raymo B series FGG EGG push pull male cable plug  high speed camera circular connector

    The RM-B series of metal push pull self-locking connector can directly complete with many well-known brands due to solid construction and attention to detail throughout the design and manufacturing process. These connectors are an ideal solution when a high number of contacts within a small but robust housing is required for applications such as medical devices, testing equipment, audio and video equipment, aviation and military systems, communication devices, sensor systems, power modules and information systems.


    Product Description

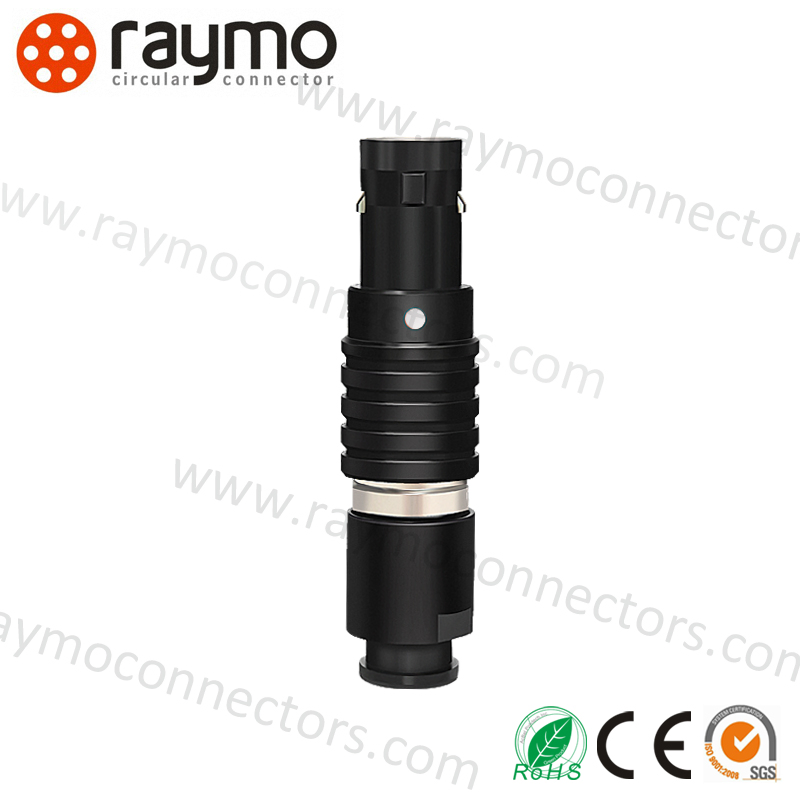

    Part No:  RM-FGG-1BS-305-JS52Z = FGG.1B.305.KLAD52Z

    Desc.: Push pull metal circular connector, 1B size, 5pins male solder contacts, shell in black chrome plated brass, 52 cable collet.

    The features of the RM-B series are:

    • Secure high-performance push-pull self-locking system
    • High pin density contributing to equipment miniaturisation
    • 2 to 32 contacts available
    • 5 housing sizes available
    • 11 alignment key options to ensure correct mating
    • IP50 sealing
    • 360° EMC shielding
    • Max current rating of 35A
    • Natural or Black Chrome plating
    • CE & RoHS compliant
    • Solder, PCB or 90° PCB terminations
    • -50°C to +250°C operating temperature

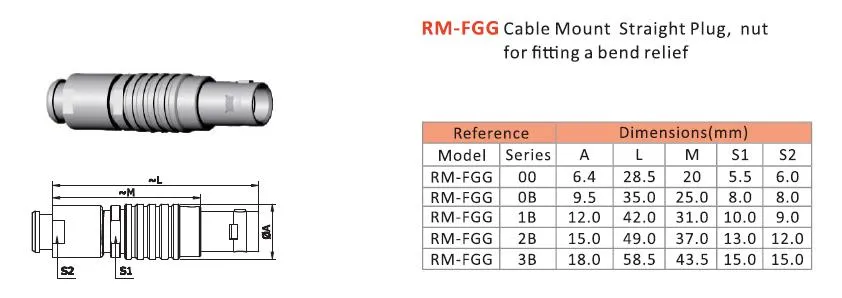

    Installation Instructions

    Raymo B Series Fgg Egg Push Pull Male Cable Plug High Speed Camera Circular Connector



    Raymo B Series Fgg Egg Push Pull Male Cable Plug High Speed Camera Circular Connector
    Raymo B Series Fgg Egg Push Pull Male Cable Plug High Speed Camera Circular Connector


    Product Size Contact



    Shell sizeContacts no. ( Both with Solder & PCB type )
    RM-002 pin3 pin4 pin
    RM-0B2 pin3 pin4 pin5 pin6 pin7 pin9 pin
    RM-1B2 pin3 pin4 pin5 pin6 pin7 pin8 pin10 pin12 pin14 pin16 pin
    RM-2B2 pin3 pin4 pin5 pin6 pin7 pin8 pin10 pin12 pin14 pin16 pin19 pin
    RM-3B14 pin16 pin30 pin32 pin

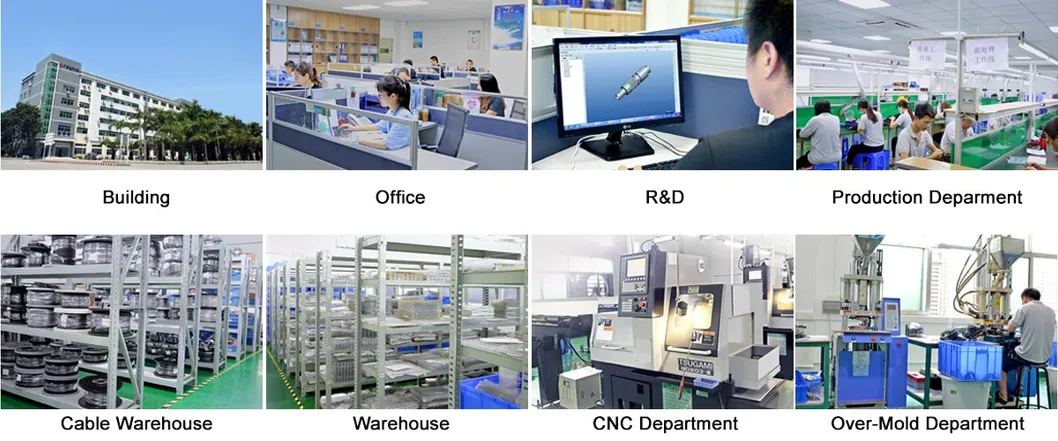

    Company Profile

    SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED as a professional in design and manufacture all kinds of connectors and special cables, have accumulated rich experience in development and production for kinds of cables and its related connector adapter.With RED/Teradek Bond/ARRI Camera Cable, Canon / Sony Camera Power Cable, SDI Cable, USB Cable, Video Cable, CCD Cable... We supply different OEM/ODM services serve as different application and requirement.
    Our products are widely used in kinds of harsh environment and applications, like industrial control devices, medical equipment, measuring and inspecting equipment, audio & visual equipment and military, etc. Furthermore, it has excellent compatibility with many leading supplier.


    Raymo B Series Fgg Egg Push Pull Male Cable Plug High Speed Camera Circular Connector

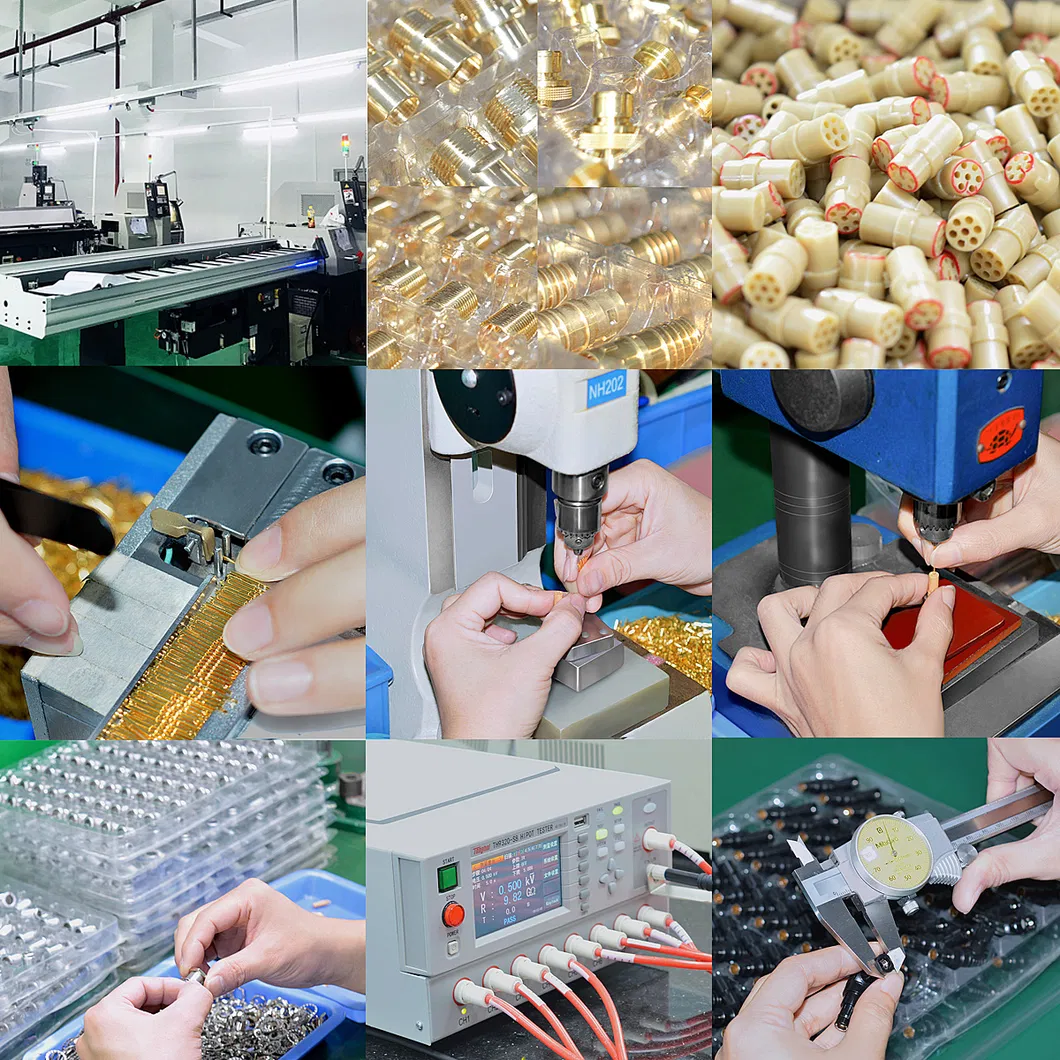

    Production process



    Raymo B Series Fgg Egg Push Pull Male Cable Plug High Speed Camera Circular Connector

    Packaging & Shipping



    1~10pcs : 3~5 working days
    11~100pcs: 5~7 working days
    101~500pcs: 5~10 working days
    501~1000pcs: 7~10 working days

    Raymo B Series Fgg Egg Push Pull Male Cable Plug High Speed Camera Circular Connector
    Certificate: ISO9001, CE, ROHS, SGS
    Raymo B Series Fgg Egg Push Pull Male Cable Plug High Speed Camera Circular Connector

    FAQ
    1. Are your company a professional manufacturer?
    Raymo: Yes, we specialized in producing circular push pull self-latching connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on micraymo.en.made-in-china.com more than 7 years.

    2. What is the MOQ?
    Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.

    3. Free sample :
    RAYMO:  Available. Any needs, please contact us.

    4. What about the delivery time?
    Raymo: sample for 3-5 working days, mass production for 5-7 working days.

    5.What is your payment terms?
    Raymo: 100% T/T  deposit when customer place order.

    6. Does your product have any warranty?
    Raymo:  Yes, all of our connectors can work normally after 5000 cycles mating; our factory
    has instruments to tested them beforeshipping.
    Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.


    PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
