Product Description

Raymo ARRI LBUS FIZ Motor Power Cable Fischer 3 Pin 4 Pin Male Connector S 102 A053 130 4 ways

Company Introduce

SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED as a professional in design and manufacture all kinds of special cables, have accumulated rich experience in development and production for kinds of cables and its related connector adapter.With RED/Teradek Bond/ARRI Camera Cable, Canon / Sony Camera Power Cable, SDI Cable, USB Cable, Video Cable, CCD Cable... We supply different OEM/ODM services serve as different application and requirement.

Our products are widely used in kinds of harsh environment and applications, like industrial control devices, medical equipment, measuring and inspecting equipment, audio & visual equipment and military, etc.Furthermore, it has excellent compatibility with many leading supplier.

Parts Description

S 102 A053 130= RAYMO RM-S-0F1C-P04-JS50
Free sample is available
Best price and 24 hours on line service
Arri Lbus FIZ Motor Power Cale

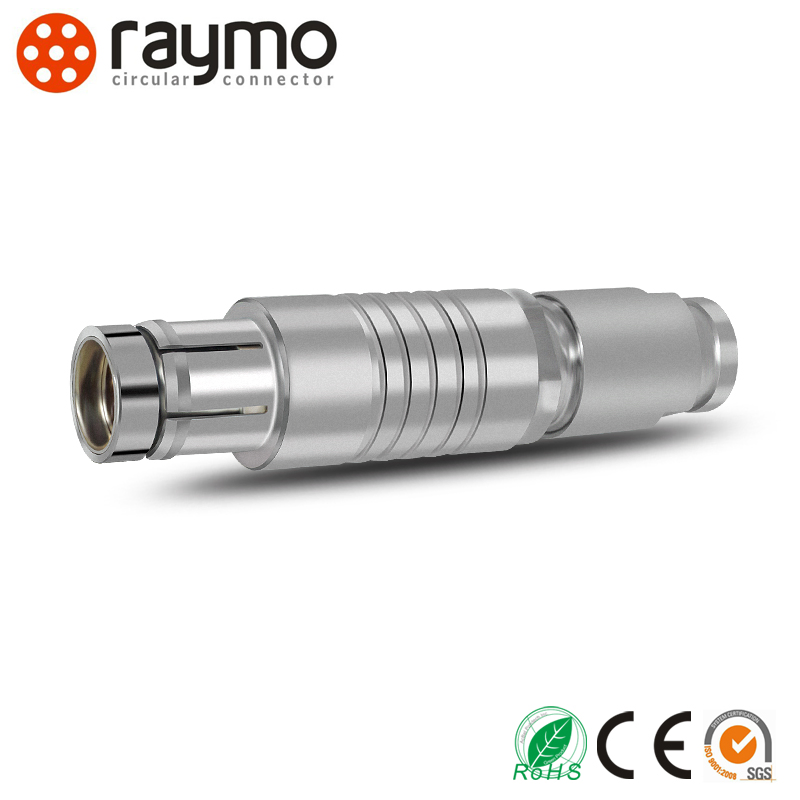

S cable plug, male solder 4 ways contacts, shell in natural color,suitable for your 5.0mm cable

Contacts And Shell Size

Insulator

Shell size

Contacts no. ( Both with Solder & PCB type )

RM-F series	0F/102	2	3	4	5	7	9
	1F/103	2	3	4	5	6	7	8	10	12	14	16
	AF/1031	10	12	15 ( traxial )	19
	2F/104	2	3	4	6	8	16	19
	3F/105	7

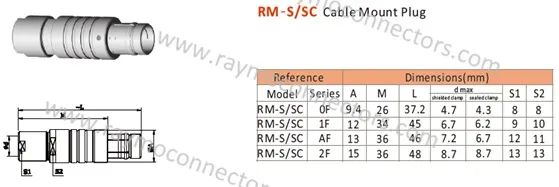

Dimensions and Pictures
Raymo Arri Lbus Fiz Motor Power Cable Fischer 3 Pin 4 Pin Male Connector S 102 A053 130 4 Ways

Technical Characteristics

Housing Material	Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
Configuration	Brass (gold plated)
Insulator	PPS
Contact Type	Solder
Endurance (Shell)	5000 mating cycles
Temp (min)	-40 deg
Temp (max)	125 deg C
Humidity (max)	<=95% [at 60 deg C / 140 F]
Vibration	15 g [10 Hz - 2000 Hz]
Shock Resistance	100 g [ 6 ms]
Salt Spray Corrosion	>144 hr
IP Rating	68

Main Features

Security of the push-pull self-latching system
Multipole types 2 to 19 pins contacts
Solder or Print contacts(straight or elbow)
High-density installation for space-saving
Multiple key options to avoid cross mating of similar connectors
Keying system for connector alignment
Made of brass and have a gold-plated surface
Have metal shells which have a nickel-plated surface

Application

Defense & Security like Communication systems
Broadcast like Studios and outside broadcasting
Transport Avionics
Medical like Diagnostic devices
Instrumentation like Test & measurement
Energy like Nuclear
Extreme like Motorsports

Certificate

CE
REACH
RoHS
ISO9000-2015

Advantages

Sample Free:1-2 PCS
Fast lead time: 3-5 work days if the QTY is under 200 PCS
Flexiblity payment way:T/T,PayPal,Westunion,Credit card
24 hours service for clients
Competitive price & stable production
Certified CE and RoHS
OEM/ODM/Cable Assemble
World-class customer service

RFQ

1. Are your company a professional manufacturer?
Raymo: Yes, we specialized in producing circular connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on micraymo.en.made-in-china.com more than 9 years.
2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample :
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: sample for 3-5 working days, mass production for 5-7 working days.
5. What is your payment terms?
Raymo: 100% T/T deposit when customer place order.
6. Does your product have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory
has instruments to tested them before shipping.
Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
