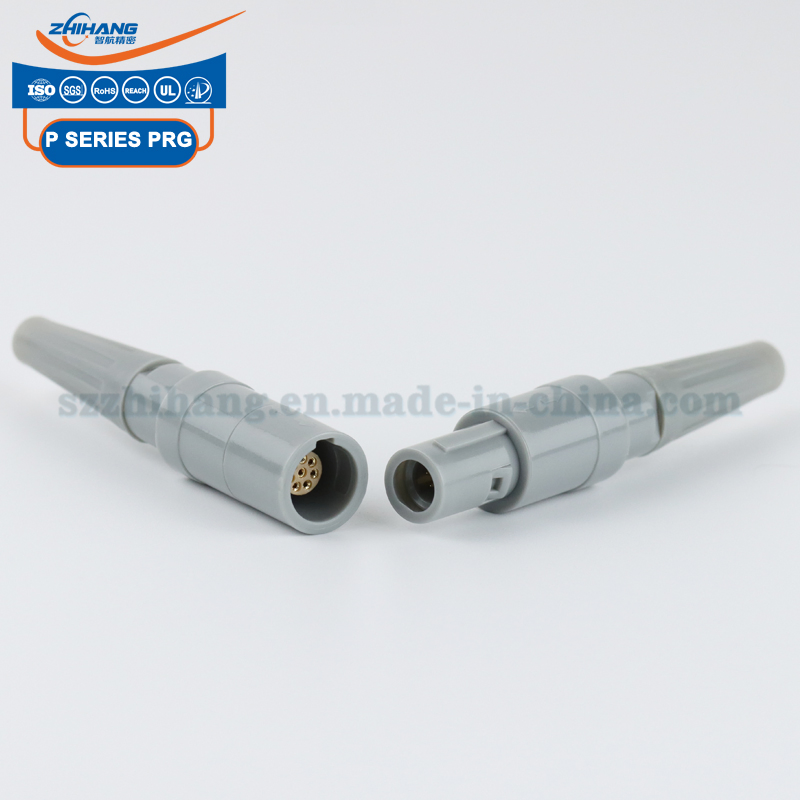

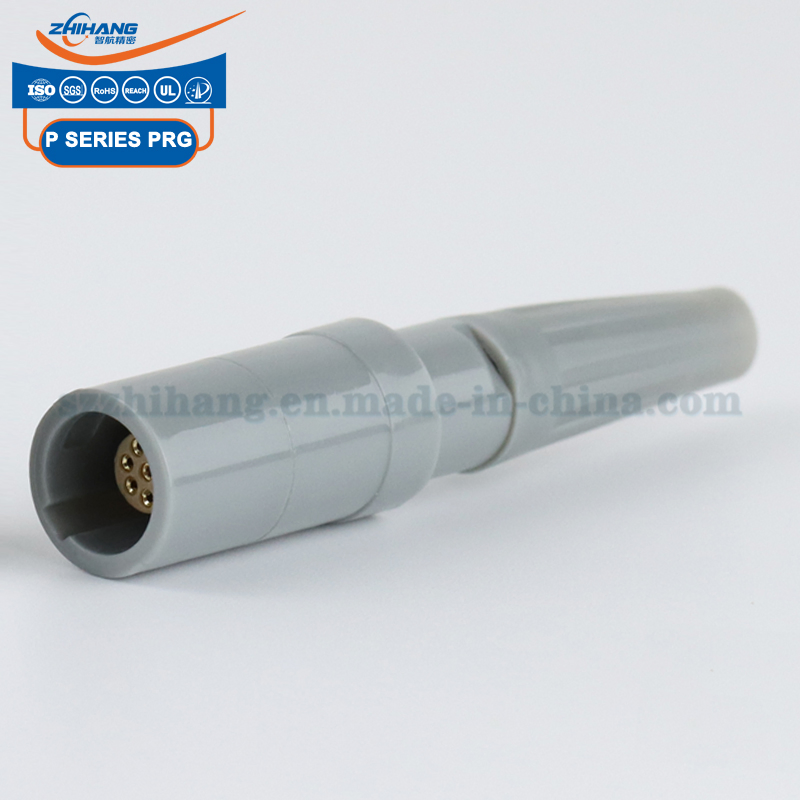

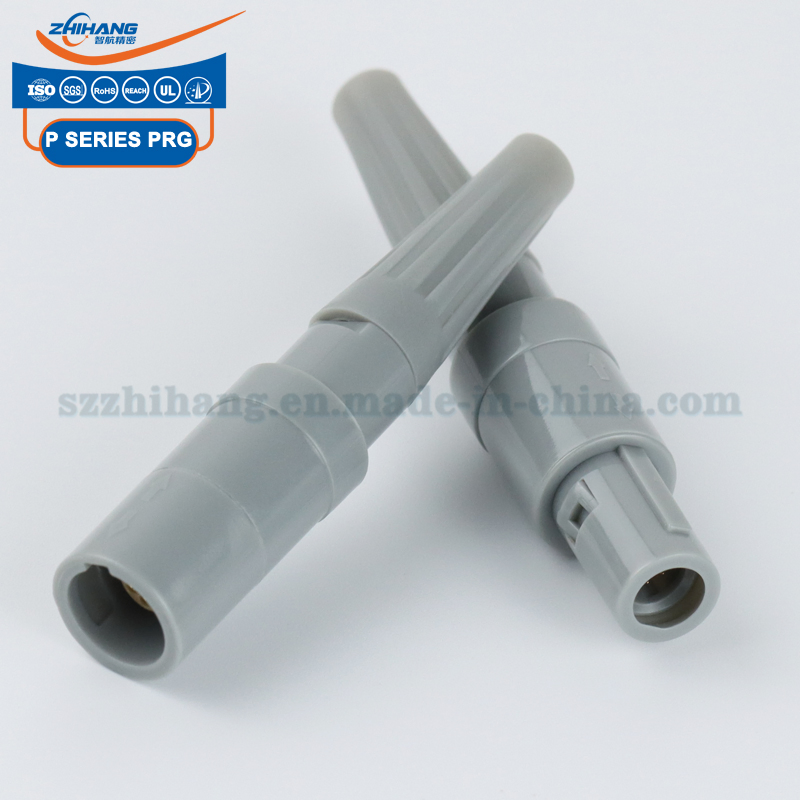

PRG.1P.314.CLLD P Series Prg 1p 14 Pins Grey Plastic Shell Free Socket Cable with bend relief Push Pull Connector
Product Name: 1P series PRG free socket(with bend relief)Floating butt joint, installation free (for cable extension), straight push-pull locking structure, fast plug, high density, small volume, blind plug, especially suitable for high density installation. Product parameters:Shell material: PE.Nee......
Send Inquiry
Product Description
Product Name: 1P series PRG free socket(with bend relief)
Floating butt joint, installation free (for cable extension), straight push-pull locking structure, fast plug, high density, small volume, blind plug, especially suitable for high density installation.
Product parameters:
Shell material: PE.
Needle contact material: Gold plating of copper rod.
Rubber contact material: PPS.
Optional contacts: 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 14.
Wiring mode: solder.
Product color: orange, green, yellow, blue, black, red, gray, white.
Key control (degree optional): 0°, 40°, 60°, 80°.
Positioning device: multi key anti misinsertion (G is standard positioning pin, used for connector alignment).
It is mainly used in ventilator, intoxication machine, multi parameter monitor, temperature and humidity recorder, steel bar detector, balance car, ozone instrument, radio frequency neuralgia treatment instrument, radio frequency temperature control thermal coagulator, postpartum rehabilitation treatment instrument and other equipment.
Widely used in communication, electronics, detection and measurement, mechanical equipment, subway, UAV, medical equipment, ships, military industry, photographic equipment, instruments and other industries.
| Specification | |
| Connecting mode | Push-pull self-locking |
| Protection level | IP50 |
| Cable specification | 0.08-0.5mm2 /28-20AWG |
| Diameter range | Φ4mm~6mm |
| Contact diameter×Qty | Φ0.5~Φ1.3 |
| Current rating(A) | 2A~10A |
| Operating voltage(AC.V.rms) | 500V~1300V |
| Durability | ≥1000 mating&unmating cycles |
| Temperature rating | |
| Method of connecting cable | Soldering |
| Material | |
| Shell | Plastic |
| insulated parts | PPS |
| Contact pin | Copper alloy(gold-plated) |
| Main characteristics | |
| - Vibration resistance,impact resistance,stretching resistance | |
| Application industries | |
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |
ZHIHANG is a manufactuer that:
• Focus on manufacturing & exporting various metal & plastic circular push pull connectors, cable assembly.
• Series has B, P, K, S, F, T, W, V, E, JHR10,etc.
• ISO90001:2015, ROHS, REACH,SGS Audited manufacturer, UL.
• All the items can work normally after 5000 times mating.
FAQ:
1. Are your company a professional manufacturer?
ZHIHANG: Yes, we specialized in producing circular push-pull connectors and cable assembly since 2014.
We are SGS audited manufacuter, passed ISO9001:2015 Quality managerment system, And we worked deal with Alibaba. Com as a golden supplier more than 5 years. All the products meet ROHS standards.
2. What is the MOQ?
ZHIHANG: No MOQ limited, depond on customer real needs.
3. Free sample:
ZHIHANG: Sample is available.But it should be paid in advance.The cost of sample will be refund after further order.
4. What about the delivery time?
ZHIHANG: It depends on the quantity.It usually takes 3-5 working days for small quantity.Mass production for 5-7 working days.
5. What is your payment terms?
ZHIHANG: 100% T/T deposite when customer place order.
6. Does your product have any warranty?
ZHIHANG: Yes, all of our connectors can work normally after 5000 cycles mating, our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
