Lemos Ehg 0b 305 Panel Mount Fixed Receptacle 2 3 4 5 6 7 8 9 Pins Circular Connector with Protruding Shell
Production DescriptionP/N: RM-EHG-0BC-305KS (EEG.0B.305CLL)Description: EHG fixed socket, nut fixing, 0B series, 5pin female contacts, in solder type, 1 key, 0 degree, PPS insulator, outer shell in natural/black chrome plated brass, protruding shell SeriesContact No in solder or PCB type00B2, 3......
Send Inquiry
Product Description
Production Description

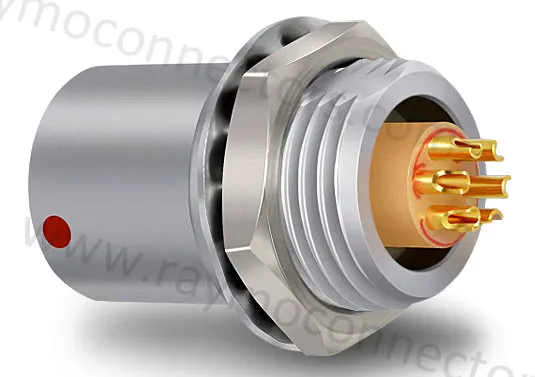

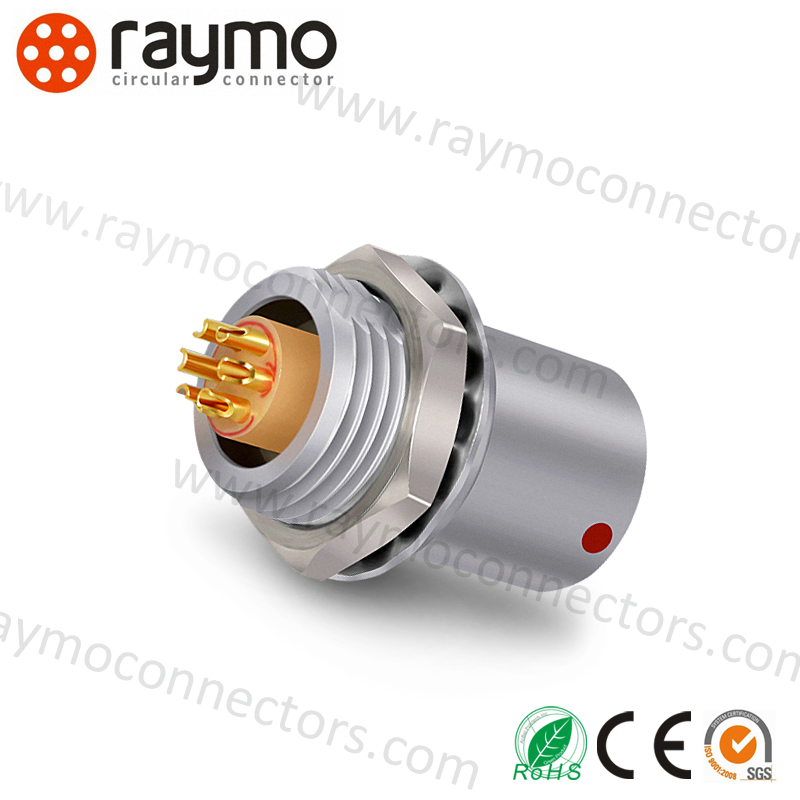

P/N: RM-EHG-0BC-305KS (EEG.0B.305CLL)Description: EHG fixed socket, nut fixing, 0B series, 5pin female contacts, in solder type, 1 key, 0 degree, PPS insulator, outer shell in natural/black chrome plated brass, protruding shell
| Series | Contact No in solder or PCB type |
00B | 2, 3, 4 |
| 0B | 2, 3, 4, 5, 6, 7, 9 |
1B | 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16 |
| 2B | 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 19, 26 |
| 3B | 3, 4, 6, 7, 8, 10, 12, 14, 16, 18, 21, 30 |
Main features:
- security of the Push-Pull self-latching system
- multipole types 2 to 30 contacts
- solderor print contacts (straight or elbow)
- high packing density for space savings
- multiple key options to avoid cross mating of similar connectors
- keying system (G key standard) for connector alignment
- 360° screening for full EMC shielding.

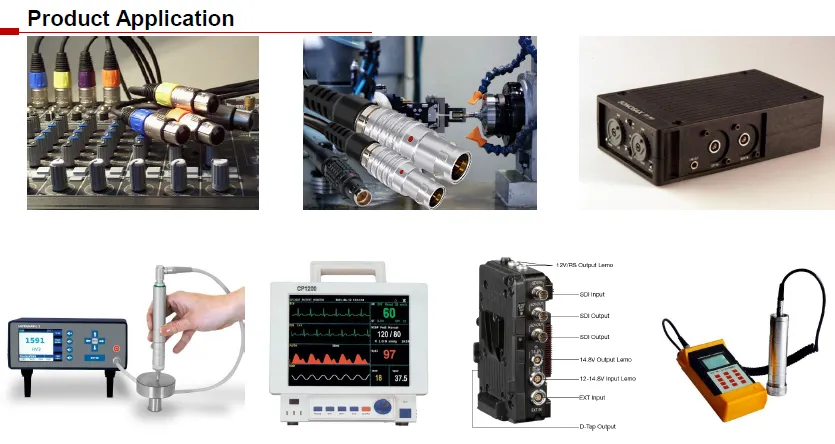

Application
RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement Equipment, Data Acquisition, Data Transfer Equipment, Module Power, Sensor, Sensor Systems Instrumentation, Analysis Application.
Certificates
Packing & Delivery
Packing
PE bag & Carton
Delivery Time
1~10pcs: 3~5 working days
11~100pcs: 3~5 working days
101~500pcs: 3~5 working days
501~1000pcs: 3~5 working days

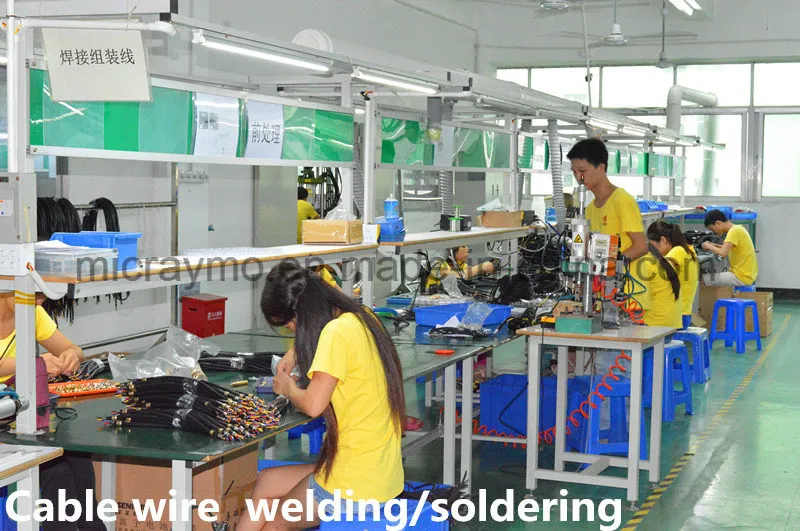

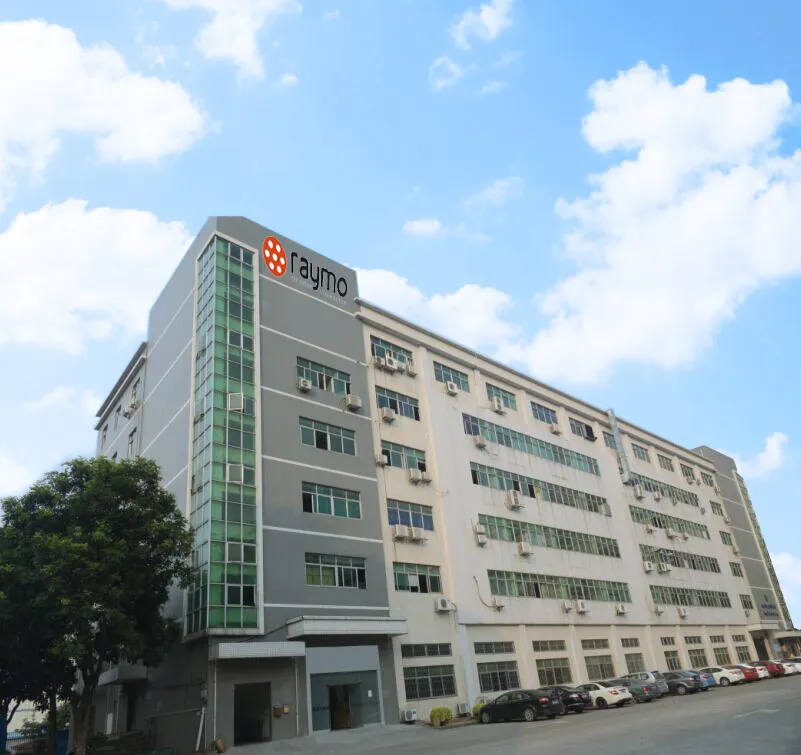

Our Company
RAYMO connectors is a SGS audited manufacturer for various connectors and cable assemblies with below features:
1. High quality connectors & cable assemblies, competitive price, fast delivery ( 5-7 working days);
2. CE, RoHS, SGS, ISO9001:2015 certificates;
3. 100% compatible with the original connectors, such as Lemos, Fischers, ODUS, BINDERS;
4. Main market: North America, Europe, Asia, North Africa, Oceania;
5. OEM & ODM are welcome;
6. No MOQ limited;
7. Free sample available;
8. Fast respond: with 24 hours;
9. Good after-sale service;
Overseas Exhibition
2018/11/13-16 Electronica 2018, Munich, Germany / Booth No.: C6.337-2
2017/09/11-16 NAB Show, Netherlands
2016/04/11-15 HK Fair
2015/10/02-07 ICEEB, Brazil
2014/10/11-15 HK Fair
2014/04/11-15 HK Fair
FAQ
1. Are your company a professional manufacturer?
Raymo: Yes, we specialized in producing circular push-pull connectors and cable assembly since 2010. We are SGS audited manufacturer, passed ISO9001:2015 Quality management system, and worked on micraymo.en.made-in-china.com as a golden supplier more than 4 years. All the products meet CE & ROHS standards.
2. What is the MOQ?
Raymo: No MOQ limited, depend on customer real needs.
3. Free sample:
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: 3-5 working days for samples, 5-7 working days for mass production.
5.What is your payment terms?
Raymo: 100% T/T in advance when customer place an order.
6. Does your product have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating, our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
