Jnicon Powercon Audio & Video Panel Socket Male Female Connector for Speaker
Product DecriptionFactory direct sale with best price!Jnicon Powercon audio & video Panel Socket male female connector for speakerPowercon connector1ModelPowercon2MaterialConnector BodyNylon(PA66)+GF3Contactbrass with gold plated4SealingSillica Gel5PropertyCurrent Rating20A6Voltage Rating300V7Co......
Send Inquiry
Product Description
Product Decription
Factory direct sale with best price!
Jnicon Powercon audio & video Panel Socket male female connector for speaker
Detailed images
Certification
Jnicon Waterproof connector! Your connection outdoor expert!
Welcome your inquiry!
Factory direct sale with best price!

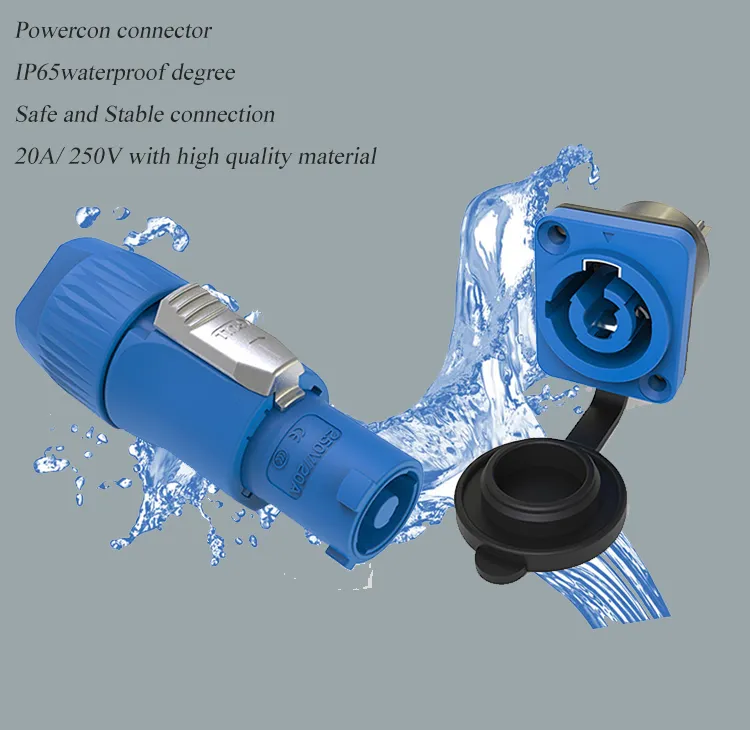

Jnicon Powercon audio & video Panel Socket male female connector for speaker
| Powercon connector | |||
| 1 | Model | Powercon | |
| 2 | Material | Connector Body | Nylon(PA66)+GF |
| 3 | Contact | brass with gold plated | |
| 4 | Sealing | Sillica Gel | |
| 5 | Property | Current Rating | 20A |
| 6 | Voltage Rating | 300V | |
| 7 | Contact Resistance | <10mΩ | |
| 8 | Insulation Resistance | 100MΩ at DC 500V | |
| 9 | Breakdown Voltage | 1.5KV/1minute | |
| 10 | Temperature Rating | -40°C~+105°C | |
| 11 | Durability(Plug/Unplug) | 3000 times | |
| 12 | Waterproof Rating | IP65 | |
| 13 | Cable OD Range | 12mm | |
| 14 | Pins Range | 3pin | |
| 15 | Certificate | UL, TUV, CCC, SAA, CE, RoHS | |

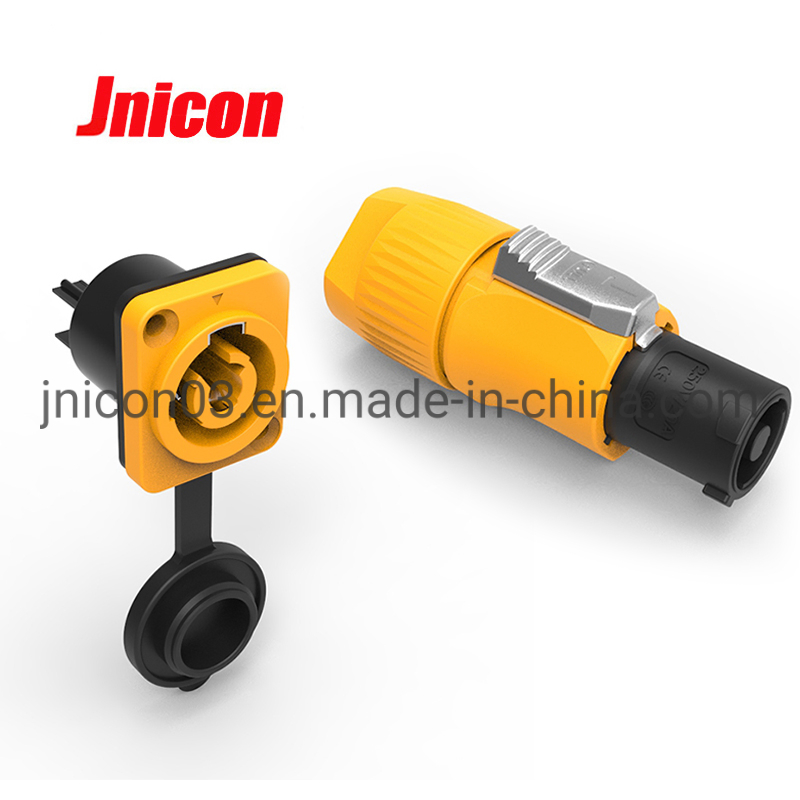

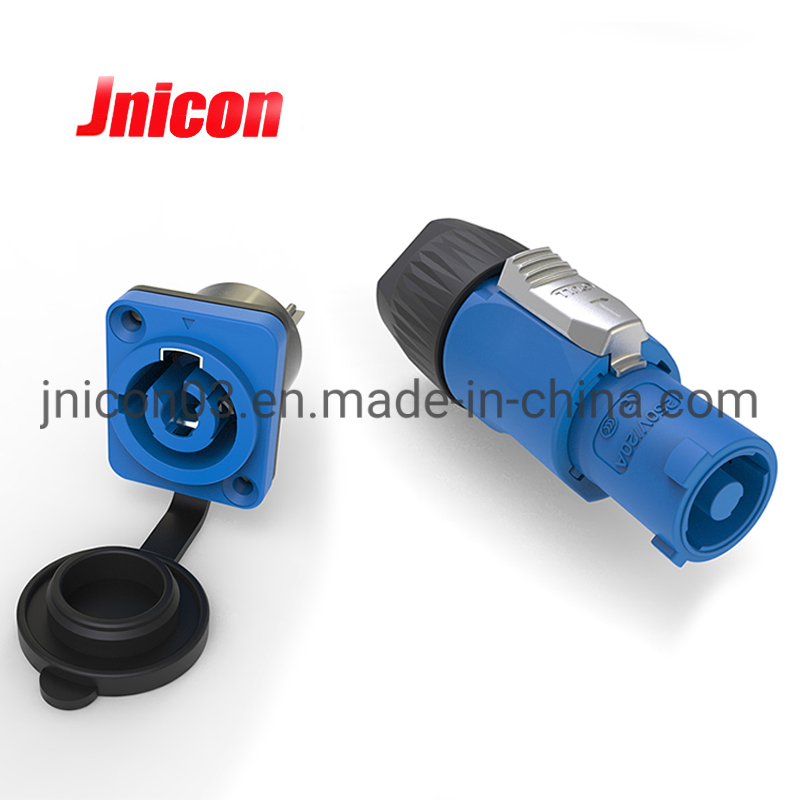

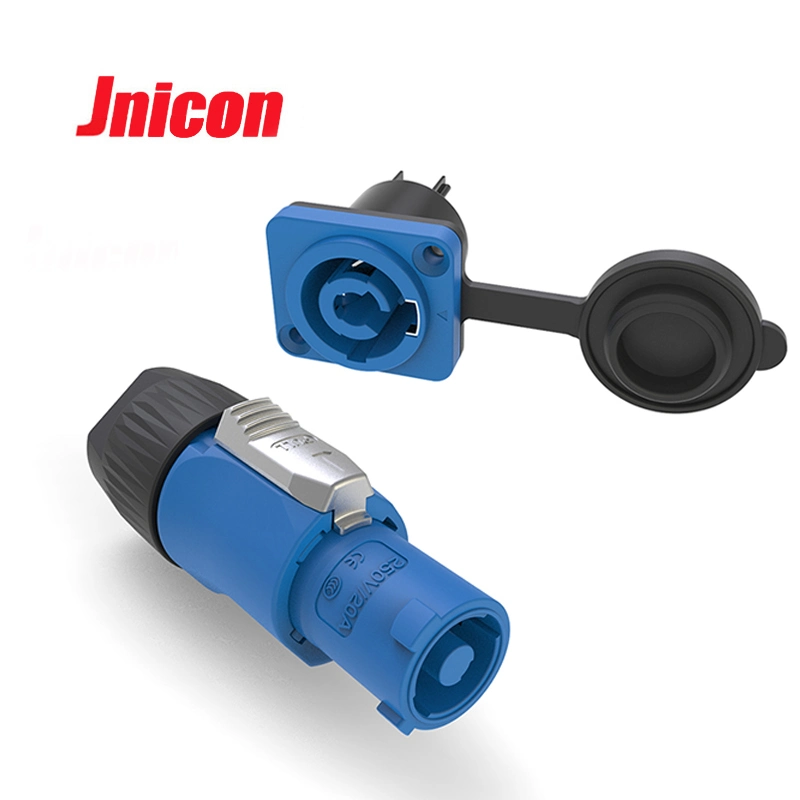

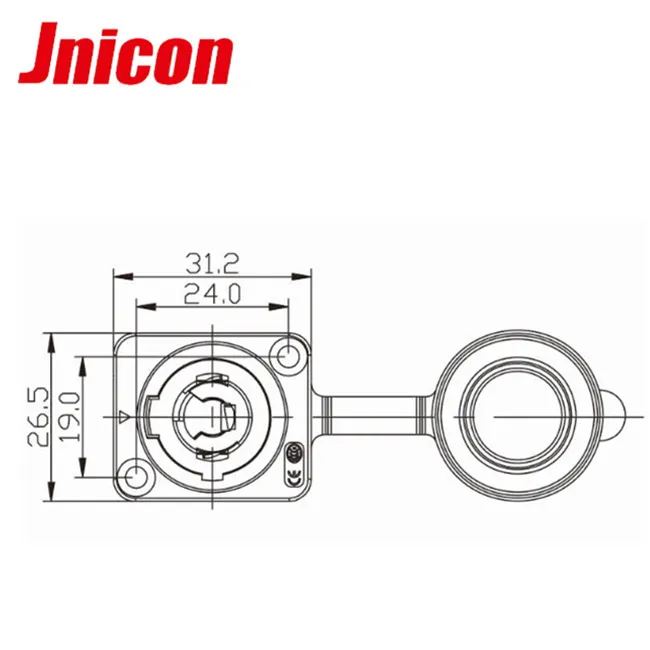

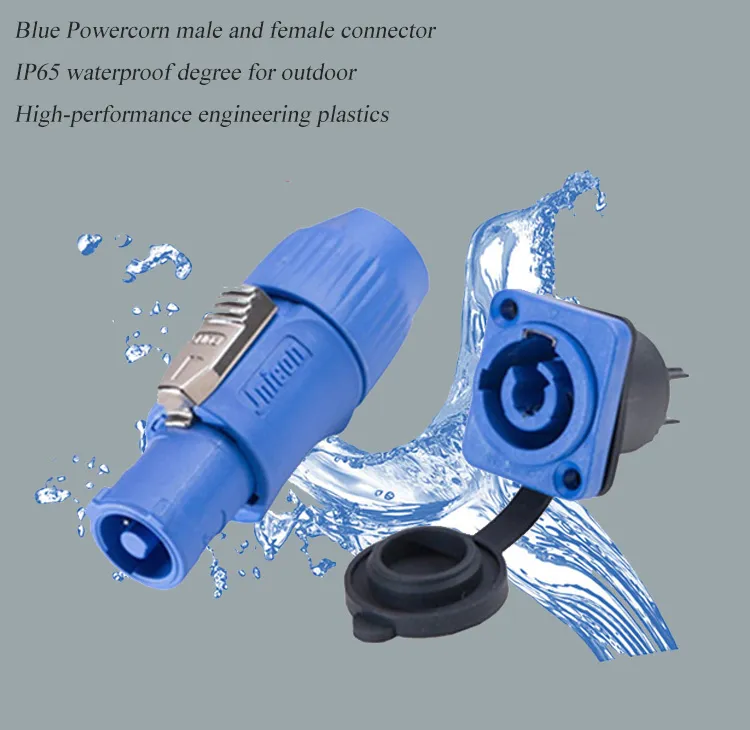

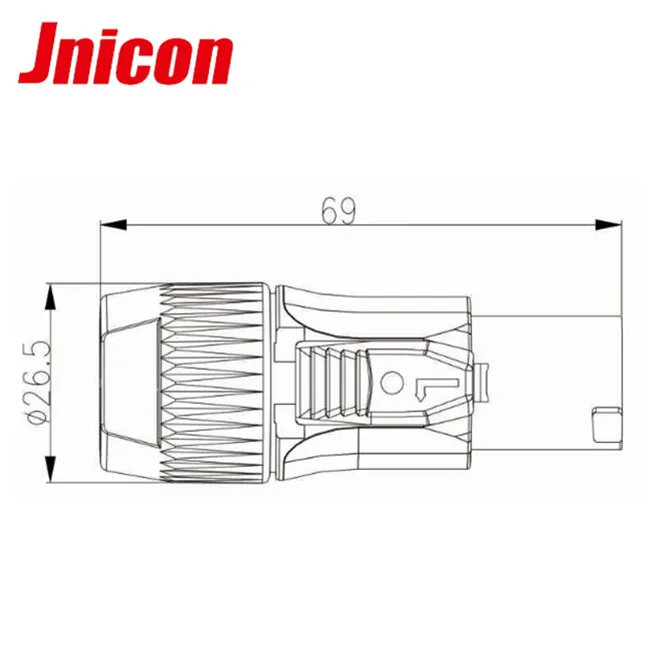

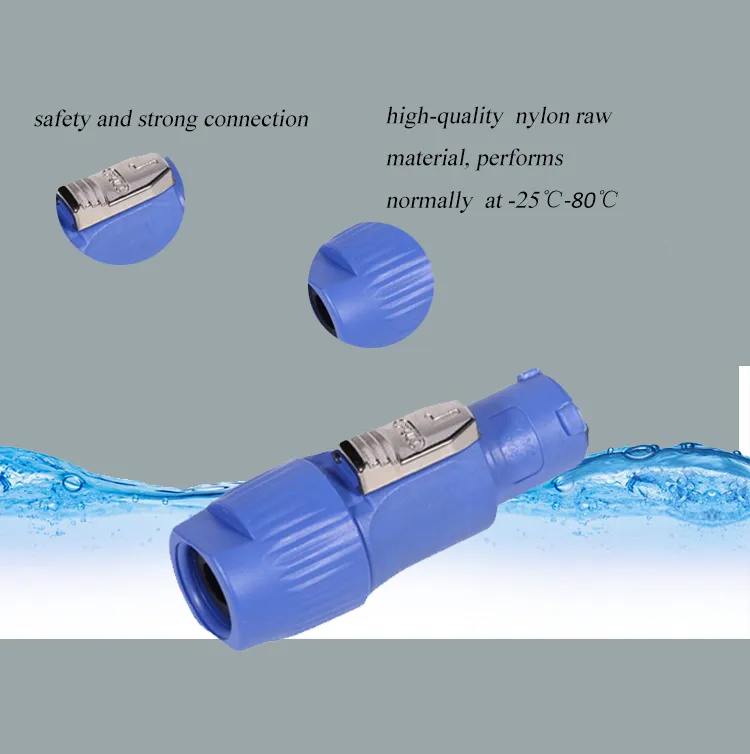

Detailed images
Certification
Jnicon Waterproof connector! Your connection outdoor expert!
Welcome your inquiry!
