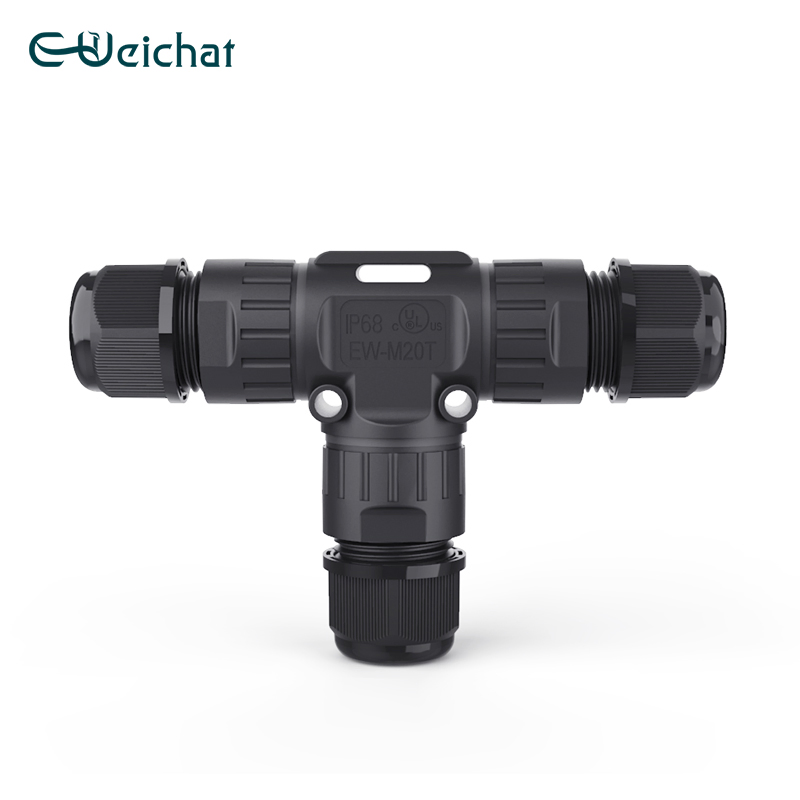

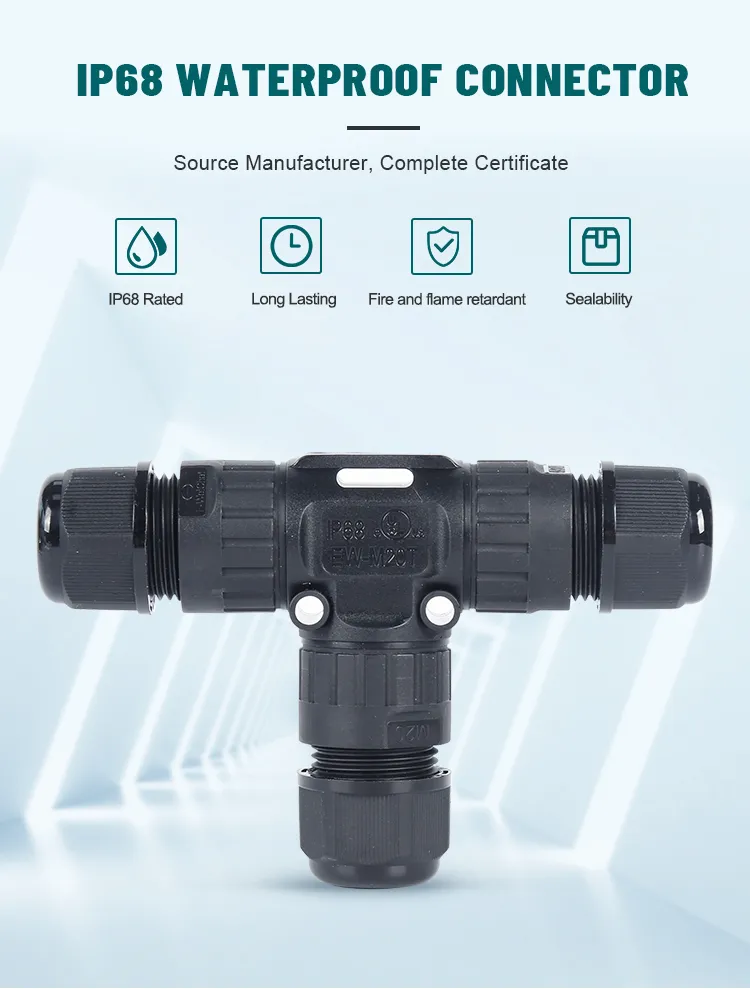

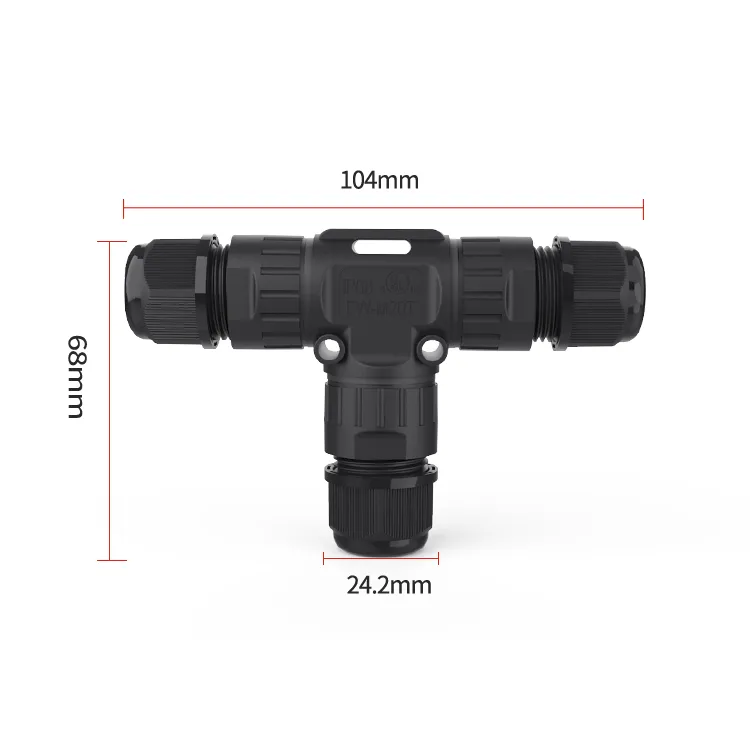

Explosion Hot Sale Wire Terminal Block T Type Waterproof Connectors
Explosion Hot Sale Wire Terminal Block T Type Waterproof ConnectorsProduct DescriptionE-WEICHAT WATERPROOF CONNECTORS Number of Poles2-4POperating current24AOperating voltage450V MECHANICAL CHARACTERISTICSProtection against solid/water (IP)IP68(4m, 365 days) CABLE CHARACTERISTICSWire cross-section m......
Send Inquiry
Product Description
Explosion Hot Sale Wire Terminal Block T Type Waterproof Connectors
Product Description
Product Description
| E-WEICHAT WATERPROOF CONNECTORS | |
| Number of Poles | 2-4P |
| Operating current | 24A |
| Operating voltage | 450V |
| MECHANICAL CHARACTERISTICS | |
| Protection against solid/water (IP) | IP68(4m, 365 days) |
| CABLE CHARACTERISTICS | |

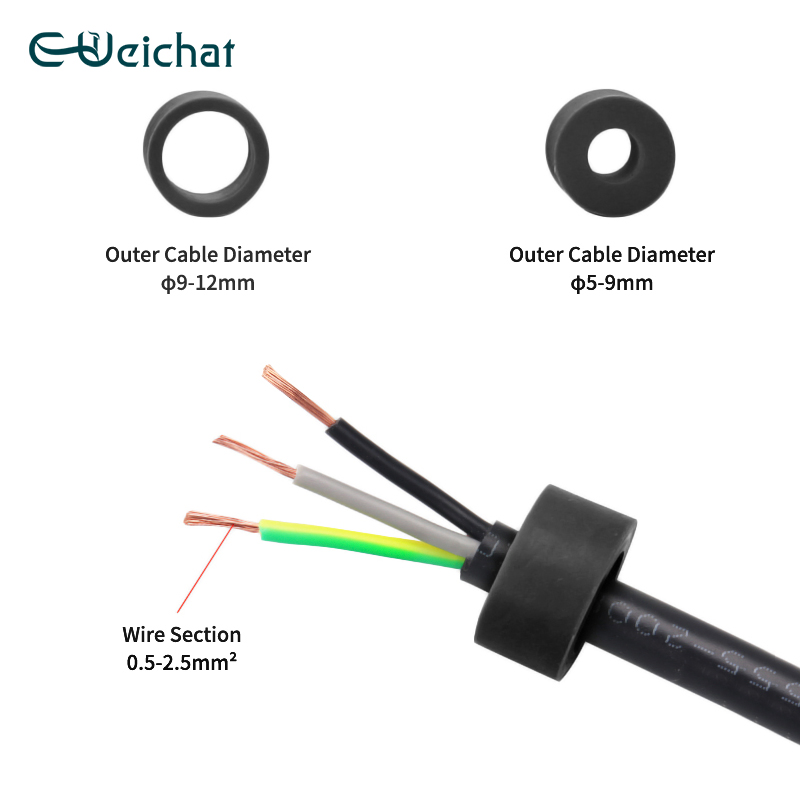

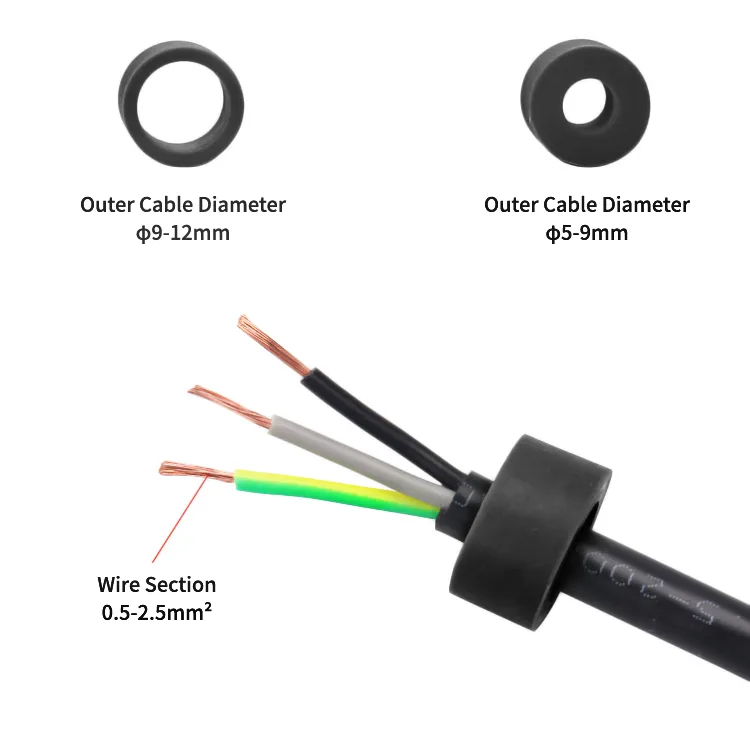

Wire cross-section min.-max. (stranded cable) | 0.5mm² - 2.5mm² |
| Wire cross-section min.-max. (solid cable) | 0.5mm² - 2.5mm² |
| Cable Diameter min-max | 5-9mm; 9-12mm (for cables with diameter cables please take the proper accessory) |
| WORKING CHARACTERISTICS | |
| Temperature | -40ºC - 105ºC |
| MATERIAL CHARACTERISTICS | |
| Connector housing | PA66 UL94-V2 |
| Cable gland | |
| Sealing | Silicone |
| Contacts | Nickel-plated Brass |
| Screws | Zinc |
