Dsola Factory Hot Sales Photovoltaic R4 Solar Connector
Dsola Factory Hot Sales Photovoltaic R4 Solar Connector Materials:Plastic from Saudi ArabiaConnector System:MC4 ConnectingRated Current:Certitied by 30A and Max to 40A workingRated Voltage:1500V DC(IEC) , 600V DC(UL)Ambient Temperature Range:-40ºC...+90ºC(IEC), --40ºC.........
Send Inquiry
Product Description

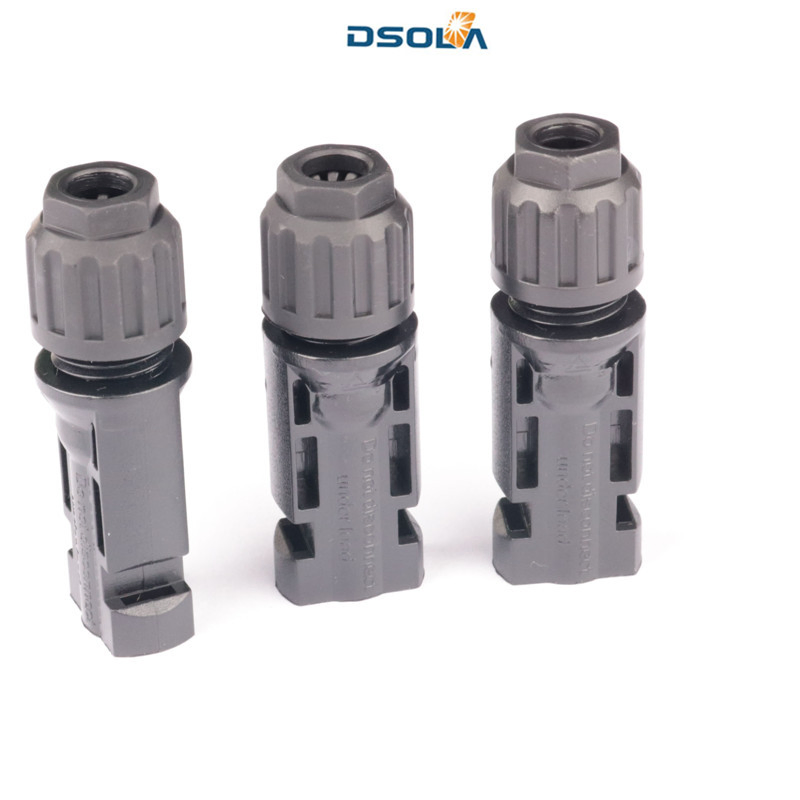

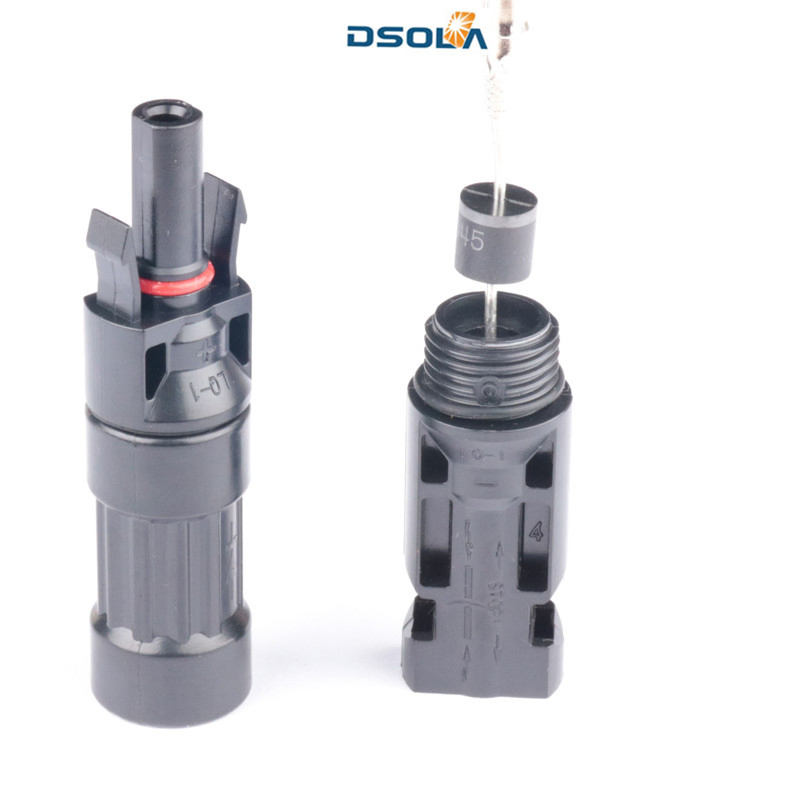

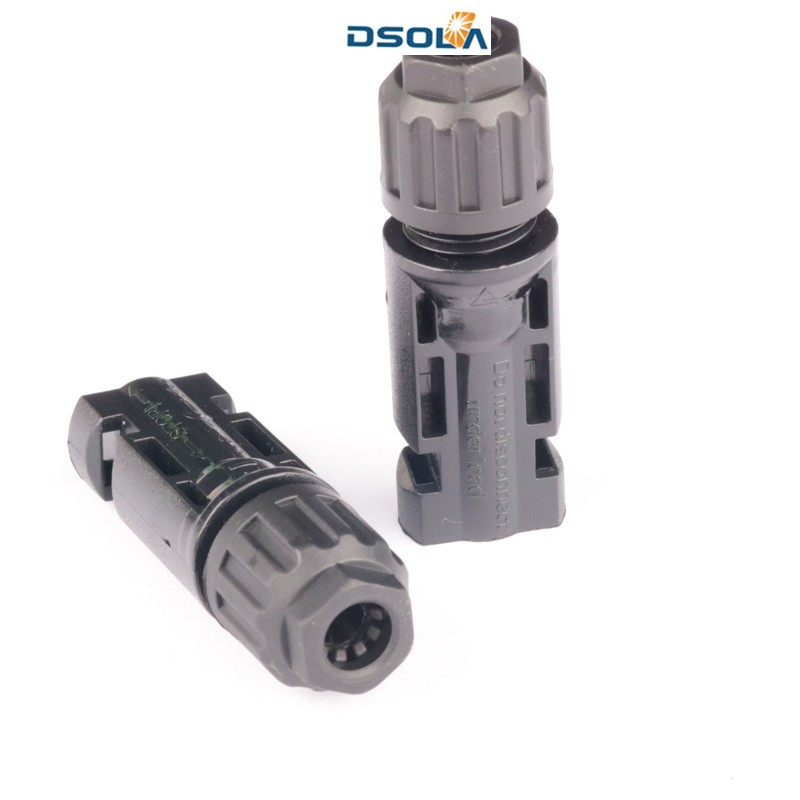

Dsola Factory Hot Sales Photovoltaic R4 Solar Connector

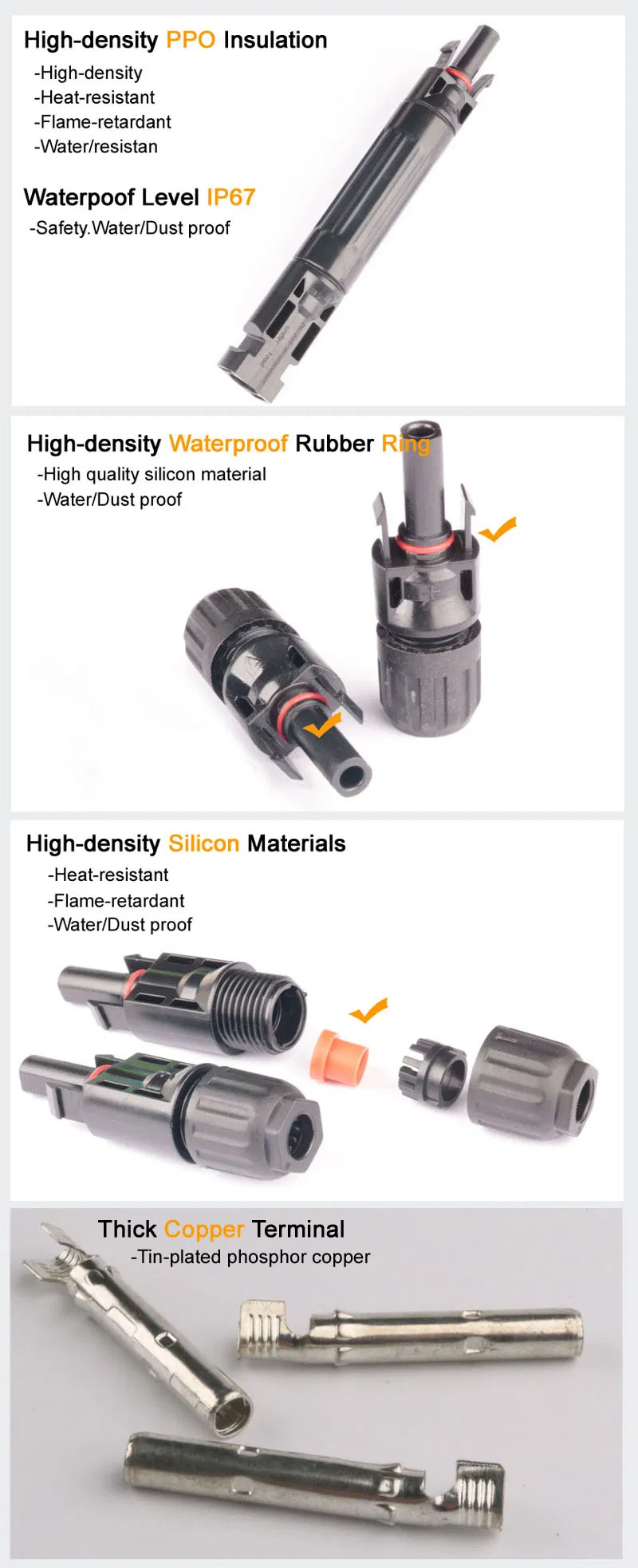

The Features of MC4 solar connector
1. Simple assembly, easy to use
2. Suitable for different sizes of PV cable
3. Waterproof grade: IP67
4. Housing made of PPO material, anti-UV
5. High current carrying capacity
6. Contact material: Copper Tin Plated
7. High heat resistance, wear-resisting
8. Rated Voltage: 1500V
9. Rated Current: 30A
Our company is a private enterprise with independent accountability integrated the design, production and management. Located in the cneter of Yuyao Ningbo City, the company has many workshops and comprehensive office buildings equipped with more than ten computer control injection molding machines and machining equipments. With the departments like R&D, Production, QC, Sales, etc. We have 98 workers in our factory, and turnover around USD 50.00 million each year.

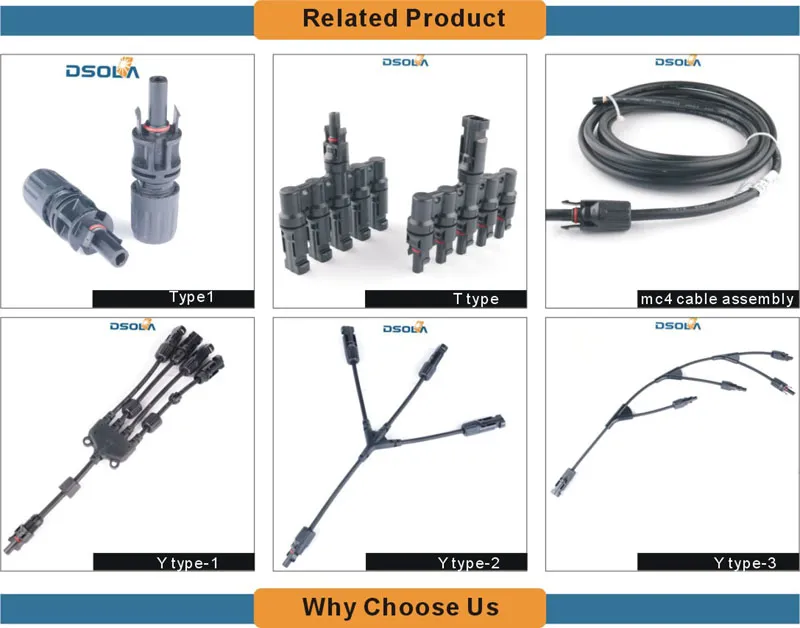

The company specializes in producing Solar Junction Box from 2-500W and Solar Connectors like MC4, MC4 T Branch, Y Branch, MC3 Connector, Solar Cable Assembly, and Solar Torch, Solar Flashlight, Solar Camping Light, Solar Emergency Light. Now we also developed the products to Water Treatment system , like Water Purifier , RO System, Water Softener also with the accessories like water filter. According different requirements of customers all over the world, the company serves for you with supplier quality and excellent service.
We has got ISO9001 QUALITY CERTIFICATE in 2002, got TUV Certificate for our solar junction box and MC4 Connectors at 2007, also got UL for connectors and been the Partner Supplier of Canton Fair at 2011. Which enjoyed a high reputation in the world market.
The FAQQ1:If I'm interested in your MC4 when I can receive your quotation and detail information after send the enquiry?
| Materials: | Plastic from Saudi Arabia |
| Connector System: | MC4 Connecting |
| Rated Current: | Certitied by 30A and Max to 40A working |
| Rated Voltage: | 1500V DC(IEC) , 600V DC(UL) |
| Ambient Temperature Range: | -40ºC...+90ºC(IEC), --40ºC...+40ºC(UL), |
| Degree of Protection, Mated: | IP65 / IP67 |
| Unmated: | IP2X |
| Contact Resistance of Plug Connectors: | 0.5mΩ |
| Contact Materials: | Copper, tin plated |
| Insulation Materials: | PPO |
| Locking System Plug Connectors: | Snap-in (nur/only MC4) |
| Flame Class: | UL94-HB / UL-94-V0 |
| Safety Class: | II |
| Contact System: | MC multilam |
| Type of Termination Crimpen: | Crimping |
| Cable Size: | 2.5mm, 2.4mm, 2.6mm |
| Warranty: | 25 Years |
The Features of MC4 solar connector
1. Simple assembly, easy to use
2. Suitable for different sizes of PV cable
3. Waterproof grade: IP67
4. Housing made of PPO material, anti-UV
5. High current carrying capacity
6. Contact material: Copper Tin Plated
7. High heat resistance, wear-resisting
8. Rated Voltage: 1500V
9. Rated Current: 30A
Our company is a private enterprise with independent accountability integrated the design, production and management. Located in the cneter of Yuyao Ningbo City, the company has many workshops and comprehensive office buildings equipped with more than ten computer control injection molding machines and machining equipments. With the departments like R&D, Production, QC, Sales, etc. We have 98 workers in our factory, and turnover around USD 50.00 million each year.
The company specializes in producing Solar Junction Box from 2-500W and Solar Connectors like MC4, MC4 T Branch, Y Branch, MC3 Connector, Solar Cable Assembly, and Solar Torch, Solar Flashlight, Solar Camping Light, Solar Emergency Light. Now we also developed the products to Water Treatment system , like Water Purifier , RO System, Water Softener also with the accessories like water filter. According different requirements of customers all over the world, the company serves for you with supplier quality and excellent service.
We has got ISO9001 QUALITY CERTIFICATE in 2002, got TUV Certificate for our solar junction box and MC4 Connectors at 2007, also got UL for connectors and been the Partner Supplier of Canton Fair at 2011. Which enjoyed a high reputation in the world market.
The FAQ
Q1:If I'm interested in your MC4 when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 6 hours.
Q2:Can I get a sample before the order because I really don't how is your MC4 quality?
A:Of course! We also think sample order is the best way to build the trust.And in our company we offer free sample service! Please send the enquiry to us and get the free sample!
Q3:Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A:Yes, We have product catalogue. Please contact us on line or send an Email to sending the catalogue.
