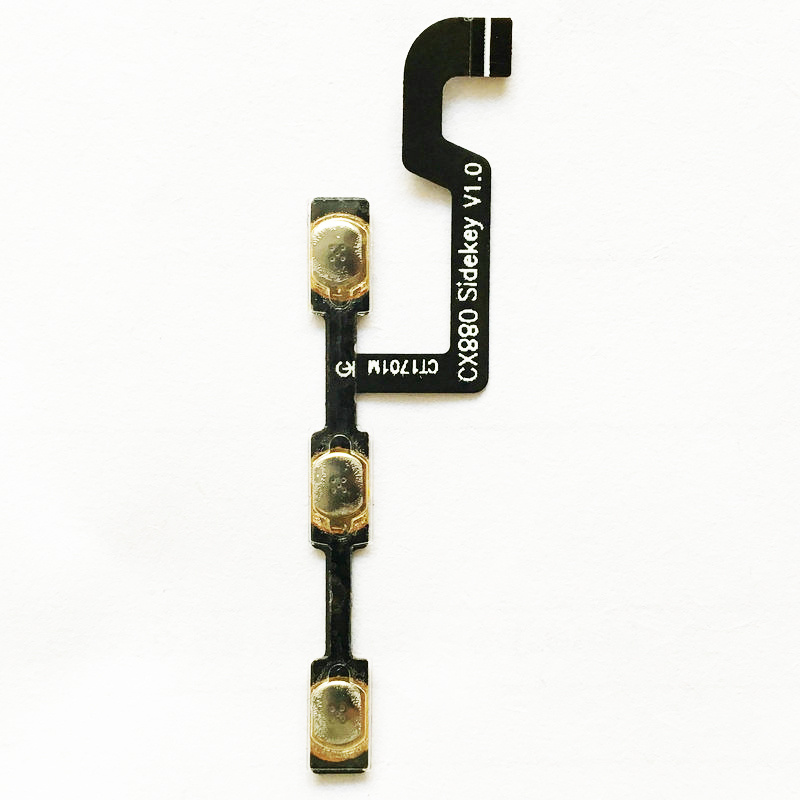

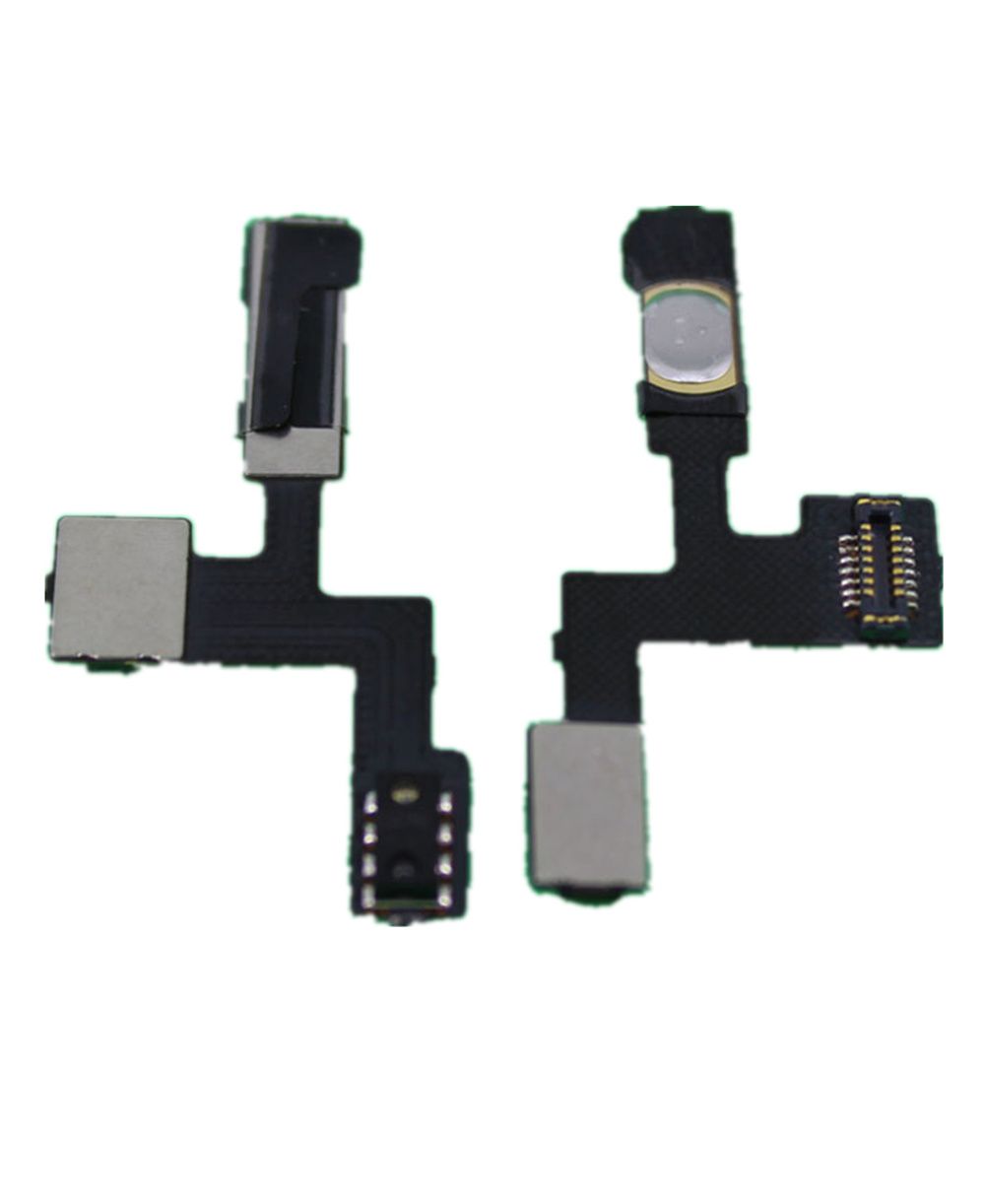

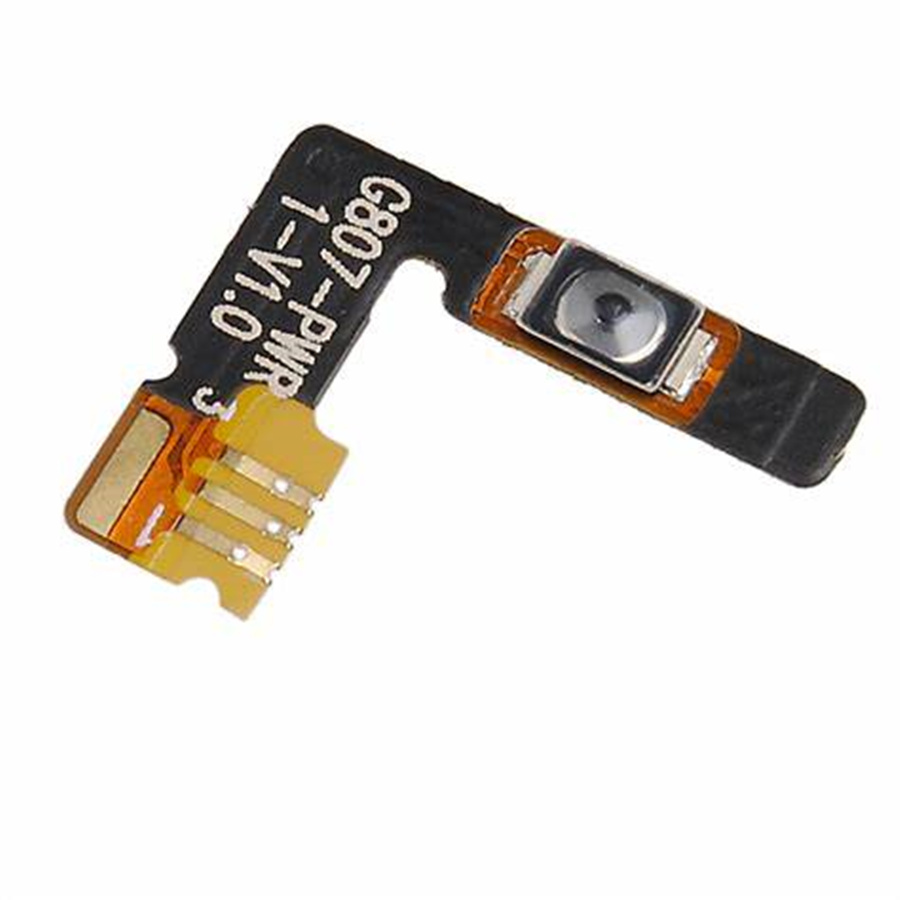

Touch button / touch screen FPC/ FPCA , finger printing FPCA /FPC;flex PCB laminating service
Our capability in FPC processingItemSingle-side/double-side/multi-layer FPCLayer1-6 layerCopper foil Thickness1/3OZ - 3OZ (0.012mm-0.105mm)Board Thickness tolerance±0.05mmInsulating layer Thickness12.5-250umHole Diameter for CNC/laser Drilling0.2mm-6.4mmSlot holeΦ=0.6mmMini hole t......
Send Inquiry
Product Description
| Our capability in FPC processing | |
| Item | Single-side/double-side/multi-layer FPC |
| Layer | 1-6 layer |
| Copper foil Thickness | 1/3OZ - 3OZ (0.012mm-0.105mm) |
| Board Thickness tolerance | ±0.05mm |
| Insulating layer Thickness | 12.5-250um |
| Hole Diameter for CNC/laser Drilling | 0.2mm-6.4mm |
| Slot hole | Φ=0.6mm |
| Mini hole to hole distance (Outer-circle to outer-circle) | 0.1mm |
| Hole center tolerance | ±0.025mm |
| Crossed-hole tolerance | ±0.05mm |
| Non-crossed hole tolerance | ±0.025mm |
| Hole Position | ±0.075mm |
| Thickness of PTH copper-plating | Double-sided board: 15um-8um No-gel double-sided board: 12um-6um Multi-layer board: 18um-12um Rigid-flexible board: 24um-18um |
| Finishing | ENIG gold thickness: 0.025um-0.05um Nickel Thickness: 1um-3um Gold-plating thickness: 0.025-0.4um Nickel Thickness: 1.5um-6um |
| Wire&line-to-line spacing | For 1/3OZ copper foil: Single layer FPC: 0.05mm/0.05mm Multi-layer FPC: 0.075mm/0.075mm Or as required of the line length |
| For 1/2OZ copper foil: Single layer FPC: 0.065mm/0.065mm Double-layer FPC: 0.065mm/0.055mm Or according to the line length | |
| For 1OZ copper foil: Single layer FPC: 0.075mm/0.075mm Double-layer FPC : 0.07mm/0.07mm Or according to the line length | |
Shenzhen People Electronic Co., Ltd ( fpc-cn.en.made-in-china.com ), founded to involve in PCB industry in 2008 and officially registered in 2014, is a professional leading manufacturer of FPC (flexible printed circuit ) and FPCA (flexible printed circuit assembly).
Domestically, Shenzhen People Electronic Co., Ltd is a vital FPC/FPCA supplier of the Chinese listed screen/interface device company BOE Technology Group Co Ltd (stock code:000725.sz) and Visionox Technology Inc., an OLED technology company in China too, listed as 002387.SZ....and so on.
In the past 3 years, annually we produced FPC/FPCA components of a value more than 18 million in USD dollars.Located in the beautiful bay city of Shenzhen 518000, Guangdong Pro., P.R. China that is famous for its IT and electronic manufacturing, rapid logistics distribution. Also near to the city's airport and its 2 international ocean ports: Shenzhen International Airport, YANTIAN port and CHIWAN port of SHEKOU. HongKong is adjacent to its Shenzhen location and connected by the high-speed railway and Metro transportation system. All the above help the company's FPC/FPCA business abroad.
With an expert R&D team of 20 FPC/FPCA engineers readily fast-responding to the customers and more than 200 skilled FPC/FPCA workers, Shenzhen People Electronic Co., Ltd can be able to deliver professional one-stop solutions in FPC/FPCA engineering and provide precise FPC/FPCA manufacturing and fast delivery service internationally.
At present, Shenzhen People Electronic Co., Ltd is mainly focusing on FPC, FPCA ranging from 1 layer to 6 layers with the finishing of ENIG, IMM gold, gold-plating...and so on as the customer-required.

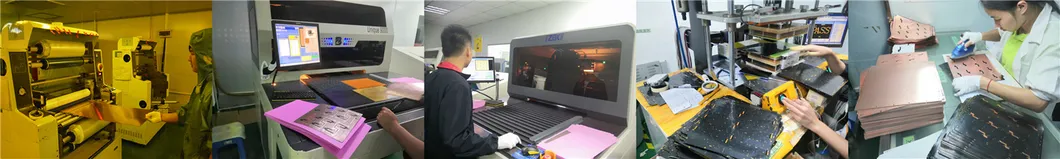

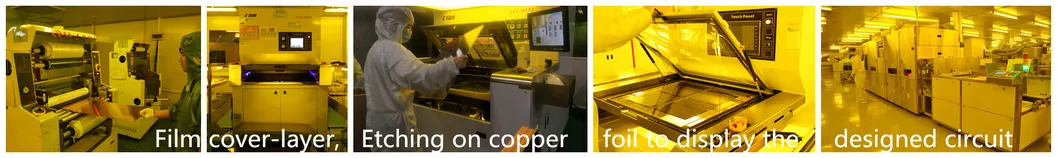

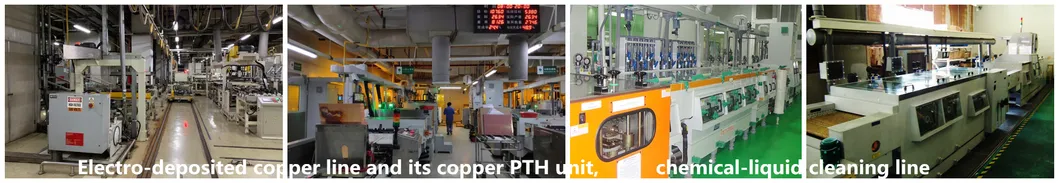

Shenzhen People Electronic Co., Ltd is professional in all the procedures of FPC/FPCA including cutting,drilling, PTH, line graphics /image-transferring, etching, cleaning after etching, lamination,baking,scanning-checking for line-break&circuit-short and conduction&non-conduction, SMT, strengthening, printing, finishing of ENIG or gold-plating, cutting into single pieces, final inspection before packing.
All our products of FPC/FPCA such as single layer, multi-layer, rigid-flexible FPC/FPCA are used for the following industries including but not only limited to the following:
Display and its components
Screen and its components
Main-boards and its components
Cameras,CCTV camera and industrial cameras
Personal wearable devices
Personal health electronics
Car-electronic equipment such as car-lighting system
Medical-electronic apparatuses
IPC, IPC system, IPC units and its components
Other digital devices/components
