Low Cost Flex FPC Circuit Board with Pi Stiffener
Product DescriptionStandard Flex Materials:Polyimide (Kapton) 0.5 mil to 5 mils (.012mm - .127mm) Adhesiveless Copper Clad Base Material 1 mil to 5 mils Flame Retardant Laminate, Base Material, and Coverlay High Performance Epoxy Laminate and Prepreg High Performance Polyimide Laminate and Prepreg U......
Send Inquiry
Product Description
Product Description
Standard Flex Materials:
Polyimide (Kapton) 0.5 mil to 5 mils (.012mm - .127mm)
Adhesiveless Copper Clad Base Material 1 mil to 5 mils
Flame Retardant Laminate, Base Material, and Coverlay
High Performance Epoxy Laminate and Prepreg
High Performance Polyimide Laminate and Prepreg
UL and RoHS Compliant Material on request
High Tg FR4 (170+ Tg), Polyimide (260+ Tg)
Base Copper:
1/3 oz. - .00047 in. (.012mm)--rarely used
1/2 oz. - .0007 in. (.018mm)
1 oz. - .0014 in. (.036mm)
2 oz. - .0028 in. (.071mm)
Solder Mask:
Polyimide Coverlay: 0.5 mil to 5 mils Kapton (.012mm - .127mm)
with 0.5 to 2 mil Adhesive (.012mm - .051mm)
LPI and LDI Flexible Soldermasks
Flex PCB Capability
Fastline Circuits Co., Limited | |
FPC Technology and Capabilities | |
Material | FR4,Polyimide / Polyester |
Counts | Flex: 1~8L; Rigid-Flex: 2~8L |
Board Thickness | Min.0.05mm ; Max. 0.3mm |
Copper Thickness | 1/3 oz --- 2 oz |
CNC Drill Size (Max) | 6.5mm |
CNC Drill Size (Min) | Flex: 0.15mm |
Holes Location Tolerance | ±0.05mm |
Coverlay Drill Size (Min) | 0.6mm |
Hole to Coverlay Opening Windows (Min) | 0.15mm |
Min Line Width / Spacing | 0.1/0.1mm |
Copper Thickness on Hole Wall | Flex:12-22μm |
Min Pad Size | φ0.2mm |
Etch Tolerance | Finished line width tolerance ±20% |
Pattern Registration Tolerance | ±0.1mm (Working Panel Size: 250*300mm) |
Coverlay Registration Tolerance | ±0.15mm |
Solder Mask Registration Tolerance | ±0.2mm |
Solder Mask to PAD | Non photosensitive: 0.2mm |
Photosensitive: 0.1mm | |
Min. Solder Mask Dam | 0.1mm |
Misregistration Tolerance | ±0.30mm |
for Stiffener, Adhesive, Glue paper | |
Surface Finish | Plating Ni / Au ; Chemical Ni / Au ; OSP |

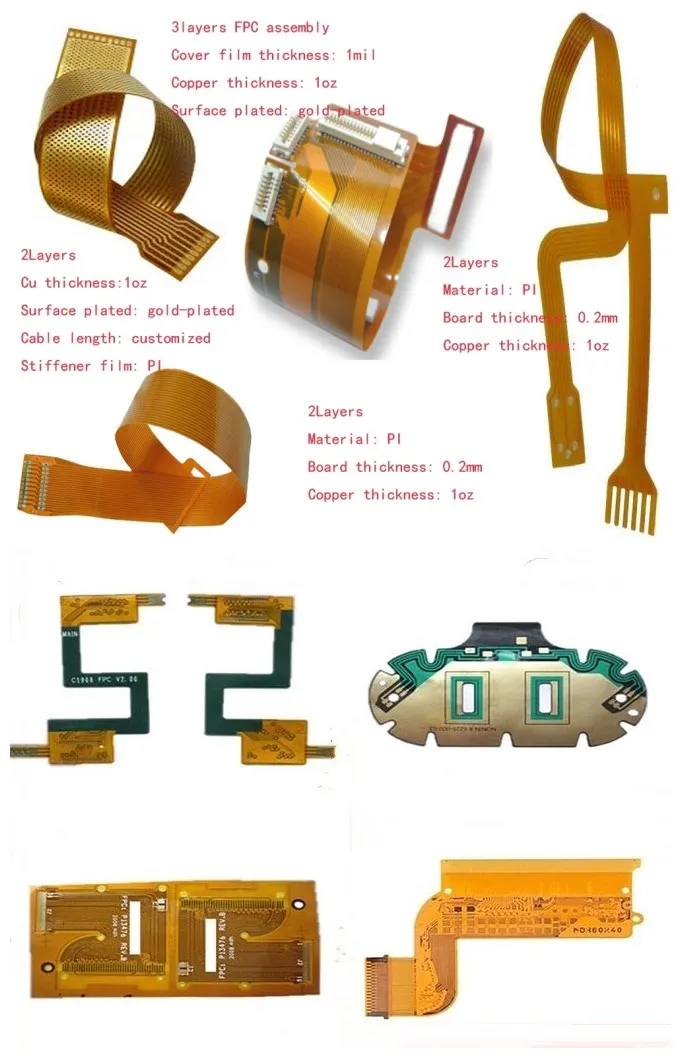

Flex PCB showcase:
FPC Application:
PCB & PCBA service:
We provide One-stop service from PCB design, components sourcing, assembly and function test and final production built. We also provide PCB&PCBA clone or copy service.
Company Information
Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.
Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument , security electronics, aerospace and so on. And Provides "PCB One-stop PCB solution" to meet customers' diverse demands.
Our factories with a facility area of more than 40,000 square meters with 400 professional staff,And we have got the approval of ISO9001 certificates. UL Certification and all Products Meet RoHS compliance.
Fastline Circuits is committed to providing superior quality products and services that consistently meet and exceed our customers requirements on time, every time!

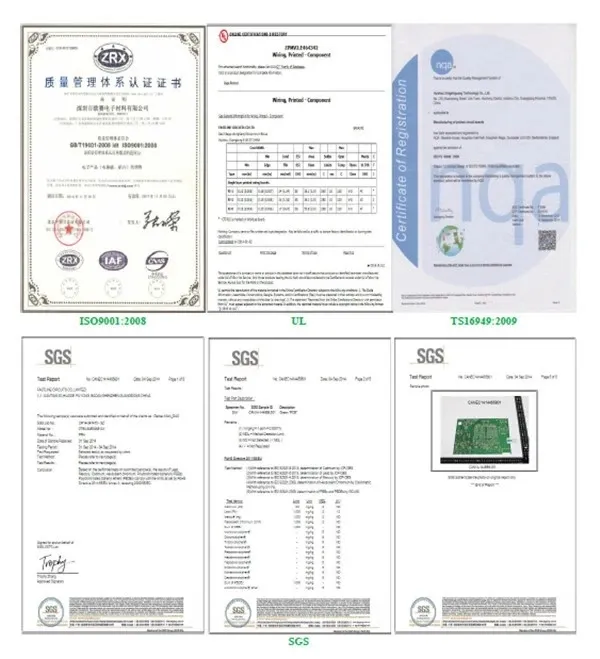

Certifications
