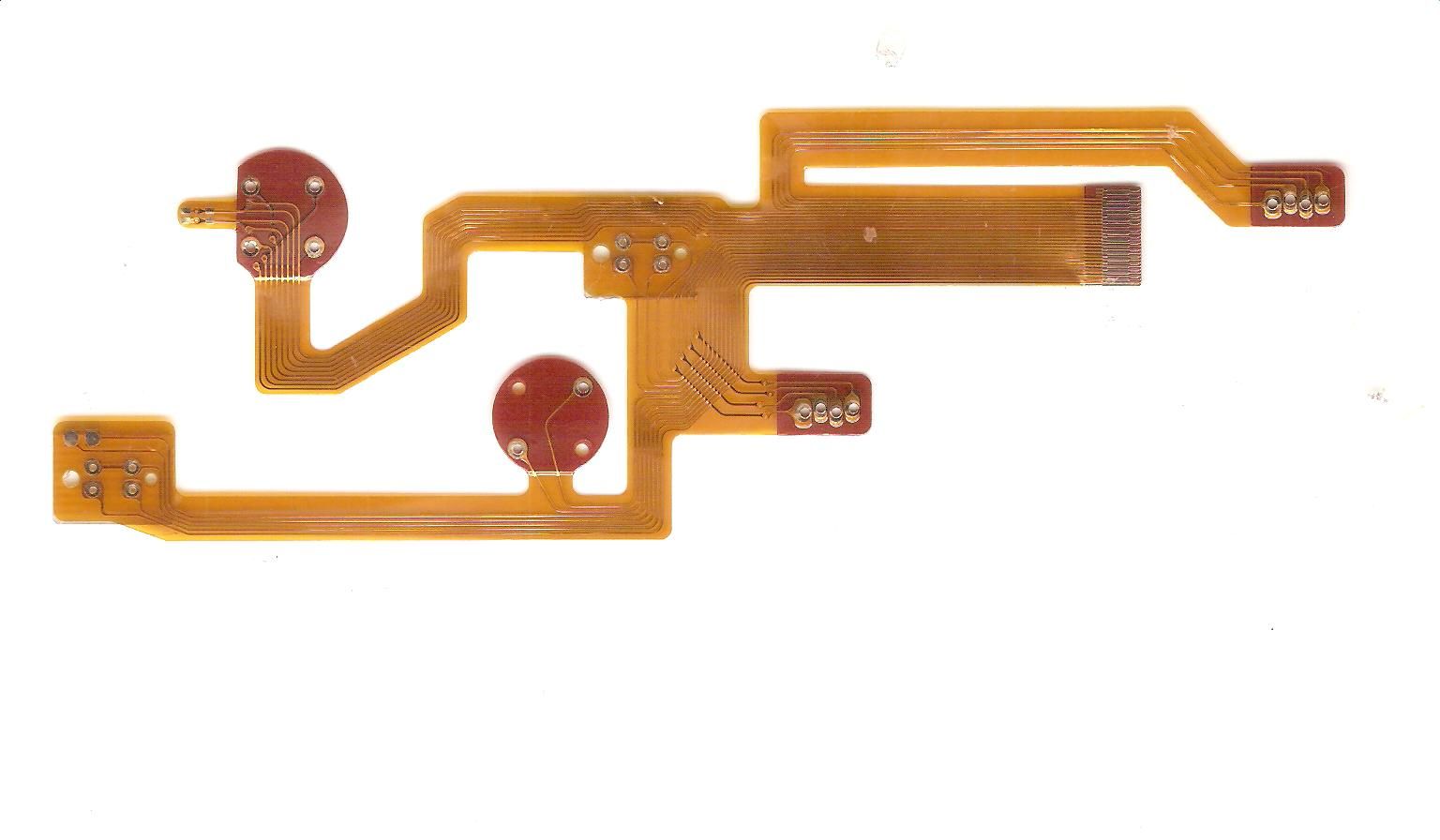

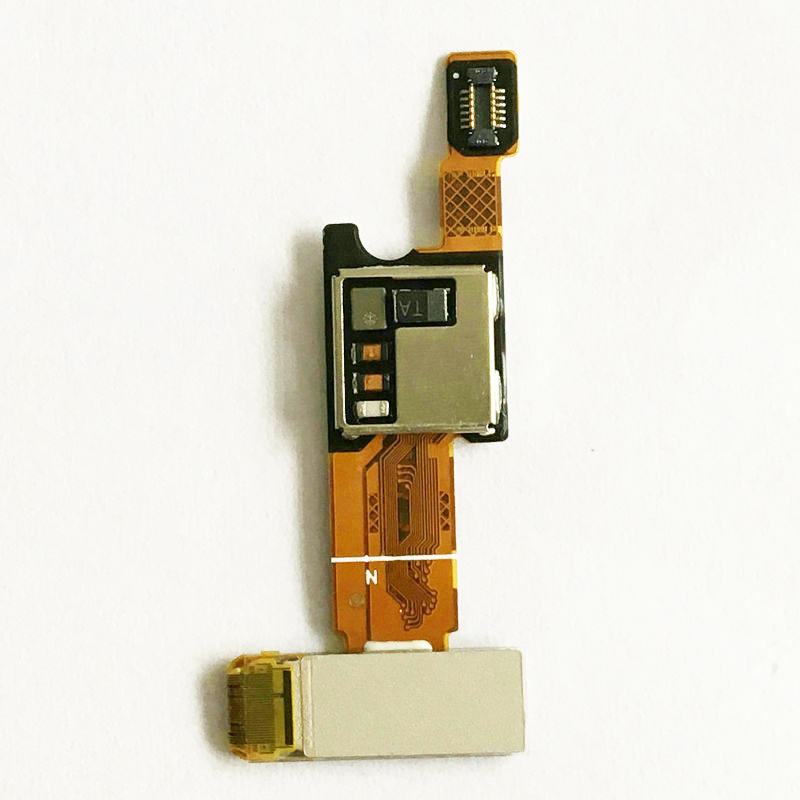

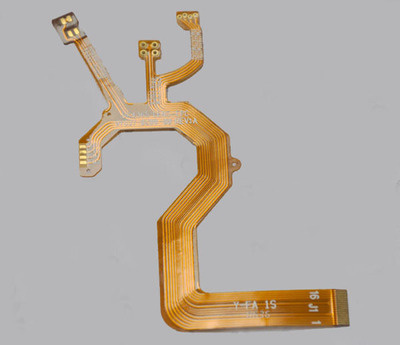

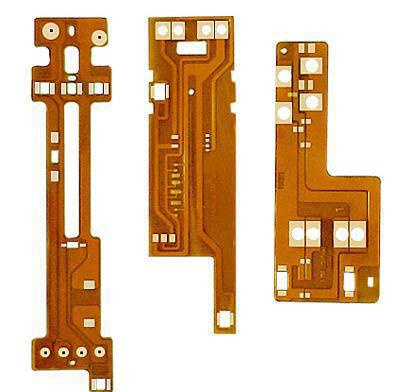

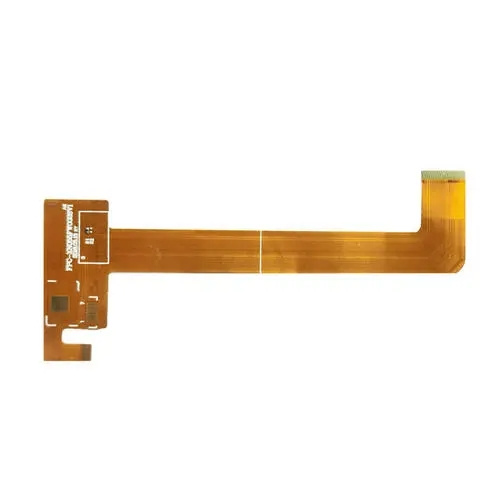

Fpca /FPC for Wearable Devices, FPC/ Fpca for Fingerprint Identification Devices
Product ParametersMultilayer FPC: single-to-6 layers and Rigid-Flex PCB : 2-to-6 layers :- - Maximum Size : 250mm x 1200mm and 500mm x 1200mm- Thickness : 0.05mm MIN to 0.75mm MAX- Product thickness tolerance ± 0.03mm and ± 0.02mm (special request)- Copper thickness : 0.3oz (12......
Send Inquiry
Product Description
Product Parameters
Multilayer FPC: single-to-6 layers and Rigid-Flex PCB : 2-to-6 layers :
- - Maximum Size : 250mm x 1200mm and 500mm x 1200mm
- Thickness : 0.05mm MIN to 0.75mm MAX
- Product thickness tolerance ± 0.03mm and ± 0.02mm (special request)
- Copper thickness : 0.3oz (12µm) to 4oz (140 µm)
- Tolerance for line width / spacing : ±0.05mm and ±0.03mm
- Stiffener material type : PI / FR4 / PET / Steel piece
- Etching tolerance : ±0.02mm
- Hole diameter : 0.1mm MIN
- Hole tolerance for plated through holes (PTH) : ±0.05mm
- Hole tolerance for non-plated through holes (NPTH) : ±0.03mm
- Outline profile punching, laser cut
- Outline dimension tolerance : ±0.1mm (±0.05mm upon request)
- Solder mask color : Yellow, Black, White, Green, Red, Blue
- Thermal shock test : typically 288 ± 5 ºC , 10sec, 3 times
- Environmental Requirement : ROHS
Multilayer FPC: single-to-6 layers and Rigid-Flex PCB : 2-to-6 layers :
- - Maximum Size : 250mm x 1200mm and 500mm x 1200mm
- Thickness : 0.05mm MIN to 0.75mm MAX
- Product thickness tolerance ± 0.03mm and ± 0.02mm (special request)
- Copper thickness : 0.3oz (12µm) to 4oz (140 µm)
- Tolerance for line width / spacing : ±0.05mm and ±0.03mm
- Stiffener material type : PI / FR4 / PET / Steel piece
- Etching tolerance : ±0.02mm
- Hole diameter : 0.1mm MIN
- Hole tolerance for plated through holes (PTH) : ±0.05mm
- Hole tolerance for non-plated through holes (NPTH) : ±0.03mm
- Outline profile punching, laser cut
- Outline dimension tolerance : ±0.1mm (±0.05mm upon request)
- Solder mask color : Yellow, Black, White, Green, Red, Blue
- Thermal shock test : typically 288 ± 5 ºC , 10sec, 3 times
- Environmental Requirement : ROHS
