22mm Black Aluminum 12 Volt DOT Illuminated Latching Metal Push Button Switch
Specification:Product NamePush Button Switch Model22mm Metal push buton switchMounting Hole22mmOperation TypeLatchingSwitch Combination1NO1NCHead Type Flat round headTerminal type6 Pin Terminals Illuminanted or notYes Led Voltage12V (or 0V/2V/3V/6V/12V/24V/110V/220V/others)Led ColorGreen(Red, Blue, ......
Send Inquiry
Product Description
Specification:
Pictures:
Certificate:
Packing Detail:
Related Products:
| Product Name | Push Button Switch |
| Model | 22mm Metal push buton switch |
| Mounting Hole | 22mm |
| Operation Type | Latching |
| Switch Combination | 1NO1NC |
| Head Type | Flat round head |
| Terminal type | 6 Pin Terminals |
| Illuminanted or not | Yes |
| Led Voltage | 12V (or 0V/2V/3V/6V/12V/24V/110V/220V/others) |
| Led Color | Green (Red, Blue, Yellow,, White,Orange,Purple, Bi-color or tri-color available) |
| Illuminated Type | Dot LED illuminated |
| Shell Material | Stainless Steel 304 |
| Delivery Days | 1-3 days |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Customized symbol,colored housing or Connector | Acceptable and with fast shipping |
| Accessories | Nut, Rubber Gasket,Resistor |
| Order Confirm | 1. What Led Color? 2. What Led Voltage? |
| Wiring Harness | If you need harness also,please let me know. |

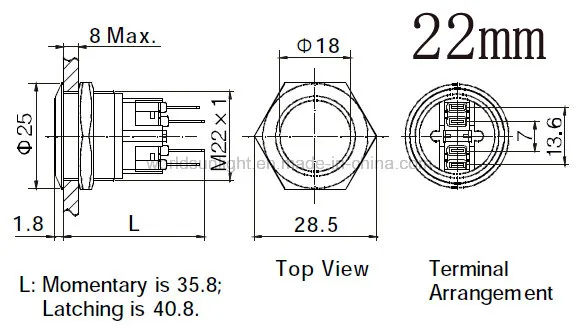

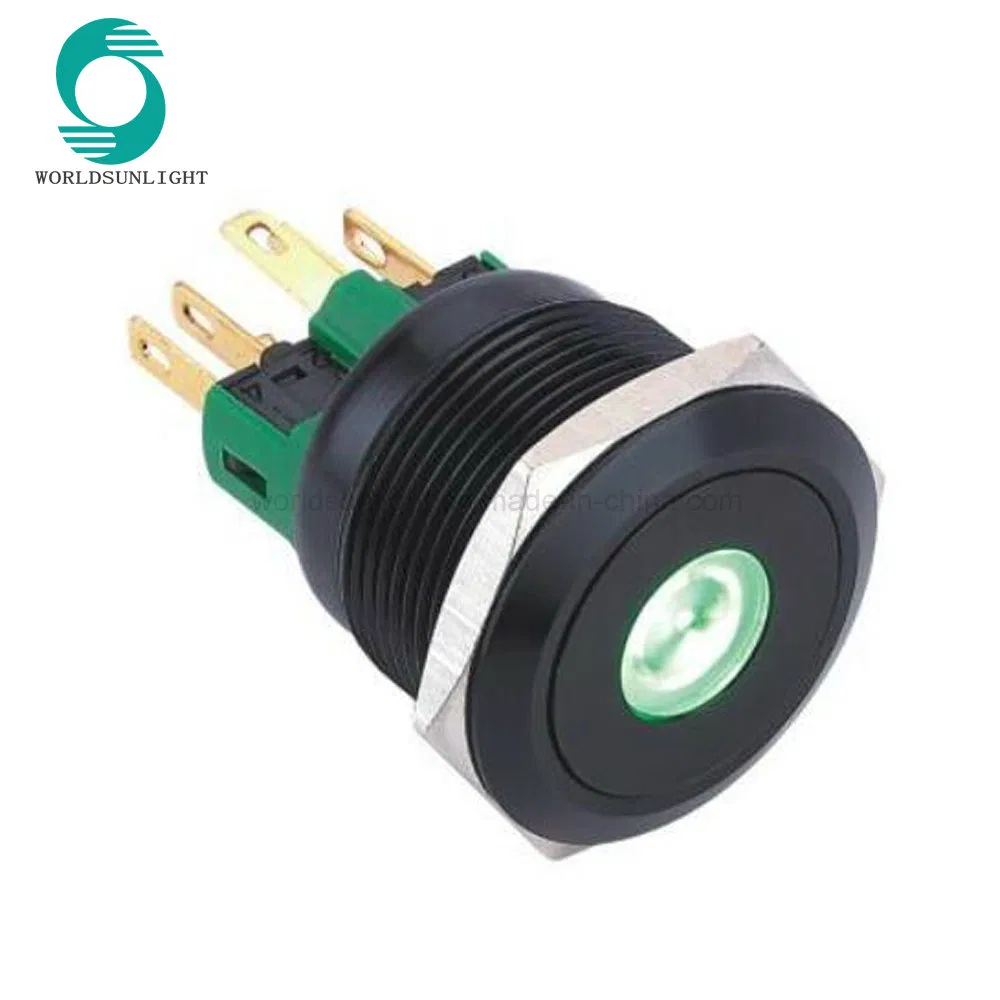

Pictures:

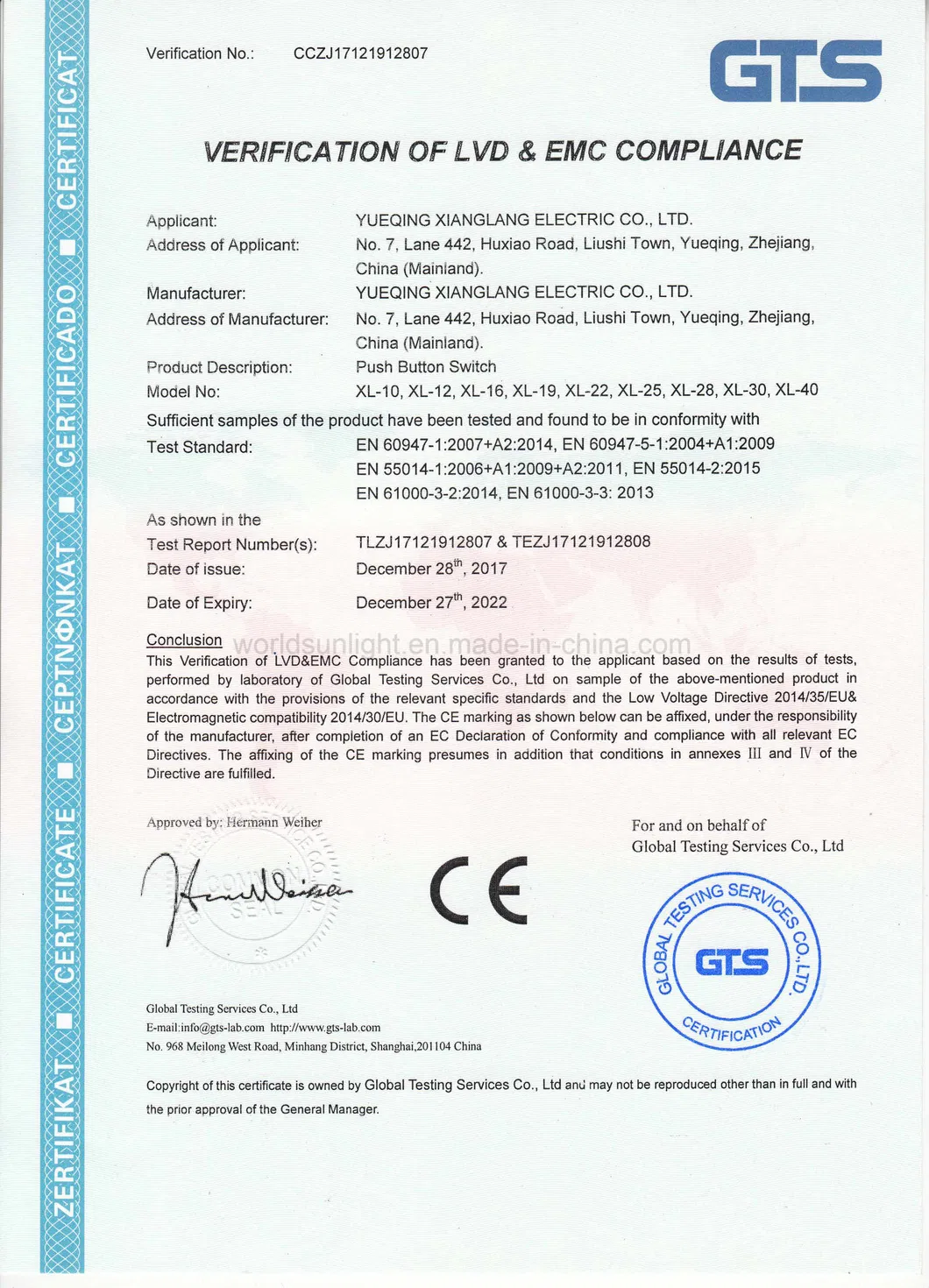

Certificate:
Packing Detail:
Related Products:
Welcome to inquiry!
