China Waterproof Plastic/Metal Flat/Spring/Selector/Mushroom/Emergency Stop Pushbutton/Push Button

Product Description

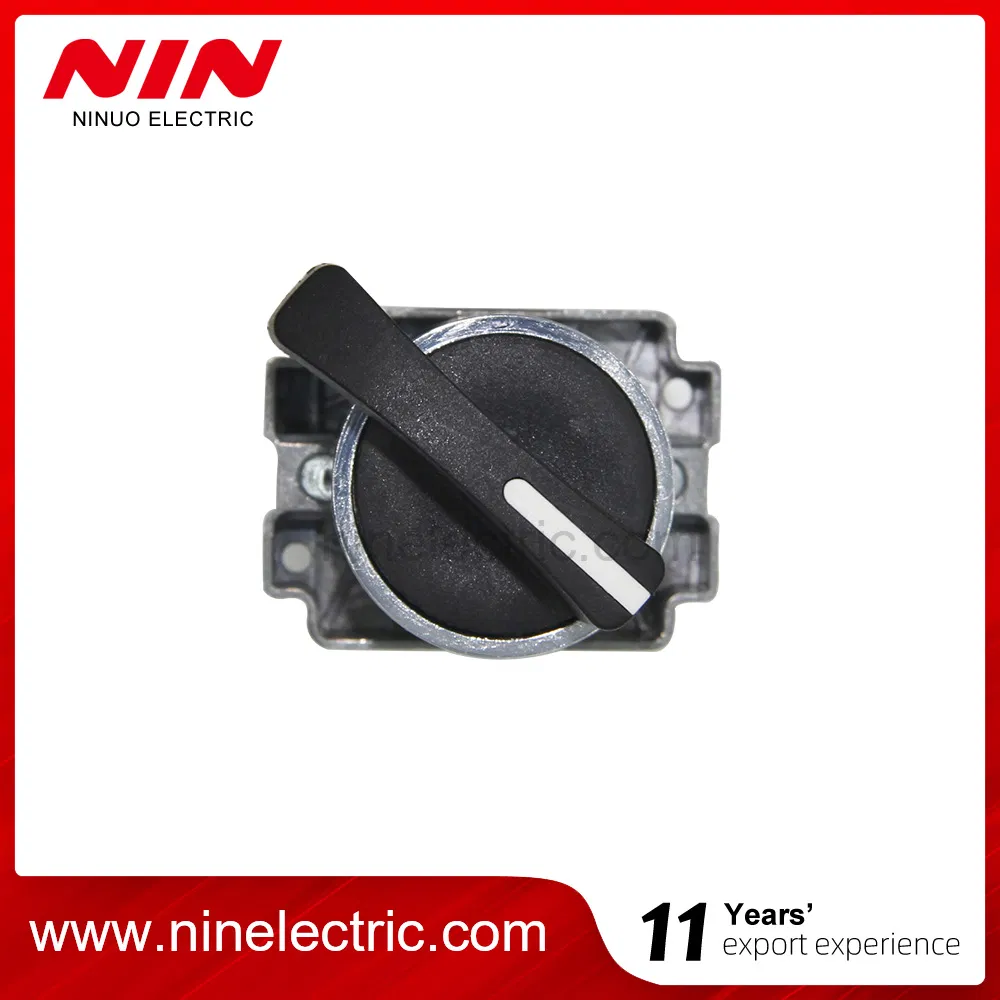

High quality 2 position selector switch 22mm with factory prices

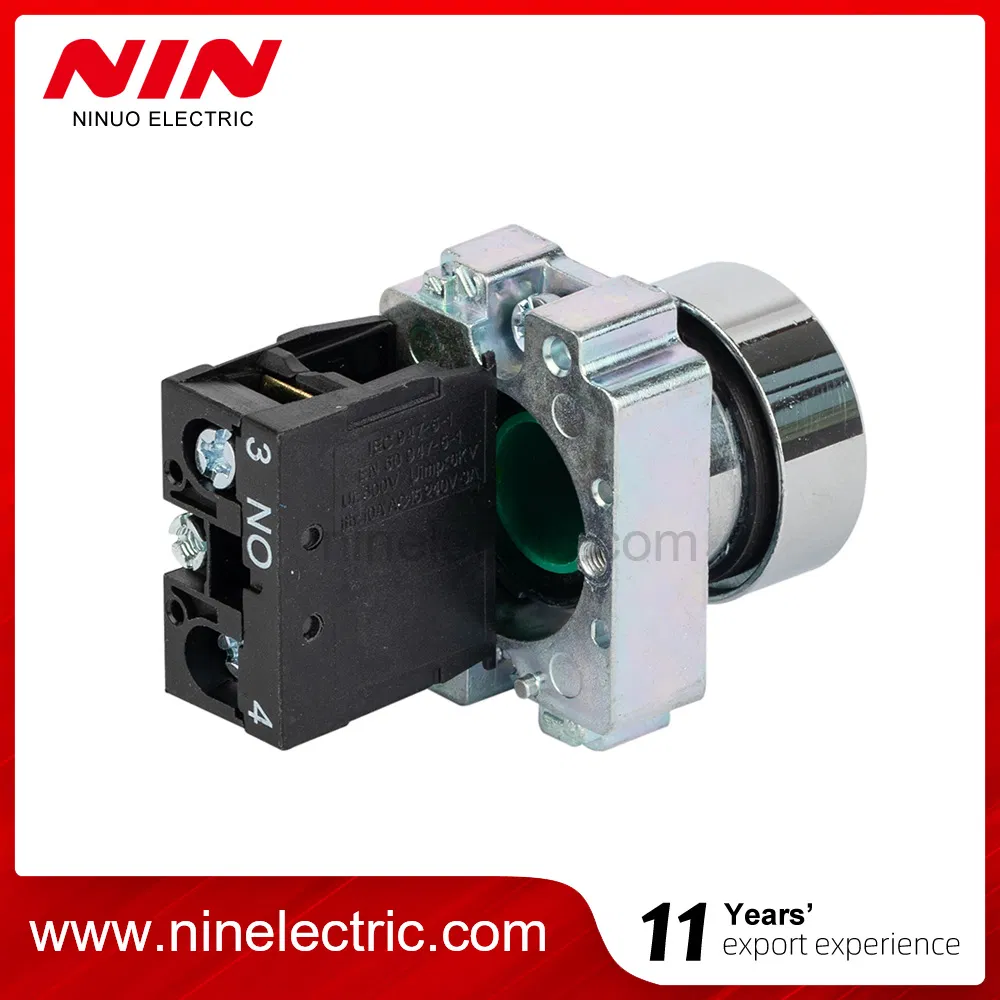

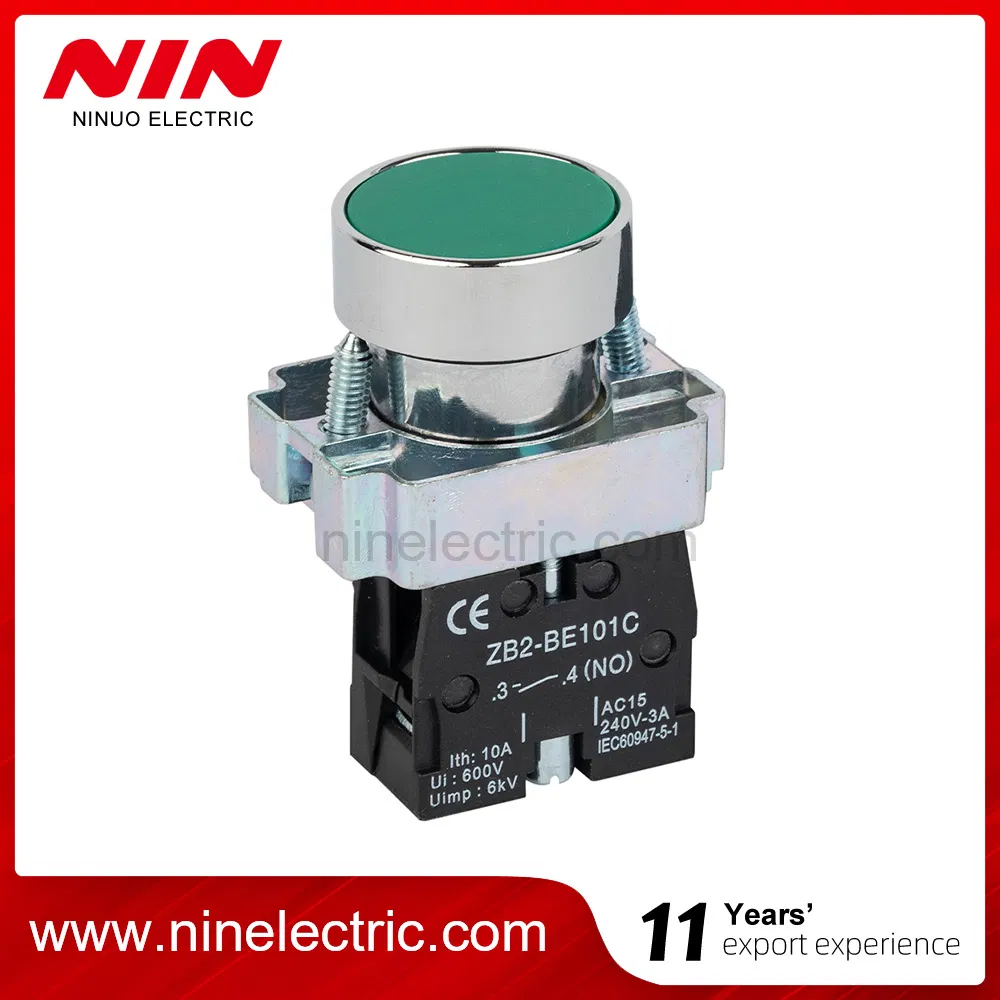

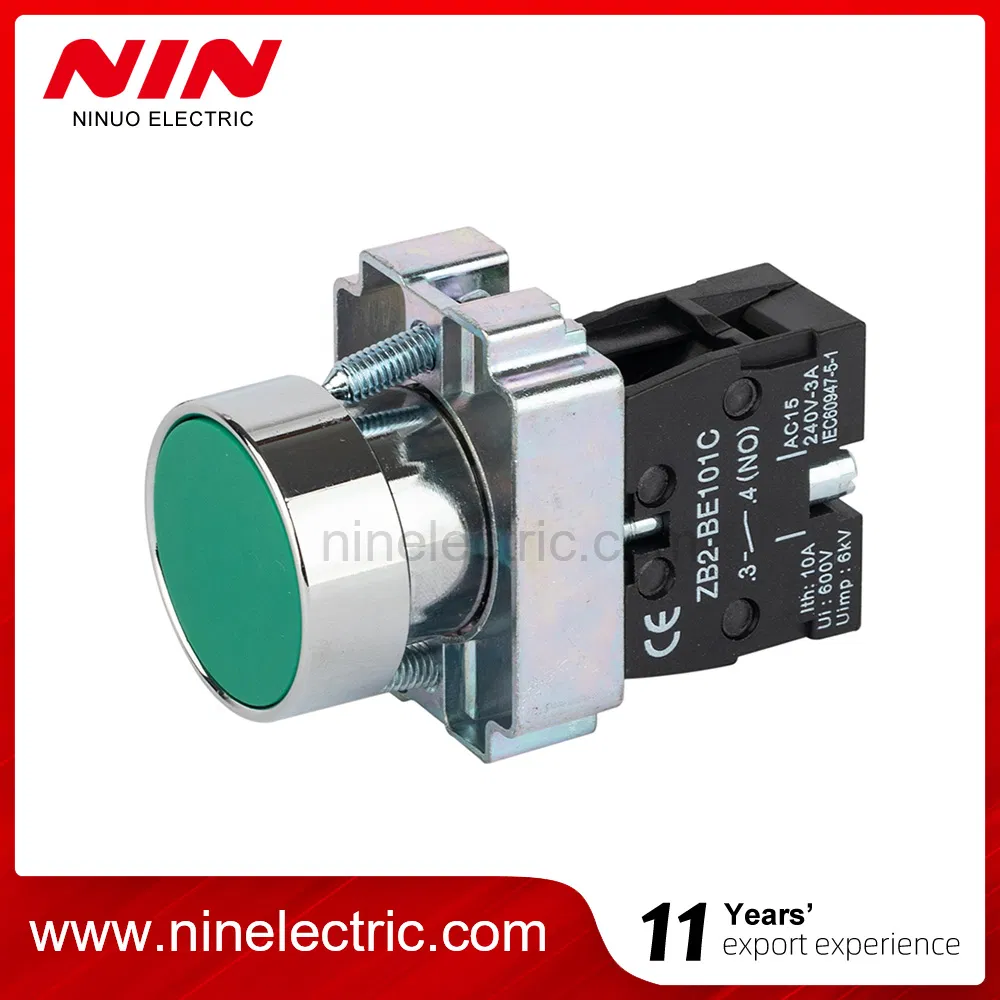

XB2, XB4, XB5 series Push Buttons are suitable for industrial control circuits with AC 50Hz or 60Hz, rated operating voltage to 380V and DC operating voltage to 250V, and are used for controlling electromagnetic starters, contactors, relays and other electrical circuits.

Ui(V):	415
Ith(A):	10
Ue(V):	-	380	250	240	125
Ie(A):	AC-15	2.5	-	3	-
Ie(A):	DC-13	-	0.27	-	0.55

Ambient temperature:	-25^oC~+55^oC
Earthquake resistance:	<500Hz,Amplitude about 1.0mm
Impact resistance:	≥10g
Protection level:	IP40,can be customized IP65
Contact resistance:	≤50mΩ
Mechanical life:	Momentary type ≥ 1000000 times,other types ≥100000 times
Electrical life:	≥100000 times
Short circuit protection:	RT16-10A
connections - terminals:	1 x 0.5 mm² with cable end, 2 x 1.5 mm² or 1 x 2.5 mm² without cable end
Standard:	GB 14048.5-2008,IEC 60947-5-1
