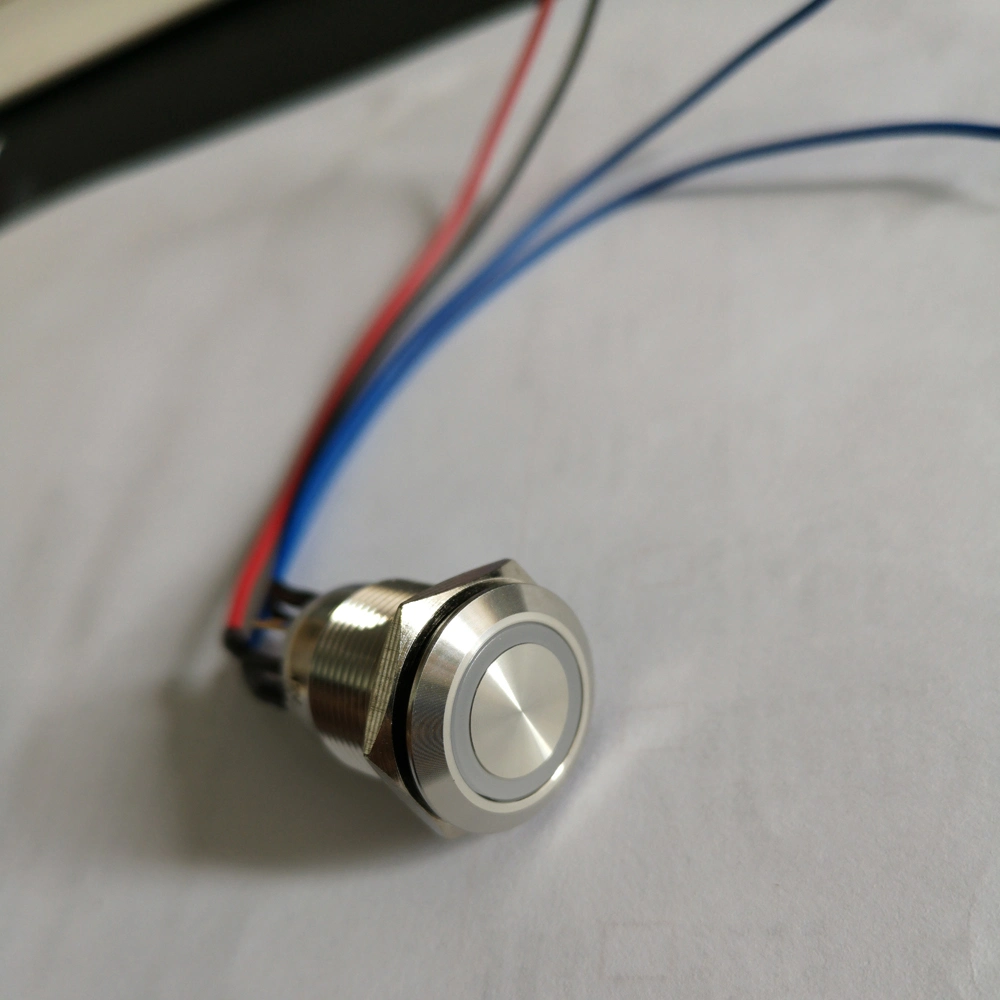

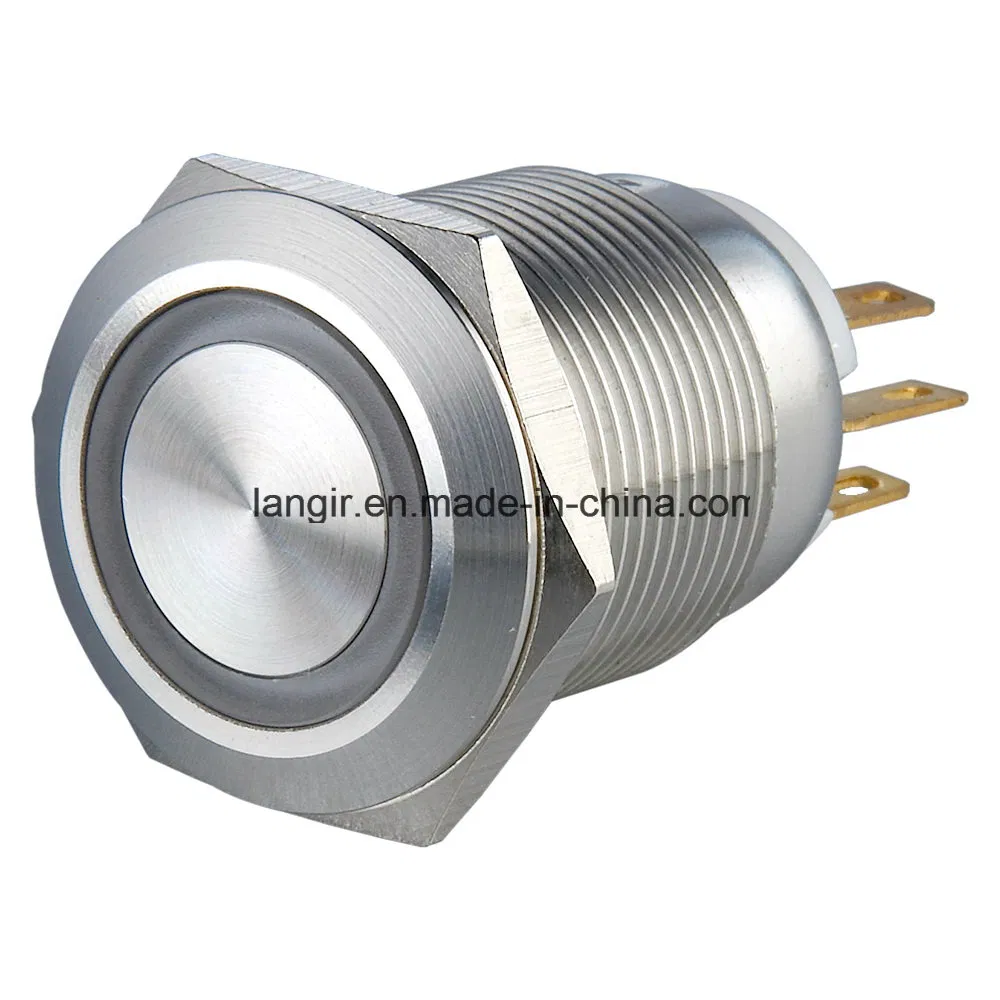

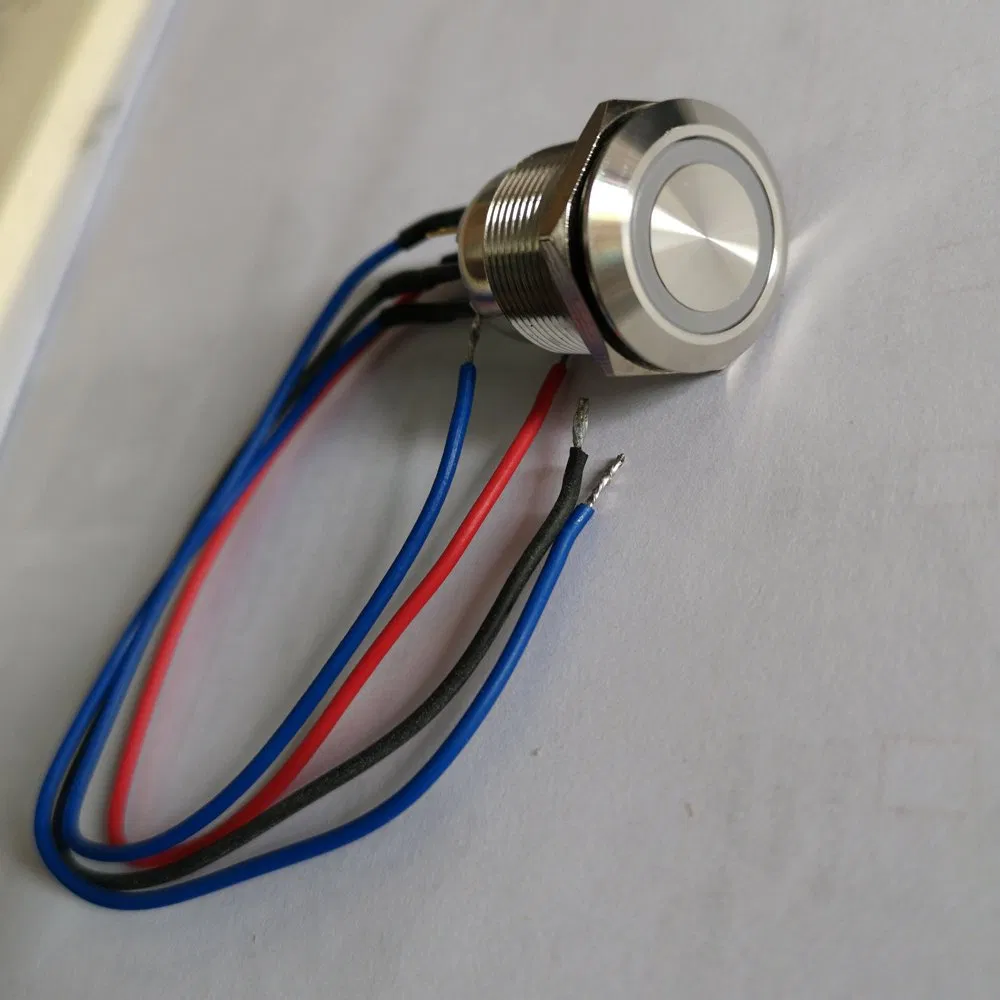

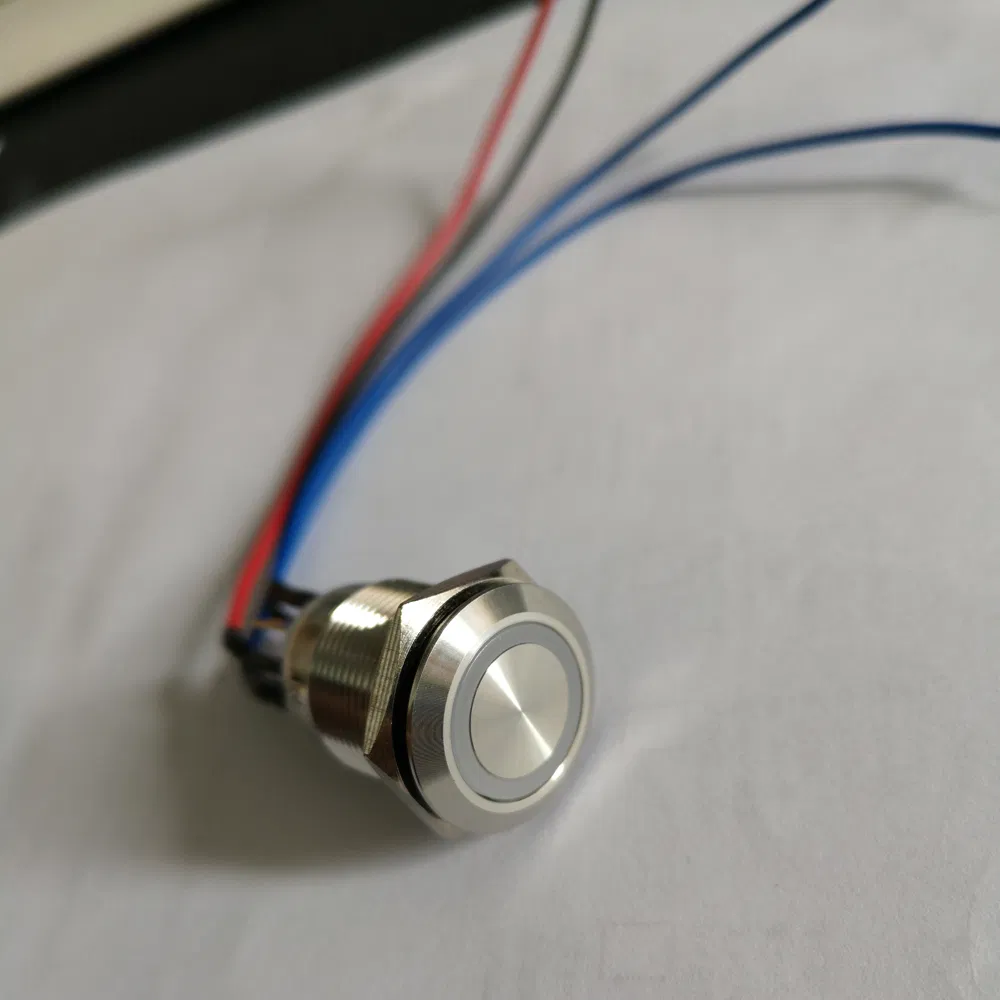

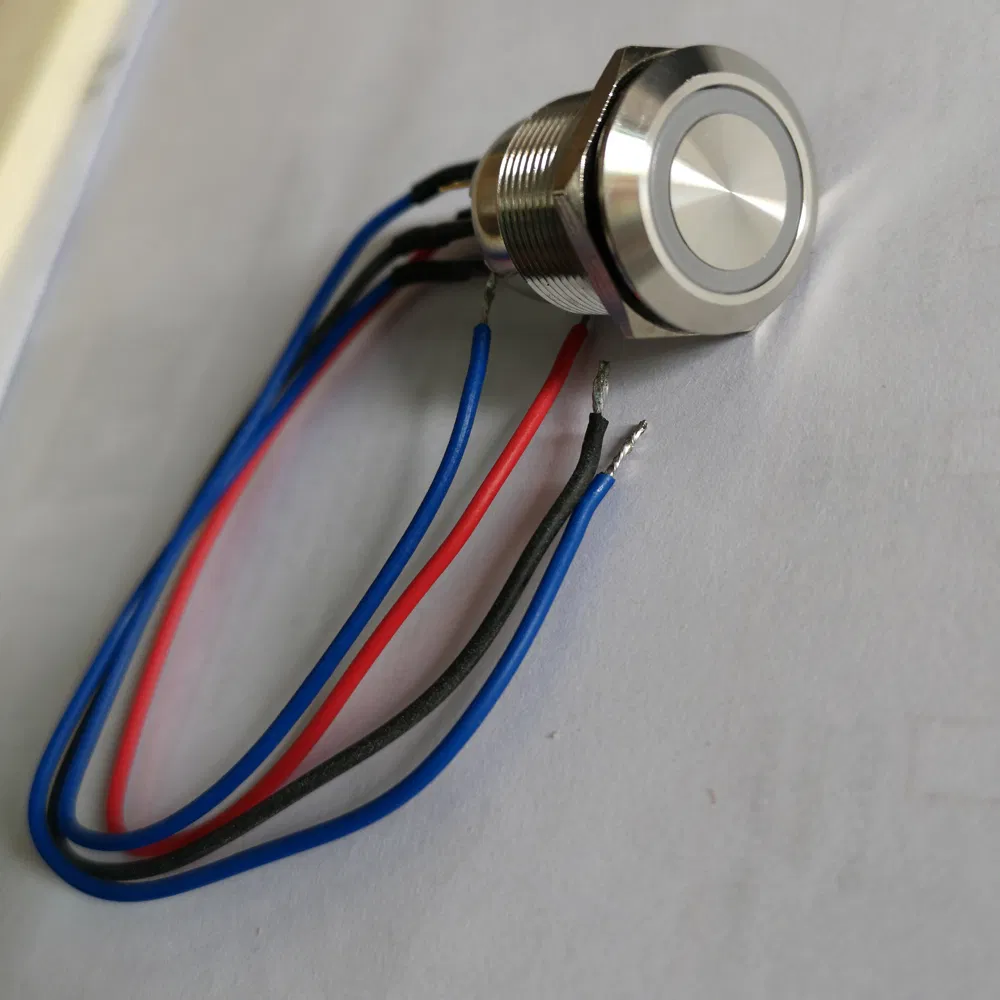

19mm Ring LED Flat Head Momentary 1no1nc Stainless Steel Push Button Electric Switch

Product Description

19mm Ring LED Flat Head Momentary 1no1nc Stainless Steel Push Button Switch

is_customized                   Yes
Material                              Stainless steel
Function                             Momentary 1no1nc

19mm Ring LED Flat Head Momentary 1no1nc Stainless Steel Push Button Electric Switch

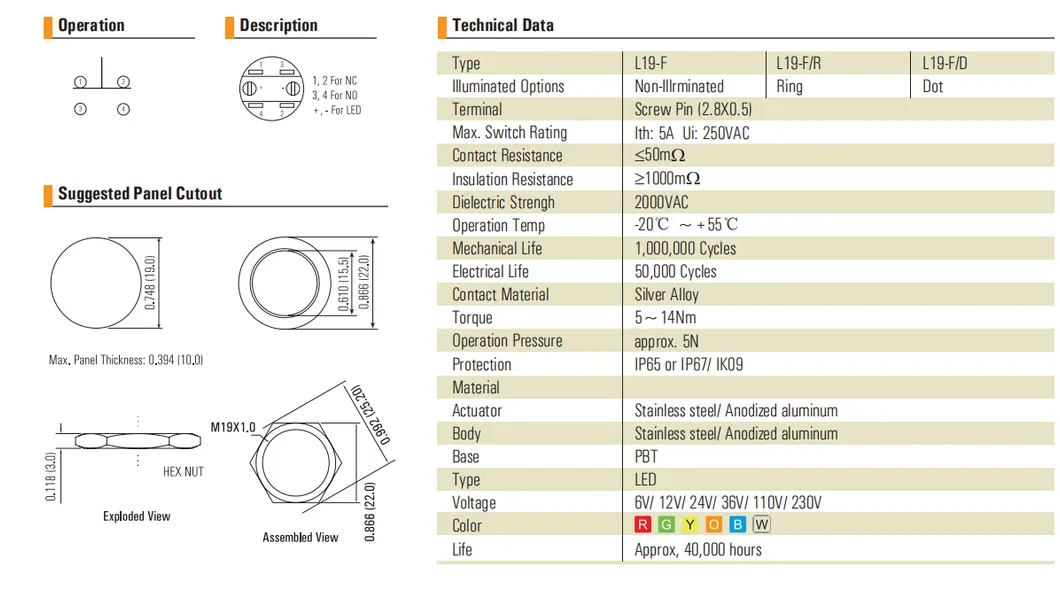

Technical Data:

Type		L19-F		L19-F-R		L19-F-D
Illuminated Options		Non-Illuminated		Ring		Dot
Max. Panel Thickness:		0.394″ (10.0mm)

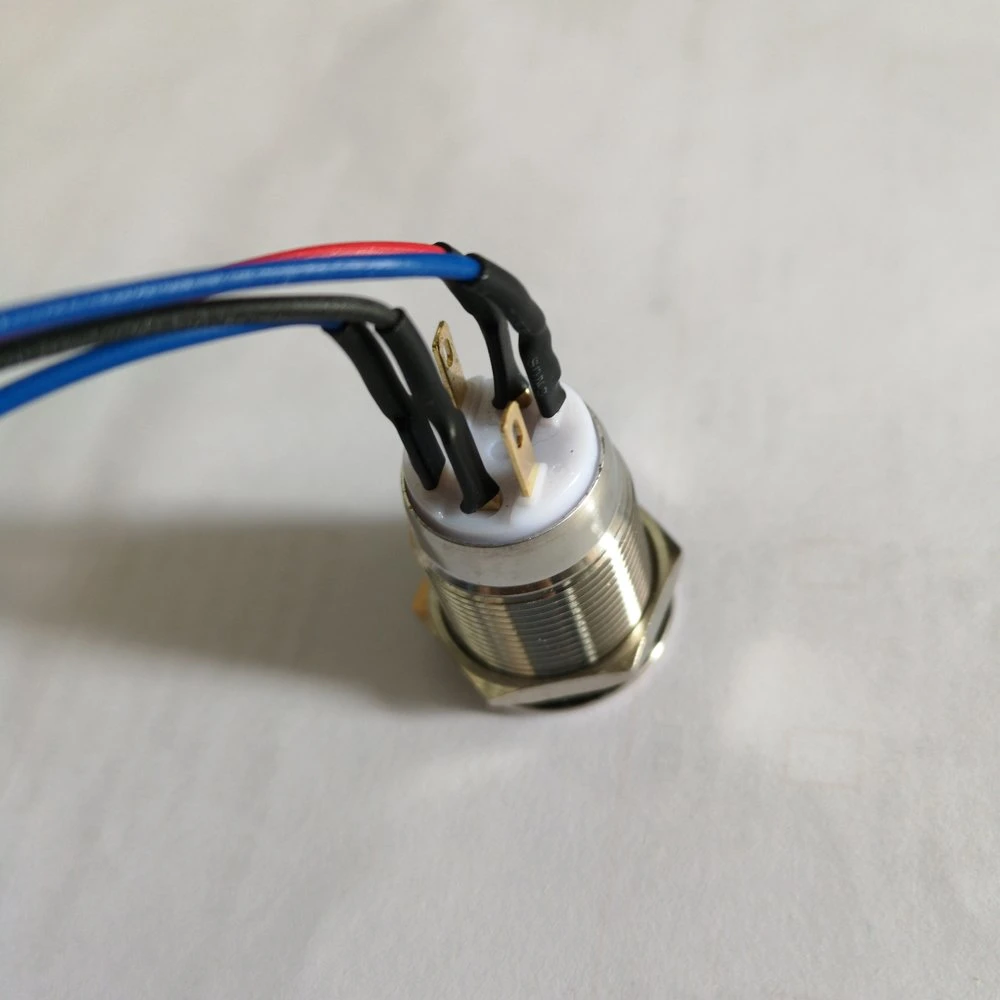

Terminal		Screw/ Pin(2.8×0.5)
Max. Switch Rating		5A/ 250VAC
Contact Resistance		≤50mΩ
Insulation Resistance		≥1000mΩ
Dielectric Strengh		2000VAC
Operation Temp.		-20°C ~ +55°C
Mechanical Life		1,000,000cycles
Electrical Life		>50,000cycles
Contact Material		Silver Alloy
Torque		5 ~ 14Nm
Operation Pressure		approx. 3 ~ 8N
Protection		IP65/ IK09
Material	Actuator	Stainless Steel/ Anodized Aluminum
	Body	Stainless Steel/ Anodized Aluminum
	Base	PA
Color	Type	LED (ratings @ 20mA)
	Color	R-Red	Y- Yellow	O- Orange	G- Green	B- Blue	W- White
	Luminous Intensity (mcd)	160	200	150	520	220	2000
	Forward Volatge	1.8~2.6			2.8~3.6
	Illumination Voltage	no suffix No resistor fitted. An appropriate resistor must be series connected by the user. Voltages as above.
		6V/ 12V/ 24V/ 36V/ 110V/ 230V
	Life	Approx. 40, 000hours
