GTQ6-125/4P/A/ 125A Automatic Transfer Switch ATS with IEC60947-6-1
GTQ6 Automatic Transfer Switch1-Type:Integrated2-Wiring mode:Front-panel wiring3-OEM Service Offered4-Payment : LC/TT5-Delivery : By sea / By train6-FOB/CIF/CIP ModelGTQ6-63GTQ6-125GTQ6-250GTQ6-630GTQ6-800GTQ6-1250GTQ6-1600IEC60947-6-1Rated voltage Ue(V)AC400 50HzAC400 50HzAC400 50HzAC400 50Hz......
Send Inquiry
Product Description

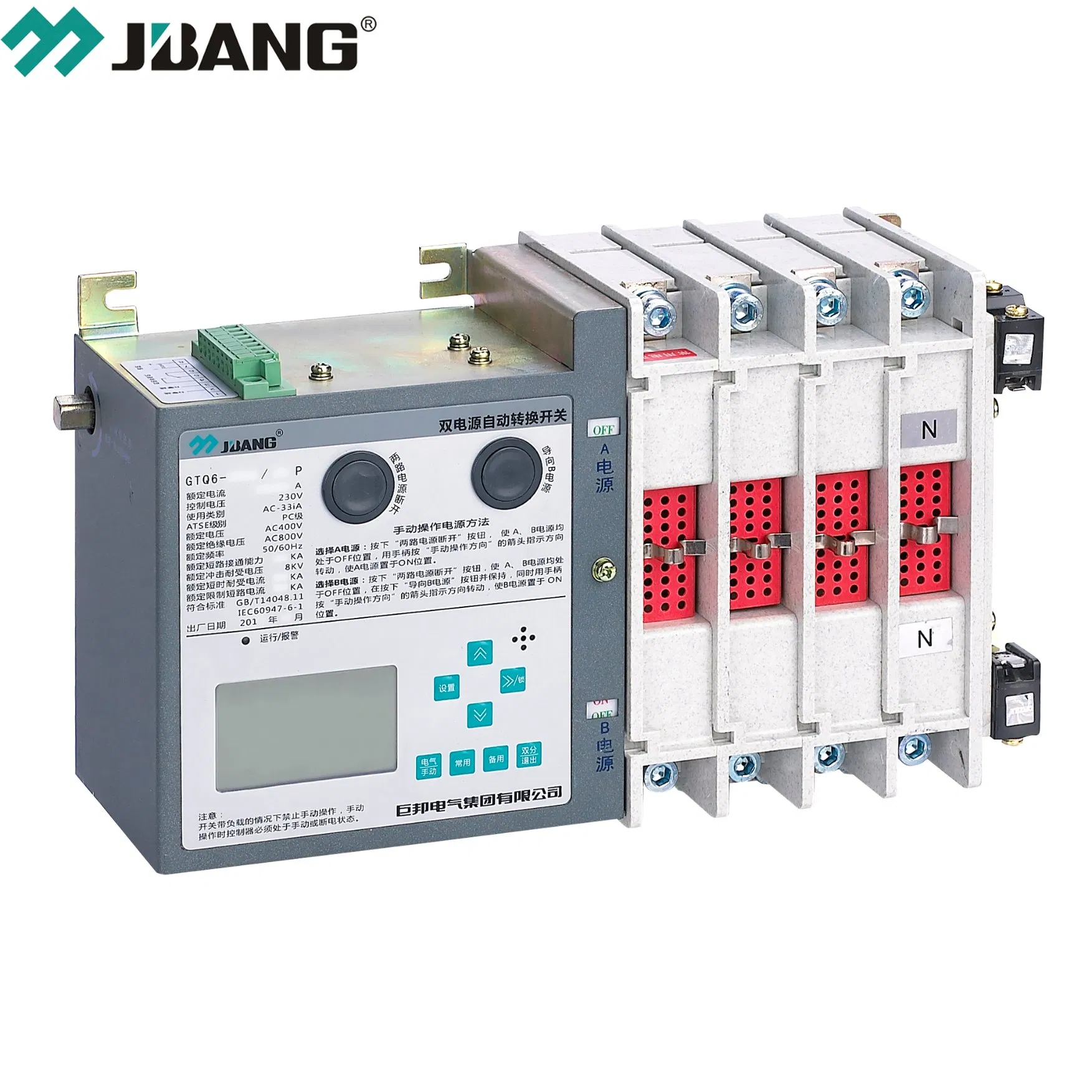

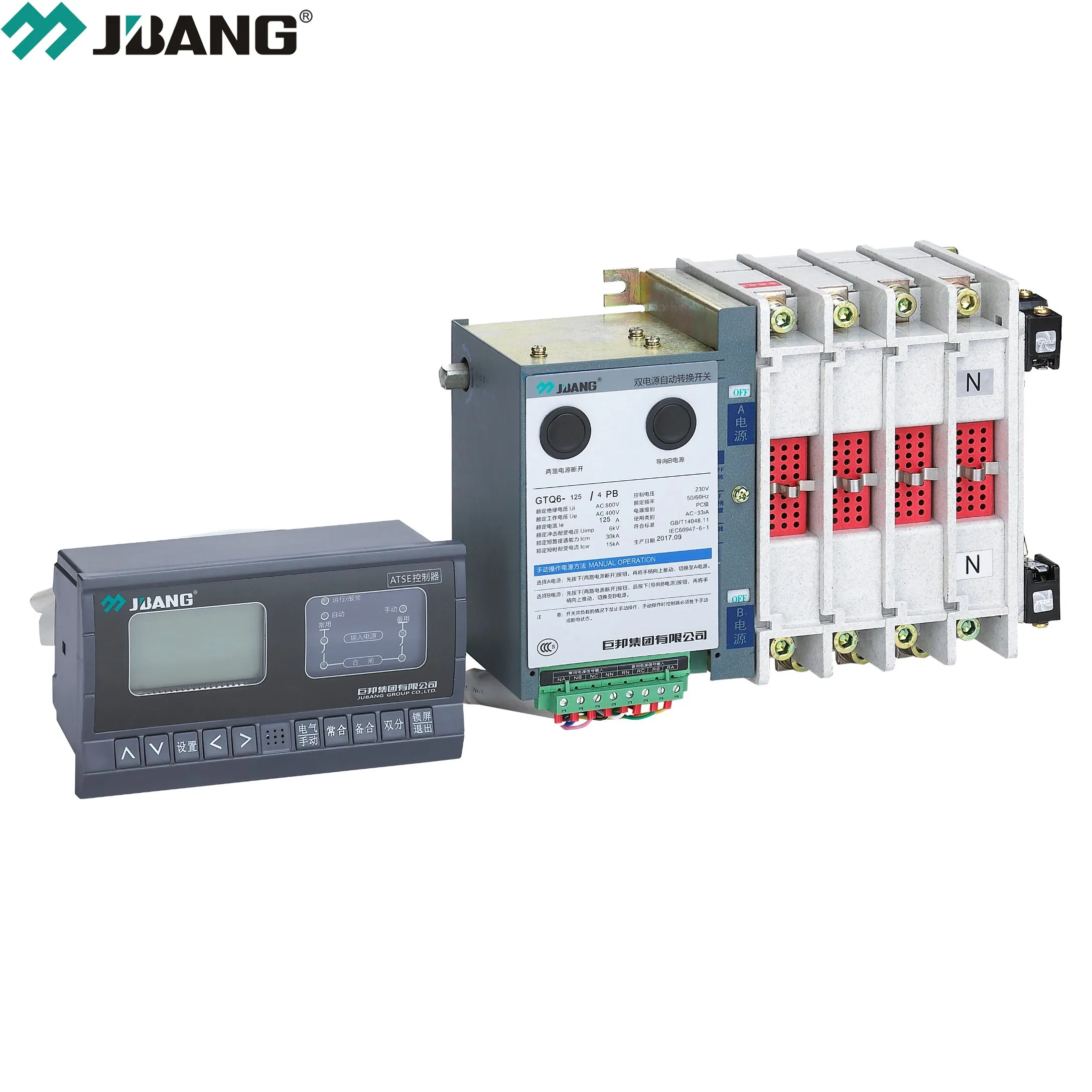

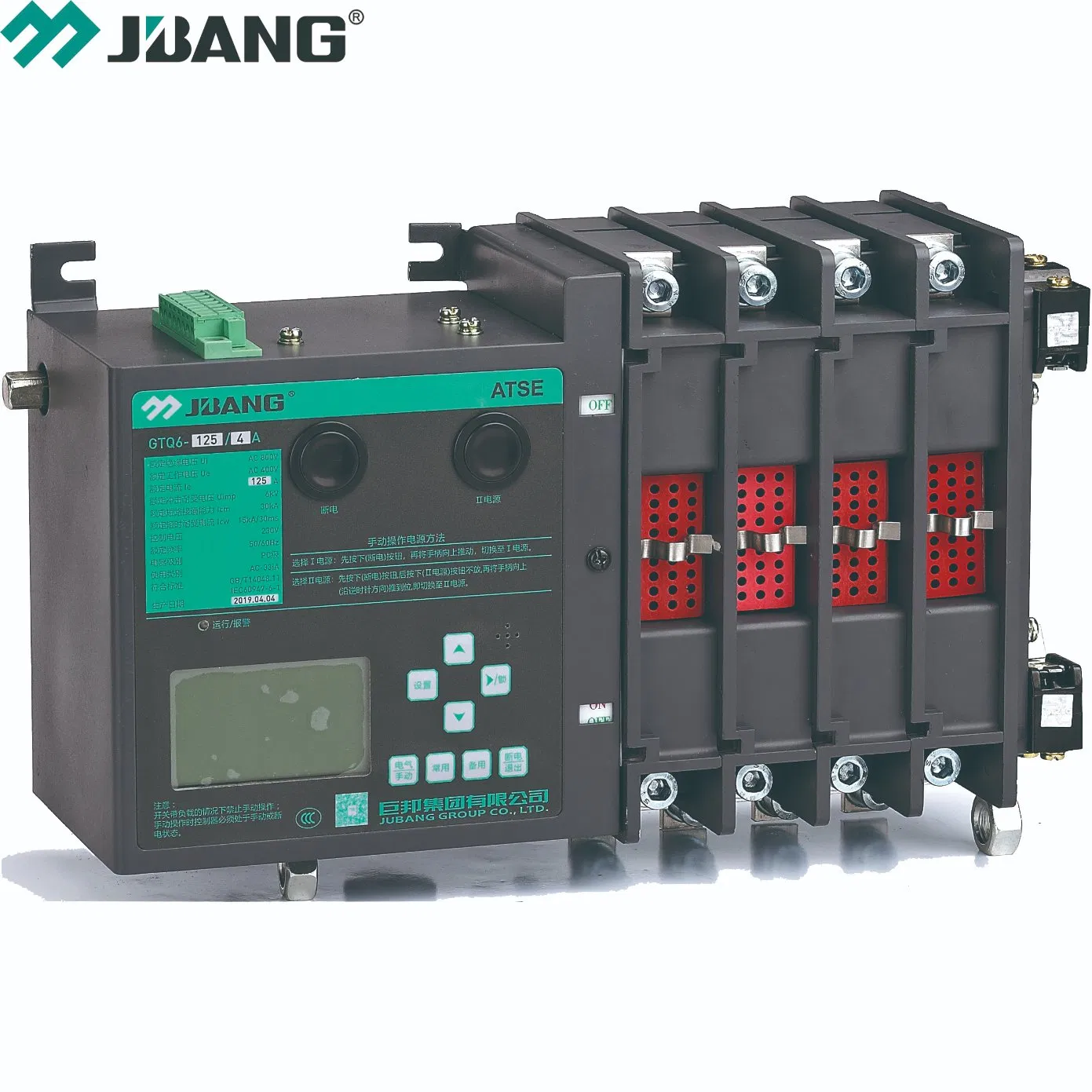

GTQ6 Automatic Transfer Switch
1-Type:Integrated
2-Wiring mode:Front-panel wiring
3-OEM Service Offered
4-Payment : LC/TT
5-Delivery : By sea / By train
6-FOB/CIF/CIP
1-Type:Integrated
2-Wiring mode:Front-panel wiring
3-OEM Service Offered
4-Payment : LC/TT
5-Delivery : By sea / By train
6-FOB/CIF/CIP
| Model | GTQ6-63 | GTQ6-125 | GTQ6-250 | GTQ6-630 | GTQ6-800 | GTQ6-1250 | GTQ6-1600 | |||||
| IEC60947-6-1 | ||||||||||||
| Rated voltage Ue(V) | AC400 50Hz | AC400 50Hz | AC400 50Hz | AC400 50Hz | ||||||||
| Number of poles | 3P | 4P | 3P | 4P | 3P | 4P | 3P/4P | |||||
| Rated current Ie(A) | 20, 32, 40, 50, 63 | 80, 100, 125 | 160, 200, 225, 250 | 315, 350, 400, 500, 630 | 700, 800 | 1000, 1250 | 1600 | |||||
| Rated insulation voltage Ui(V) | 800 | 800 | 800 | 800 | ||||||||
| Rated impulse withstand voltage Uimp(KV) | 6(Main circuit), 2.5(Control circuit) | 6(Main circuit), 2.5(Control circuit) | 8(Main circuit), 2.5(Control circuit) | 8(Main circuit), 2.5(Control circuit) | ||||||||
| Rated short-circuit turn on capacity(peak value) Icm(kA) | 30 | 30 | 67.5 | 132 | ||||||||
| Rated short-time withstand current and time Icw(kA/ms) | 15/30 | 15/30 | 32/60 | 60/60 | ||||||||
| Standby power supply for each other | O | O | O | O | ||||||||
| Utilization category | AC-33iB | AC-33iB | AC-33iB | AC-33iB | ||||||||
| Electrical grade and TSE type | Grade PC ATSE | Grade PC ATSE | Grade PC ATSE | Grade PC ATSE | ||||||||
| Operating current (A) | 220V AC/DC | 1.5 | 2 | 2.5 | 3 | 3 | 4 | 4 | ||||
| 110V AC/DC | 3 | 4 | 4 | 6 | 6 | 8 | 8 | |||||
| Tripping | 220V AC/DC | 0.5 | 0.5 | 0.5 | 0.7 | 1 | 1 | 1 | ||||
| 110V AC/DC | 1 | 1 | 1 | 1.5 | 2 | 2 | 2 | |||||
| Body switch transfer time (ms) | ≤75 | ≤75 | ≤75 | ≤80 | ≤130 | ≤140 | ≤140 | |||||
| Power and frequency deviation | Under voltage adjustable | 170~200 | 170~200 | 170~200 | 170~200 | |||||||
| Accuracy (relatively) | ±10 | ±10 | ±10 | ±10 | ||||||||
| Contact transfer time | 10ms~500ms | 10ms~500ms | 10ms~500ms | 10ms~500ms | ||||||||
| Operating transfer time | 100ms~900ms | 100ms~900ms | 100ms~900ms | 100ms~900ms | ||||||||
| Return transfer time range | (100ms~900ms)+delay time | (100ms~900ms)+delay time | (100ms~900ms)+delay time | (100ms~900ms)+delay time | ||||||||
| Power off time range | (100ms~500ms)+delay time | (100ms~500ms)+delay time | (100ms~500ms)+delay time | (100ms~500ms)+delay time | ||||||||
| Delay time (s) | Normal to standby | 0~99 | 0~99 | 0~99 | 0~99 | |||||||
| Standby to normal | 0~99 | 0~99 | 0~99 | 0~99 | ||||||||
| Service life (times) | Mechanical life | 15000 | 15000 | 15000 | 10000 | |||||||
| Electrical life | 6000 | 6000 | 5000 | 3000 | ||||||||
| Operation cycle times (times/hour) | 120 | 120 | 120 | 60 | ||||||||
| Working position of main contact* | Three stage type | Three stage type | Three stage type | Three stage type | ||||||||
| Wiring mode | Front-panel wiring | Front-panel wiring | Front-panel wiring | Front-panel wiring | ||||||||
| Structure type A:One-piece B:split type | A | B | A | B | A | B | A | B | B | B | B | |
| Outline dimension (mm) | Width(3/4) | 268/291 | 215/238 | 291/321 | 239/269 | 303/338 | 255/291 | 388/438 | 350/410 | 371/470 | 447/528 | 512/614 |
| Length | 193 | 193 | 193 | 193 | 193 | 193 | 290 | 290 | 390 | 390 | 390 | |
| Height | 112 | 112 | 112 | 112 | 112 | 112 | 132 | 132 | 282 | 282 | 282 | |
| O: Standard configuration | ||||||||||||
