3200A 4p Power Generator Transfer Switch

Product Description

Product Description --Automatic Transfer Switch SKT Series
1. Basic Specification:

Agreed thermal current lth	20	40	63	80	100	125	160	250	400	630	800	1000	1250	1600	2000	2500	3200
Rated insulation voltage Ui	750V								1000V
Rated impulse withstand voltage Uimp	8KV								12KV
Rated voltage of the switch copper	AC 440V
Rated work curret le AC-33A	20	40	63	80	100	125	160	250	400	630	800	1000	1250	1600	2000	2500	3200
Rated connection capability	10 le
Rated breaking capability	10 le
Rated conditional short-circuit current	100KA								70KA			100KA		120KA		80KA
Rated short-time withstand current IS	7KA			9KA		13KA			26KA			50KA		55KA
Transfer time I-II or II -I	0.45s								0.6s			1.2s				2.4s
Control voltage of the switch motor	DC24V AC220V AC280V

2.Performance:

1, Double complex contact, horizontal and vertical type frame basically, it have come to "Zero" arc(no arc chute);

2, Reliable machine interlock and elecric interlock, the executive union parts adopt independency overload disconnect switch,
it makes more reliable and safety.

3, "zero" techinique, can force to set"zero" under emergency situation(break off two ways power supply at the same time).Meet the requirement of the fire protection linkage.

4, Operate overload disconnect switch change over adopt singless electromotor drive, switch over smooth and reliable, no noise,
little wallop

5, Operate machine drive motor use only under the executive overload disconnect switch change over instanecus current across, outstanding energy saying.

6, Perform overload disconnect switch with mechanism interlock device. It ensure the common use, standby power working
reliable and not interference.

7, Distinct on and off position indicator, padlock function et.c safe realize the isolator between electric power and overload

8, High security, high automatization, high retiablility, use life more than 8000times

3.Application:
SKT ATS used in Generator system, to changeover two power sources. Widely used at the field of
important power supply site,which transport, distribution power supply system and automatization system.
For fire protection, hospital, bank, building etc, where doesn't allowed power off.

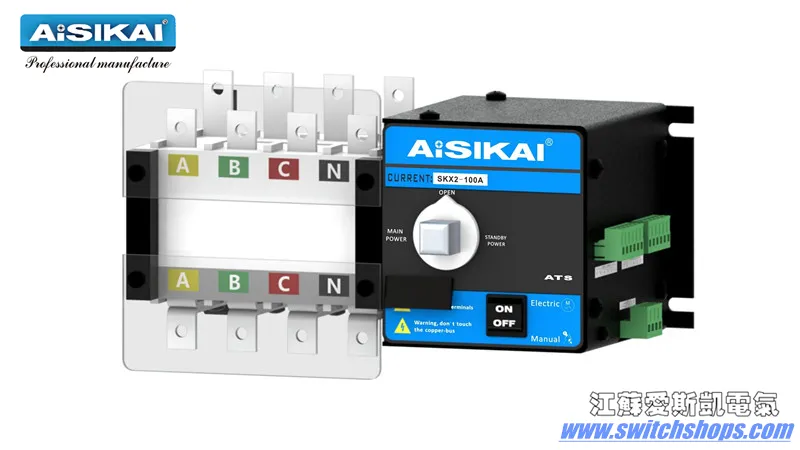

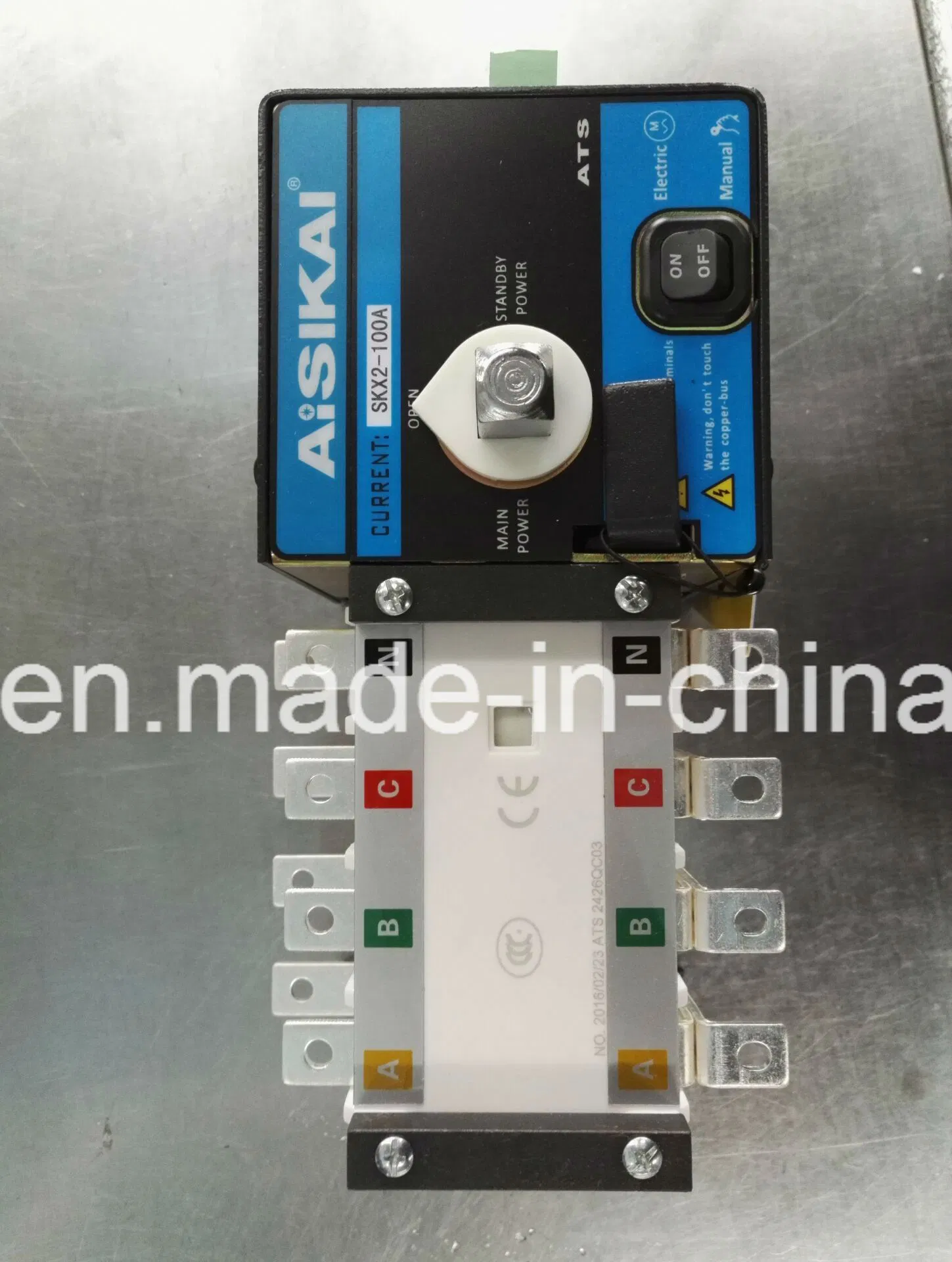

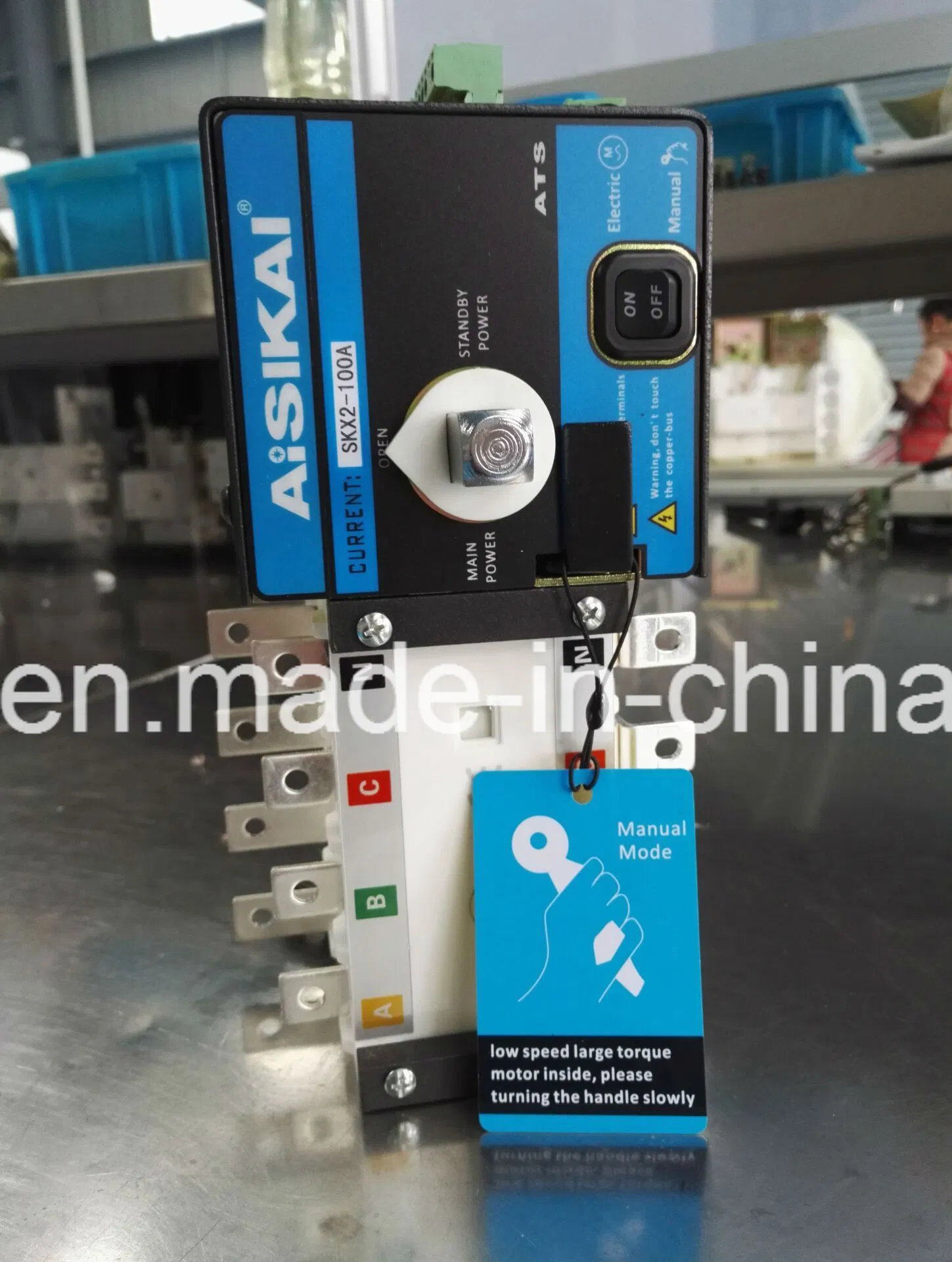

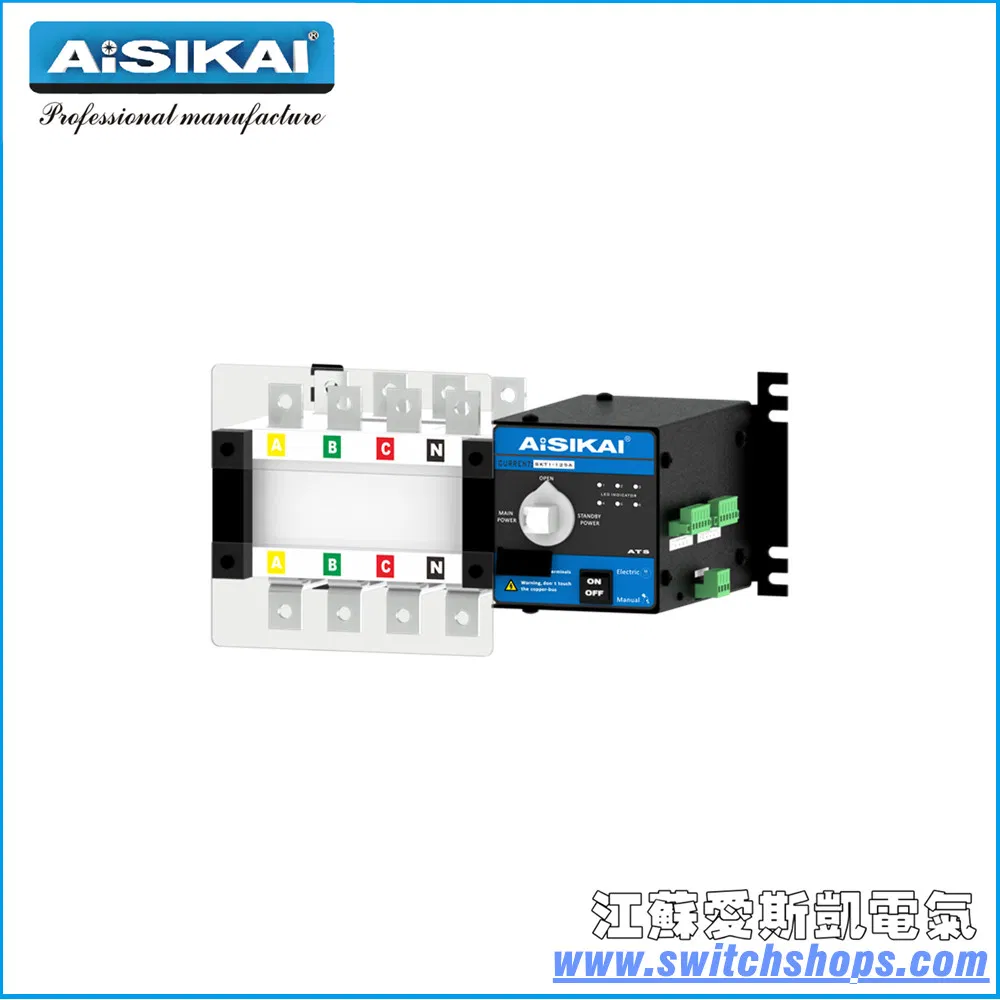

4. Product Pictures:
Automatic Transfer Switch 3p/4p

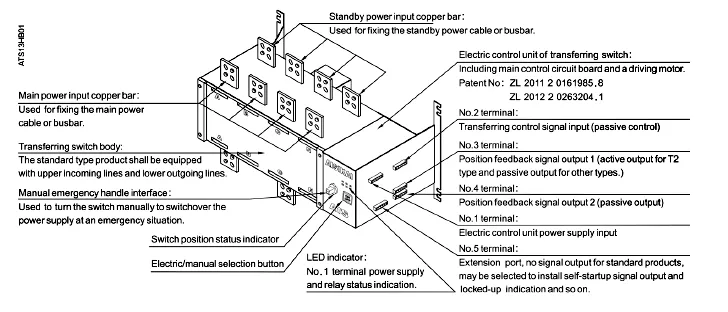

5.construction

6.Packing:

Item No	Qty/Carton	Net Weight(KGS)	Gross weight (KGS)	Carton Size (MM)
Item No	Qty/Carton	Net Weight(KGS)	Gross weight (KGS)	L	w	H
SKT2-100/X/CK	6	21	26.5	375	330	640
SKT1-125/M1/CK	4	21.2	26.5	510	375	440
SKT1-160/M1/CK	4	21.2	26.5	510	375	440
SKT1-250/M1/CK	4	28	34	510	445	440
SKT1-400/N/CK	2	34	38	535	340	685
SKT1-630/N/CK	2	34	38	535	340	685
SKT1-800/N/CK	1	39.7	46.7	665	360	370
SKT1-1000/N/CK	1	40.5	47.5	665	360	370
SKT1-1250/N/CK	1	41	48	665	360	370
SKT1-1600/N/CK	1	49	56	665	360	370
SKT1-2000/N/CK	1	98	109	670	550	590
SKT1-2500/N/CK	1	100	111	670	550	590
SKT1-3200/N/CK	1	10	113	670	550	590

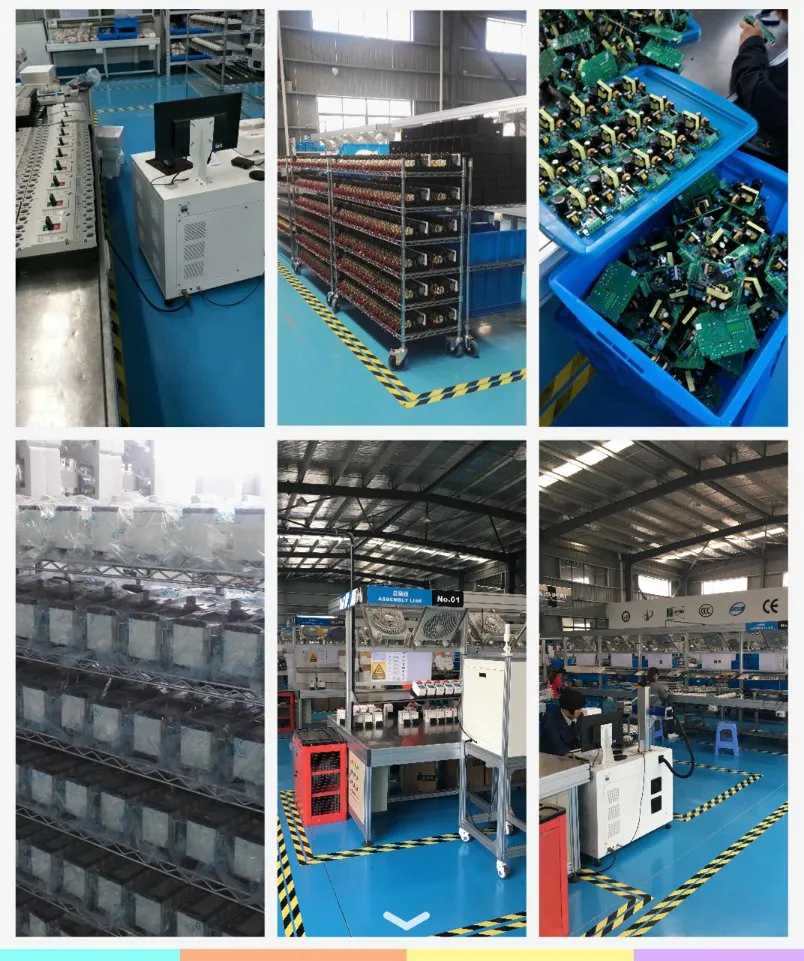

7. Production line:

Automatic Transfer Switch 3p/4p

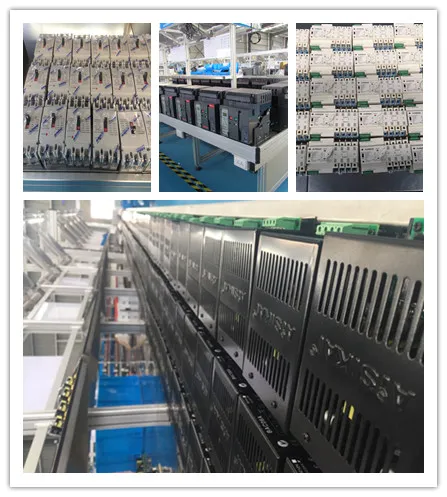

8. More products pictures

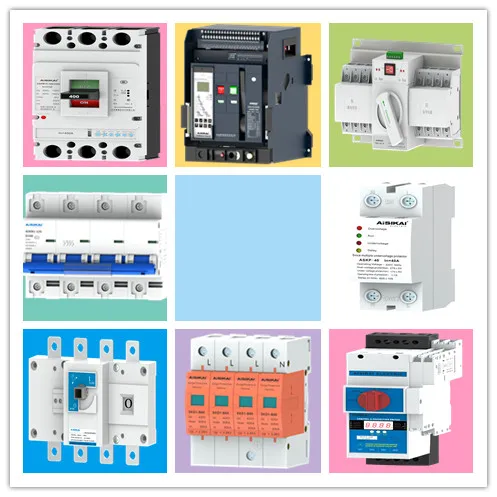

9. Other your products series:
ACB/ MCCB/MCB/ELCB/ATS-CB grade/LIS/VPS/CPS/SPD/IPM/BAC/Switch box.etc.
Automatic Transfer Switch 3p/4p
