Ultrasonic Fuel Level Sensor Diesel Fuel Tank Level Sensor Fuel Monitoring Devices for Mining Truck Vehicle
Ultrasonic Fuel Level Sensor Diesel Fuel Tank Level Sensor Fuel Monitoring Devices for Mining Truck VehicleParameters:Ultrasonic Fuel Level Sensor All in One DesignModel: UL212, UL212-EApplication: M2M Devices, GPS Tracker, Mobile DVRFeatures :No Drilling Holes in Tank, Easy Installation.Support Any......
Send Inquiry
Product Description
Parameters:
Ultrasonic Fuel Level Sensor All in One Design
Model: UL212, UL212-E
Application: M2M Devices, GPS Tracker, Mobile DVR
Features :
No Drilling Holes in Tank, Easy Installation.

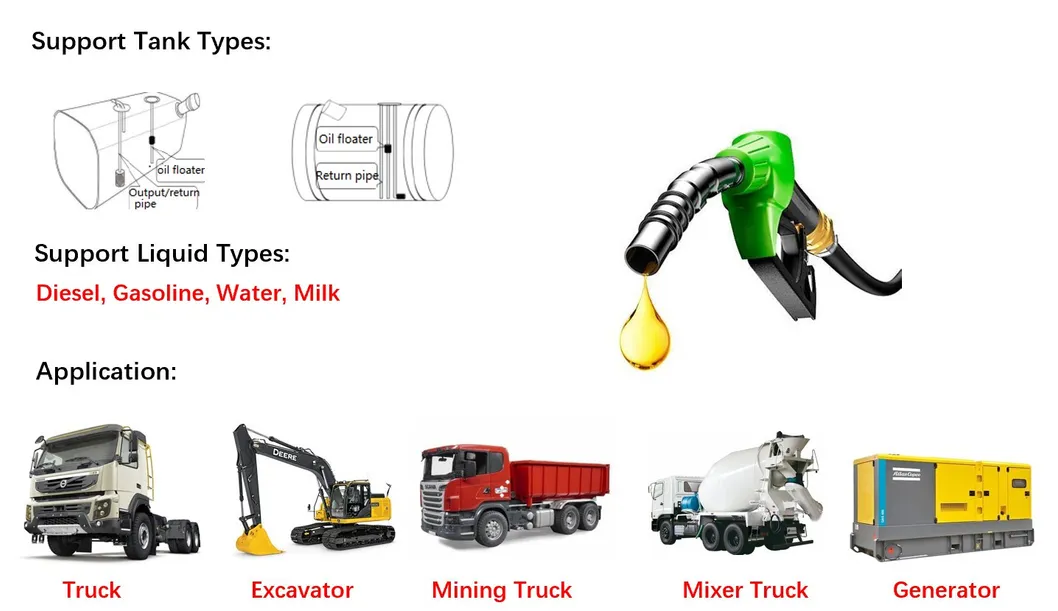

Support Any Liquid: Diesel, Gasoline, Water, etc.
Support Any Material Tank: Metal/Aluminum/Stainless Steel /Fiber/Plastic
Resolution: 0.1mm
Accuracy: 99.5%
Maximum Measuring Range: 100cm (UL212), 250cm (UL212-E)
Lowest Detection Hight(Blind Area): 3cm
Maximum Tank Thickness: 8~12mm
Output Interface: BLE Bluetooth 5.0 +RS232(Default)/RS485+Analog(0~5V)
Mobile App configuration &Calibration
Built-in AI Algorithm to filter abnormal signal

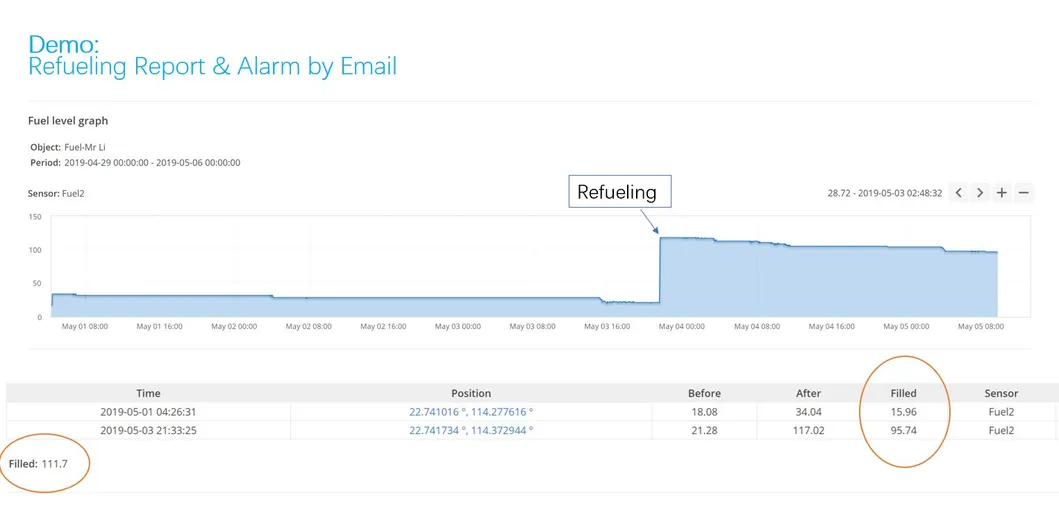

Fuel Theft Alarm I/O Output
IP68 waterproof
Hardware Partners: Teltonika, GEOTab, Calamp, Wireless Link, Queclink, Gosafe, Jimi Concox, Meitrack, FifoTrack, BSJ, Streamax
Part No. | Maximum Range | Blind Area | Beam Range | BLE Bluetooth | Signal Output | Voltage | |
UL212 | 100 cm | 3cm | 11° | Yes | RS232/RS485, Analogue (0~5V) | 9~36V | |
UL212-E | 250 cm | 3cm | 11° | Yes | RS232/RS485, Analogue (0~5V) | 9~36V |
Specification:
Parameter | Description |
Power Supply | 9~36V DC |
Max Power Consumption | 0.7W @12V DC |
Measuring Range | 3~250cm |
Resolution | 0.1mm |
Accuracy | 99.5% (0# Diesel ,25ºC) |
Maximum Tank Thickness | <12mm |
Interface | RS232(default)/RS485 Analog 0~5V BLE Bluetooth5.0 CAN (optional) |
Serial Communication | 9600 baud rate(customized),data bit 8, stop bit1, no flow control,no verification bit |
Support Protocols | Teltonika, GEOTAB, BCE, Ruptela, Ominicomm LLS, CR, Calamp, Atrack, Fifotrack, Queclink, Meitrack, Concox Jimi, Queclink, Xirgo,Wireless Link |
Extension Cable | 9 meters |
Working Temperature | -40~85ºC (@1 ATM) |
Working Humid | 5~99% |
Explosion-proof Class | Exd II CT5 |
Waterproof | IP68 |

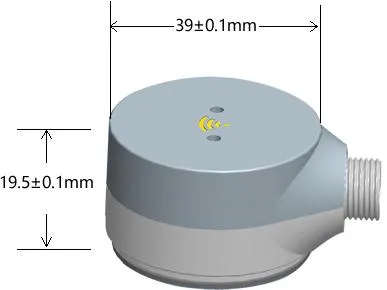

Size:
Package Contents:

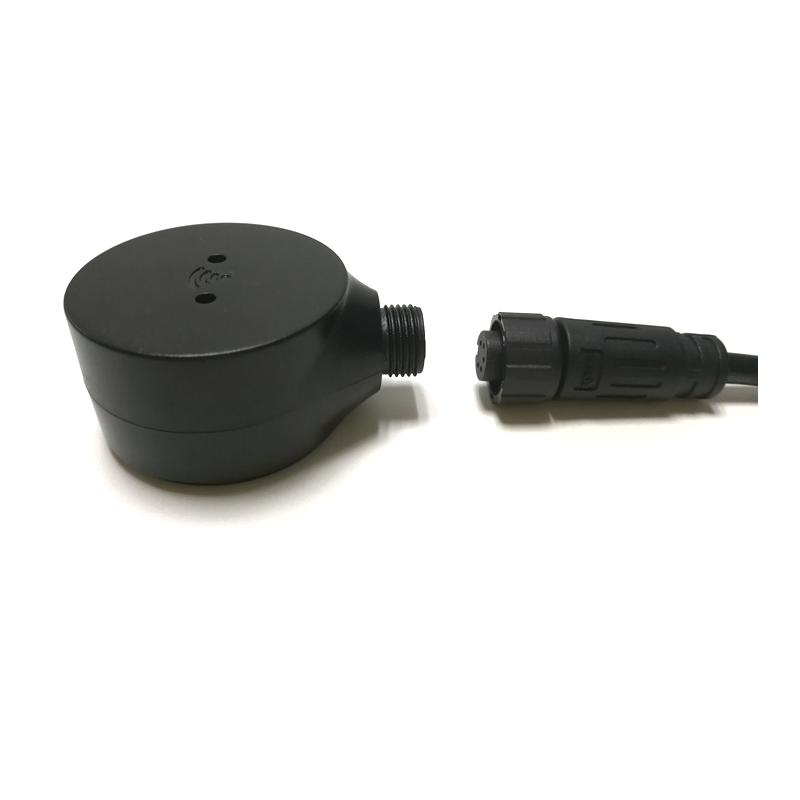

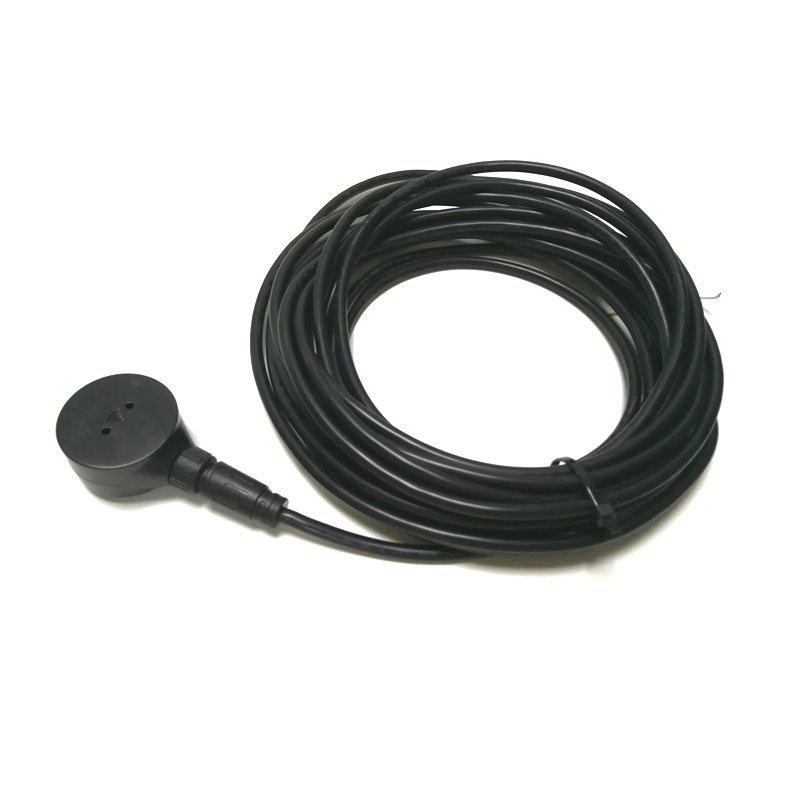

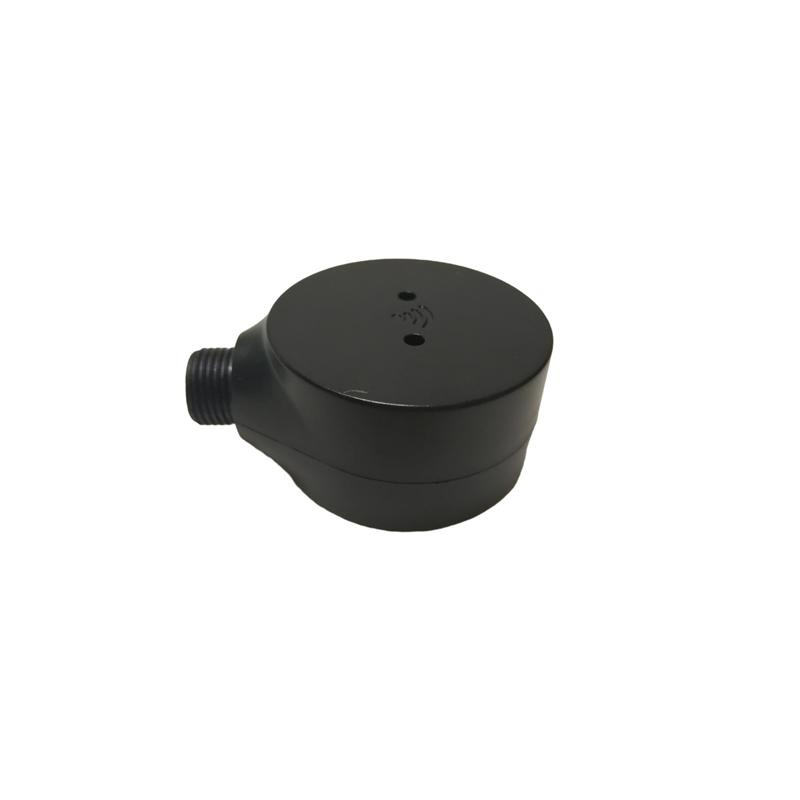

- UL212/UL212 All-in-one Probe x1

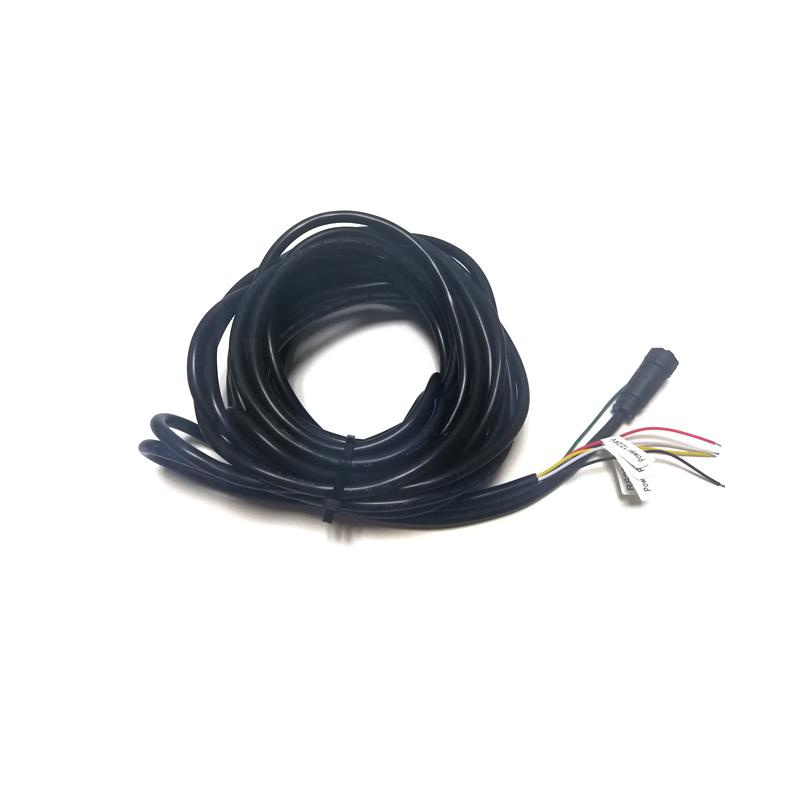

- Extension cable x1
- Silicone Gel x2
- Strap key x1
- Sand Paper x2
- 304L Stainless Steel Strap x2
- Rubber Pad(used to protect some tank if needed) x4
- Plastic Strap kits x11
UL212 Installation & Configure Tool Android/IOS APP:
It uses ultrasonic probe to detect the fuel level height and carries out smart processing for height signal of fuel quantity through built-in program of the controllers box

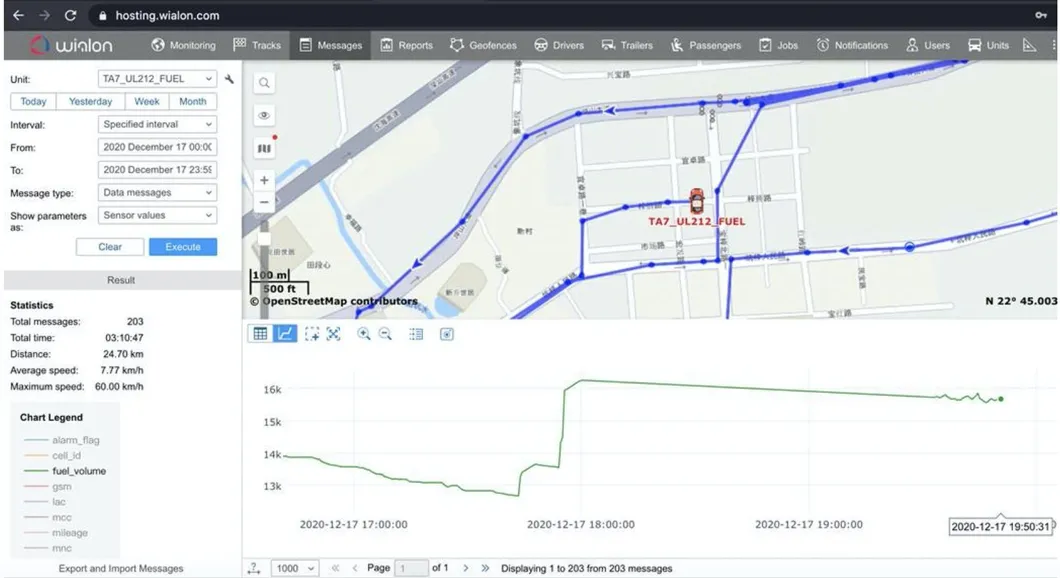

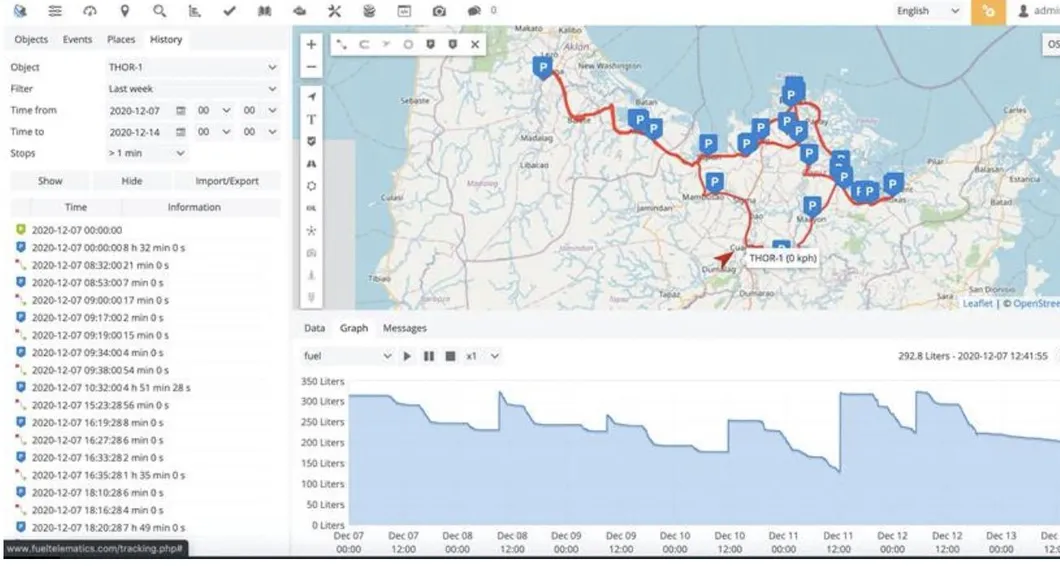

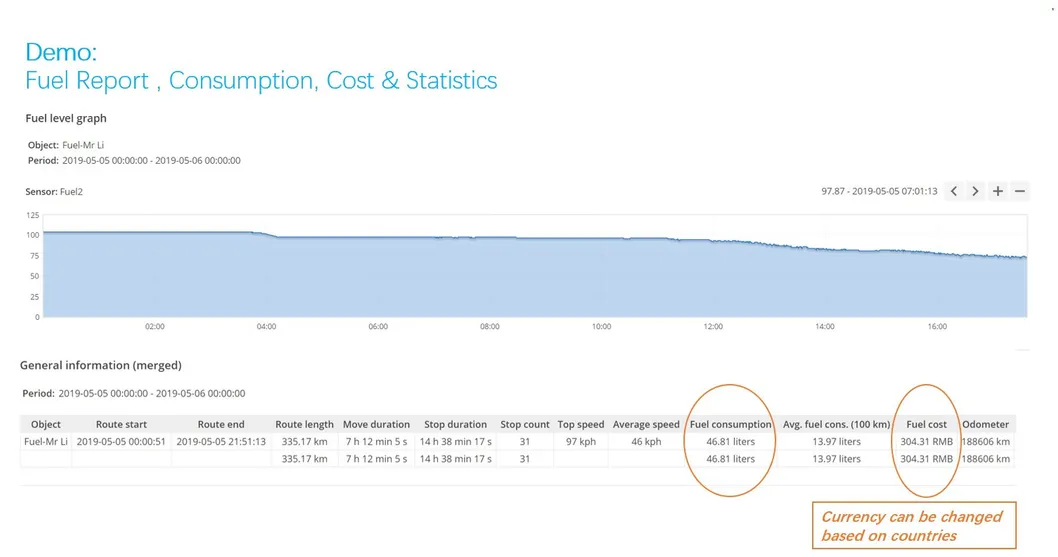

Then it sends the fuel height data to platform through GPS Tracker/Mobile DVR to generate the fuel quantity report after analysis.

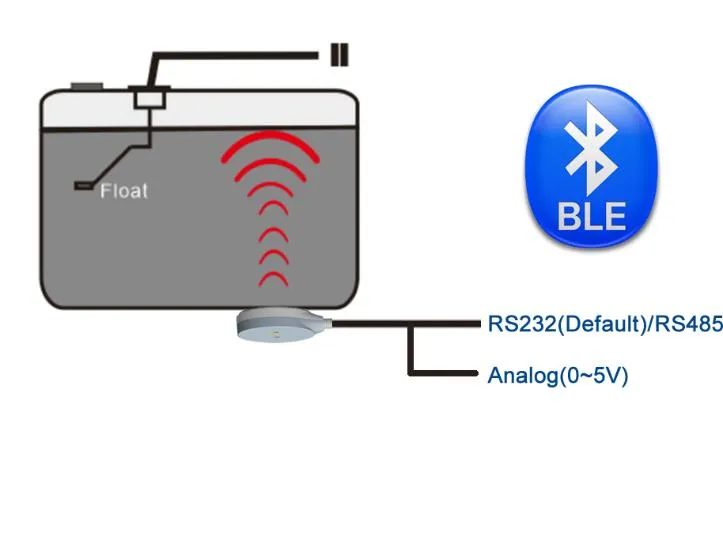

How does it work?
It uses ultrasonic probe to detect the fuel level height and carries out smart processing for height signal of fuel quantity through built-in program of the controllers box
Then it sends the fuel height data to platform through GPS Tracker/Mobile DVR to generate the fuel quantity report after analysis.
How does it compared with Capacitive Fuel Level Sensor?
The built-in algorithm will maintain the output fuel level data to be smooth, stable and accurate, which will not be affected by road status or shaking.
It is as good accuracy as capacitive fuel sensor, but no need to draw holes on tank.

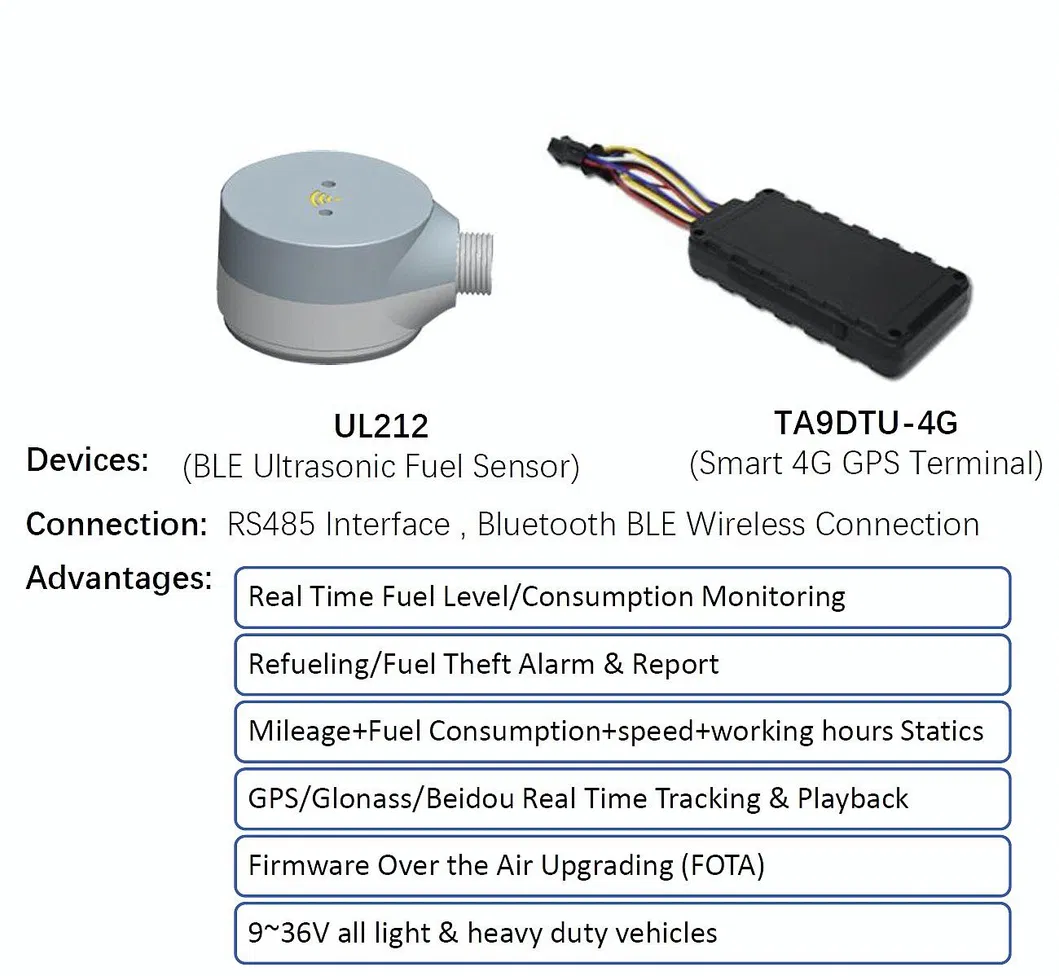

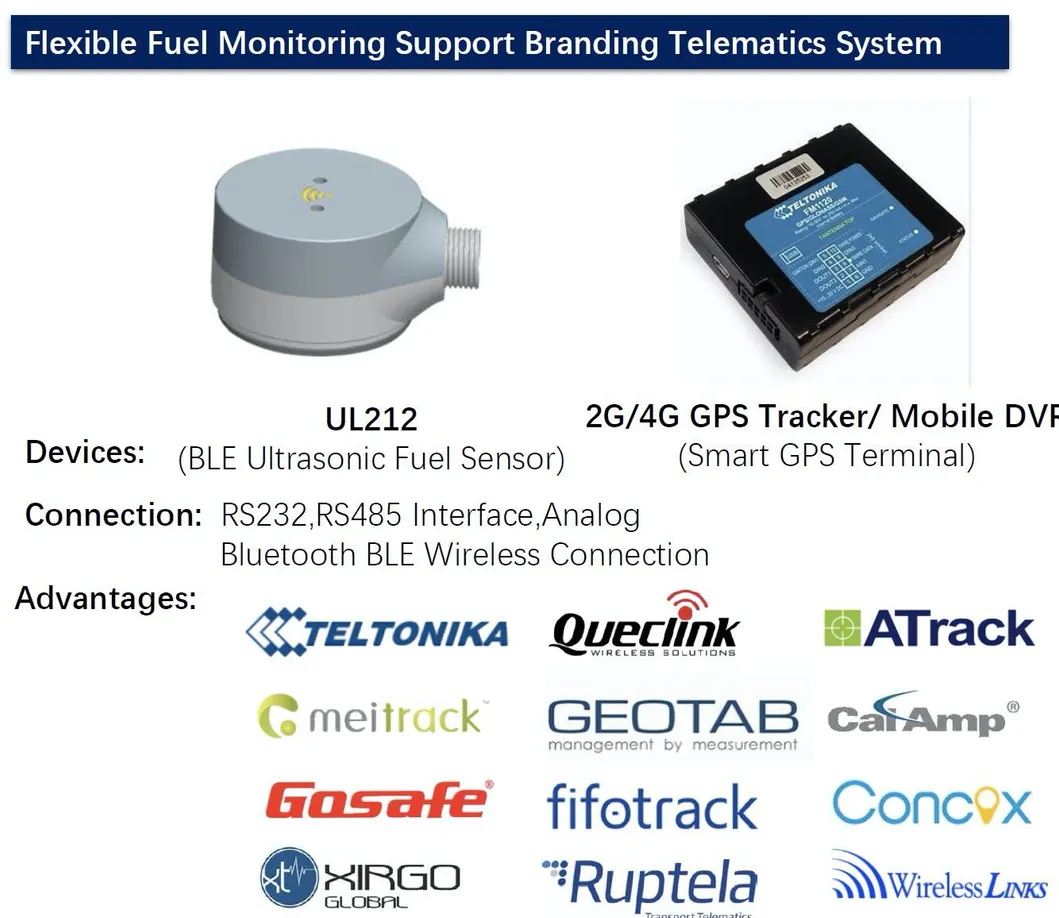

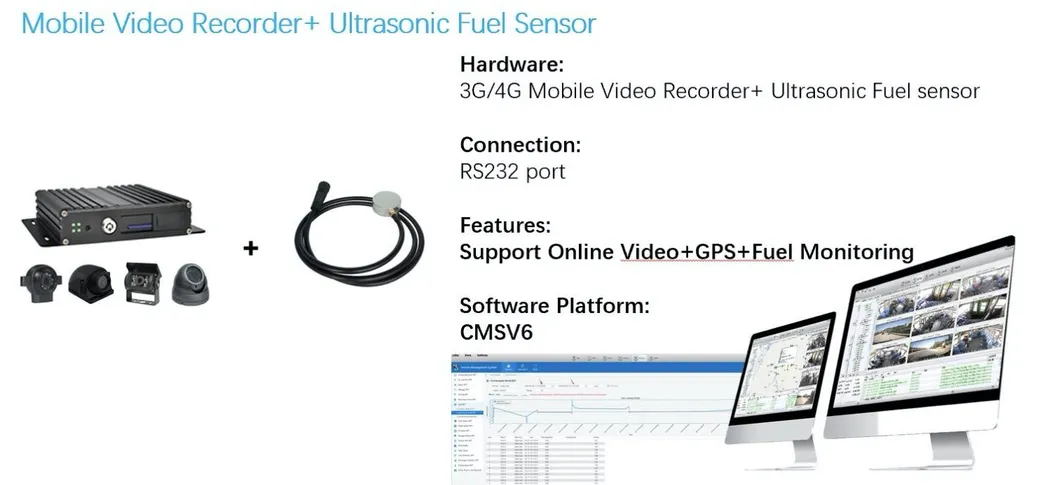

Recommended GPS Tracker that can work with our ultrasonic fuel sensor:
Teltonika: FMB640,FMB630,FMB125, FMC640
Queclink: GV200, GV200G, GV300
Tenet: TA7, TA9
Meitrack: T336, MVT600,MVT800,T1
Calamp: LMU-2000, LMU-2100, LMU-2600, LMU-2700 Series.
FiFotrack: A300, A600
