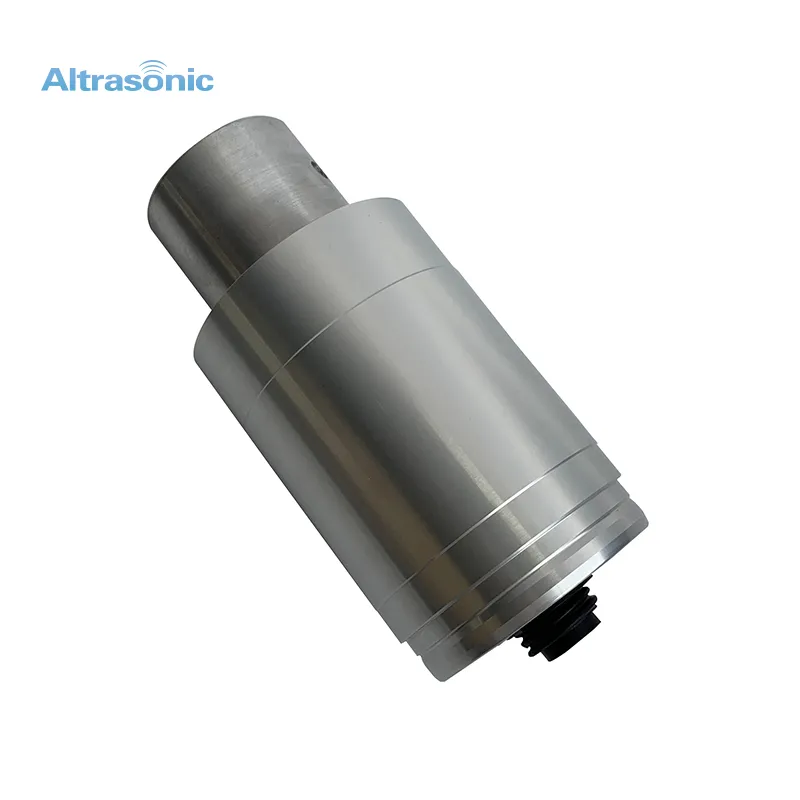

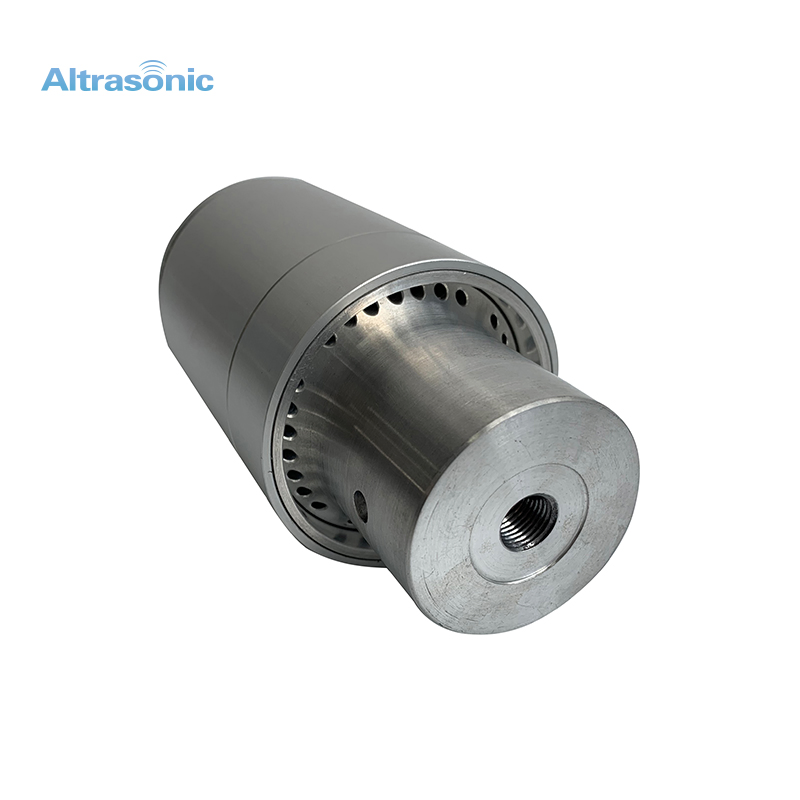

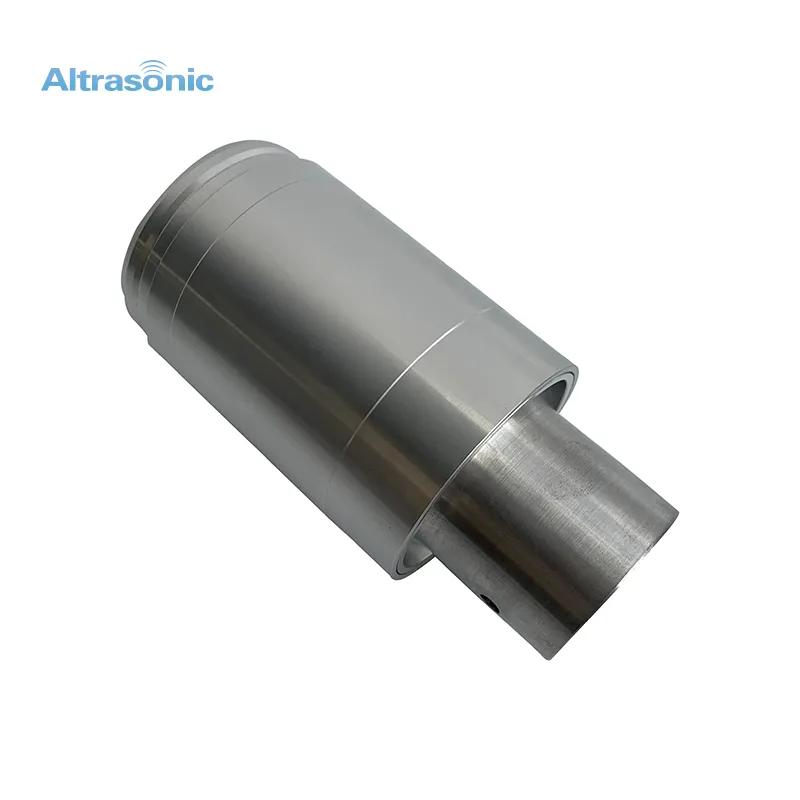

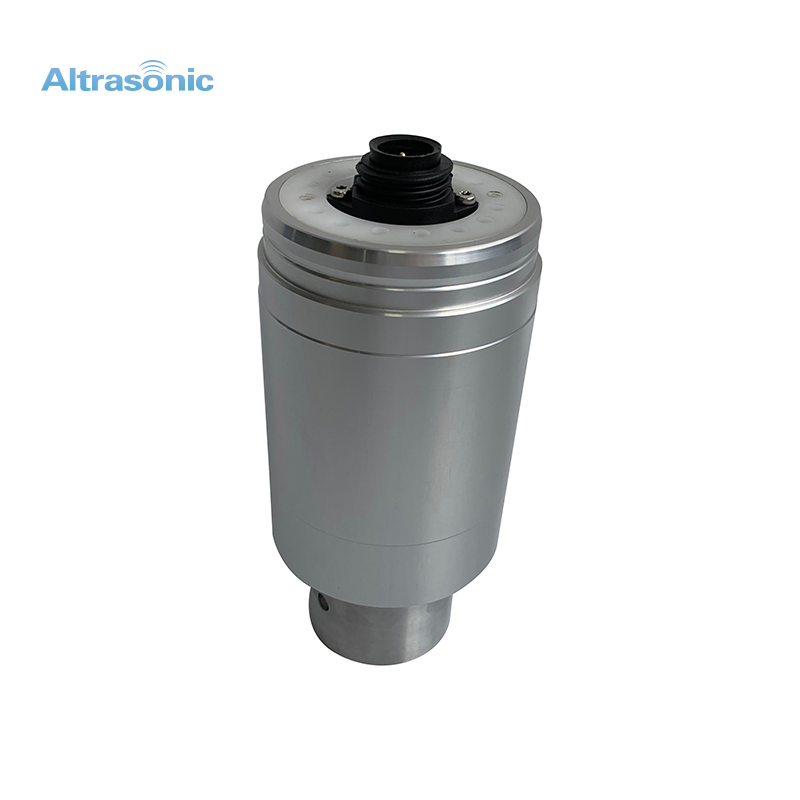

20kHz 2500wattultrasonic Welding Transducer Replacement Telsonic High Production Efficiency
Specification ModelHS-TL20Frequency20 khzOutput power2500 wattJoint bolt1/2-20 UNFCeramic disc Diameter50mmQty of ceramic discs4pcsCapacitance10nFApplicationWelding machine Description: The 2500 Watt 20 KHz Ultrasonic Converter Direct replacement for the Telsonic that delivers lower cost, rugged qua......
Send Inquiry
Product Description
| Model | HS-TL20 |
| Frequency | 20 khz |
| Output power | 2500 watt |
| Joint bolt | 1/2-20 UNF |
| Ceramic disc Diameter | 50mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 10nF |
| Application | Welding machine |
Description:
The 2500 Watt 20 KHz Ultrasonic Converter Direct replacement for the Telsonic that delivers lower cost, rugged quality and superior value.
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Competitive Advantage:
1. Titanium, aluminum, steel materials of horn optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
A: Most of product available, if you have special requirement, pls feel free contact us, We like customized, and wish grow up with customer together
Q: Could you advise to us the design based on our special requirements or based on our object samples?
A: Of course, Our mission is make your idea show in the products itself.
Q: How long do you make the order product?
A: Our main mark is fast shipment, usually 3-7days after all details confirmed.
Q: . Do you have operating manual?
A: Of course, we will put it with the goods together. Also we will upload video in youtube and inform you the related link.
Q: How about the quality?
A: We have export to many other customers from all over the world,the feed back is good,quality is the first for our factory, our main markets is USA and European etc. We have Germany office, all standard according to Germany.
Q: Could you do OEM?
A: Yes, of course.Everybody like OEM,We cherish the OEM VIP buyer like you,We can produce according customers' requirement,just send us your requirements and design of drawing and sample
Q: Could we as your agent?
A: Of course.We are looking for sole agent in some Country who have the willing to cooperate with us for long business term.
Q: Terms of Payment?
A: We have flexible and active payment if order huge.
Q: What custom requirements can you accept?
A: LOGO, product appearance, tool head size, packaging requirements, special customized requirements will be accepted, etc.
