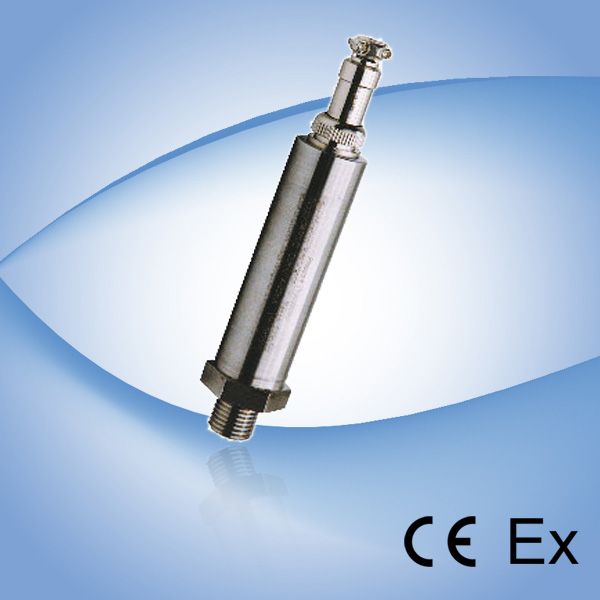

Pressure Transmitter with Aviation Connector for Liquids or Gas
Company overview:QuanYuan are certified according to ISO 9001:2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML). All electronic products are with good performance and high-level quality, which are widely used in electronic weigh......
Send Inquiry
Product Description
Company overview:
QuanYuan are certified according to ISO 9001:2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).
All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.
Description:
Specification:
QuanYuan are certified according to ISO 9001:2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).
All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.
Description:
Model: QP-83e
Feature:
Have the characteristics of high precision, good stability, long working life and high reliability. Small in size, light in weight, easy to installation.
Pressure connection are able to chosen by customers.
Electrical connection adopts aviation connector, easy to demount.
Suitable for measuring the gases and liquids.

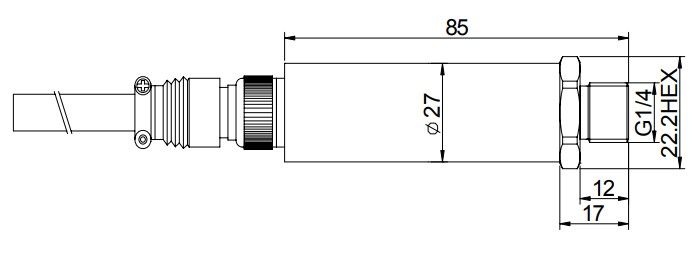

Dimensions: (unit: mm)
Specification:
| Measuring range | -100~0Kpa,0~5 Kpa…0~500 Kpa…0~100 MPa | ||
| Measuring media | Gases or liquids which are compatible to 316L stainless steel | ||
| Pressure type | Gauge(G),Absolute(A),Sealed(S) | ||
| Utimate overload | %FS | 200 | |
| Safe overload | %FS | 150 | |
| Combined accuracy | %FS | ±0.25%(standard);±0.5(Max) | |
| Long stability | ±0.1%FS/year(Standard);±0.2%FS/year(Max) | ||
| Power Supply | Vdc | 12~36(Standard24Vdc) | |
| Temperature coefficient of ZERO | %FS/10ºC | ±0.3%FS(≤100Kpa), ±0.2%FS(>100Kpa) | |
| Temperature coefficient of SPAN | %FS/10ºC | ±0.3%FS(≤100Kpa), ±0.2%FS(>100Kpa) | |
| Insulation resistance | Ohm | >500 @ 100Vdc | |
| Compensated temp. | ºC | -10~60 | |
| Operating Temperature | ºC | -30~80 | |
| Pressure connection | G1/4, M10x1,M14x1.5 , M12x1(Customized) | ||
| Material | Housing Material | Stainless steel(1Cr18Ni9Ti) | |
| Material of diaphragm | 316L Stainless steel | ||
| Environment protection | IP | 65 | |

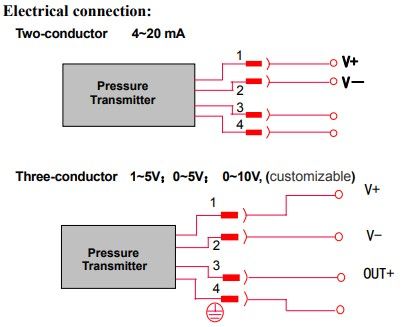

| Electrical connection | Aviation connector | ||
| Output signal | Analog | transmitter, mA (2 wires) | 4~20mA |
| transmitter, Vdc (3 wires) | 0~5V, 0~10V,1~5V, 0~20mA | ||
Appliaction:
Suitable for measuring the gases and liquids.
