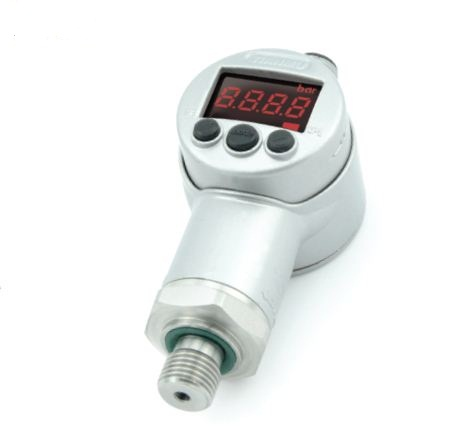

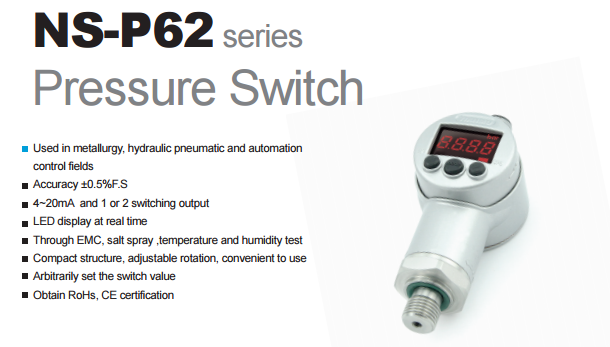

China 4-20mA Temperature Compensated Sealed Gauge Absolute Pressure Switch

Product Description

Overview:

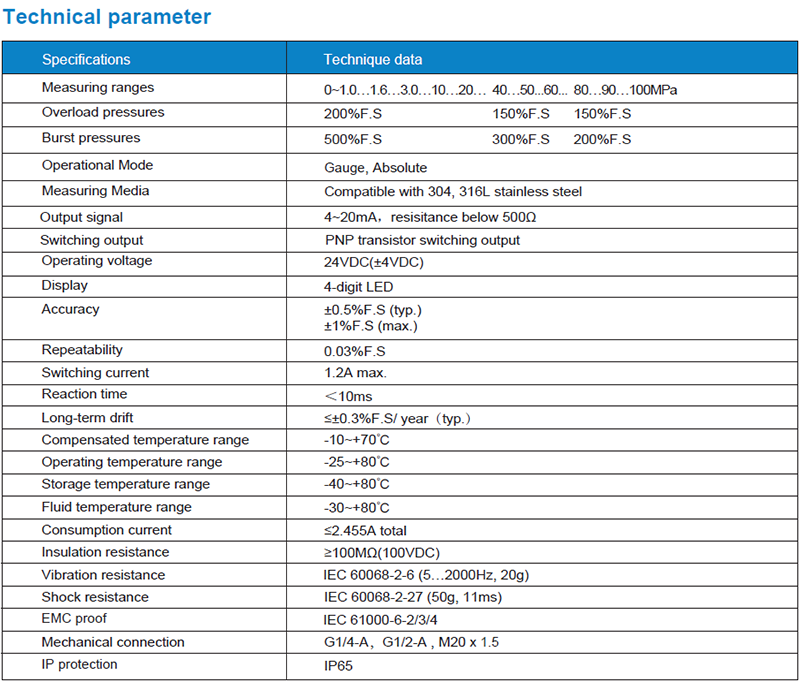

Place of Origin	Shanghai, China	Brand Name	NS	Model Number	NS-P62
Type of Sensor	Pressure Switch	Measurement Range	0~100Mpa	Output Signal	4~20mA, Switching output etc.

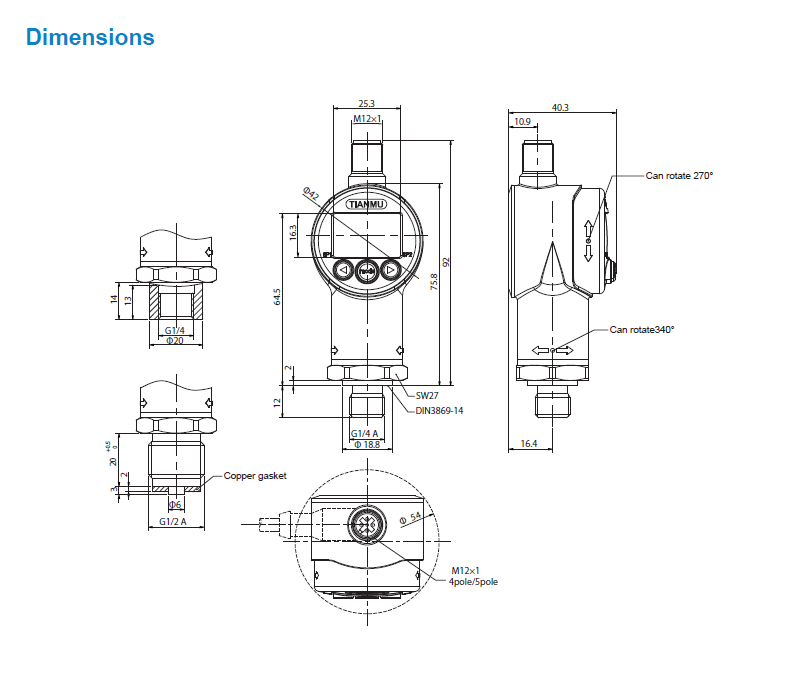

Accuracy	±0.5%F.S(typ.)	Electrical Connection	M12×1, 4-pole , 5-pole, male	Mechanical Connection	G1/4, G1/2, M20×1.5
Power Supply	24 Vdc	Operational Mode	Gauge , Absolute	Measuring Medium	Water,Fuel or Liquid Gas pressure
Material	Wetted Part Stainless Steel	Certificate	Obtain RoHs,CE, ISO9001 certification	Lead Time	2~3 weeks

Why you choose and trust TM Sensor?

You benefits from:

♦ Our P&D Laboratories: We have two P&D laboratories in China to develop products under the severe environment, we can conduct in-depth performance and cost-effective products development by the P&D labs.

♦ Factory Experience : More than 16 years of experience in manufacturing sensor.

♦ Supply Ability : At least 112,500 pcs sensor product per Month.

♦ Supply Area : All over the world, about 70 countries.

♦ Primary Customers : TYCO, Honeywell, Carrier, DAIKIN, LG, and SANY GROUP.

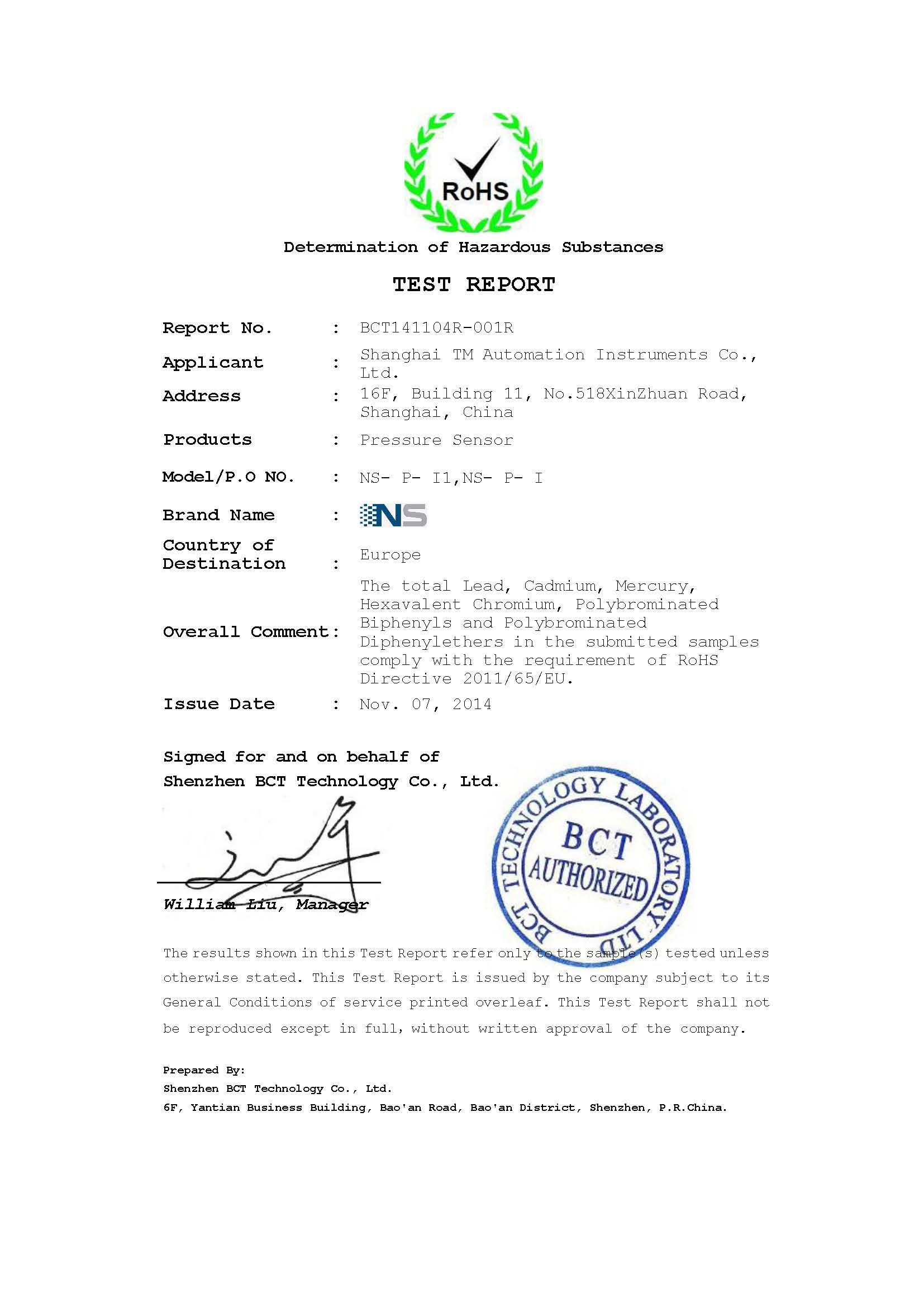

♦ Certificate : CE, RoHs, ISO9001.

♦ OEM/ODM : Accept, we are able to offer a total solution for your industrial monitoring system.

Maintenace and After-Service:

♦ Prompt response upon customer's feedback within 24 hours: A/S engineer team will be one-on-one service for you to exclude obstacles during using sensors.

♦ 12 months' warranty period: free sensor maintenance, except artificial damage, we guarantee bear all the freight back and forth.

♦ Product maintenance: TM guarantee maintenance the whole life of the sensors.

How to order:

♦ In order to recommend you the most suitable sensor and make an accurate
quotation,please provide the following information and send it to our sales when you are going to make an inquiry,
for example, now you want to buy a pressure sensor, you already have specification for

(1) Measurement Range: 10 Mpa

(2) Output signal: 1 switching output

(3) Mechanical Connection: G1/2 male

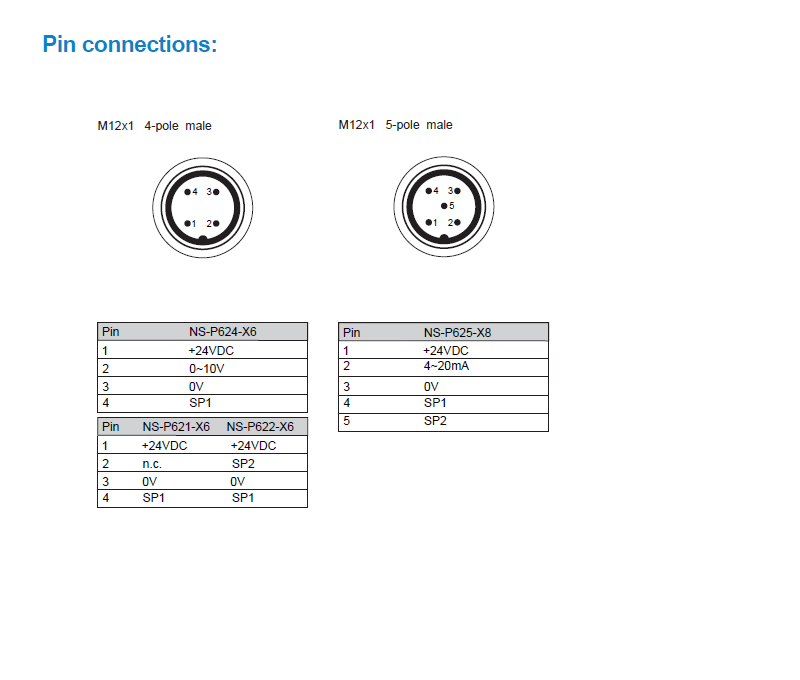

(4) Electrical Connection: M12 × 1, 4-pole male

(5) Operation Mode: Gauge

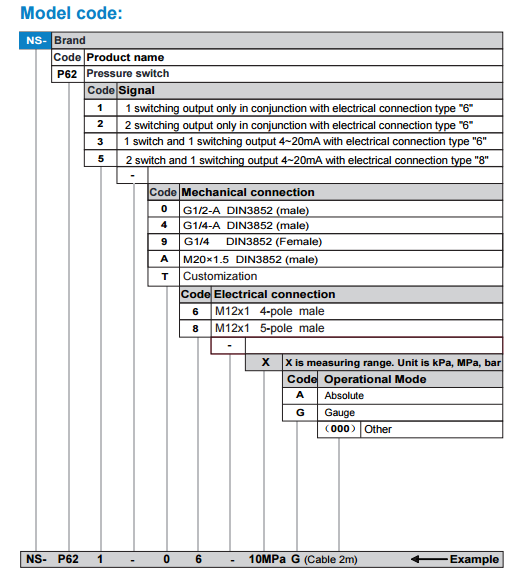

Check with our below ordering model guide, you have the model NS-P621-06-10MpaG.
send us this code, you will be received price and lead time instantly.
4-20mA Temperature Compensated Sealed Gauge Absolute Pressure Switch
