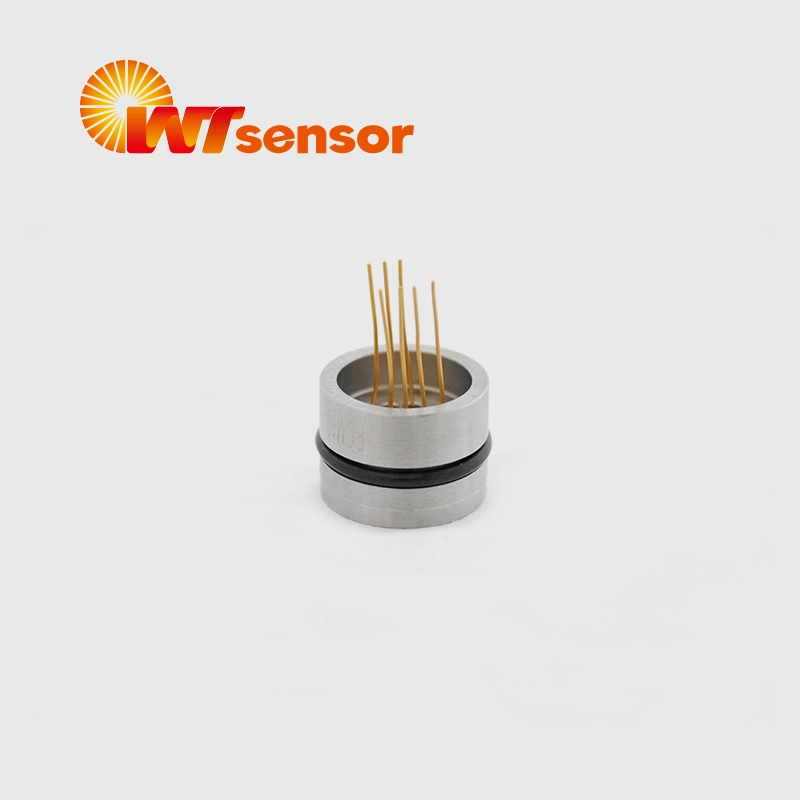

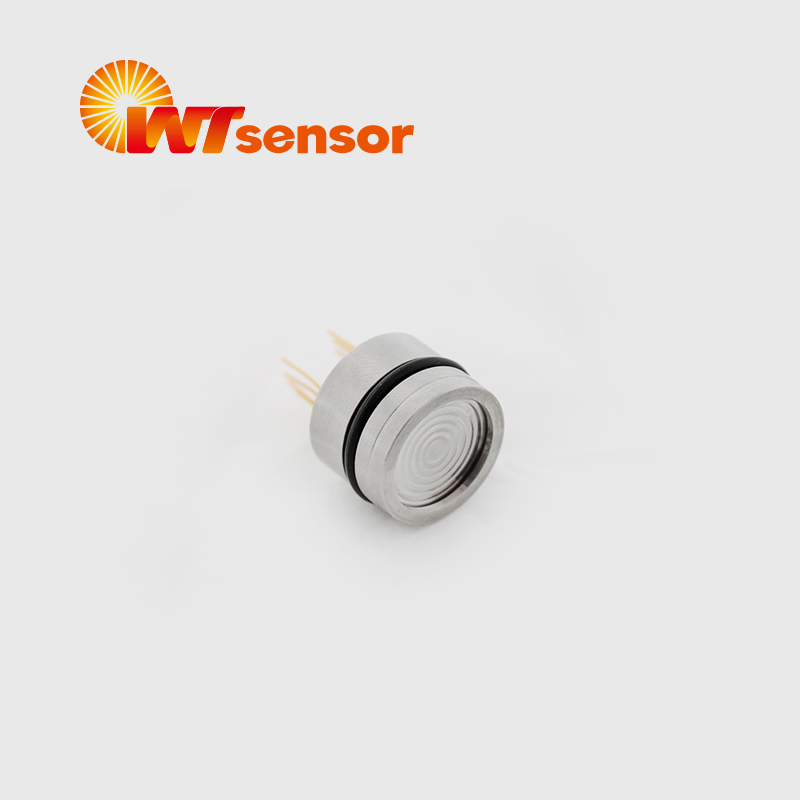

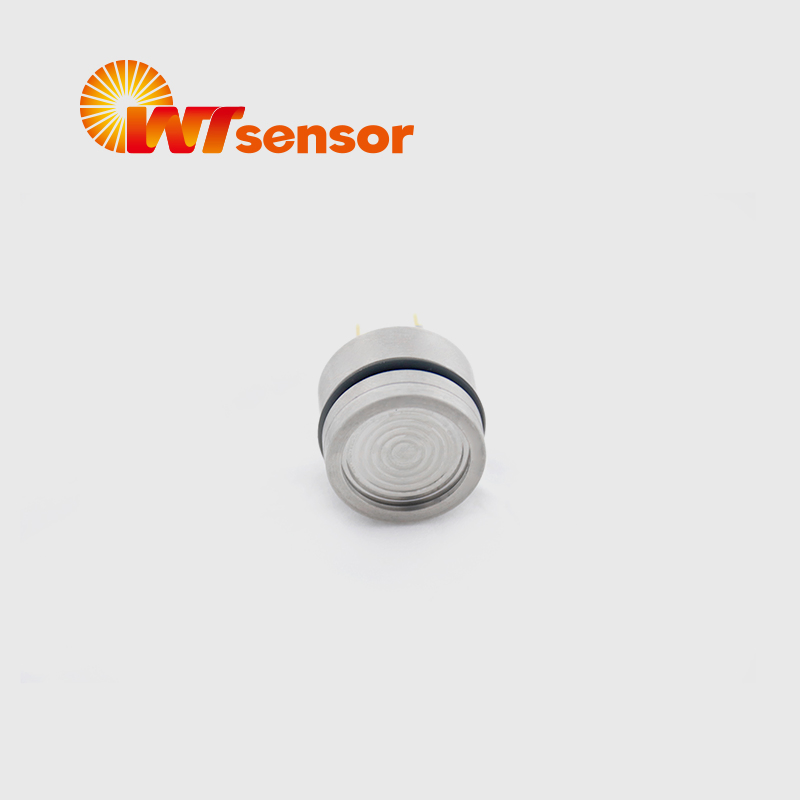

Amplified Output Sensor Oil Differential Pressure Sensor 5V Output Piezoresistive Pressure Sensor

Product Description

Amplified output (ASIC inside)
I²C
0.5 to 4.5V
4 to 20mA

Pressure range
Pressure range	35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa (bar and psi unit available)
Pressure reference	Gauge pressure \| Absolute pressure \| Sealed gauge pressure
Overpressure	300%F.S.(≤70Kpa) \| 200%F.S.(<25Mpa) \| 150%F.S(≥25Mpa)
Output signal
Output	4 to 20mA (24V excitation)
	0.5 to 4.5V ratio metric (5V excitation)
	I²C (3.3V excitation)
Specification
Accuracy (linearity, repeatability and hysteresis)	±0.5%F.S. (Typical)
Excitation	24VDC \| 5VDC \| 3.3VDC
Compensated temp.	0ºC-60ºC (≤35kPa) \| -10ºC-70ºC (Other ranges)
Operating temp.	-40-125ºC
Storage temp.	-40-125ºC
Zero temp. coefficient	0.02%F.S./ ºC (≥100kPa) \| 0.04%F.S. / ºC(<100kPa)
Span temp. coefficient	0.02%F.S. / ºC(≥100kPa) \| 0.04%F.S. / ºC(<100kPa)
Insulation resistance	>200Mohm/250VDC
Bridge resistance	Min.	Max.	Unit
	2600	5500	ohm
Long term stability	≤0.2%F.S.S/year
Vibration	20g (20-5000Hz)
Oil filling	Silicon oil (Typical)
O-ring	NBR
Housing and diaphragm	Stainless steel 316L
Wire connection	4 wire (typical) \| 5 wire (available) 39×φ0.015, Silicon shielded, 200ºC bearing
Weight	40g(approx)
Protection	IP65
