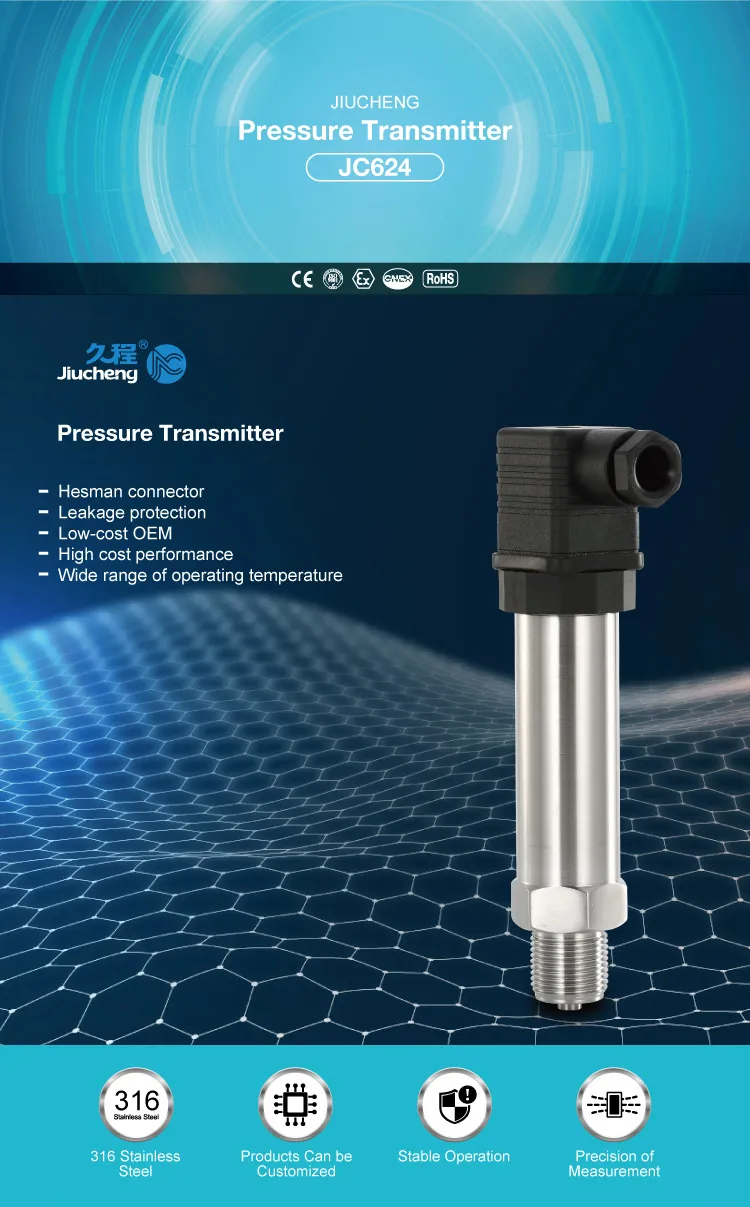

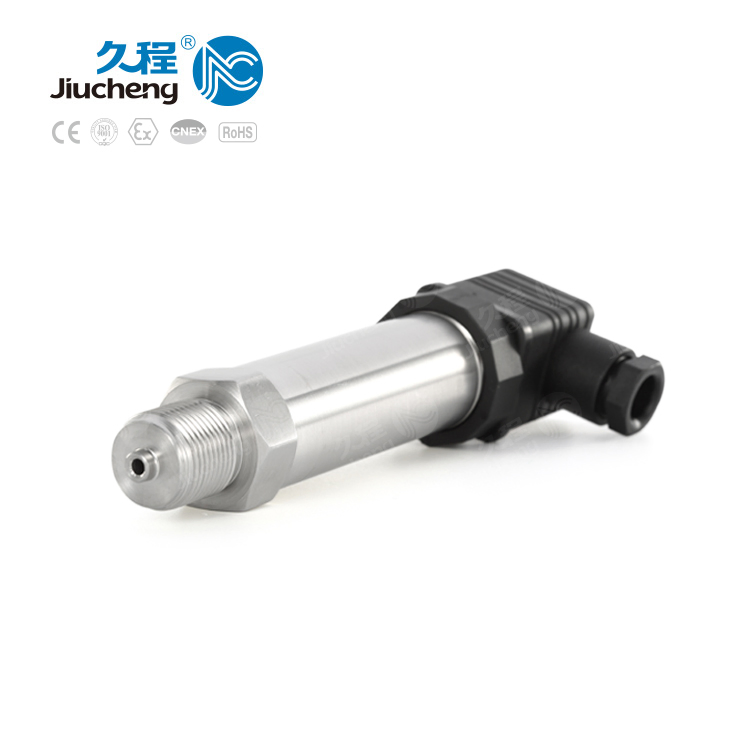

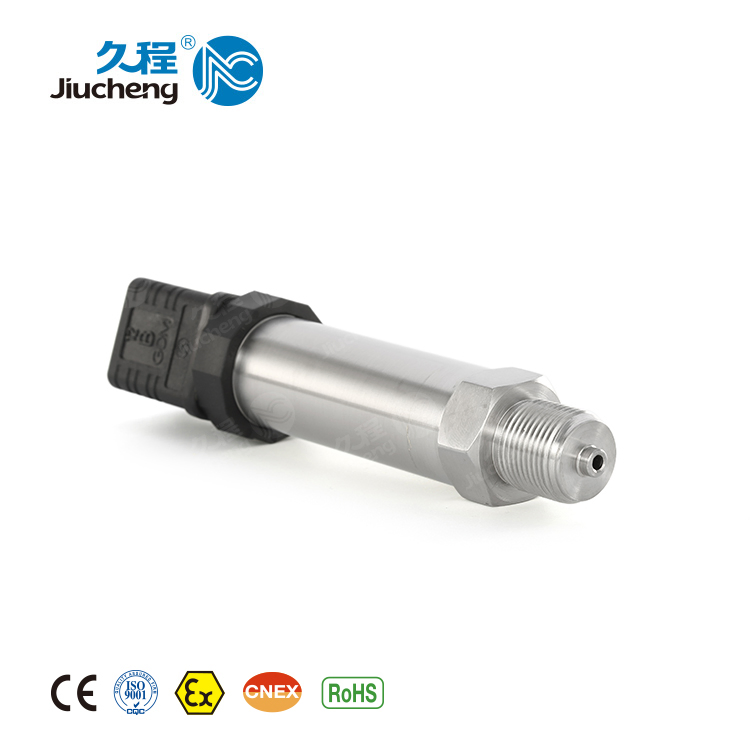

Jc624 Brake Oil Pressure Sensor Transmitter

Product Description

JC624 Brake Oil Pressure Sensor Transmitter Overview:
JC624 brake oil pressure sensor transmitter is a civil and industrial product with large consumption and low costs, for which a new standard of cost performance has been established. This series of products is widely used for pneumatic and hydraulic detection even in very harsh medium environment such as sewage, vapor, slight corrosive liquid and gas.
JC624 series is designed with foreign advanced micro-machined silicon pressure-sensitive resistance metal membranes. Micro-melting technology is adopted to solidify the high-temperature glass on the stainless steel isolating membrane. Glass cementation avoids the influence of temperature, humidity, mechanical fatigue and medium on the adhesive and material, thus enhancing long-term stability of the sensor in industrial environment. Meanwhile, the effect of P - N junction in a conventional micromechanical sensor can also be avoided.

JC624 Brake Oil Pressure Sensor Transmitter Features:
* Leakage protection
* Low-cost OEM
* Free of O-ring, silicone oil, and welding seam
* Millivolt or standard signal output
* High cost performance
* Wide range of operating temperature
* Single-piece integrated structure made of stainless steel

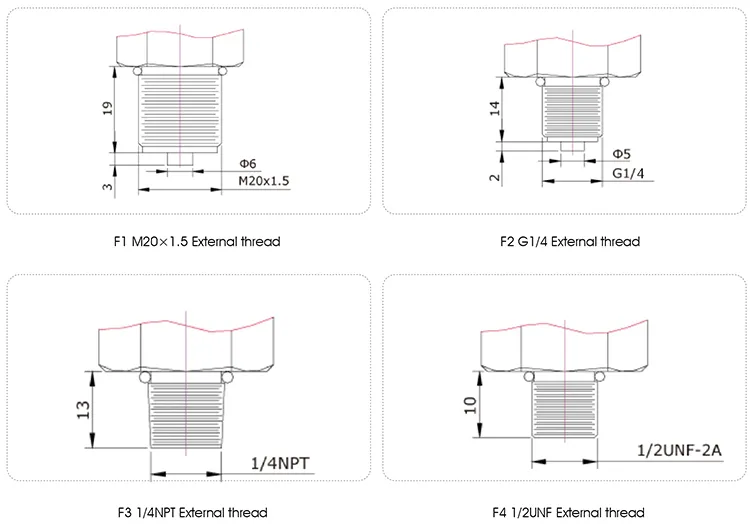

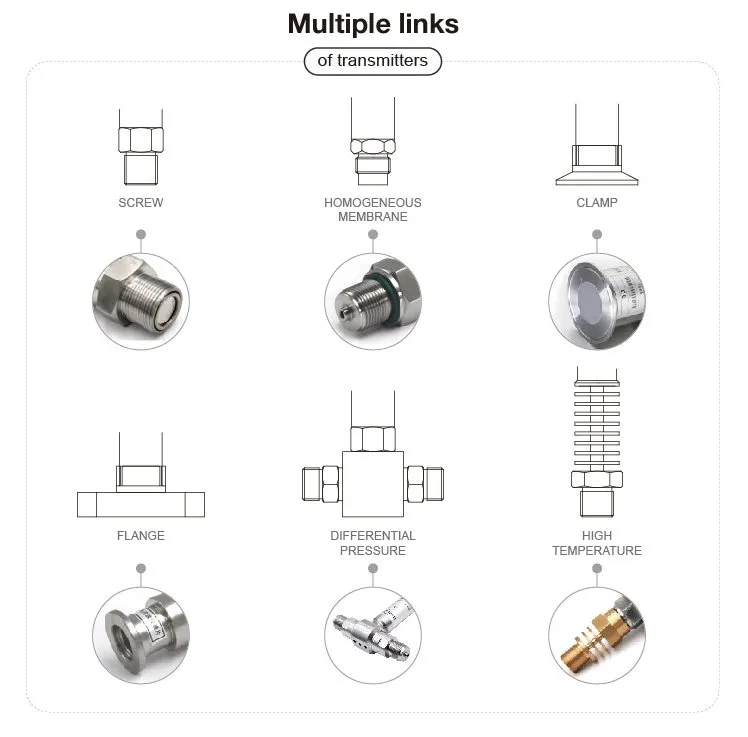

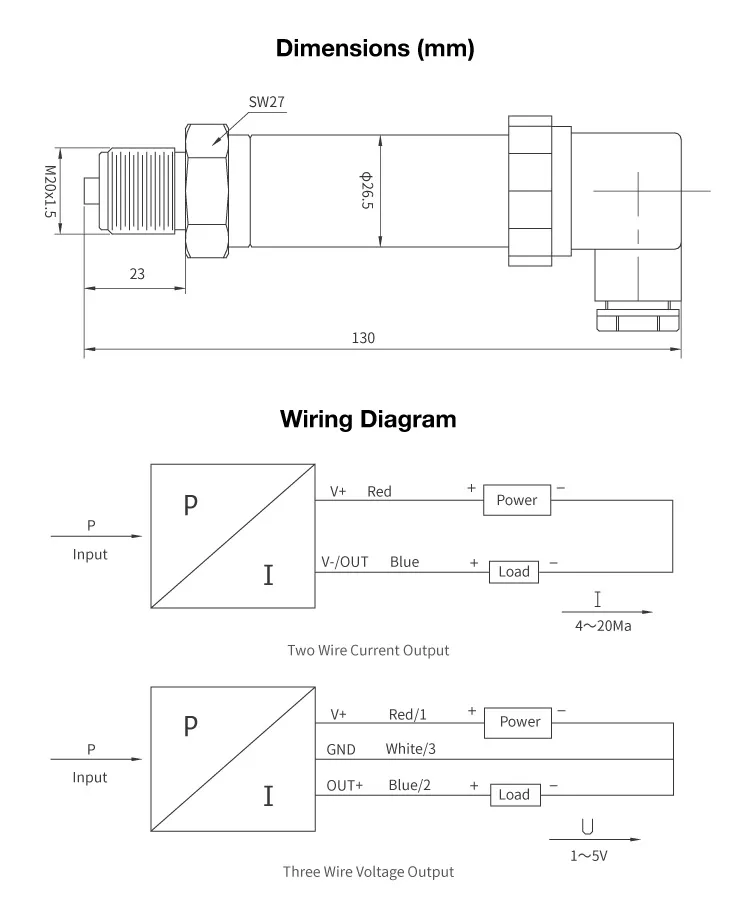

Process Connection Drawings:

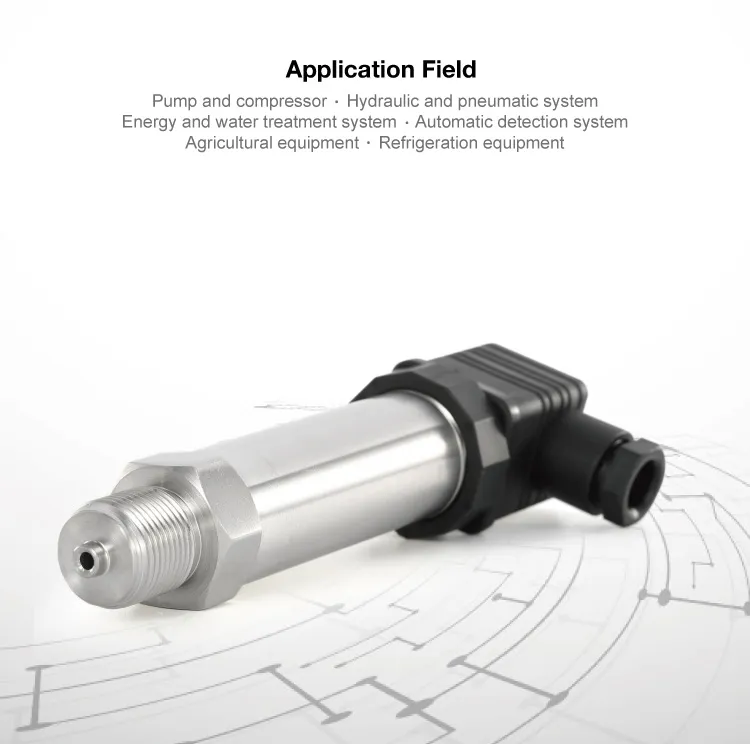

JC624 Brake Oil Pressure Sensor Transmitter Application:
* Pump and compressor
* Hydraulic and pneumatic system
* Energy and water treatment system
* Automatic detection system
* Agricultural equipment
* Refrigeration equipment --- Freon or ammonia

Technical Parameters:

Measuring range	0~100KPa...70MPa
Pressure type	Gauge pressure or absolute pressure
Permissible overpressure	Two times of full-scale pressure
Measuring media	The gas or liquid compatible with 316 stainless steel
Power supply	5V DC	12~36 VDC (generally 24V DC)
Signal output	≥70mV DC	4-20mA, 1-5 V, 0~5 V, 0.5-4.5 V
Accuracy(nonlinearity + hysteresis + repeatability)	±0.5%FS(typical value)
Long-term stability	±0.25%FS/year
Range of operating temperature	-20~+85ºC
Range of compensation temperature	-10~+50ºC
Temperature performance	Zero temperature coefficient:±0.04%FS/ºC(typical); ±0.06%FS/ºC(maximum)
	Sensitivity temperature coefficient:±0.04%FS/ºC(typical) ;±0.06%FS/ºC(maximum)
Thermal hysteresis	±0.1%FS(typical)
Electrical connection	PG7cable connection	Connector DIN43650
Enclosure protection class	IP67(cable type)	IP65(socket type)
Response time(10%~90%)	≤3ms
Load resistance	≤(U-12)/0.02 Ω
Insulation resistance	100MΩ,500VDC
Safety and explosion protection	Ex ia II CT6
Vibration error	≤±0.01%FS(Axes X,Y,Z,200Hz/g)
Weight	Approx. 250g

Ordering Information:

JC624	Brake Oil Pressure Sensor Transmitter
	Code	Product type
	T	Pressure transducer
	S	Pressure sensor
		Pressure type	Gauge pressure (G may not be indicated);absolute pressure(A)
			Code	Overall accuracy (linearity + repeatability + hysteresis)
			0	±1%FS
			1	±0.5%FS
				Code	Signal output
				A1	4~20mA
				V1	1~5V DC
				V2	0~5V DC
				V3	0.5~4.5V DC
				V4	≥70 mv DC (pressure sensor)
					Code	Additional functions

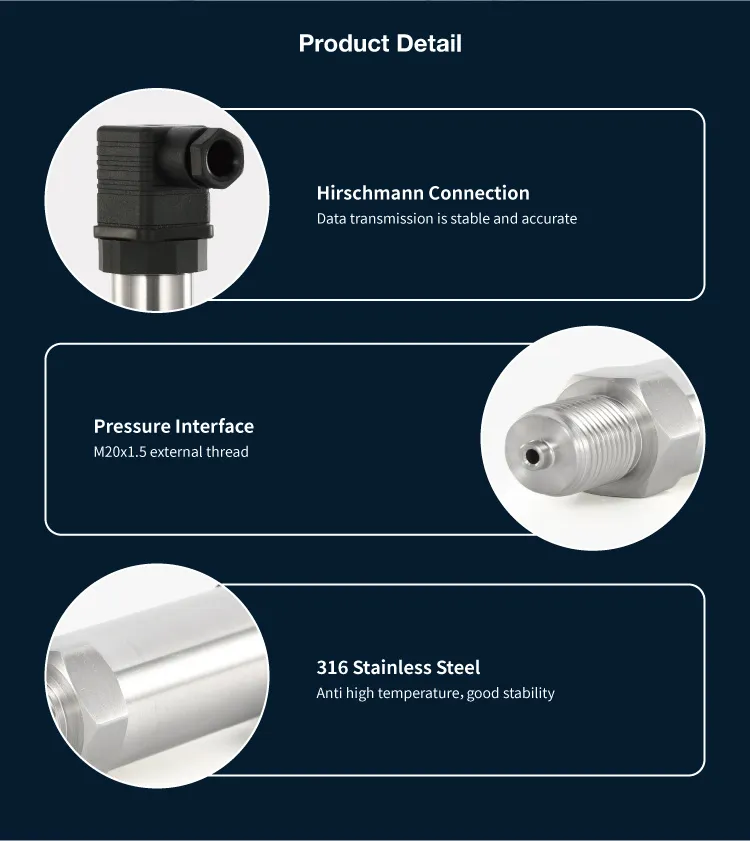

					F1	M20x1.5 external thread
					F2	G1/4 external thread
					F0	Special
					W1	Cable type(IP67,2m)
					W3	Aerial socket type(IP65)
					E	Intrinsically safe explosion-proof type Ex iaIICT6
JC624 T (0~1.6MPa) -1 -A1 -F1 -W3 Brake Oil Pressure Sensor Transmitter

Tips for Type Selection
* The medium to be measured shall be compatible with the material contacting with the product.
* As an additional function code for type selection, the code "E" for intrinsically safe explosion-proof type Ex iaIICT6 denotes that power source must be supplied via safety barrier
* For other special requirements, please discuss with us and clearly indicate them in the order.
