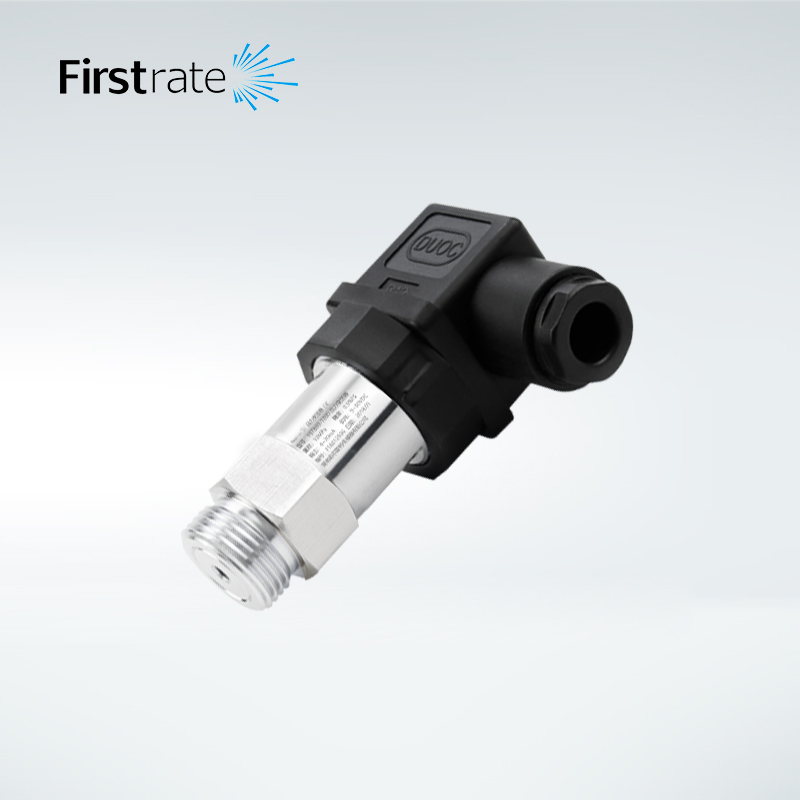

Fst800 -1000 2 3 Wire 24V 5V DC Ceramic Capacitive Pressure Sensor Transmitter

Brief introduction

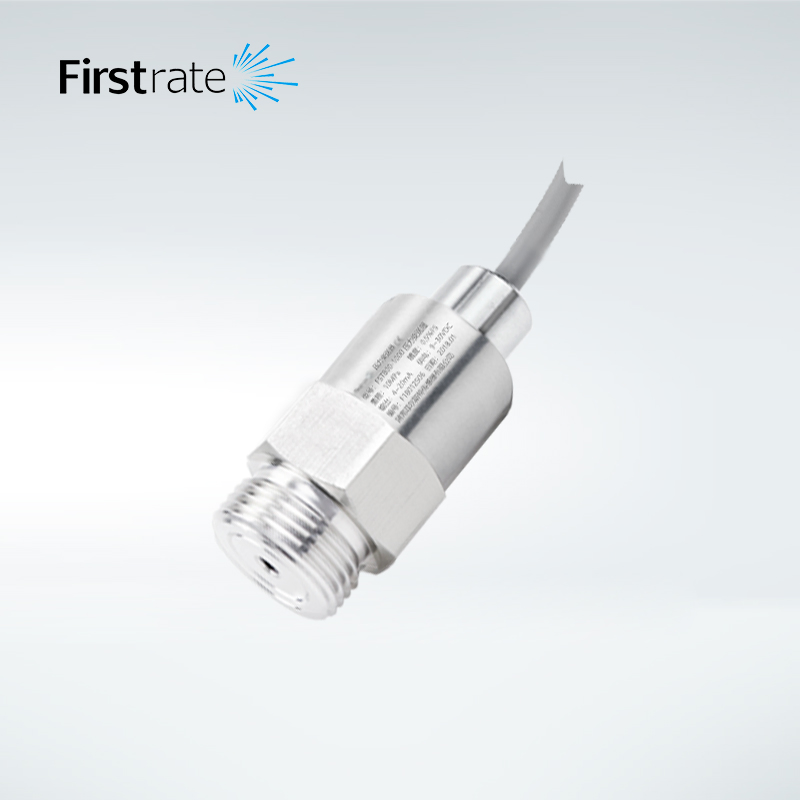

The FST800-1000 0-10v 50 Bar Universal Industrial Ceramic Pressure Transmitter is manufactured by Firstrate Sensor, adopting a special process of ceramic materials. The ceramic material has high elasticity, corrosion resistance, abrasion resistance, impact resistance and vibration resistance characteristics and good thermal stability. The transmitter is with features of high accuracy, good stability, high output, wide range. It is widely used in automobiles, home appliances, air compressors, refrigerators and other equipments.
Features
♦ High accuracy, good stability ♦ Excellent anti-corrosion, anti-wear, anti-vibration ♦ Wide temperature working range, small size
Standard Range
Pressure type: gauge pressure
Pressure range (bar) : 10 16 25 40 50 bar
Technical Index
Signal output	4~20mA    0-5VDC    0-10VDC
Signal line specification	2wire          3wire       3 wire
Power supply	9~30VDC  9~30VDC  15~30VDC
Accuracy	±0.5%FS   ±1%FS
Working Temperature	-20~+125°C
Storage Temperature	-40~+125°C
Overload Pressure	200% FS
Burst Pressure	300% FS
Impact (11ms)	100g
Environmental Protection	IP65
Wetted parts	Stainless steel

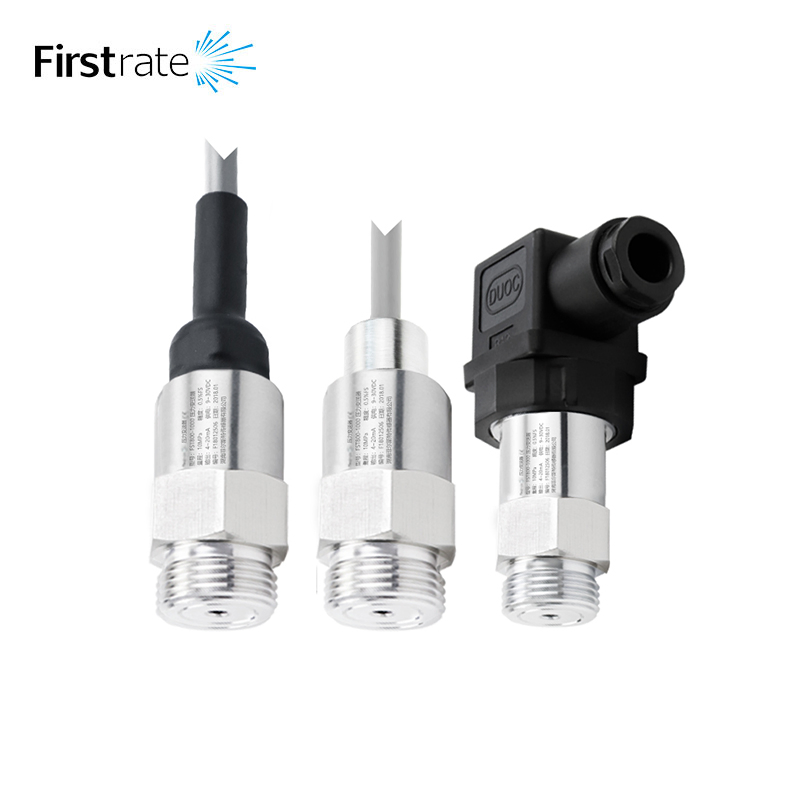

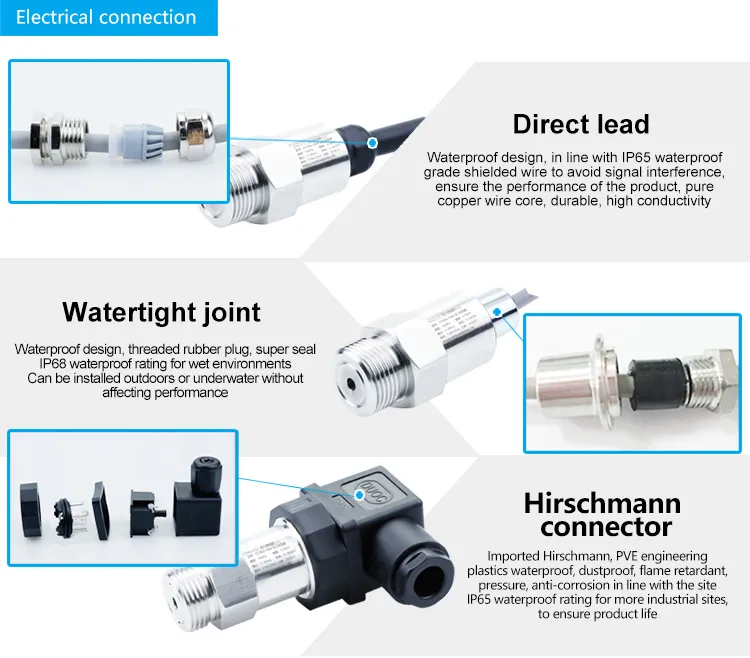

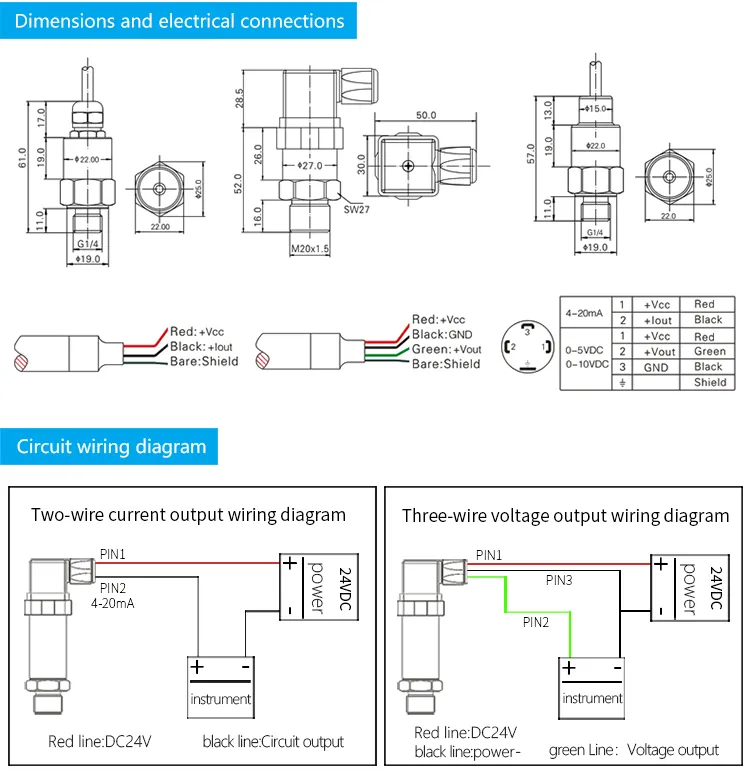

Electrical connection	Direct Lead    Hesman connector   Watertight Connector (IP68)
Pressure connection	M20*1.5  G1/4   NPT1/4  G1/2

Applicable Scope

♦ Industrial process testing and control, Environmental controls ♦ Hydraulic and pneumatic equipment, servo valves and transmission ♦ Air compressor, refrigeration, water treatment industry ♦ Chemical and medical instrumentation and other fields

About Hunan Firstrate Sensor Co.,ltd

Hunan Firstrate Sensor Co.,ltd is a high-tech joint venture specialized in researching, manufacturing, and sales of sensors and transmitters. Our products include Pressure sensors and Transmitters, Temperature sensors and transmitters, Liquid-level sensors and Transmitters, Wind Speed & Direction sensor, and Intelligent Control Instruments. They are widely used in the field of aviation & aerospace, national defense & military project, engineering machinery, railway & urban railway system, automotive electronics system, HVAC, air compressor, textile, petrochemical, coal mines and other industrial automation control.  FST800-1000 2 3 Wire 24V 5V DC Ceramic Capacitive Pressure Sensor Transmitter

More About Firstrate Company

Firstrate is committed to the research & development of international leading Microfused technology, adopts the Microfused Silicon Strain Gauge production technique ,CAN ( Controller Area Network) technology and wide temperature digital compensation data system. MEMS sensors have been recognized and highly praised by scientists and engineers from industrial automation. At present, our company has declared 12 national invention patents, 30 plus utility-model patents. And have got the certificates of CMC, CE, Safety & Flame-proof certification and ROHS.  FST800-1000 2 3 Wire 24V 5V DC Ceramic Capacitive Pressure Sensor Transmitter

Price, Package, Service

1, Price : EXW,  FOB,  CFR  Changsha

2, Payment: 100% T/T in advance .
3, Packing : standard export packing , including instructions and certificate
4, Leading time : 7-10 working days.
5, OEM avaliable
6, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty

Packing:standard export packing , including instructions and certificate/ Carton Packing, Water Proof, Shock Resistance
