Product Description

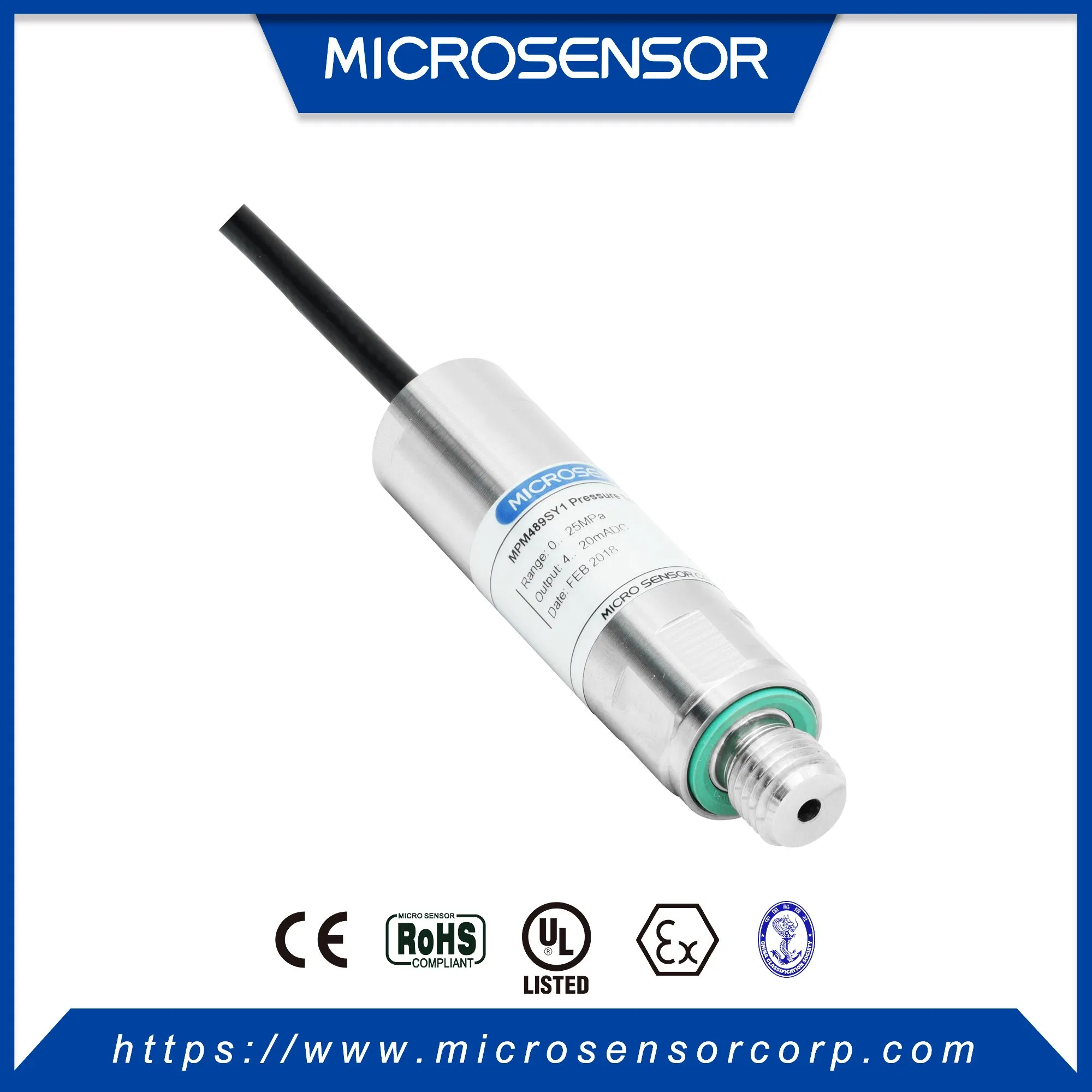

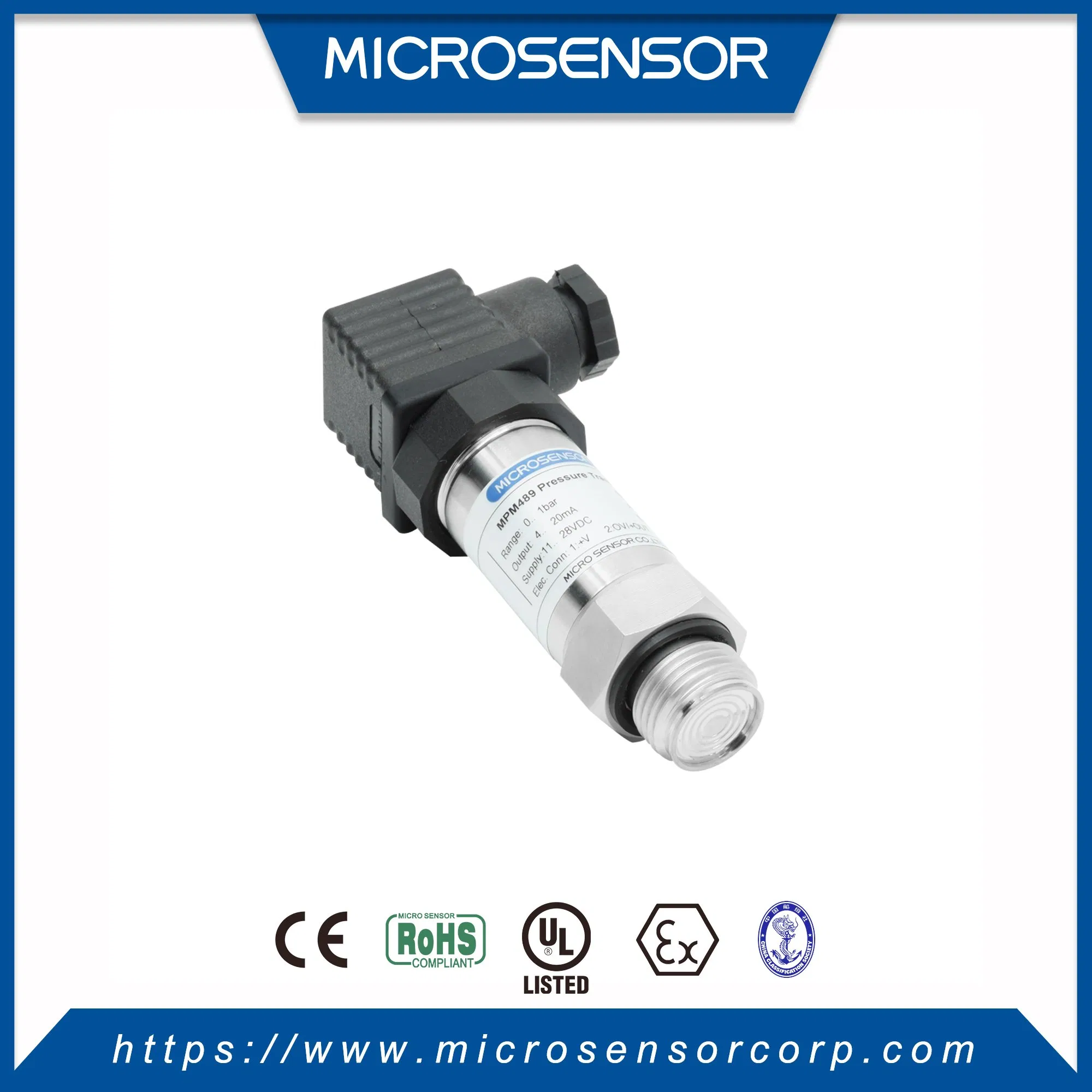

4-20mADC ATEX Intrinsic Safe Water Tank Liquids 10MPa Water Tank Liquids Oil Fluids Pressure Transmitter MPM489

Features:
  1.      Reliable
  2.      Stable
  3.      Piezoresistve
  4.      Gauge, absolute, sealed gauge
  5.      IP65 protection

Certificates:
  1.      CE
  2.      Intrinsic safe
  3.      EXD
  4.      CEs
  5.      RoHS

Specification

Pressure range	-0.10~0.01100MPa
Overpressure	1.5 times FS or 110MPa (min. value is valid)
Pressure type	gauge/ absolute / sealed gauge
Process connection	M20×1.5 male waterline seal (or on your demand)
Accuracy	0.5%FS
Long term stability	max. ±0.3%FS/year
Zero thermal drift	0.1%FS/ºC(≤100kPa);0.05%FS/ºC(>100kPa)
Span thermal drift	0.1%FS/ºC(≤100kPa);0.05%FS/ºC(<100kPa)
Compensation temp.	0~50ºC
Application temp.	-30~80ºC, intrinsic safe version: -10~60ºC , EXD: -20~60ºC
Storage temp.	-40~120ºC
Power supply	11~28VDC,intrinsic safe version supplied by safe barrier
Output signal	4~20mADC(2-wire), 0/1~5VDC(3-wire)
Load	≤(U-10)/0.02Ω(2-wire), ≥10k(3-wire)
Housing protection	IP65
Electric connection	DIN43650 plug

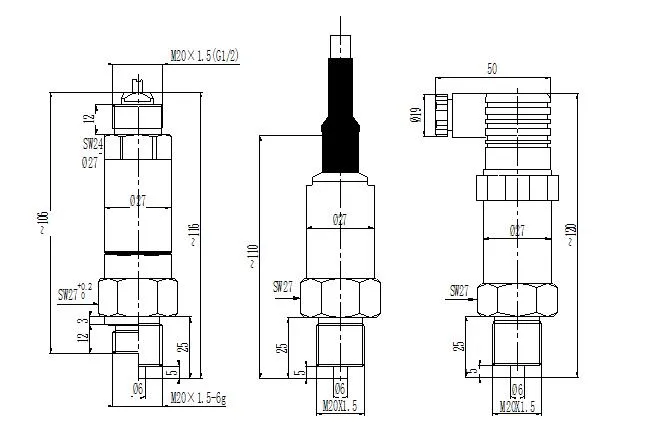

Outline Construction:
4-20mADC ATEX Intrinsic Safe Water Tank Liquids 10MPa Water Tank Liquids Oil Fluids Pressure Transmitter MPM489

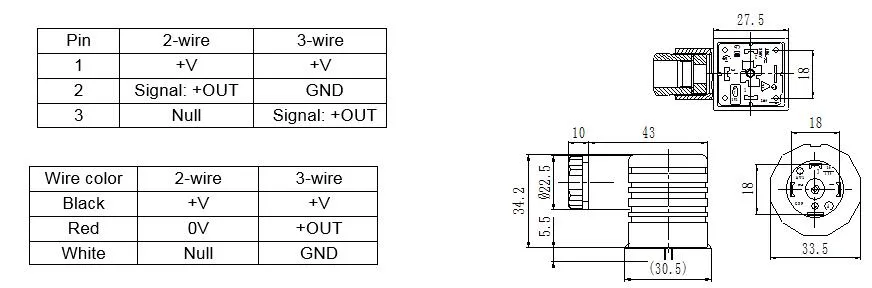

Electric Connection:
4-20mADC ATEX Intrinsic Safe Water Tank Liquids 10MPa Water Tank Liquids Oil Fluids Pressure Transmitter MPM489

Order Information

MPM489

Pressure Transmitter

Range

Pressure range: -0.10~0.01100MPa

[0~X]kPa or MPa

X:the actual measured pressure

Code

Output signal

E

4~20mADC

F

1~5VDC

J

0~5VDC

Code

Construction material

Diaphragm

Pressure port

Housing

22

SS 316L

SS

24

SS 316L

25

Tantalum

SS

35

Tantalum

Hastelloy

SS

Code

Others

B1

Plug connection

B2

Cable connection

PC1

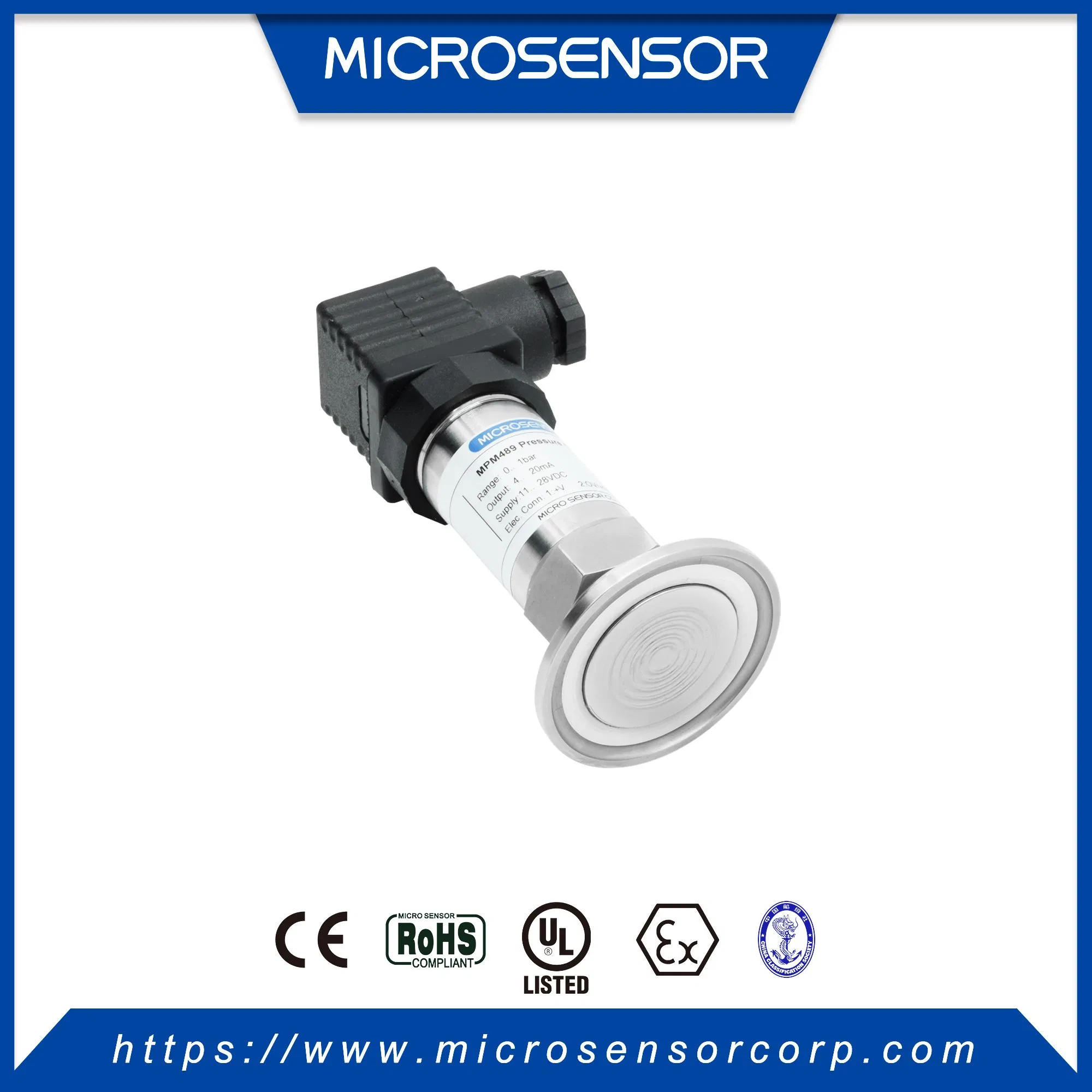

Flush diaphragm, M20×1.5 male

PC3

Flush diaphragm, G1/2 male

M3

3 1/2 digits LCD digital indicator

M4

3 1/2 digits LED digital indicator

i

Intrinsic safe version: ExiaIICT6

T

Ship-use

d

ExdIICT6

C1

M20×1.5 male, face type seal

C3

G1/2 male (used for flush diaphragm type)

C5

M20×1.5 male, waterline seal

G

Gauge

S

Sealed gauge

A

Absolute

MPM489 [0~100kPa] E 22 B1C5G the whole spec
