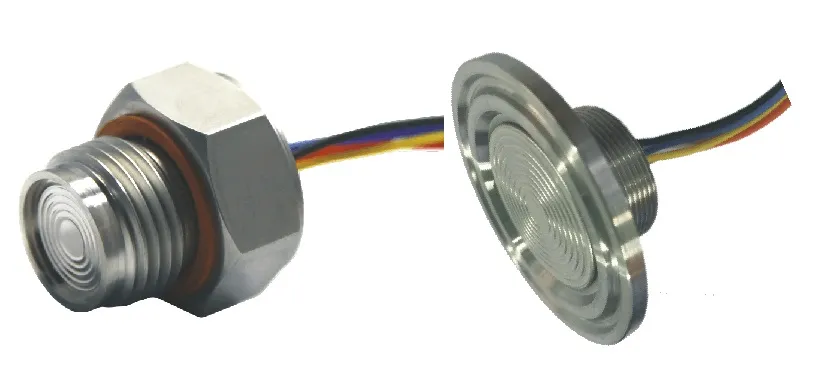

0.25% Compressor Sensor Silicon Piezoresistive Pressure Sensor Core

0.25% Compressor Sensor Silicon Piezoresistive Pressure Sensor core

 Model: QP-83E
Range: -100~0KPa, 0~5KPa….0~500KPa….0~100 MPa





Feature:

The QP-83E pressure sensor is low cost, high cost performance civil and industrial products.This sensorwith its good reliability, flexibility and diversity, widely used in industrial process control, pumps and compressors, hydraulic/pneumatic system, automatic test system, energy and water treatment systems,agricultural machinery equipment, refrigeration system,engineering machinery,hydrology, the scene of the industrial process pressure measurement and control.

    qp-83E series pressure sensor adopts 17-4PH stainless steel single integral structure processing,Has good performance of overload, pressure interface no welds, no oil or other organic matter, sealed performance is good. Sensor sensitive device adopts glass melting technology solid sintering on pressure seat,the sensor of high temperature resistant, shock resistant performance significantly increase,Ensure the sensor in harsh industrial environments, long-term stability and reliability,durable.Output signal big and can be customized(0-100mV).

Characters:

• Accuracy: ≤±0.5%F.S.
• Wide working temperature scope
• Automation temperature compensation.
• Excellent overload, Shock and erosion.
• Anticorrosive diaphragm and port.
• OEM economic selection
• Mini dimension types
• 2 times range standard overload.
• 3 times range burst pressure
• CE approved

Applications:

• Engine Fuel Pressure measurement
• Refrigeration and Air Compressor
• Hydraulic pressure controller
• Petrochemical industry
• Air-conditioner production line testing
• Pressure meter
• Laboratory equipment
• Water pressure measurement
• Saving water to irrigate
• Liquid and Gas pressure measurement
