Retro-Reflective Photo Sensor with 7m Distance for Mine Doors
Product DescriptionPMF50 series photoelectric sensor is the best-selling model at industry door , automatic door and parking fields. It includes PMF50R retro-reflective type photocell sensor, PMF50T opposed type photocell sensor and PMF50D diffused type photocell sensor. The product with aspheric o......
Send Inquiry
Product Description

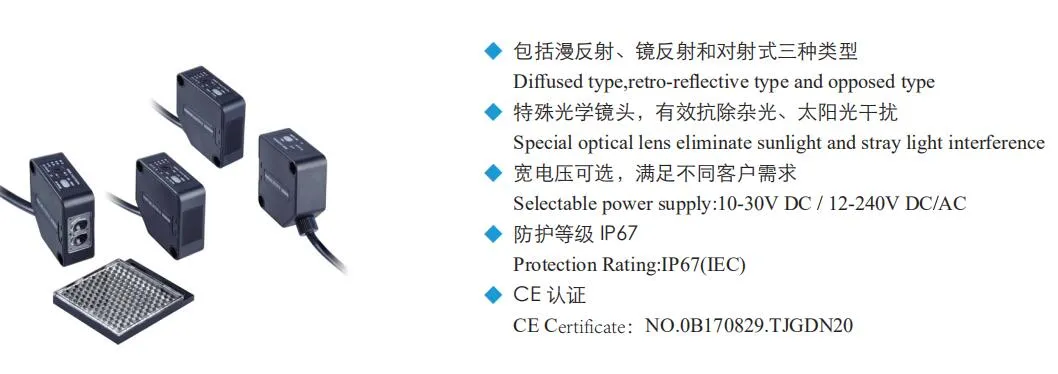

PMF50 series photoelectric sensor is the best-selling model at industry door , automatic door and parking fields. It includes PMF50R retro-reflective type photocell sensor, PMF50T opposed type photocell sensor and PMF50D diffused type photocell sensor. The product with aspheric optical lens can eliminate light interference effectively and Red LED indicates work status. Supply voltage 10-30V DC & 12-240V DC/AC for selecting which can meet different demands of customers. CE certificate and Protection rating IP67.

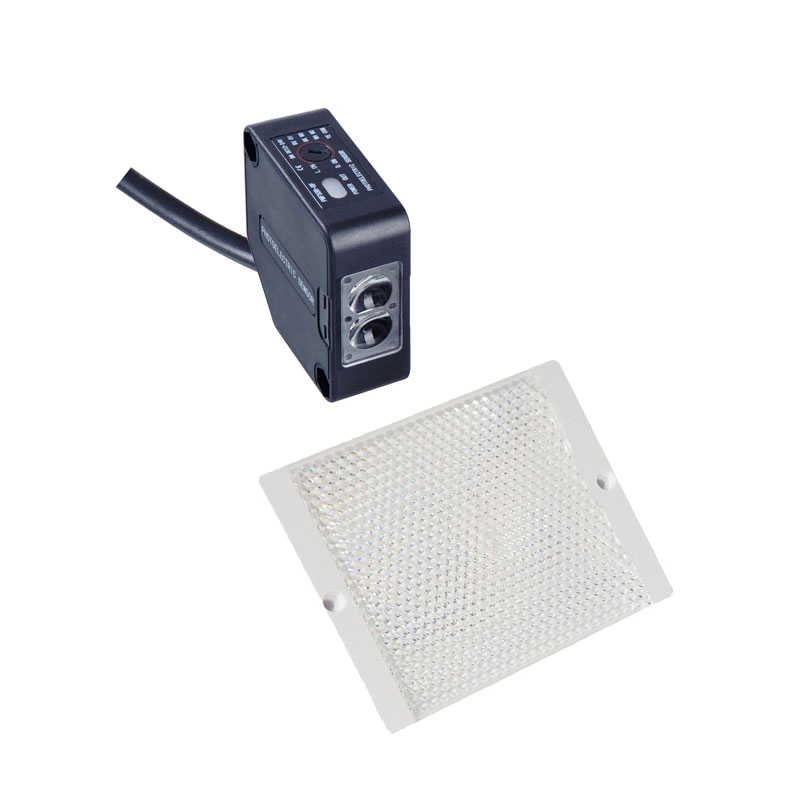

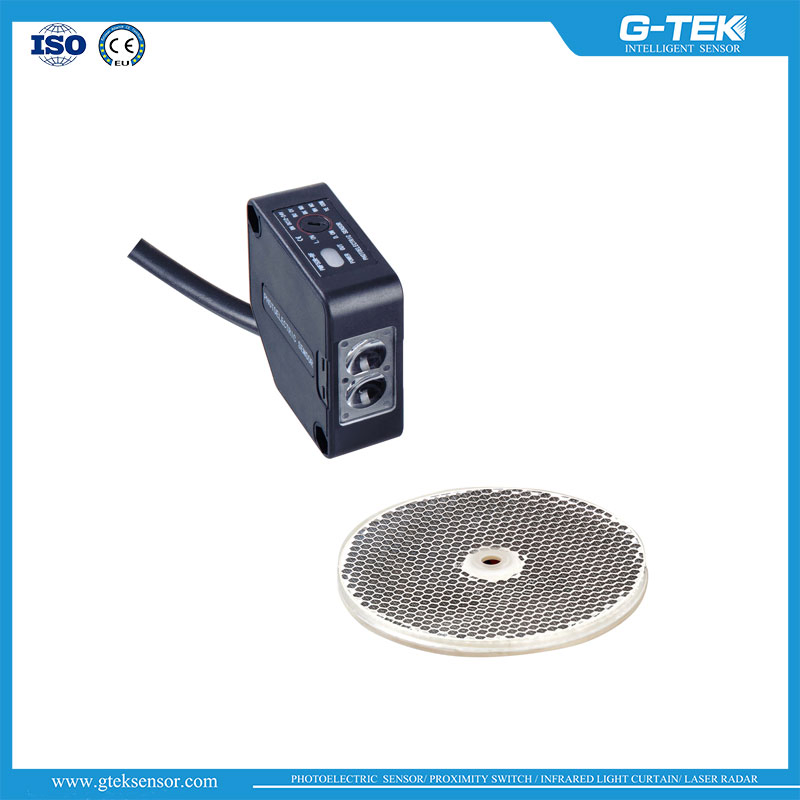

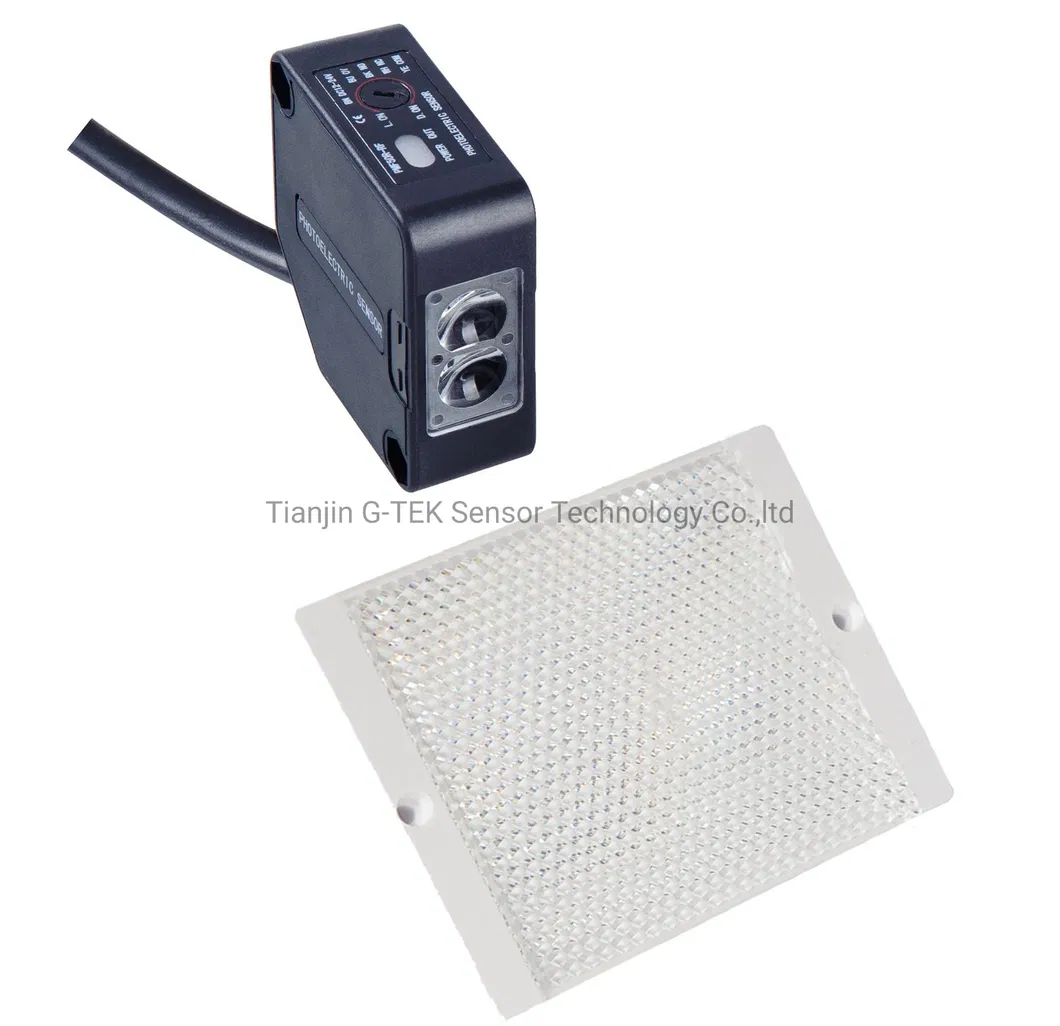

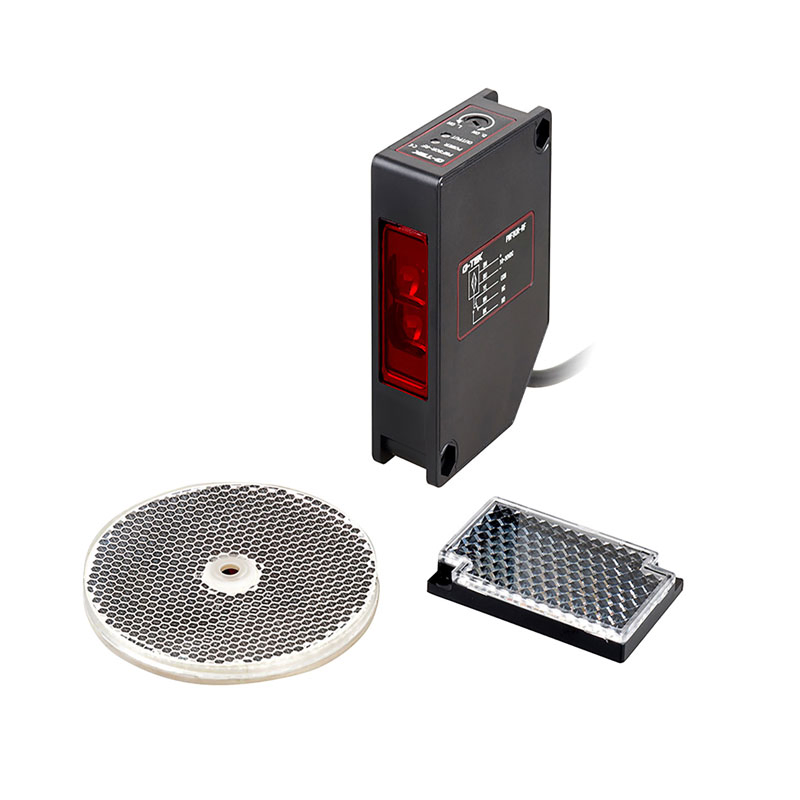

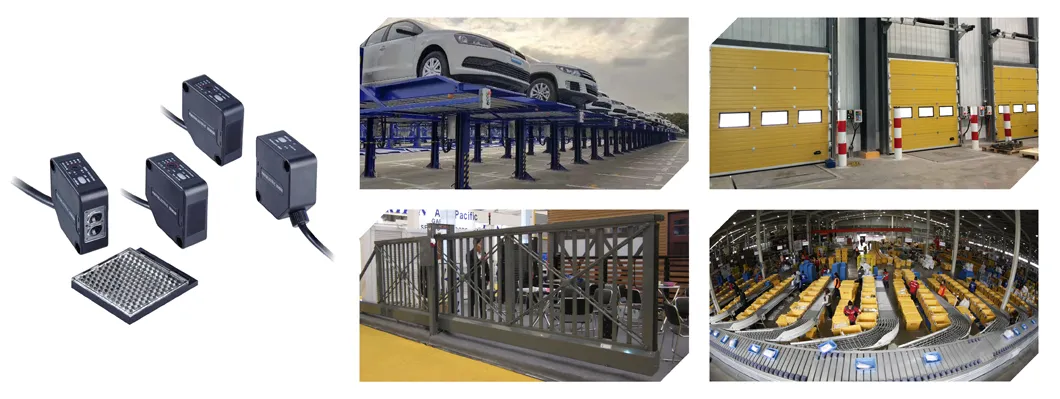

PMF50R retro-reflective photoelectric sensor is our one popular model used at industry door such as high speed door, roller shutter door, garage door and so on. There are different detection range can be selected as 7m, 12m and Supply voltage 10-30V DC & 12-240V DC/AC for selecting which can meet different demands of customers.

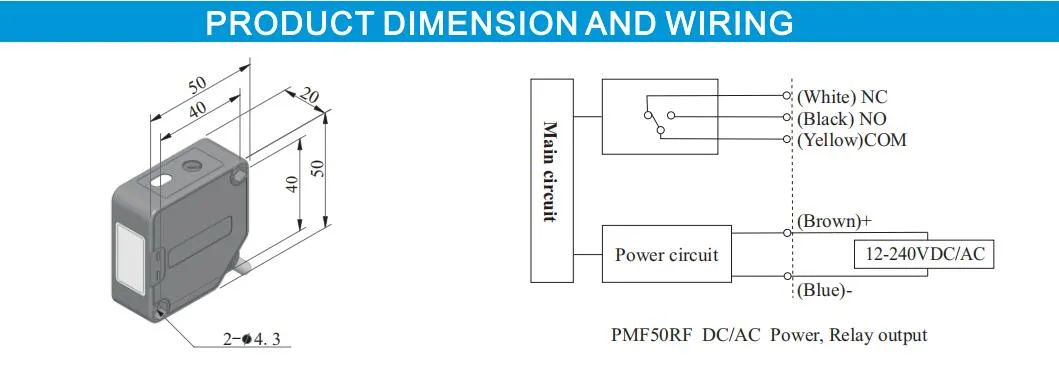

| Photoelectric sensor | PMF50RF-RF-2 |
| Detection Type | Retro-reflective |
| Detection Range | RP01:12m |
| Light Source | 630mm red LED |
| Supply Voltage | 12~240V DC/AC |
| Power consumption | Max.3VA |
| Response Time | Max.20ms |
| Control Output | Relay output,(contact rating: 30VDC 3A resistance load, 250VAC,3A resistance load,contact component: 1C) |
| Action | Light on/Dark on for selecting by potentiometer |
| Indicator | Power indicator: Green, Action indicator: Red |
| Protection circuit | Reverse polarity protection |
| Ambient lightness | Sunlight: Max.30000Lux fluorescent: Max.3000Lux |
| Ambient Temperature | -20~+65ºC(Non-freezing) |
| Ambient Humidity | 0~90%RH |
| Material | Housing:ABS,Lens:PMMA |
| Protection Rate | IP67 |
| Cable | Φ5, 5×0.2mm² 2m |
| Accessory | Bracket: IB02, Screw: M4×25 |
| Photoelectric sensor | PMF50R-RF-2 |
| Detection Type | Retro-reflective |
| Detection Range | RP01:12m |
| Light Source | 630mm red LED |
| Supply Voltage | 10-30 VDC |
| No-load Current | Max.60mA |
| Response Time | Max.20ms |
| Control Output | Relay output,(contact rating: 30VDC 1A resistance load, 120VAC,1A resistance load,contact component: 1C) |
| Action | Light on/Dark on for selecting by potentiometer |
| Indicator | Power indicator: Green, Action indicator: Red |
| Protection circuit | Reverse polarity protection |
| Ambient lightness | Sunlight: Max.30000Lux fluorescent: Max.3000Lux |
| Ambient Temperature | -20~+65ºC(Non-freezing) |
| Ambient Humidity | 0~90%RH |
| Material | Housing:ABS,Lens:PMMA |
| Protection Rate | IP67 |
| Cable | Φ5, 5×0.2mm² 2m |
| Accessory | Bracket: IB02, Screw: M4×25 |
| Photoelectric sensor | PMF50R-RF-2 |
| Detection Type | Retro-reflective |
| Detection Range | RP01:12m |
| Light Source | 630mm red LED |
| Supply Voltage | 10-30 VDC |
| No-load Current | Max.60mA |
| Response Time | Max.20ms |
| Control Output | Relay output,(contact rating: 30VDC 1A resistance load, 120VAC,1A resistance load,contact component: 1C) |
| Action | Light on/Dark on for selecting by potentiometer |
| Indicator | Power indicator: Green, Action indicator: Red |
| Protection circuit | Reverse polarity protection |
| Ambient lightness | Sunlight: Max.30000Lux fluorescent: Max.3000Lux |
| Ambient Temperature | -20~+65ºC(Non-freezing) |
| Ambient Humidity | 0~90%RH |
| Material | Housing:ABS,Lens:PMMA |
| Protection Rate | IP67 |
| Cable | Φ5, 5×0.2mm² 2m |
| Accessory | Bracket: IB02, Screw: M4×25 |
Tianjin G-TEK sensor technology co..ltd is indicated in providing intelligent sensor products and customized solutions for logistics automation, factory automation and process automation. The predecessor of the company is Tianjin G-TEK automation technology Co.,ltd, a professional sensor manufacturer and sensor solution provider, which was established in 2003 with business ranges from Proximity switch,photoelectric sensor,measurement and safety light curtain to Laser rangefinder sensor,laser radar., etc and serves for Intelligent buildings, intelligent transportation, logistics automation, factory automation and industry robot fields.

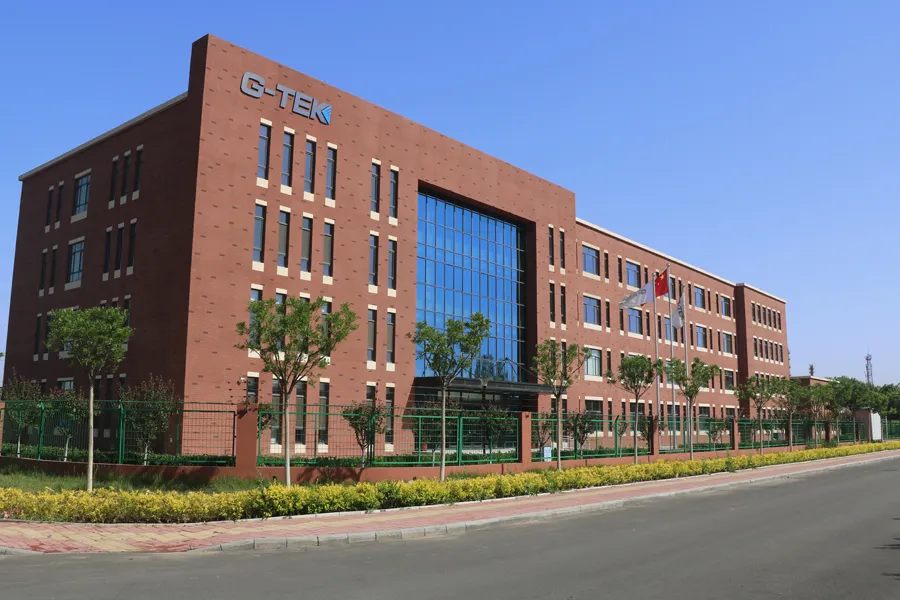

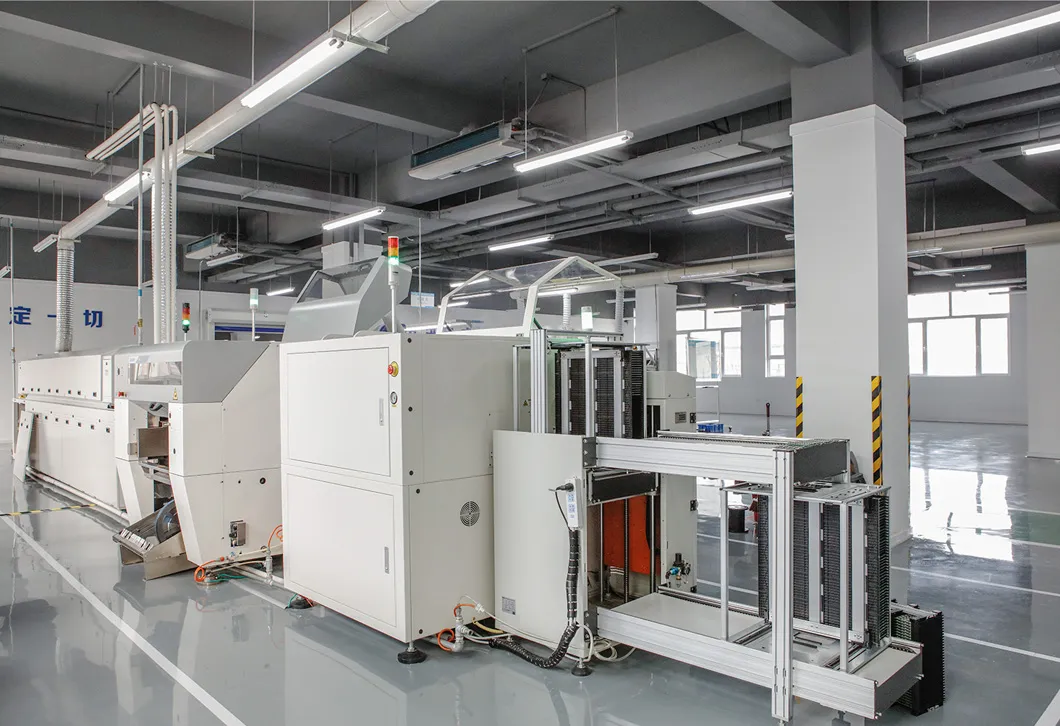

Tianjin G-TEK sensor technology co.,ltd was established in 2014 at Xiqing district , Tianjin City and it will fully inherit and expand the original G-TEK automation business with the construction and operation of the new R&D and manufacture base.
Q: What kind of products do you manufacture?
A: Our products includes photocell sensor, proximity switch, infrared light curtain, Vehicle separator, Loop detector and laser radar.,etc.
Q: Can I get some samples?
A: Yes, Sample orders are welcomed.
Q: Have photocell sensors 100% assembled well in stock?
A: We have some standard photocell sensors in stock with limited quantity; While
almost all photocell sensors will be newly produced according to your order.
Q: What is the delivery time?
A: 15-30 days for mass production depends on different products
Q: What is your MOQ?
A: We provide small MOQ for each item; it depends on your specific order.
Q: Do you have customization service?
A: Yes, We can provide customized products while the customization needs to meet certain quantity.
Q: Do you test all goods before delivery?
A: Yes, We have 100% test before delivery.
Q: What is your payment term?
A: We usually use 100% T/T in advance; West union and Paypal are also available for small order.
11
Q: Do you provide warranty for the goods?
A: Yes, We provide warranty for all the goods from us. For the sensor product the warranty is 15 months, For the light curtain , laser radar product the warranty is 18 months.
Q: May I visit your factory?
A: Sure, You are always welcome to visit us.
