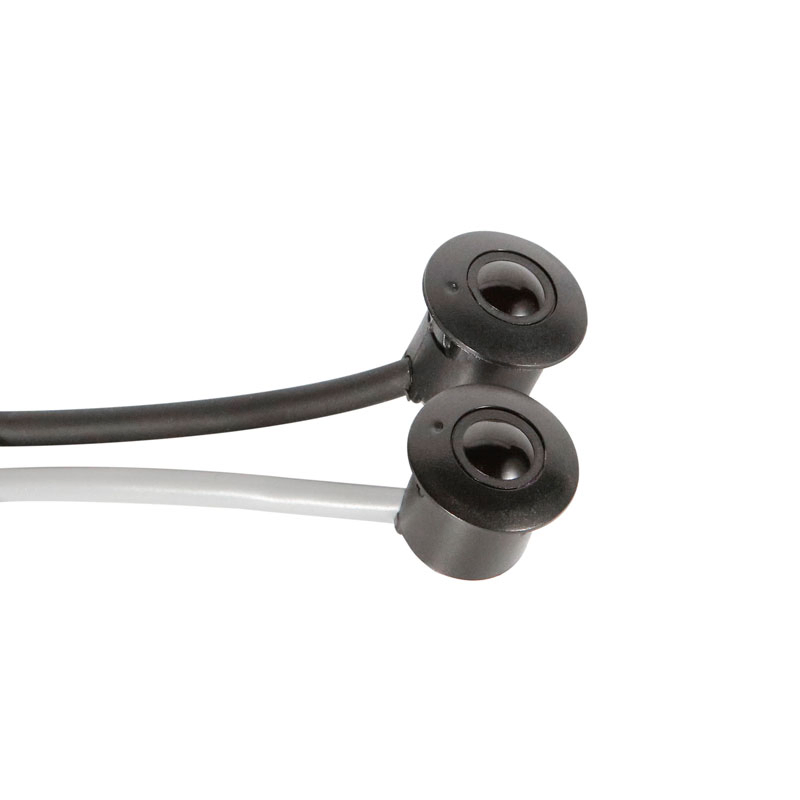

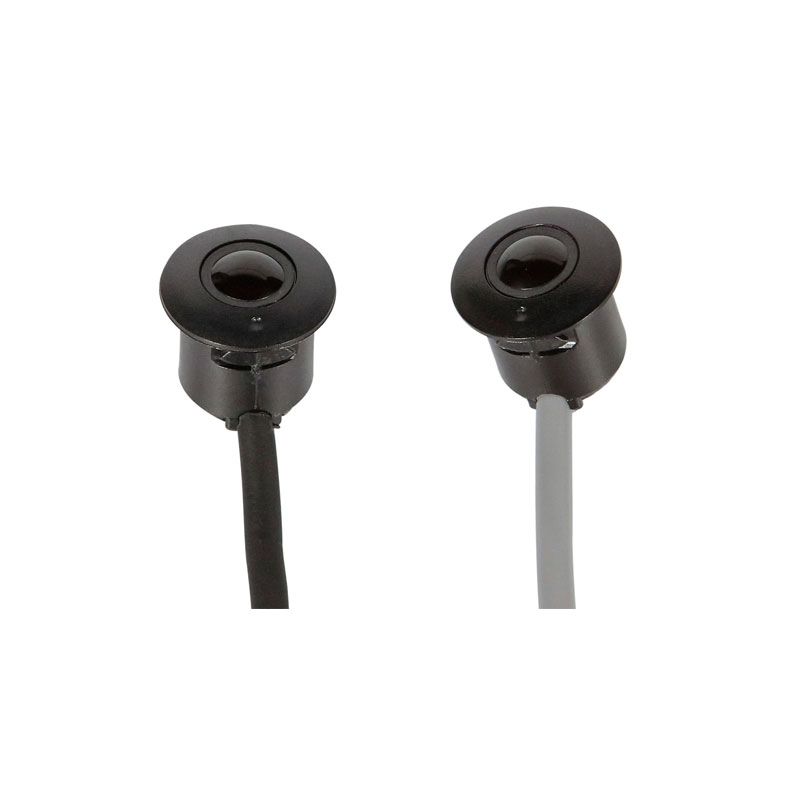

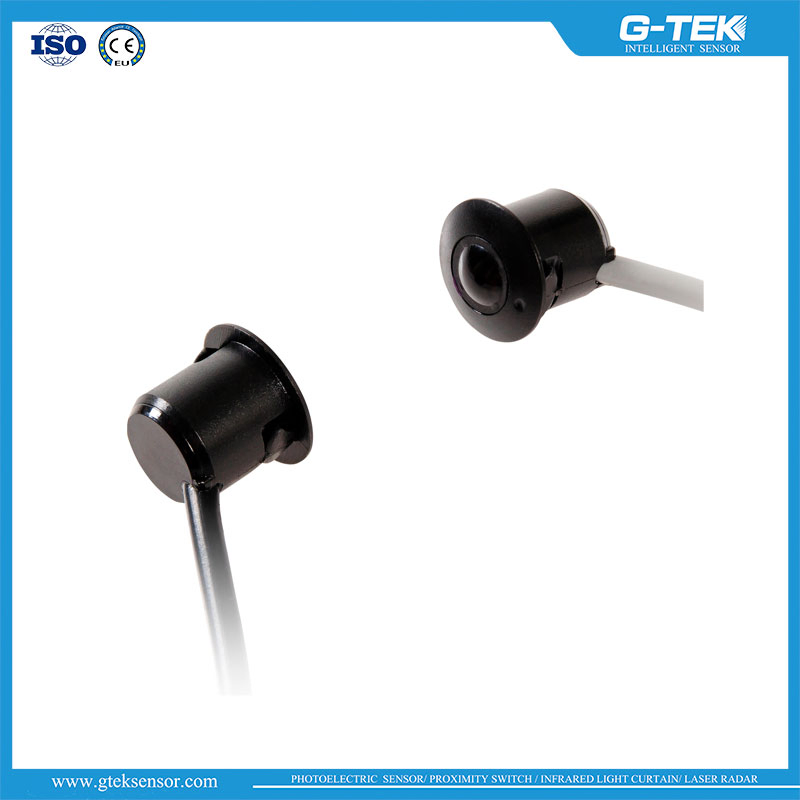

PNP Infrared Plastic Photoelectric Sensor for Optical Waist Height Turnstiles
Product DescriptionPT12T Series is also one of the most popular products in our company and between our customers. It can be used for many application, , such as industrial and commercial doors, rolling door, sliding doors, hermetic medical door, retail store gates, flap/swing barrier turnstile gate......
Send Inquiry
Product Description
| Product Parameters | ||
| Photoelectric sensor | PT12T/V | |
| Detection type | Opposed type | |
| Detection object | MinΦ20mm opaque object | |
| Detection distance | 10m | |
| Supply voltage | 10-30v DC | |
| No-load current | Emitter | Max. 12mA |
| Receiver | Max. 3mA. | |
| Response time | Max.4.4ms (connecting: 2.2ms; cutting down:2.2ms) | |
| Light | 850nm infrared(modulated) | |
| Action Mode | Selecting light on /dark on by product model | |
Control output | NPN open collector,load voltage: Max.30VDC, load current : Max.150mA,voltage drop: Max.1.5VDC;PNP open collector,output voltage: Ue-1.5V,load current: Max.150mA; | |
| Indicator | Action indicator: Red | |
| Protection circuit | Reverse polarity ,short circuit protection | |
| Anti-interference | ±2KVanalog square wave interference(pulse width: 15ms) | |
| Ambient brightness | Sunlight: Max.100000lux Fluorescent: Max.5000lux | |
| Ambient temperature | -20ºC~60ºC (No-freezing),Storage: -25ºC~70ºC | |
| Ambient humidity | 0~90%RH | |
| Housing material | Housing: ABS Cable: PVC | |

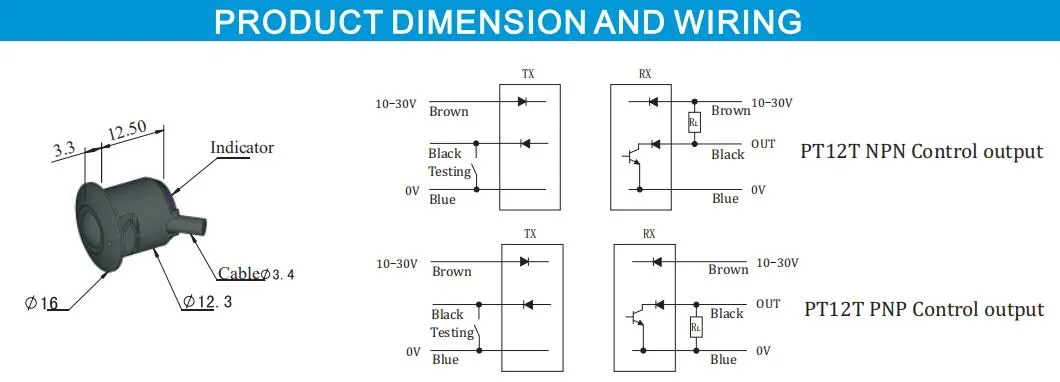

| Shape and size | As dimension | |
| Cable | Emitter: Black, Receiver: Grey Φ3.4mm²; 3×0.12mm² | |
| Protection rating | IP67 (IEC) | |
| Model | ||
| Installation | Product Model | Detection Distance |
Opposed type | PT12T-10M-ND | 10m |
| PT12T-10M-NL | 10m | |
| PT12T-10M-PD | 10m | |
| PT12T-10M-PL | 10m | |
| PT12V-10M-ND | 10m | |
| PT12V-10M-PD | 10m | |

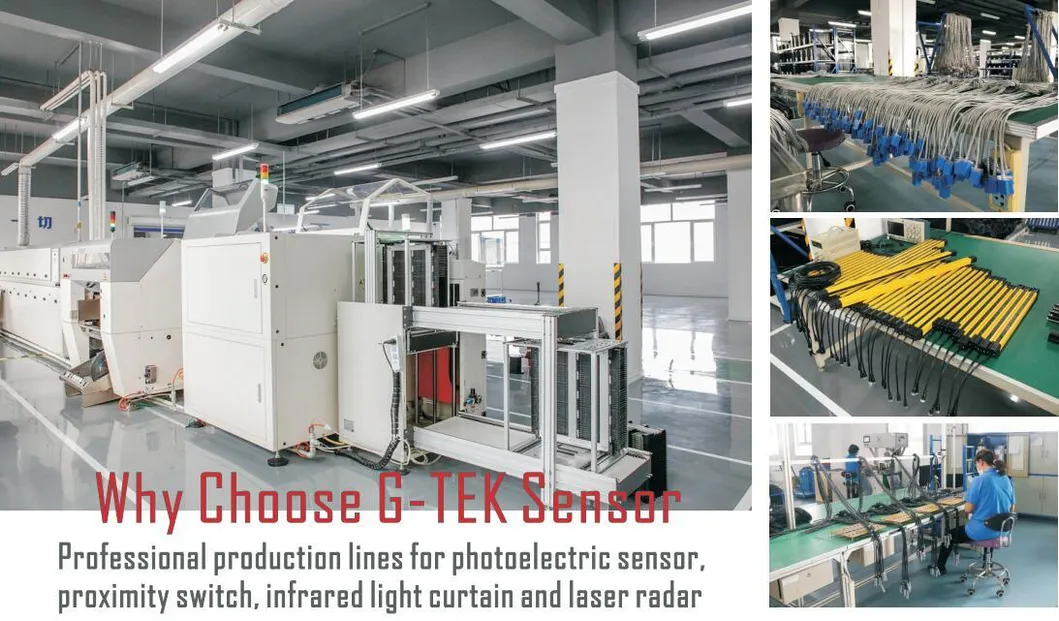

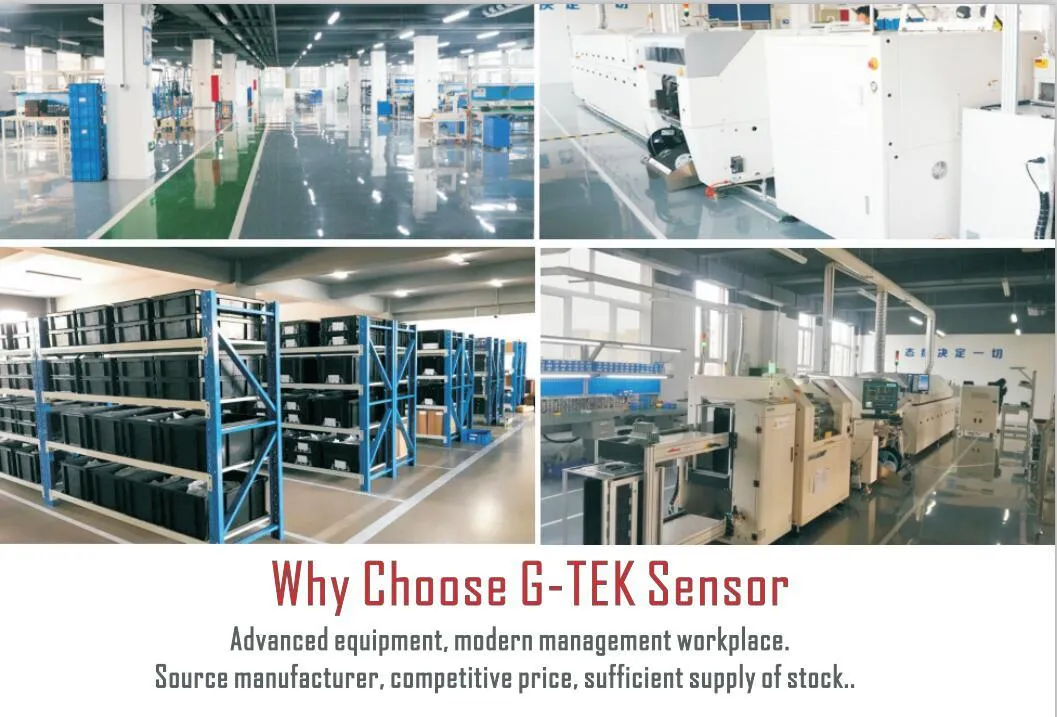

- Being professional:20years experience in manufacturing and professional R&D team
